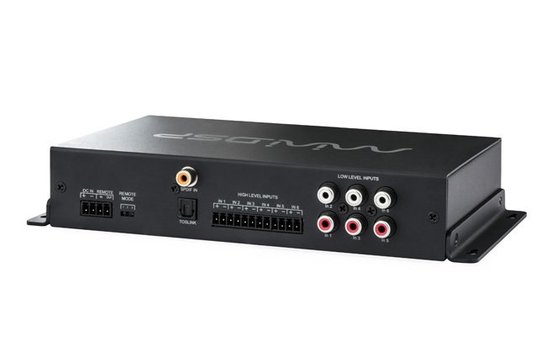

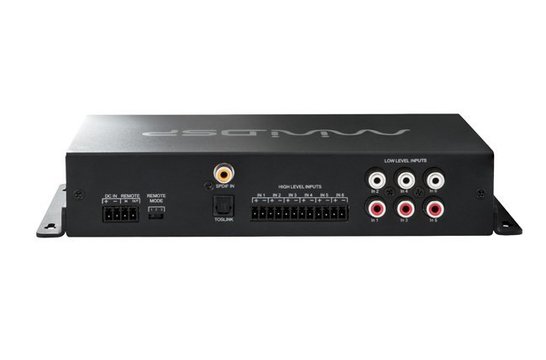

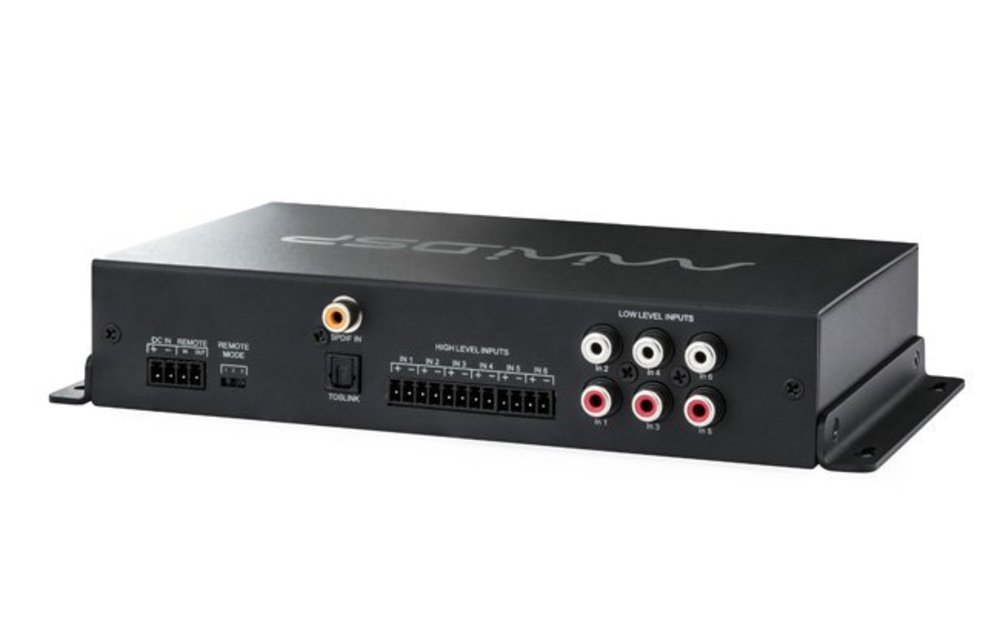

    miniDSP C-DSP 8x12 Boxed Digital Audio Processor for Mobile/Car audio

    Productomschrijving

    Premium Digital Audio Processor for Mobile/Car audio installations, 32bit floating point SHARC ADSP21489 @ 400MHz, 8x12 I/O, Remote for Preset/Master & Sub volume control.



    Highlights

    • 400MHz 32bit Sharc Floating point processor, Up to 192kHz processing

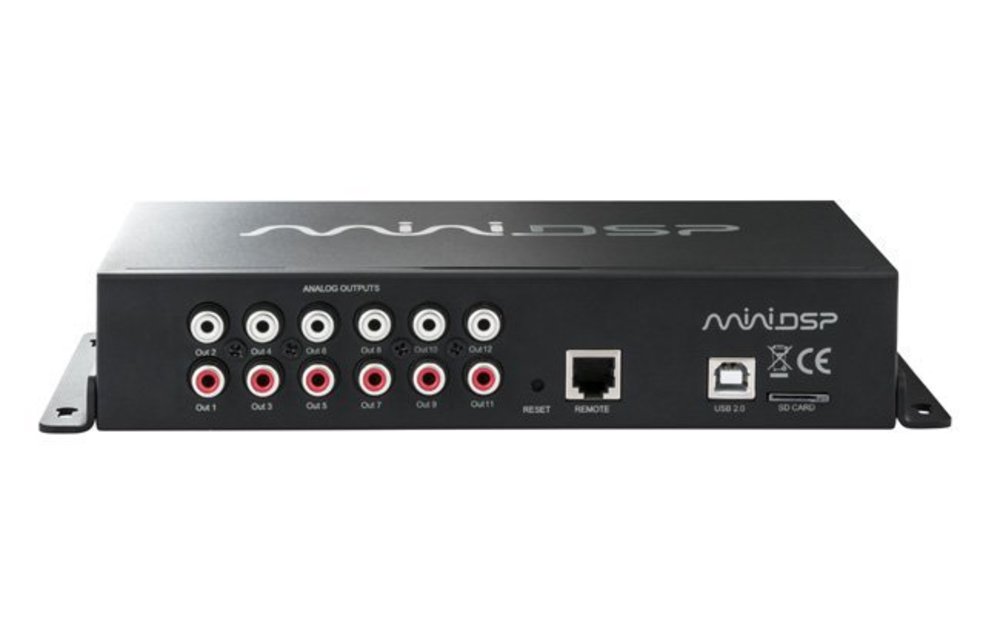

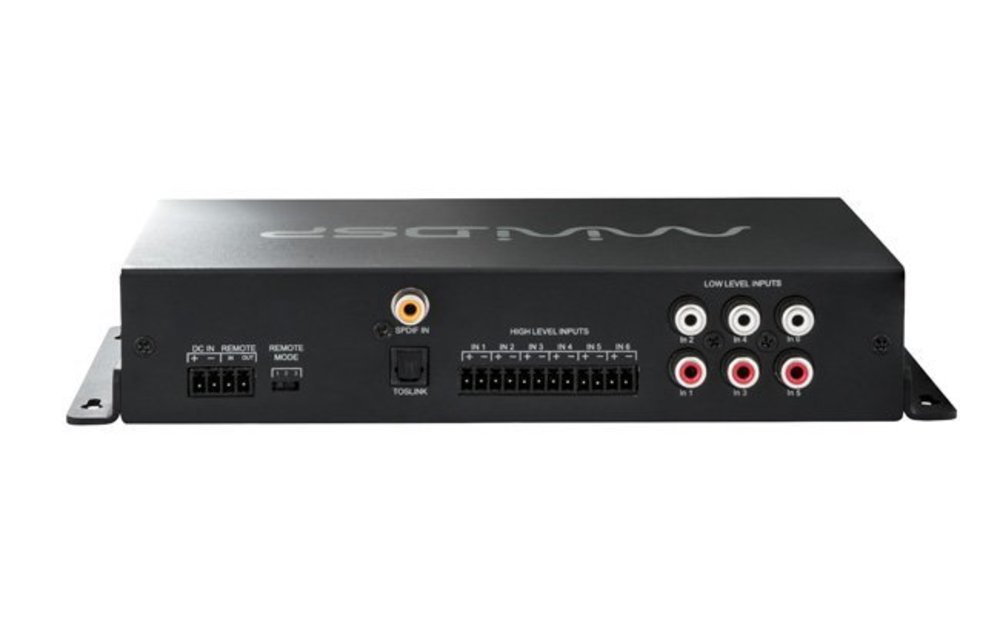

    • Digital and analog inputs (Low/High levels), 12 analog outputs
    • Flexible DSP processing blocks, Rear Fill processing (L-R, L+R..) thanks to internal matrix
    • Windows/Mac compatible GUI
    • Remote control or preset/master & sub volume control



    Product details

    miniDSP C-DSP 8x12 Digital Signal Processor for Mobile/Car audio

    Note: This product comes with a coupon (€9,50) for one free miniDSP plugin download.

    The C-DSP 8x12 is miniDSP’s next-generation processor for high-end mobile/car audio. The powerful 400 MHz SHARC floating-point processor provides pristine high-resolution audio at internal sample rates up to 192 kHz. With a wealth of inputs and outputs in a compact, rugged enclosure, the C-DSP 8x12 is suitable for installations from simple stereo, through surround systems with subwoofer integration, up to advanced multichannel active systems.



    The driverless USB interface is used to configure miniDSP’s powerful but easy-to-use audio processing: parametric EQ on all inputs and outputs, compressors and adjustable time delay on all outputs, crossovers up to 48 dB/octave, and an advanced matrix mixer. Four complete processing configurations are stored in flash memory for instant recall with a wired or infrared remote.

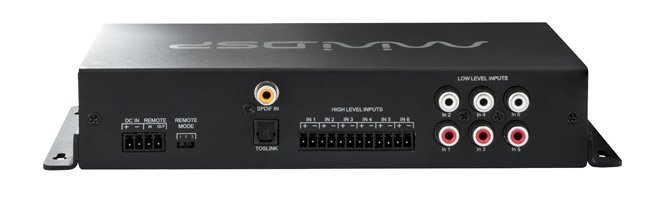

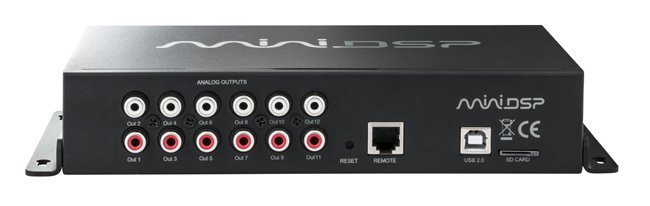

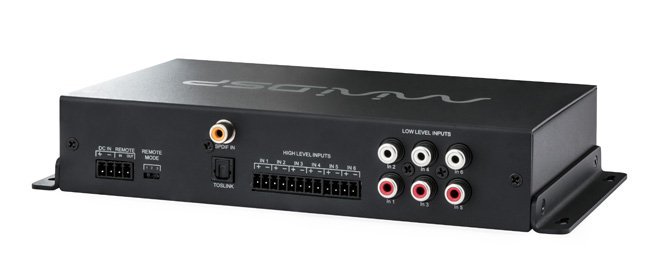

    Hardware features dedicated to the vehicle environment include an on-board isolated power supply, remote trigger input/output, a wired remote for dash or console mounting, and a microSD card slot for offline configuration and firmware updates.



    Documents



    What's in the box?

    • 1 x C-DSP 8x12 DSP processor
    • 1 x USB cable
    • 1 x remote unit
    • 1 x 5m long remote cable
    • 1 x Coupon code for miniDSP plugin download.

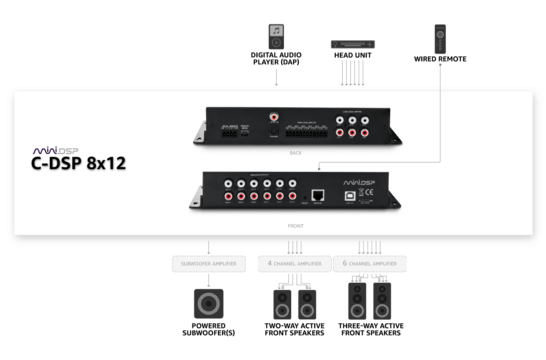

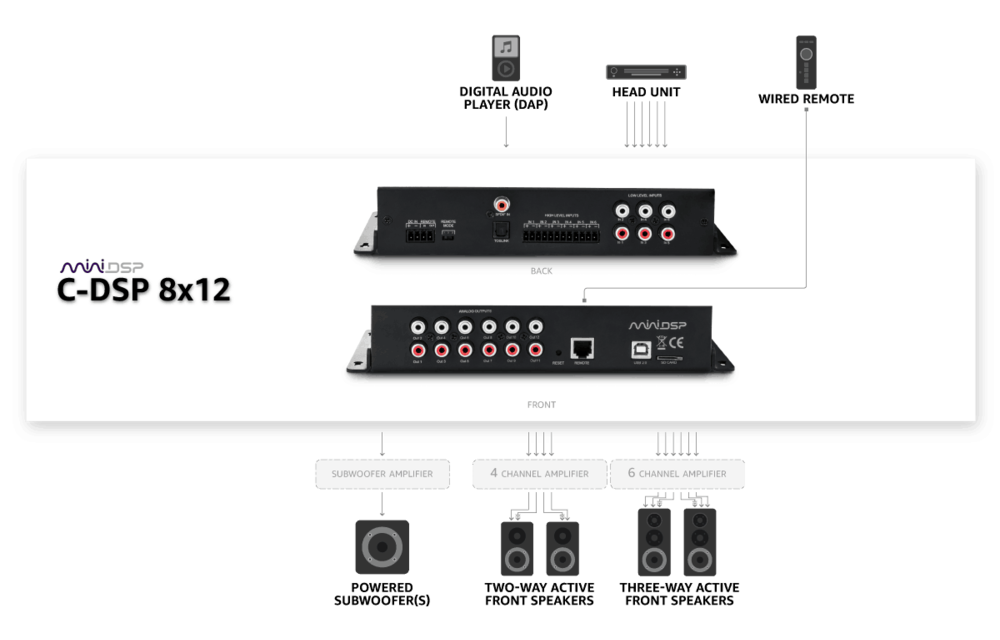

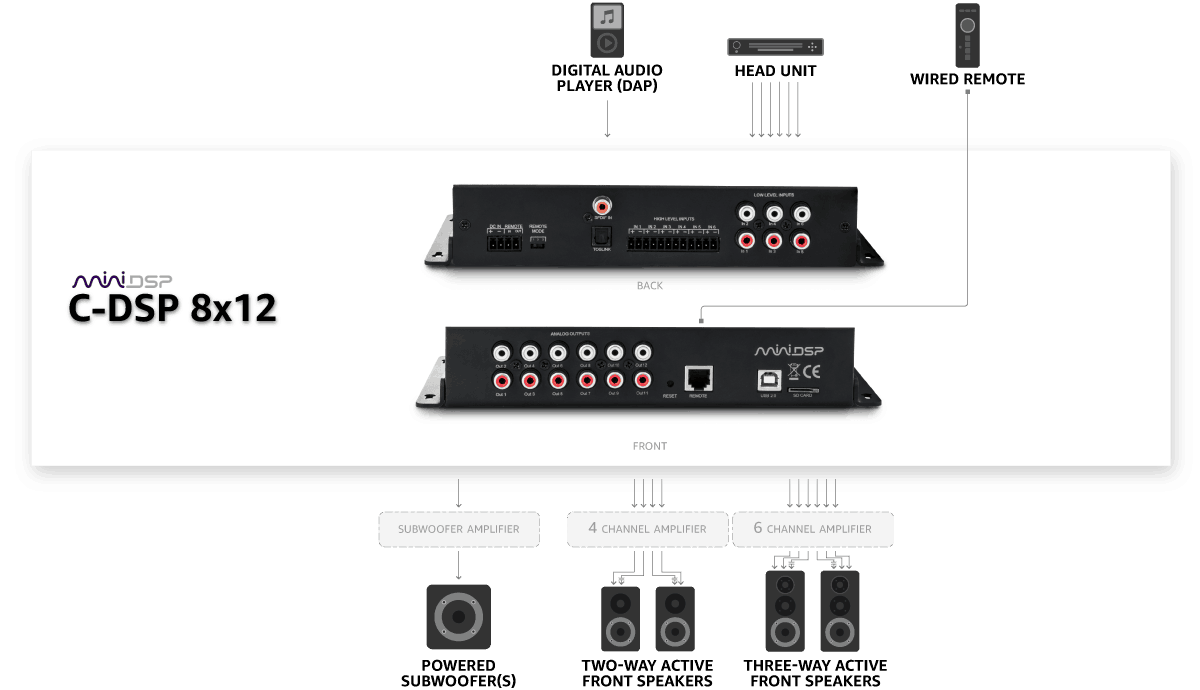

    Typical Application





    Mechanical Specifications



    Specificaties

    Artikelnummer
    C-DSP 8x12 Boxed
    Apparaattype
    Boxed
    Apparaatserie
    Car Audio DSP
    DSP-chip
    Analog Devices ADSP21489
    Verwerkingsresolutie & sample rate
    32 bit / 192 kHz
    ingangs- / uitgangsconfiguratie
    8 / 12
    Ingangsconnectie
    High level (terminal block), low level (RCA), Toslink, SPDIF (RCA)
    Uitgangsconnectie
    RCA
    Maximaal ingangsignaal
    8 / 12 Vrms (high level)
    2 /4 Vrms (low level)
    Maximaal uitgangsignaal
    6 Vrms
    Ingangsimpedantie
    68 ohms (high level / 10k ohms (low level)
    Uitgangsimpedantie
    560 ohms
    Kalibratiesoftware
    miniDSP C-DSP 8x12 plug-ins
    IIR
    check
    FIR
    check
    Dirac Live®
    -
    DSP-presets
    4
    Impulsresponscorrectie
    check
    Infrarood
    check
    Windows / Mac compatible
    check/check
    UMIK-1 inbegrepen
    -
    Room EQ wizard (REW) ondersteuning
    check
    Afmetingen
    205 x 122 x 41 mm
    Voeding
    Isolated DC-DC conversion for 12V Car Audio environment
