- Self-contained module, no need for additional circuits
- Up to 1000W into 2.7 Ω
- Extended but user friendly control interface
- DC hanger output for 300A1 or 300A2 modules
- Universal mains operation (100-240 V, 50-60 Hz)
- Standby power consumption 0,15 watt @ 230 V
- ErP and Energy Star®v3.0 compliant

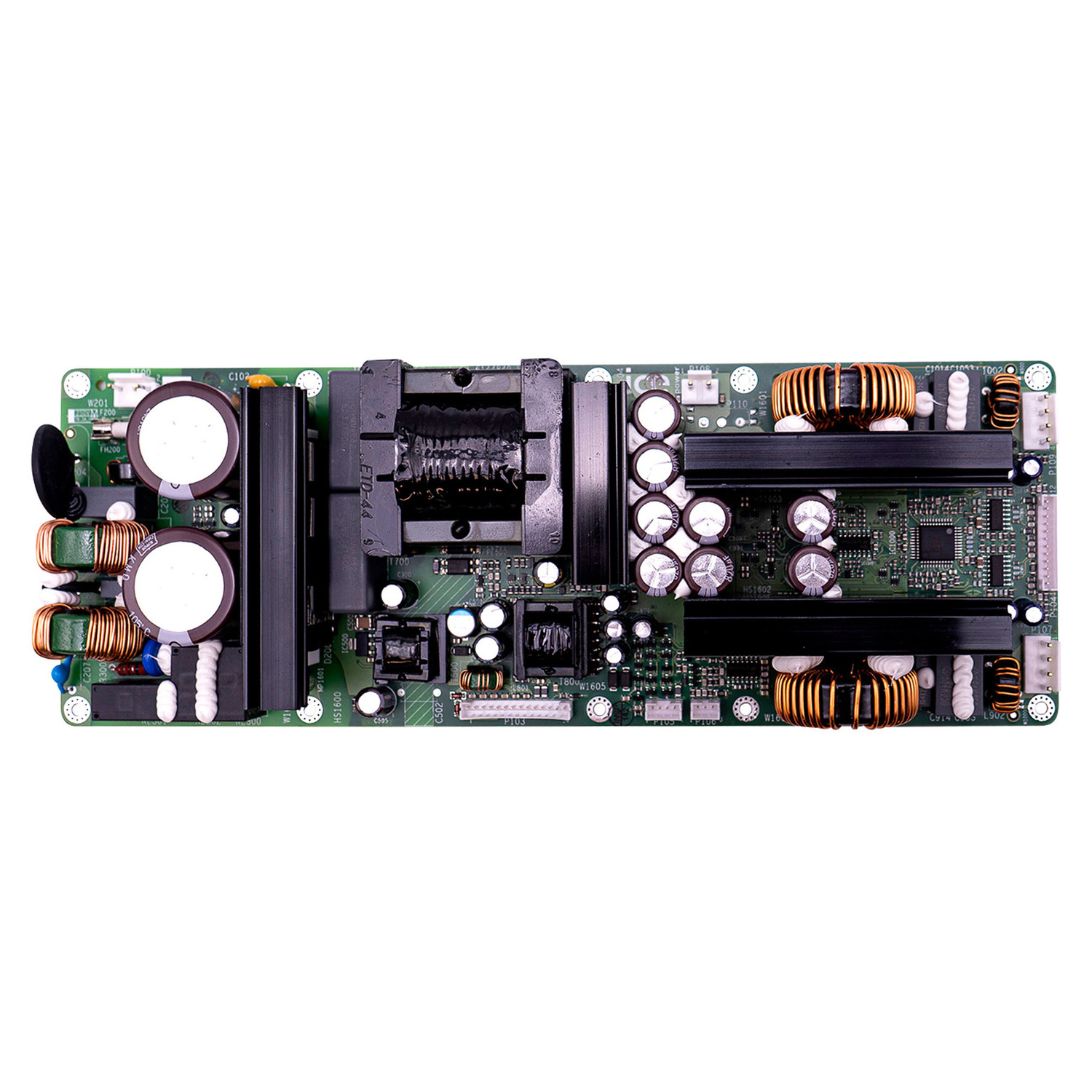

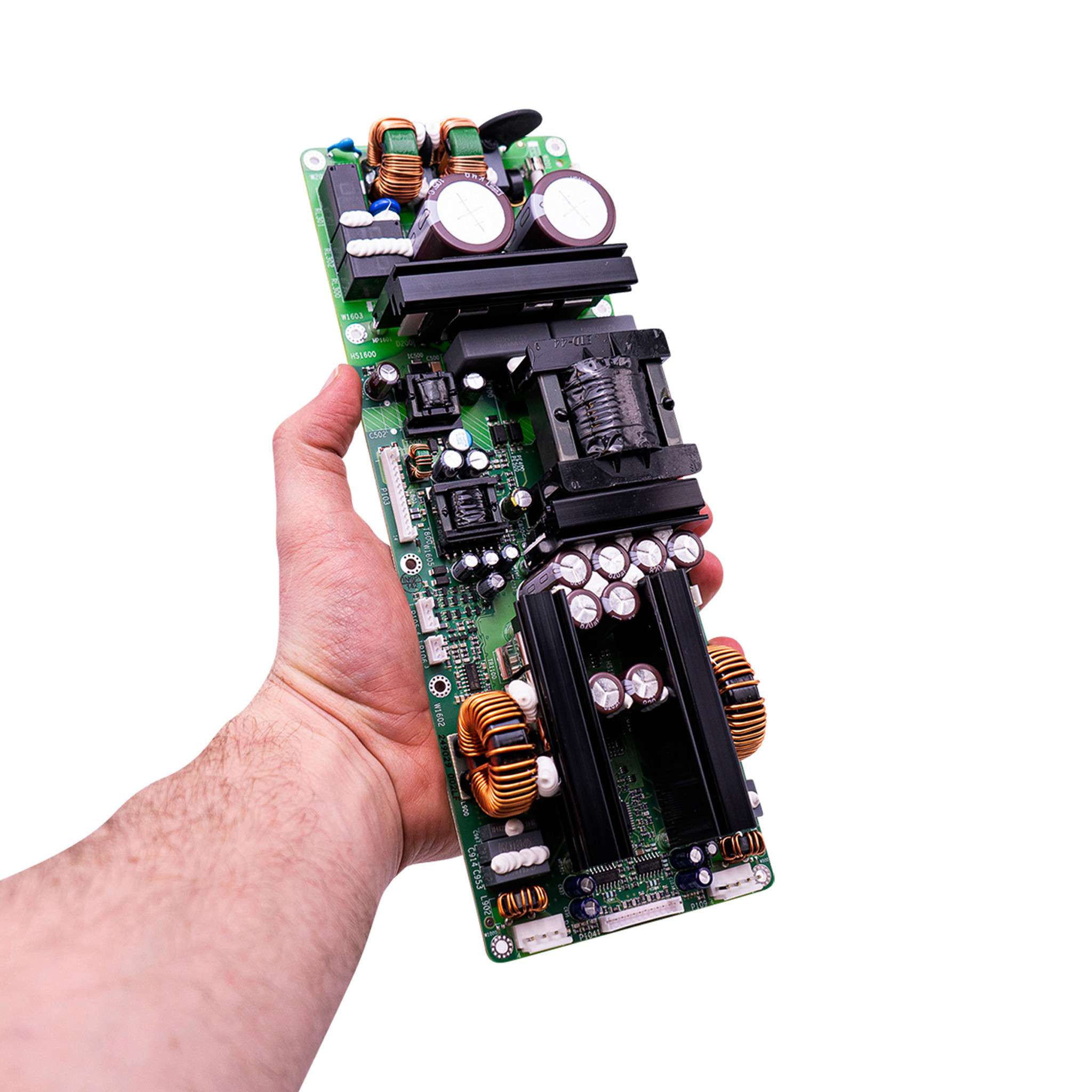

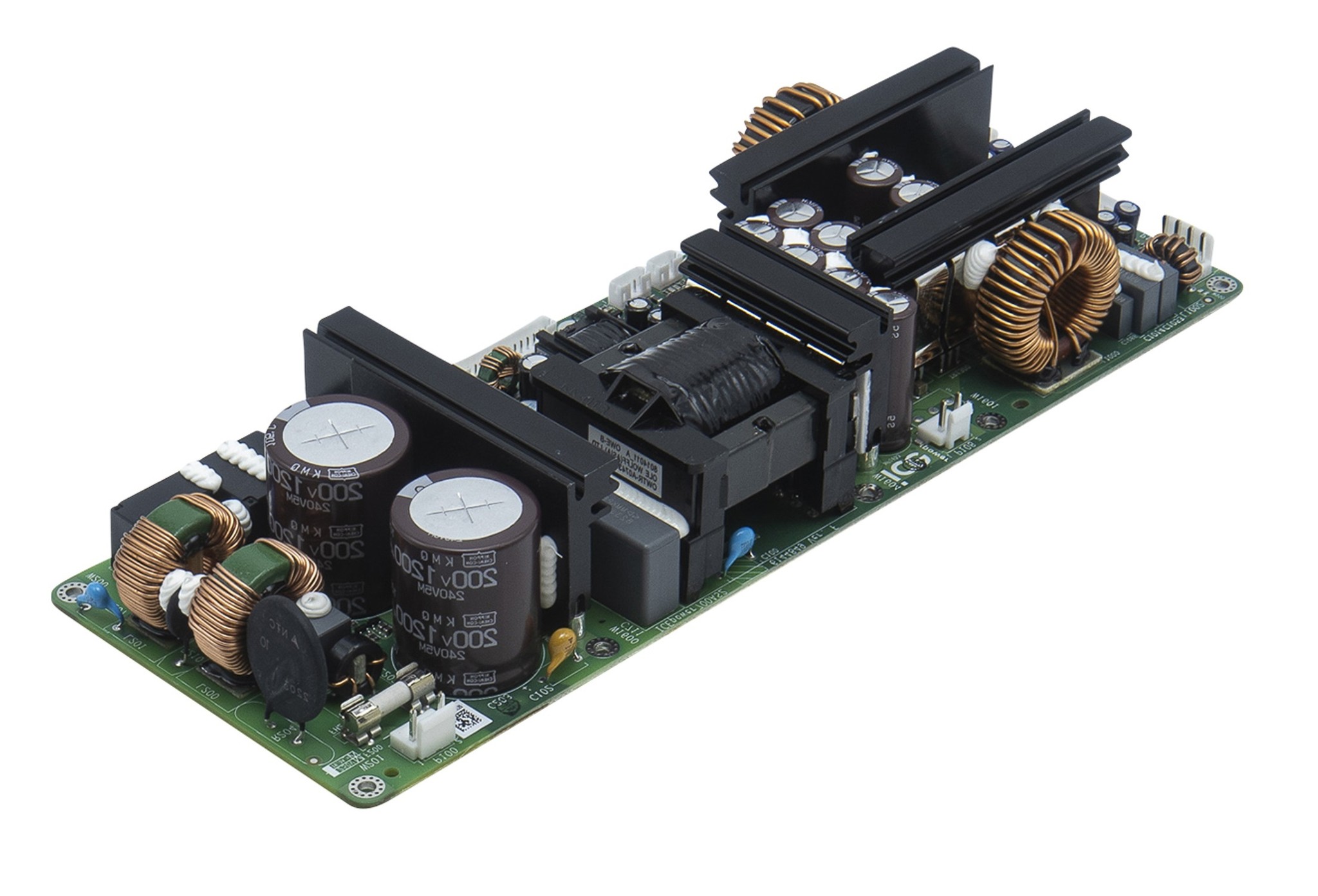

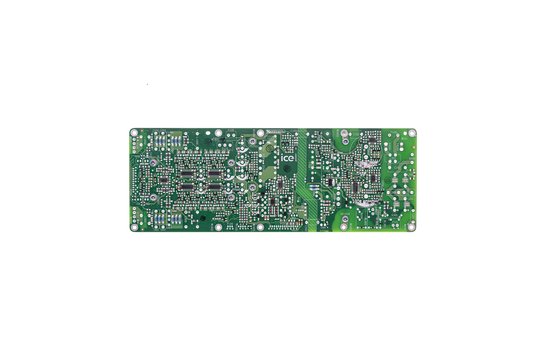

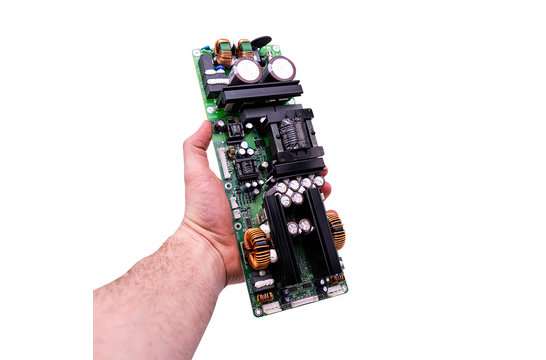

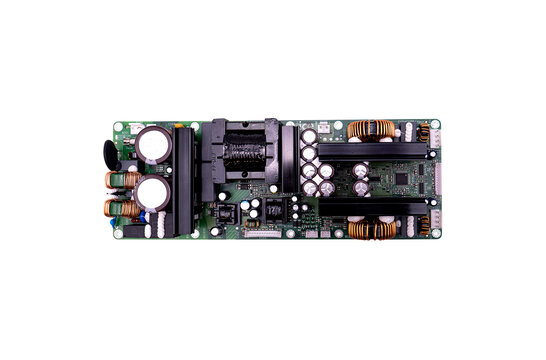

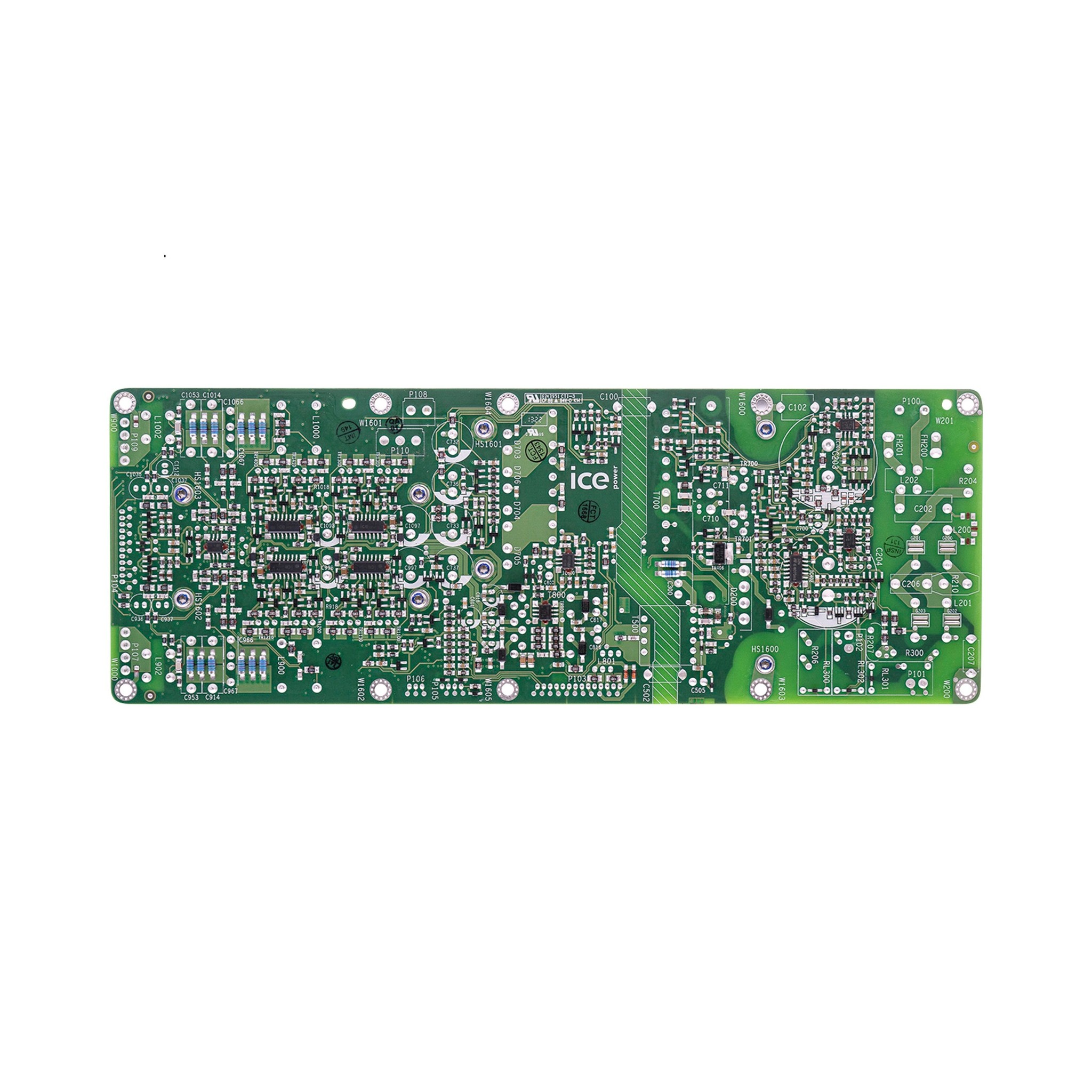

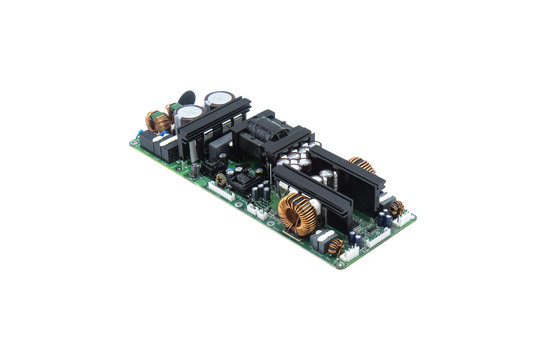

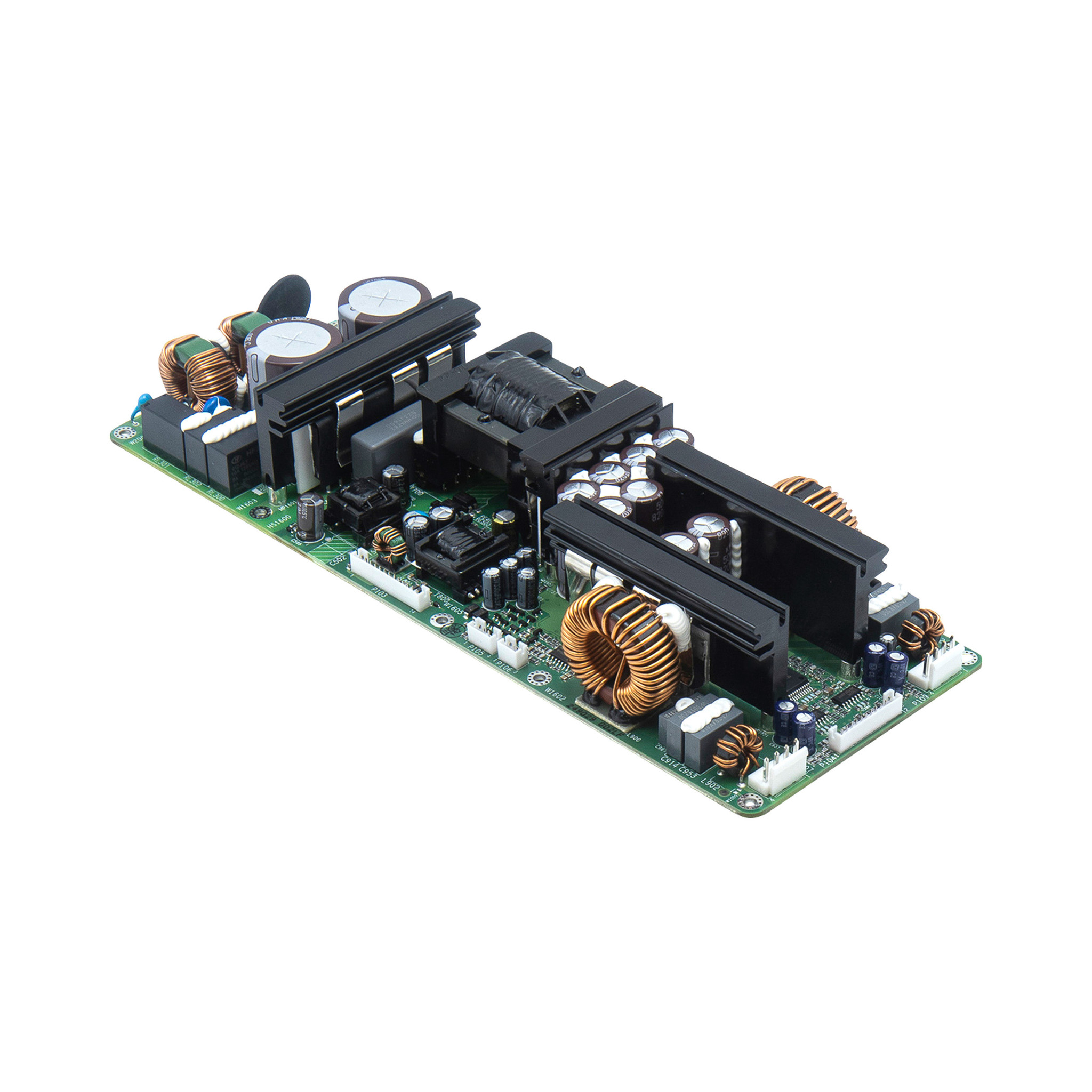

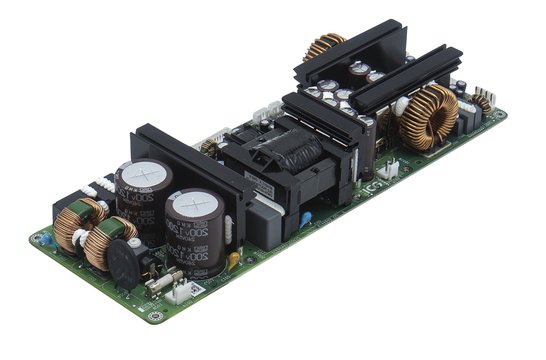

ICEpower 700AS2 Amplifier Module with Integrated Power Supply
The 700AS2 combines a great sounding dual channel ICEpower class D amplifier with a very capable LLC power supply. This module is one of the most versatile and powerful platforms from our amplifier module category. The ability to handle low impedances means the 700AS2, despite its name, is capable of a solid 1000 watts per channel into 2.7 Ω loads. The ability to power a 300A1 hanger amplifier, also makes it great for 3-way active HiFi and professional speakers.
The capable supply, together with the protection circuits make this modules fit for high continuous power demands. On the functionality part nothing is left out: There are 3V - 5V and 12V trigger plus signal sense inputs available. The 5.1 VDC and 15 -/+VDC auxiliary outputs allow you to connect other circuits like DSP’s, pre-amplifiers or streaming modules with ease. The 43 VDC hanger bus can forward the supply rails to a 300A1 module, allowing to build your own 3-channel amplification solution. The included cable set gives access to all these cool features.
This fully integrated, compact and efficient power amplifier solution supports universal mains operation and complies to ErP and Energy Star® requirements. The ICEpower 700AS2 is designed for highly competitive consumer and professional audio products ranging from subwoofers and active speakers to A/V amplifiers and multi-way systems. This module is EMC and safety pre-approved, including the amplifier hanger options. There is also a single channel version available; check out the ICEpower 700AS1.

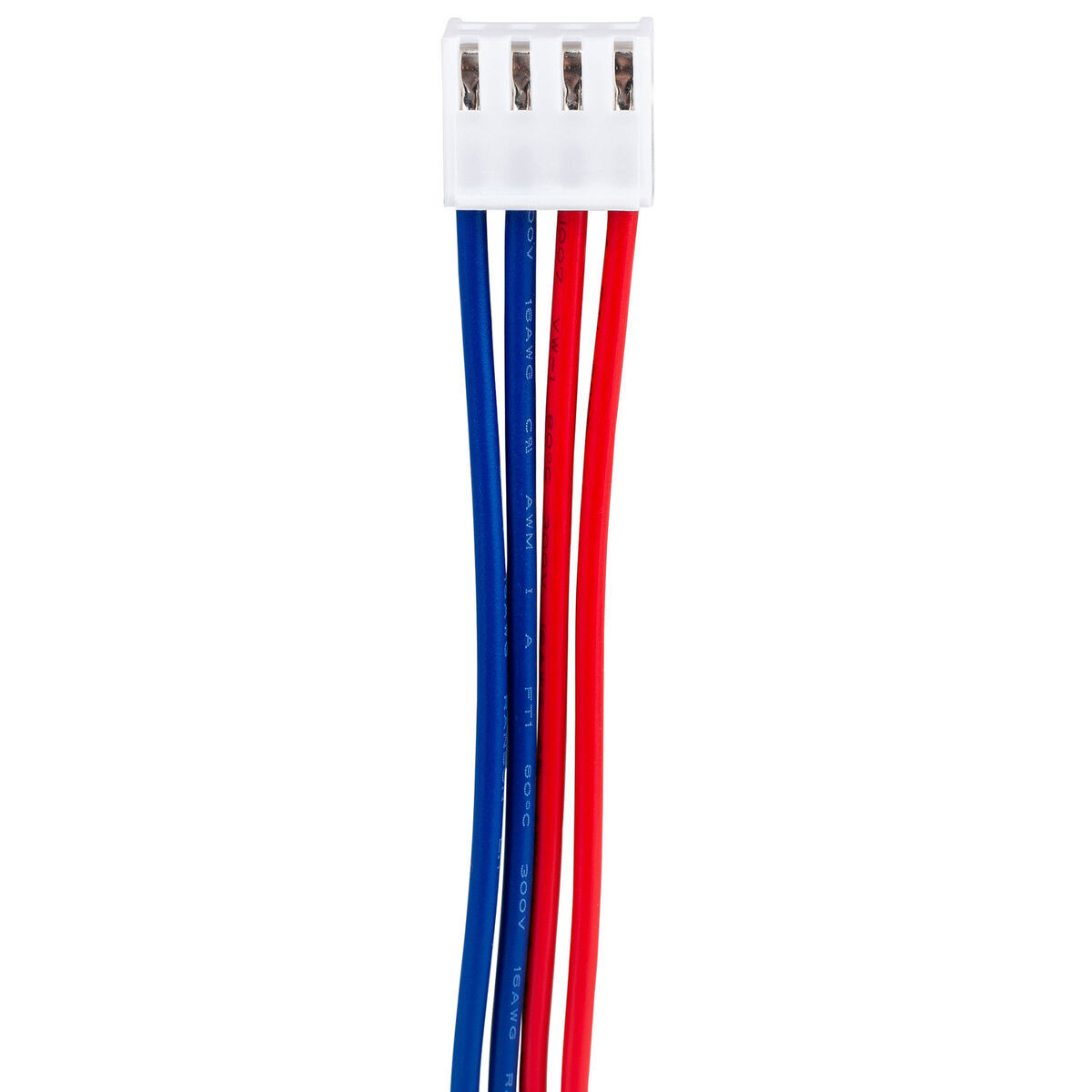

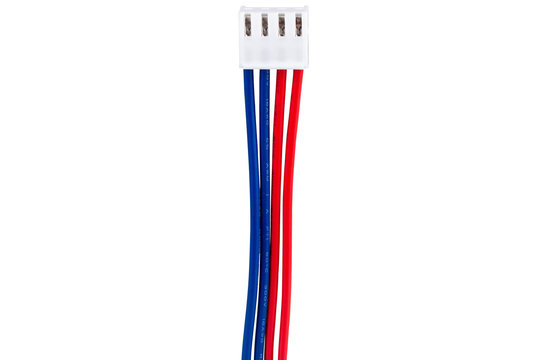

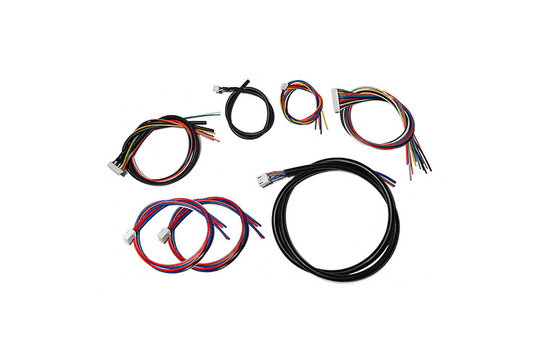

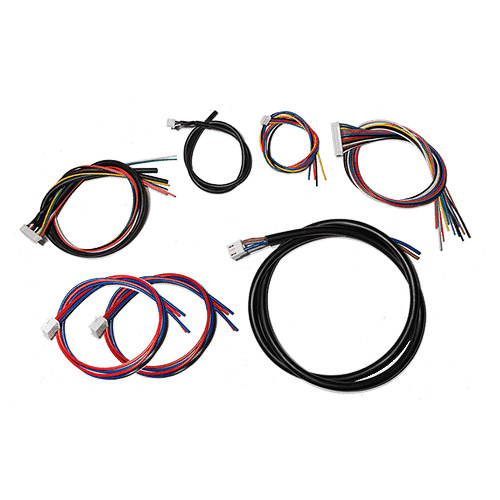

The included cable set gives access to all the functions of the 700AS2 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.
What’s In The Box?
- 1 x 700AS2 Amplifier Module with Integrated Power Supply
- Cable set:
- 1 x (K) Mains without Earth
- 2 x (G) Speaker 700AS
- 1 x (RR) Signal Sense 700AS
- 1 x (SAA) Signal 700AS2
- 1 x (JAA) AUX 700AS2
- 1 X (YA) 12V Trigger + LED output
