    ICEpower 700AS1 Amplifier Module with Integrated Power Supply

    € 206,57€ 249,95 2 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €237,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd
    • Gratis verzending vanaf €99
    • In-house technische support
    Heeft u vragen over dit product?

    Heeft u vragen over dit product?

    Onze klantenservice helpt u graag verder!

    Productomschrijving

    Highlights

    • Self-contained module, no need for additional circuits
    • Up to 1000W into 2.7 Ω
    • Extended but user friendly control interface
    • DC hanger output for 300A1 or 300A2 modules
    • Universal mains operation (100-240 V, 50-60 Hz)
    • Standby power consumption 170 mW @ 230 V
    • ErP and Energy Star®v3.0 compliant



    Product details

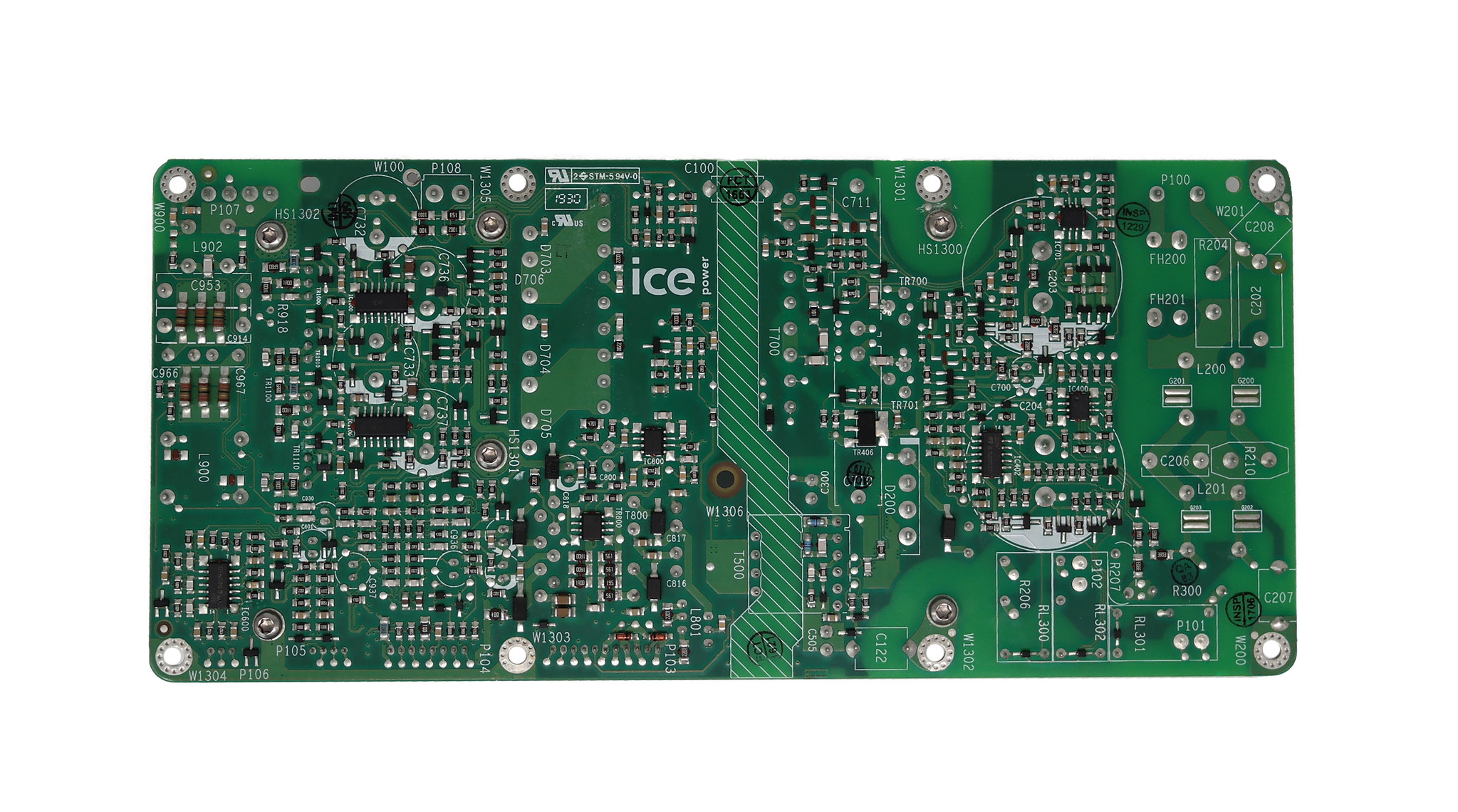

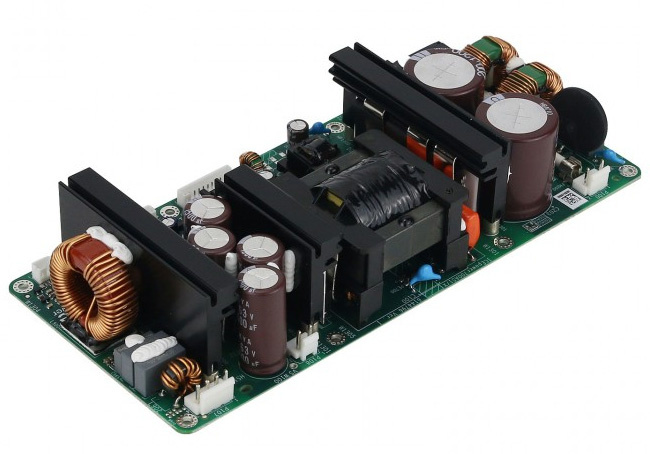

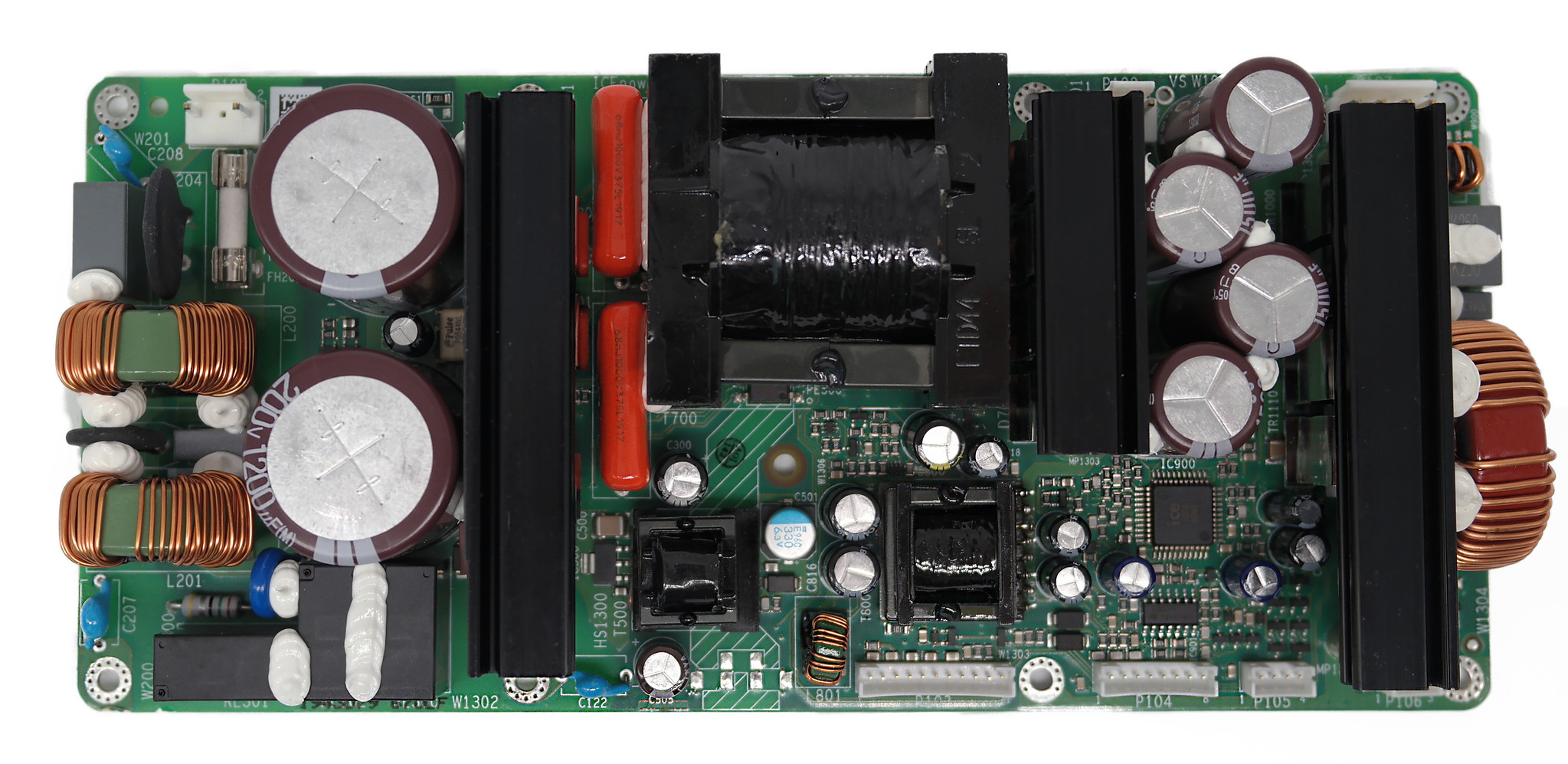

    ICEpower 700AS1 Amplifier Module with Integrated Power Supply



    The 700AS1 combines a great sounding single channel ICEpower class D amplifier with a very capable LLC power supply. This module is one of the most versatile and powerful platforms in our amplifier module category. The ability to handle low impedances means the 700AS1, despite its name, is capable of a solid 1000 watts into 2.7 Ω loads. Perfect for subwoofers and bass amplifiers. The ability to power up to two 300A1 hanger amplifiers, also makes it great for 2-, 3-way active HiFi and professional speakers.



    The capable supply, together with the protection circuits make this modules fit for high continuous power demands. On the functionality part, nothing is left out: There are 3V - 5V  and 12V trigger and signal sense inputs available. The 5.1 VDC and 15 -/+VDC auxiliary outputs allow you to connect other circuits like DSP’s, pre-amplifiers or streaming modules with ease. The 43 VDC hanger bus can forward the supply rails to 300A1 modules, allowing to build your own 2-channel or 3-channel amplification solution. The included cable set gives access to all these cool features.



    This fully integrated, compact and efficient power amplifier solution supports universal mains operation and complies to ErP and Energy Star® requirements. The ICEpower 700AS1 is designed for highly competitive consumer and professional audio products ranging from subwoofers and active speakers to A/V amplifiers and multi-way systems. This module is EMC and safety pre-approved, including the amplifier hanger options. There is also a 2-channel version available; check out the ICEpower 700AS2.

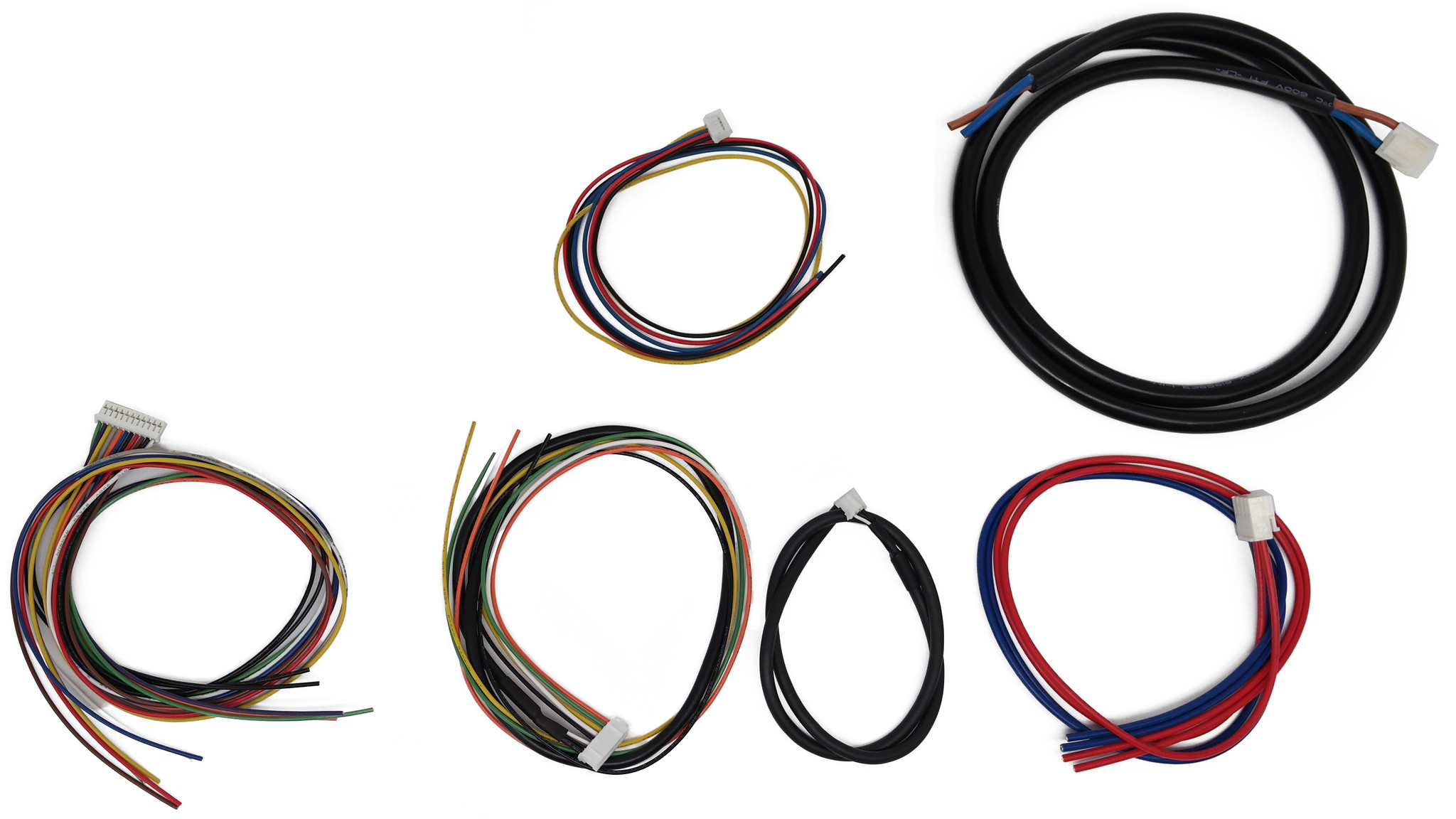

    Cable set

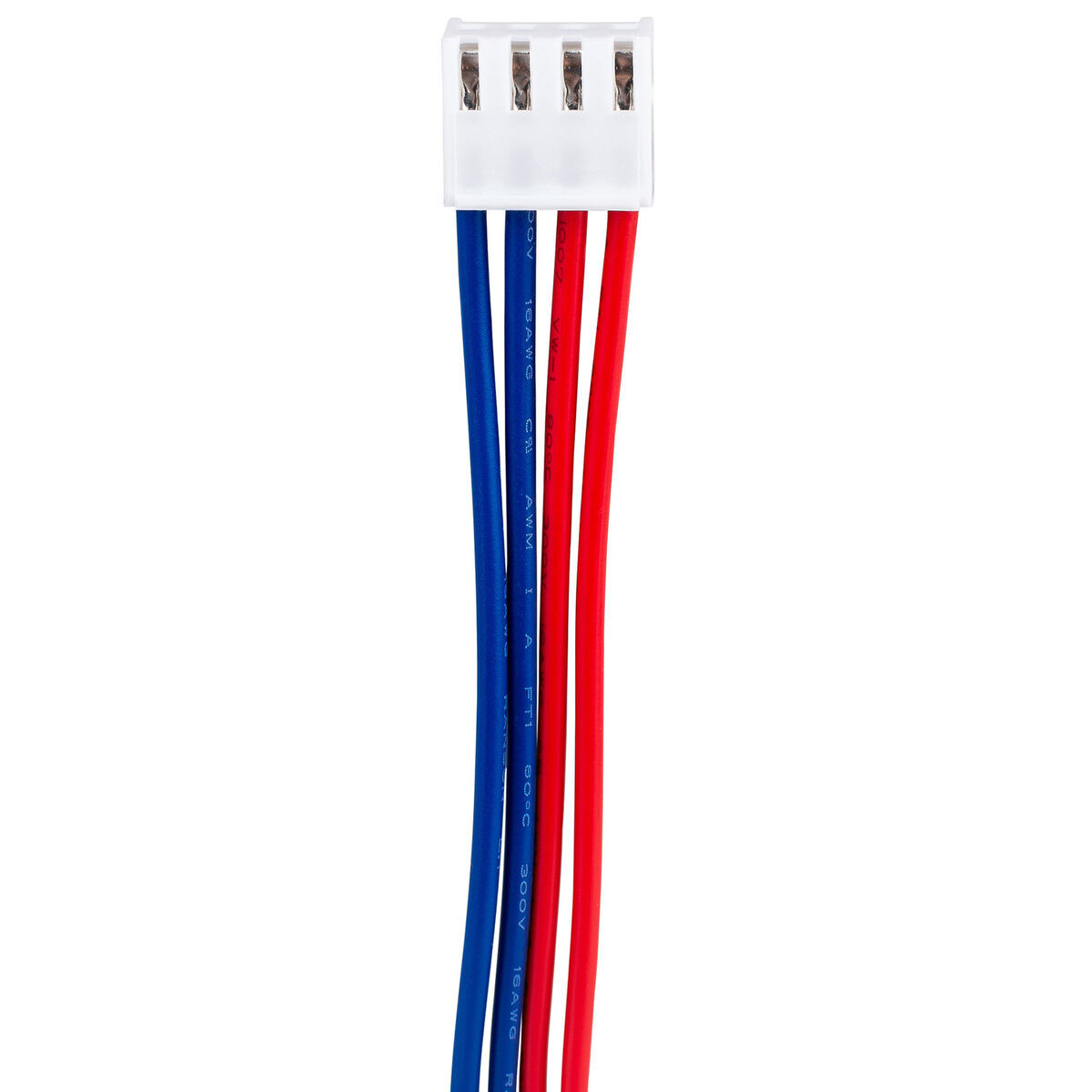

    The included cable set gives access to all the functions of the 700AS1 module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.

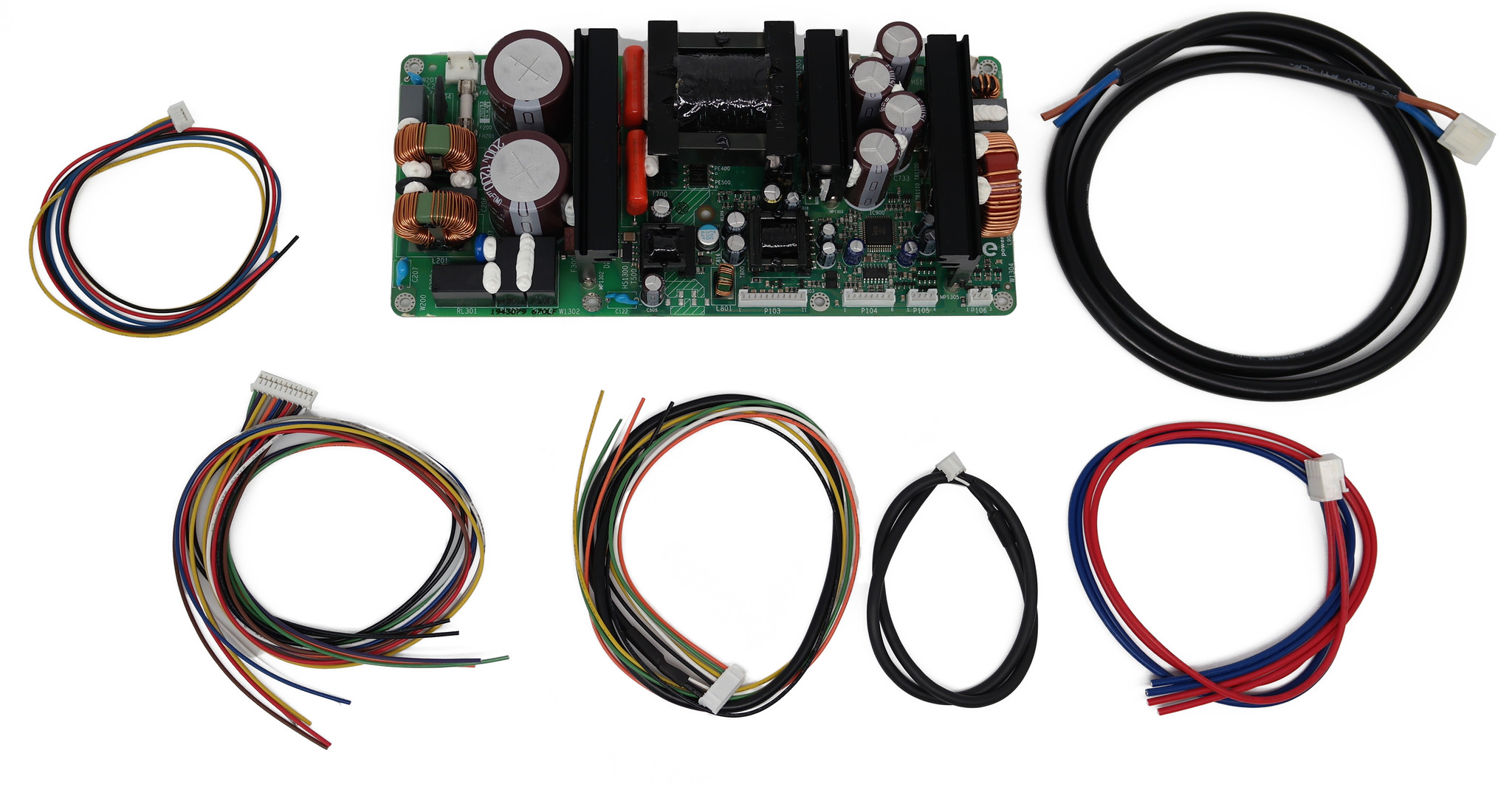

    What’s In The Box?

    • 1 x 700AS1 Amplifier Module with Integrated Power Supply
    • Cable set:
      • 1 x (K) Mains without Earth
      • 1 x (G) Speaker 700AS
      • 1 x (RR) Signal Sense 700AS
      • 1 x (SA) Signal 700AS1
      • 1 x (JA) AUX 700AS1
      • 1 X (YA) 12V Trigger + LED output

    Specificaties

    Artikelnummer
    700AS1
    Nominaal vermogen
    700 watts at 4 ohms
    350 watts at 8 ohms
    Minimale belasting
    2.5 Ohm
    Efficiëntie
    84%
    Vervorming
    0.006 % THD+N
    Versterkingsfactor
    27.4 dB
    Ingangsimpedantie
    36 kOhm
    Amplifier Classification
    Class D
    Uitgangskanalen
    1
    Stroomlimiet
    30 A

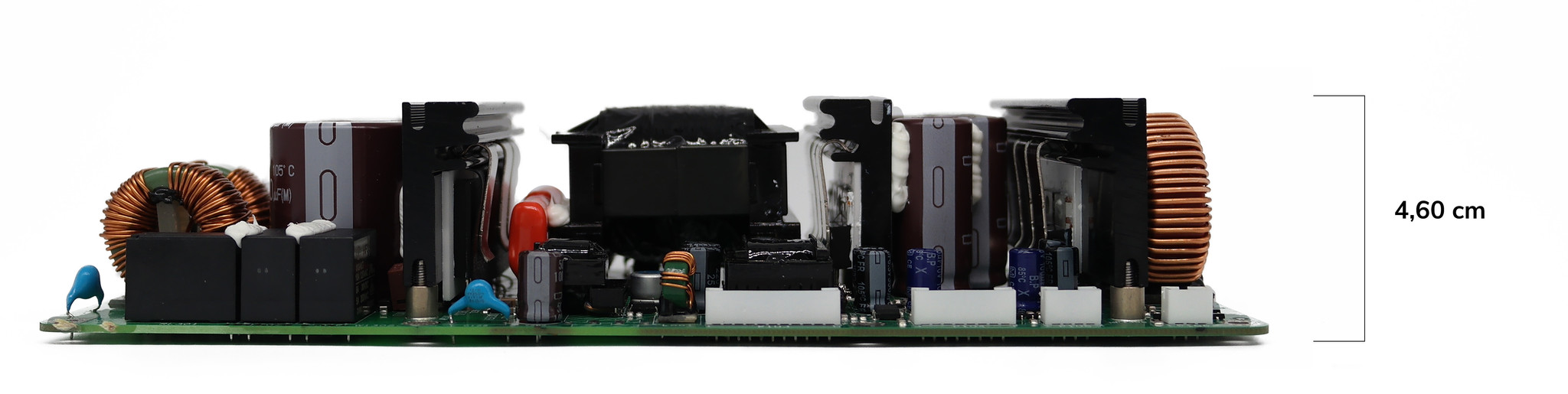

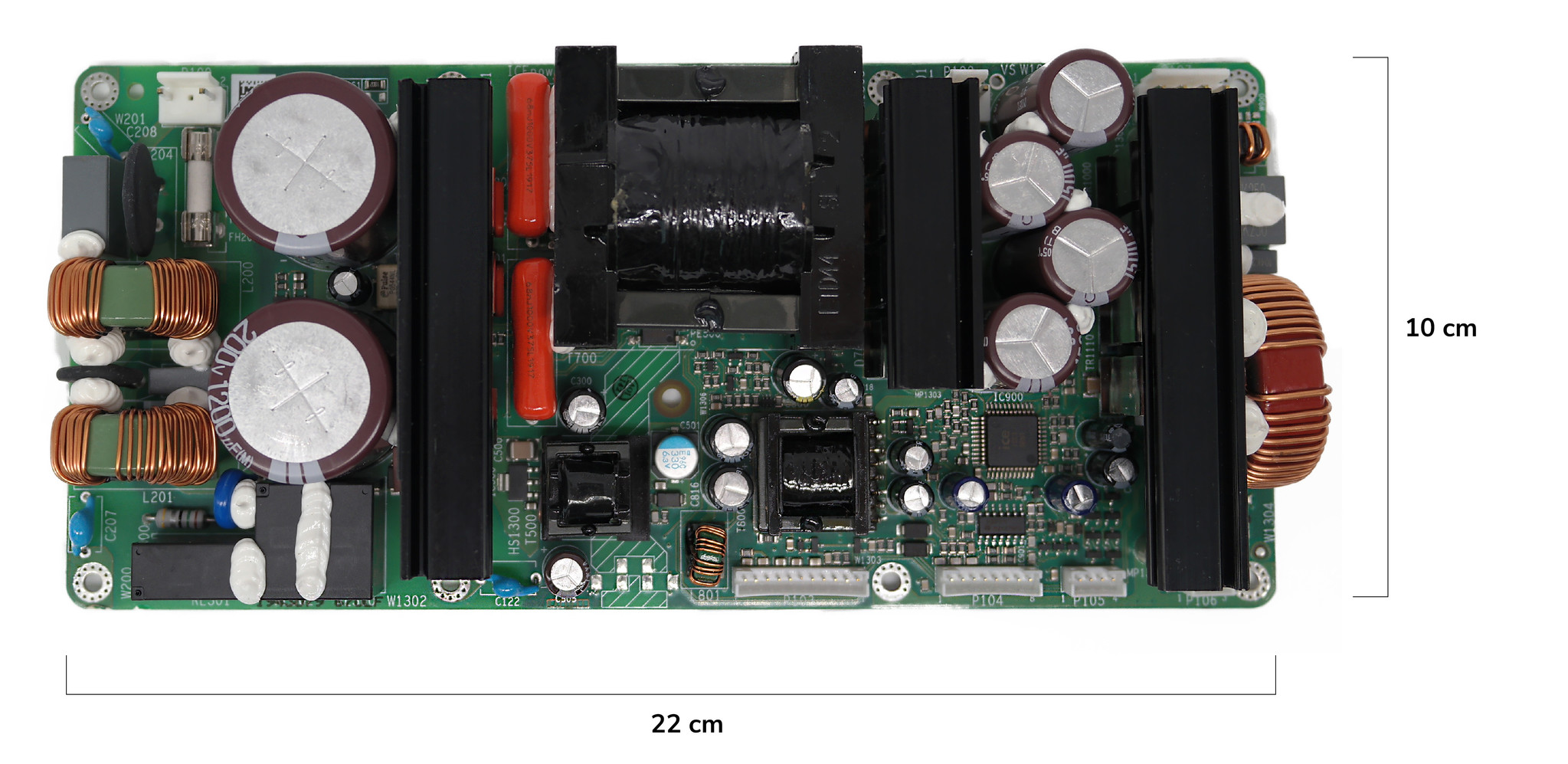

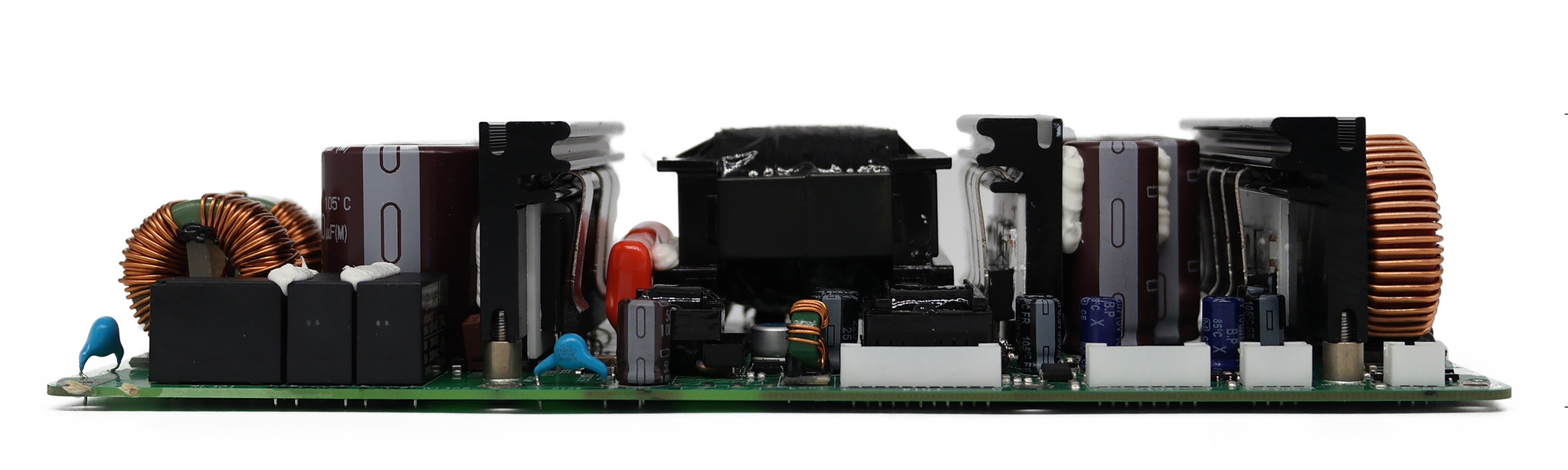

    Afmetingen (L x B x H)
    220 � 100 � 46 mm
    Diameter bevestigingsgaten
    3.5 mm
