      ICEpower 500A 500W Pro versterkermodule

      € 95,-€ 114,95 Niet op voorraad: 10+ expected on 26-12-2022
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestelling 4 voor slechts € 109,20 per stuk
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL & BE)
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Highlights

      • Very rugged design for demanding use
      • 500-watts from just 62 cm²
      • Soft mute/de-mute
      • Stand-by mode for low power consumption
      • Under voltage protection
      • Monitor output
      • Balanced input and output
      • Excellent EMI performance
      • No heat sink required
      • Safety: IEC 60065 ed. 8.



      Product details

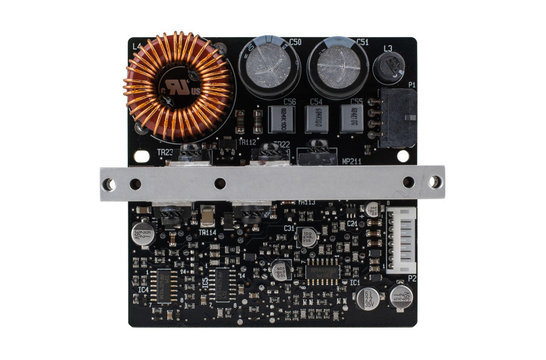

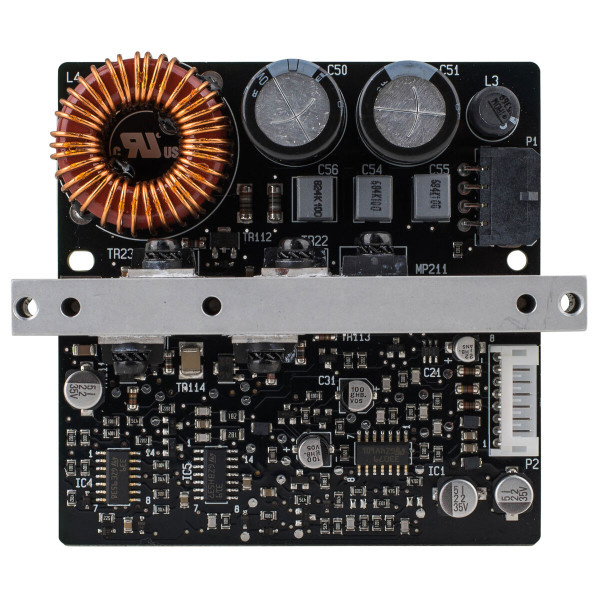

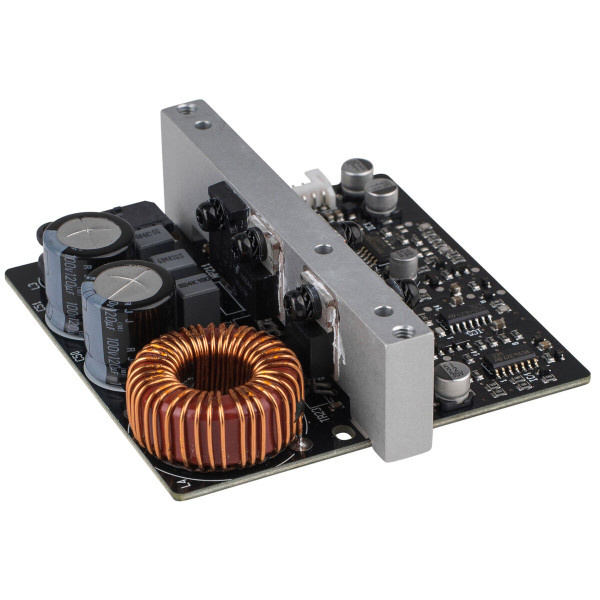

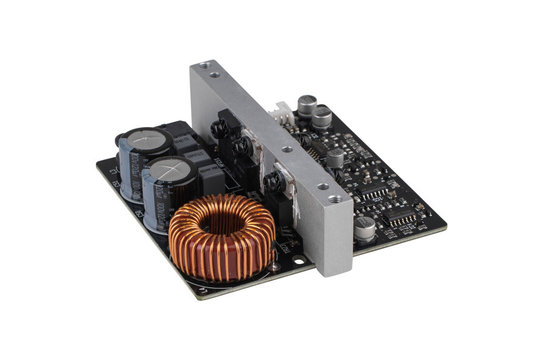

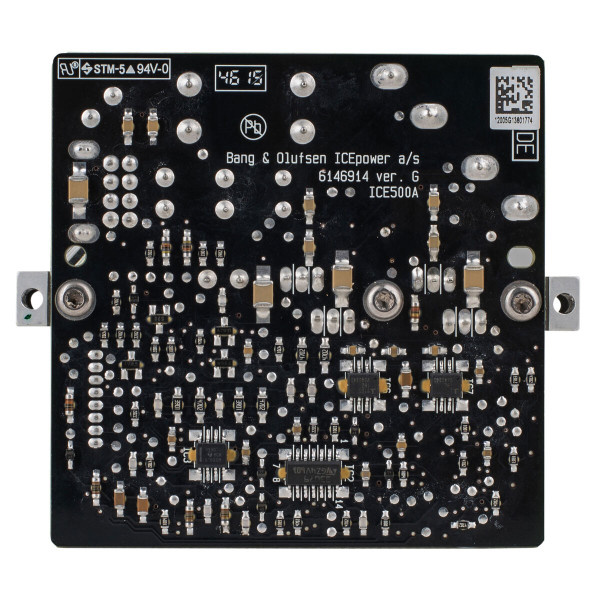

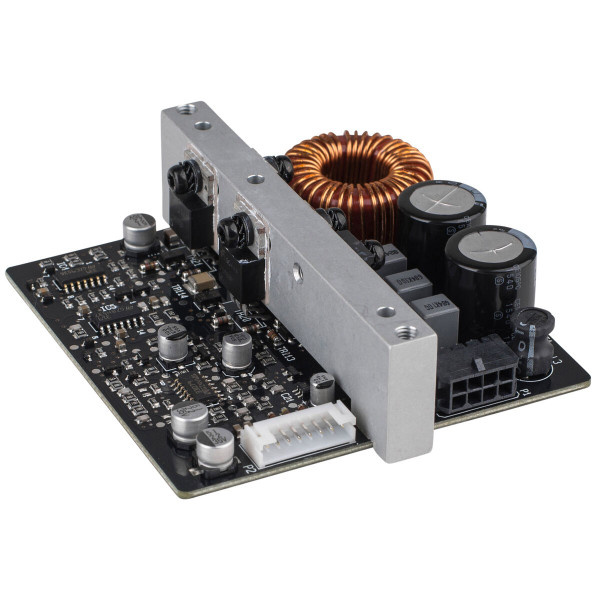

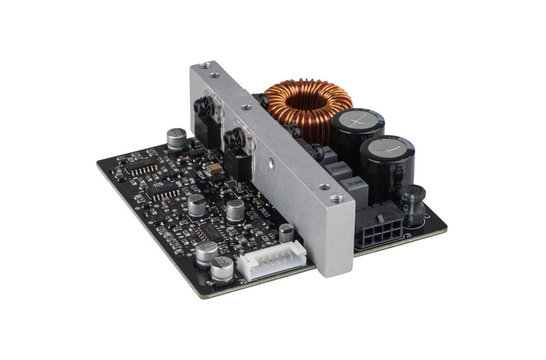

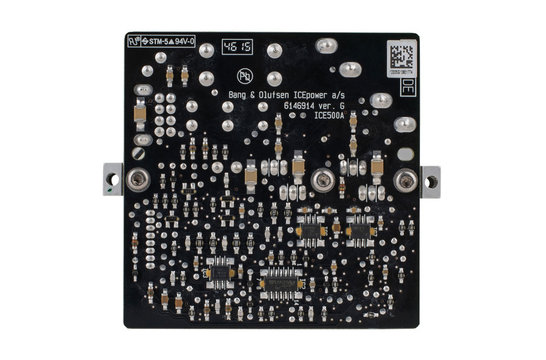

      ICEpower 500A 500W Pro Amplifier Module



      The ICEpower 500A is a high-performance, extreme reliable and versatile amplifier module with a single channel. This is the amplifier from the ICEpower 500ASP module and is capable of 500-watts of output power from just 62 cm². Designed to withstand the demands of professional (live concert) applications, not only in terms of sound quality but also on ruggedness and reliability. The A-series is the answer from our amplifier module category, on the most demanding applications.



      The ICEpower 500A achieves extremely high fidelity in a compact package, thanks to state-of-the-art ICEpower® analogue technology. True high-end performance is guaranteed by the patented, proprietary COM-modulation and MECC-control techniques. The turn-key design shortens the time to implement amplification in your end product drastically. The connection interface uses industry standard Molex Micro-Fit and JST PH-series connectors.



      The ICEpower A-Series consists of three high-performance general-purpose class D amplifiers. Check out the 250A and 1000A for the 250 and 1000 watt versions. The A-series modules are essentially the amplifier sections from the ASP-modules. The ASP modules feature an intergraded power supply and have a DC-hanger output to power the A modules. This 500A may be used on its own, powered by a linear power supply, or can be powered from the 500ASP and the 1000ASP creating stereo amplifiers, 2-way and 3-way active speakers.

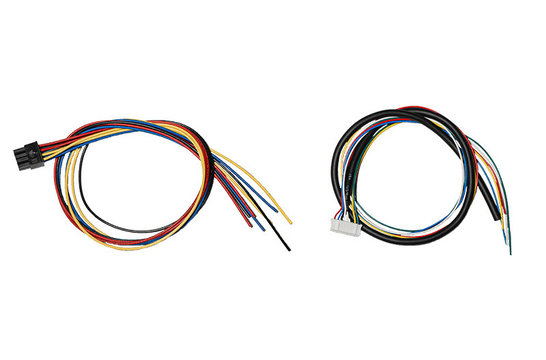

      Cable Set

      The included cable set allows access to all features of the 500A. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.



      What’s In The Box?

      • 1 x 500A 500W Pro Amplifier Module
      • Cable set:
        • 1 x (AA) Signal Aseries
        • 1 x (B) Microfit 8 pol – 4 Power/speaker

      Specificaties

      Artikelnummer
      500A
      Nominaal vermogen
      600 watts at 4 ohms
      300 watts at 8 ohms
      Minimale belasting
      2 Ohm
      Efficiëntie
      93%
      Vervorming
      0.006 % THD+N
      Versterkingsfactor
      26.8 dB
      Ingangsimpedantie
      8 kOhm
      Amplifier Classification
      Class D
      Uitgangskanalen
      1
      Voedingsvereisten
      115-230 VAC
      Stroomlimiet
      >55 A
      Afmetingen (L x B x H)
      90 x 79 x 23.5
      Diameter bevestigingsgaten
      3.5 mm

      Toon meer
