      ICEpower 500ASP versterkermodule with Integrated Power supply

      € 239,63€ 289,95 10+ Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts € 275,45 per stuk
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL & BE)
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Highlights

      • Very rugged construction for professional use
      • Amplifier with integrated power supply
      • Comprehensive protection scheme
      • Suitable for CE approved designs
      • Power output for ICEpower 250A and/or 500A
      • ±12 volt auxiliary output
      • Selectable mains 115/230Vac
      • Safety conforms to UL/IEC 60065 and others



      Product details

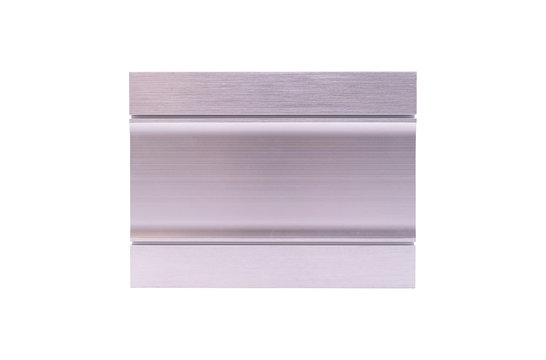

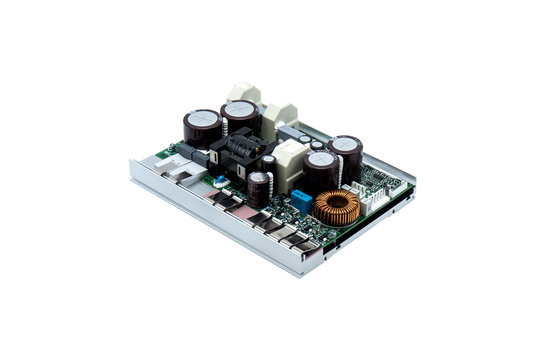

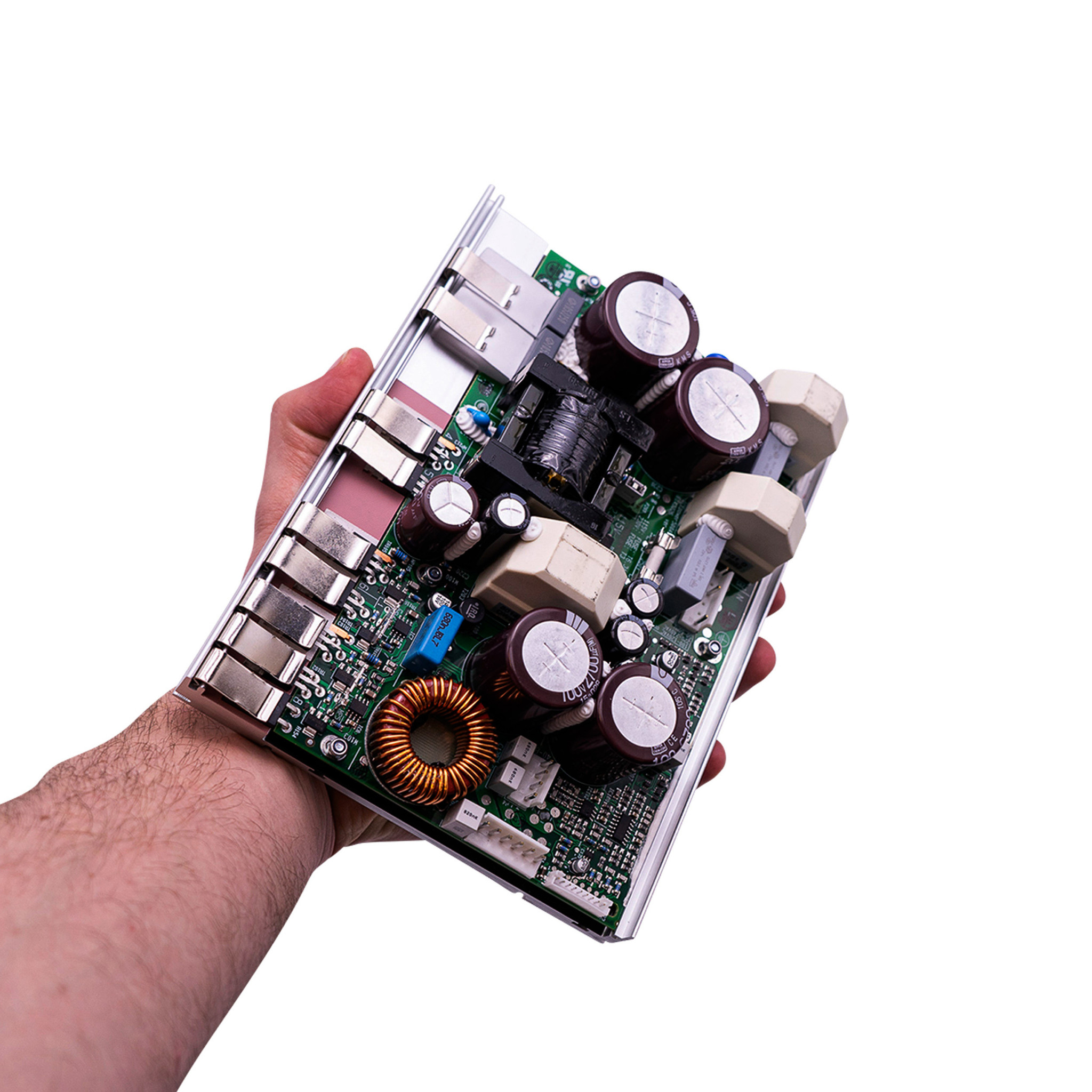

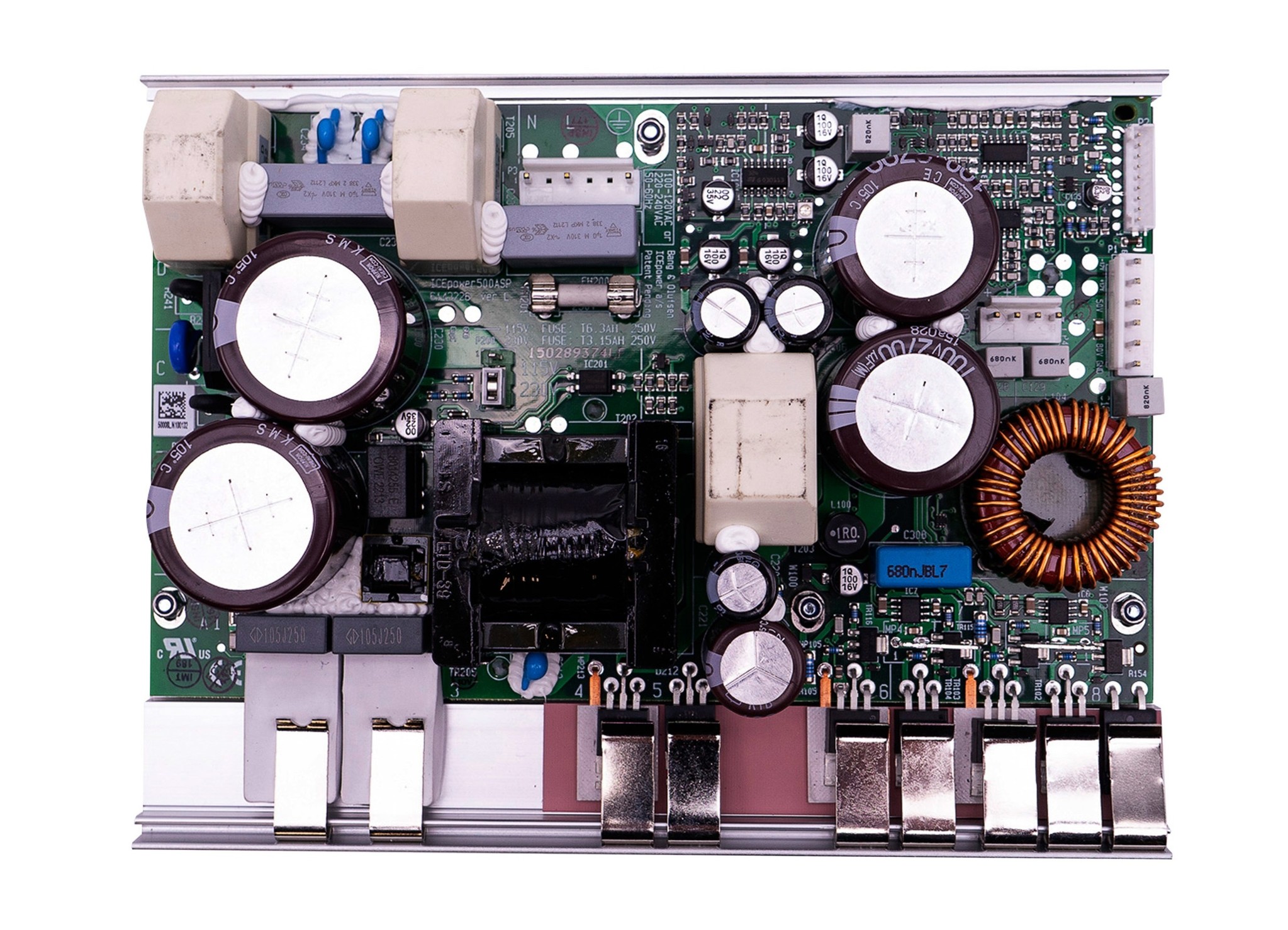

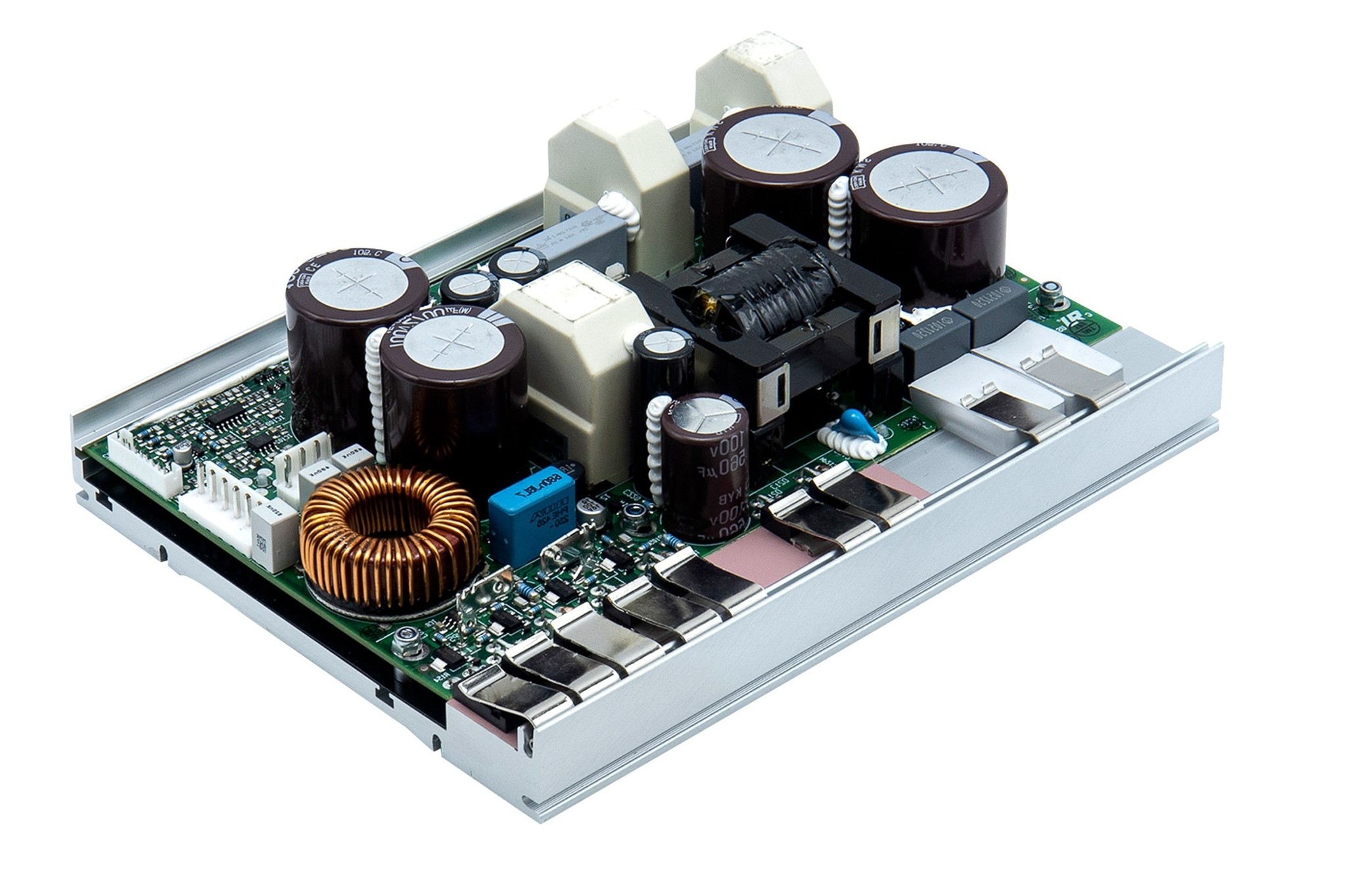

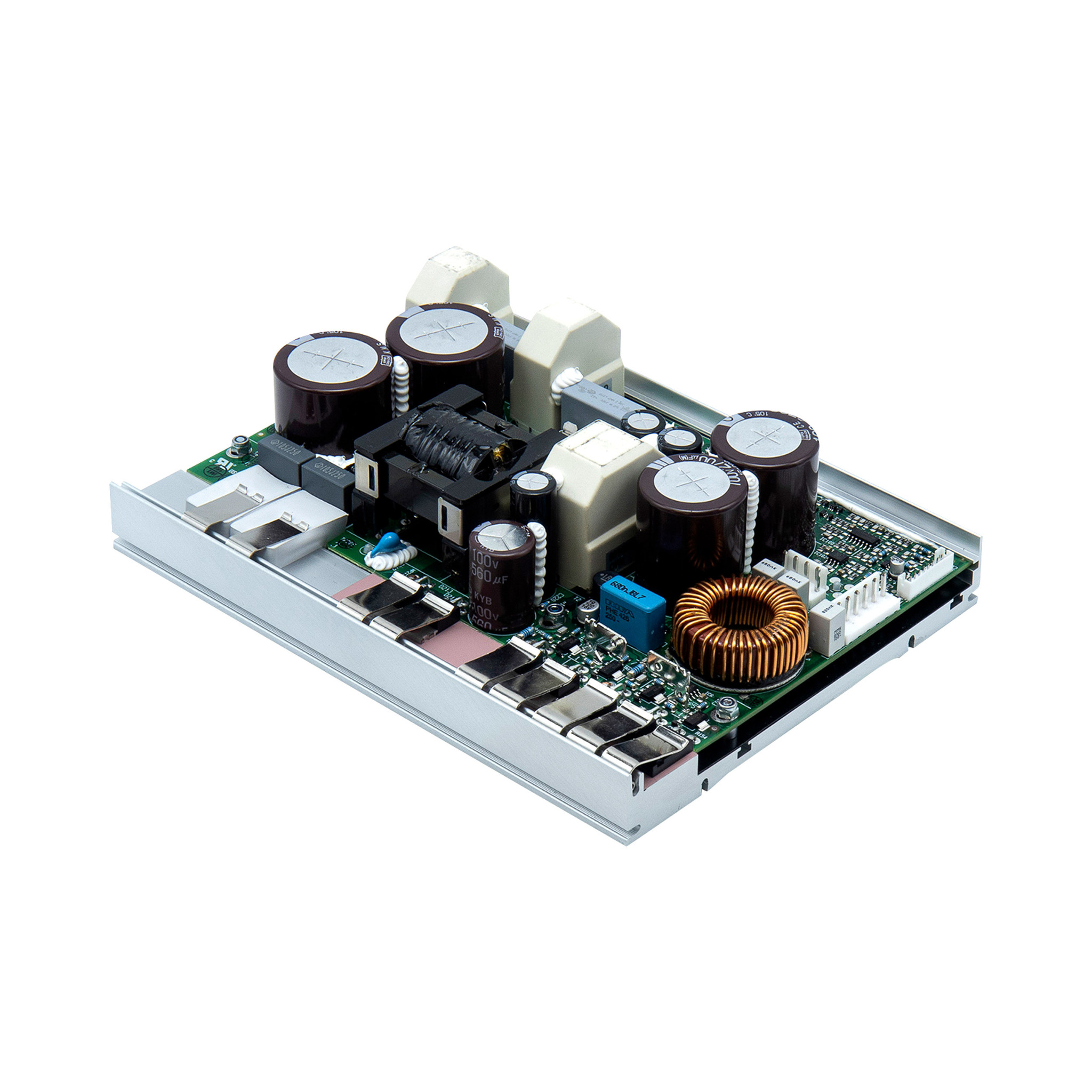

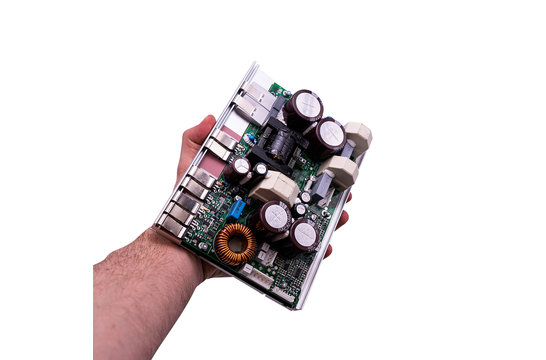

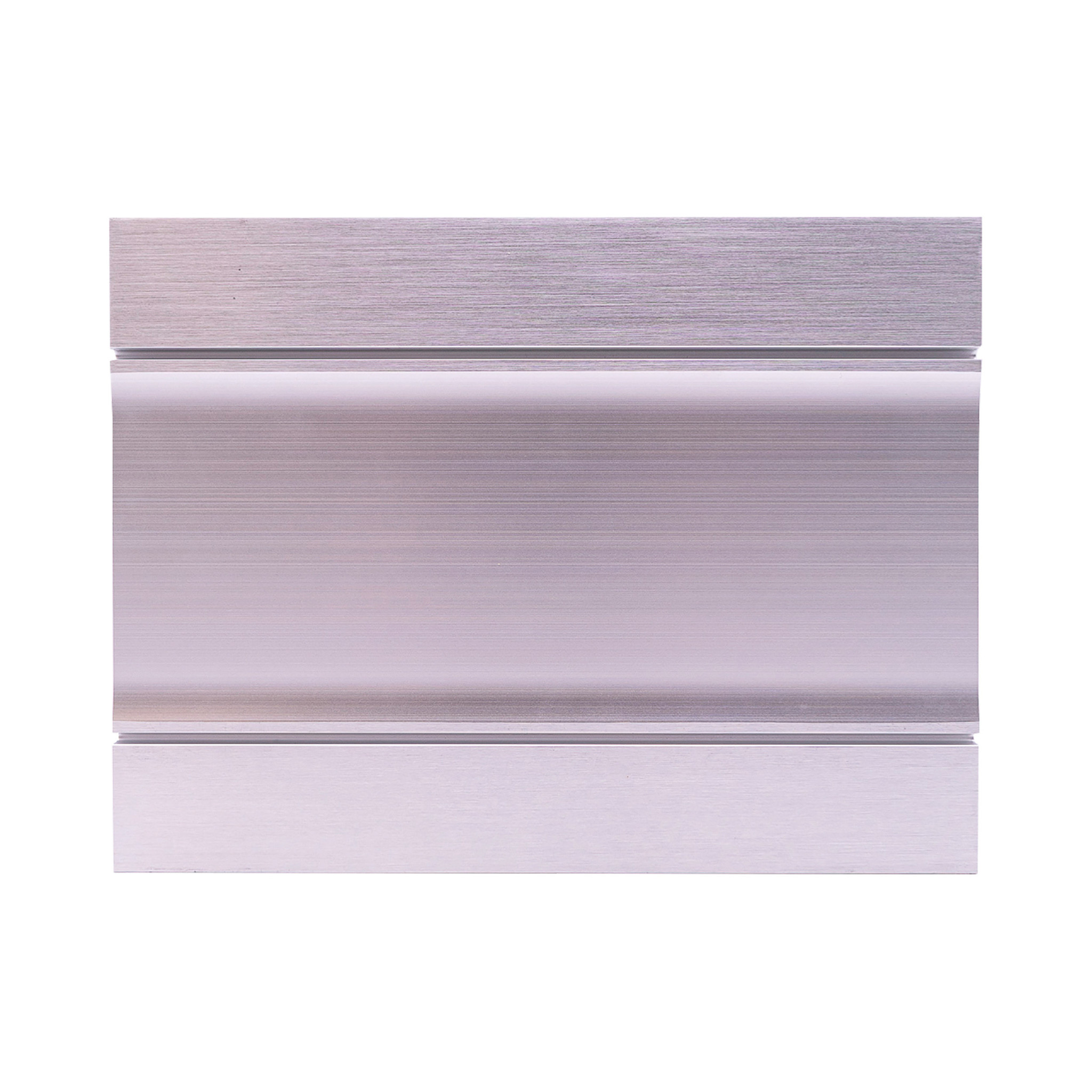

      ICEpower 500ASP Amplifier Module with Integrated Power supply



      The ICEpower 500ASP is a high-performance and extreme reliable amplifier module with integrated power supply. The amplifier section is essentially the 500A module and is capable of 500-watts of output power. Designed to withstand the demands of professional (live concert) applications, not only in terms of sound quality but also on ruggedness and reliability. The ASP-series is the self contained amplification solution from our amplifier modules category, fit for your most demanding applications.



      The ICEpower 500ASP offers extreem high fidelity and lots of power from a small footprint, thanks to state-of-the-art ICEpower® analogue technology. True high-end performance is guaranteed by the patented, proprietary COM-modulation and MECC-control techniques. The turn-key design shortens the time to implement amplification in your end product drastically. The connection interface uses industry standard Molex Micro-Fit and JST PH-series connectors. The power supply of the 500ASP includes a DC hanger bus output, which can be used for powering additional 250A or 500A modules. This makes it very convenient to create 2 and 3 channel amplifiers, combining the 500ASP with the 250A and the 500A.



      Need more power? Check out the 1000ASP module.



      Cable Set

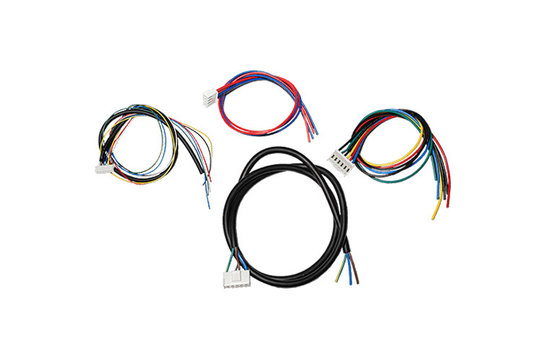

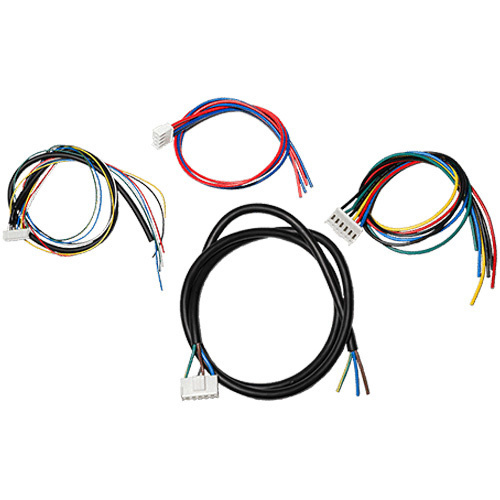

      The included cable set allows acces to all features of the 500ASP. The kit contains cables with all the right connectors on one end. The other ends are left unterminated so you can terminate the wires with the connections of your choice.



      What’s In The Box?

      • 1 x 500ASP Amplifier Module with Integrated Power supply
      • Cable set:
        • 1 x (D) Signal ASPseries
        • 1 x (G) SPK
        • 1 x (E) ASPseries DCbus
        • 1 x (H) Mains with Earth

      Specificaties

      Artikelnummer
      500ASP
      Nominaal vermogen
      500 watts at 4 ohms
      250 watts at 8 ohms
      Minimale belasting
      2 Ohm
      Efficiëntie
      83%
      Vervorming
      0.006 % THD+N
      Versterkingsfactor
      26.8 dB
      Ingangsimpedantie
      8 kOhm
      Amplifier Classification
      Class D
      Uitgangskanalen
      1
      Voedingsvereisten
      115-230 VAC
      Stroomlimiet
      >45 A
      Afmetingen (L x B x H)
      198 x 150 x 52
      Diameter bevestigingsgaten
      3.5 mm

      Toon meer

      Reviews

      5 from 5Based on 1 reviews
      Schrijf een review
      5 van 5

      Good quality product, fast shipping within hrs ,but DHL delayed my package within my country

      • -Better if size of the board little small
      Door Wasantha Waldeniya on 18 Maart 2022
