      ICEpower 2000AS2 HV versterkermodule with Integrated Universal Mains Power Supply

      € 454,50€ 549,95 Niet op voorraad10+ verwacht op 02-06-2023

      Buy now, pay later

      • Gratis verzonden (NL & BE)
      • Voor 16u besteld, vandaag verstuurd
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Highlights

      • Very high speaker output drive voltage
      • Fully integrated, high-power amplifier and power supply
      • Minimum load impedance at 3 Ohm
      • Extensive monitoring and protection
      • Real-time clip and thernal monitor outputs
      • Audio signal and logic triggers
      • Auxiliary power supply output
      • Standby-mode
      • Universal mains with active Power Factor Correction



      Product description

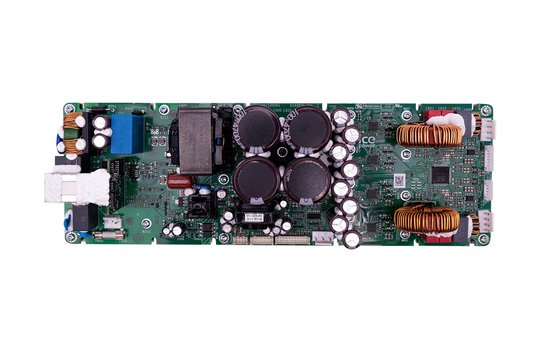

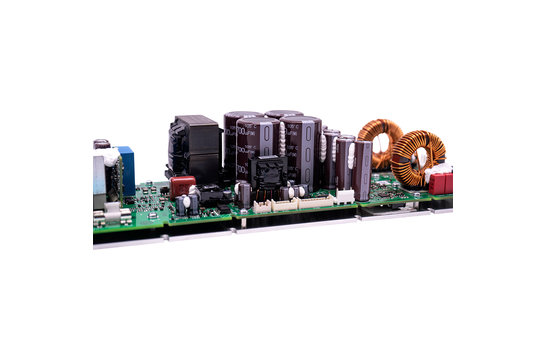

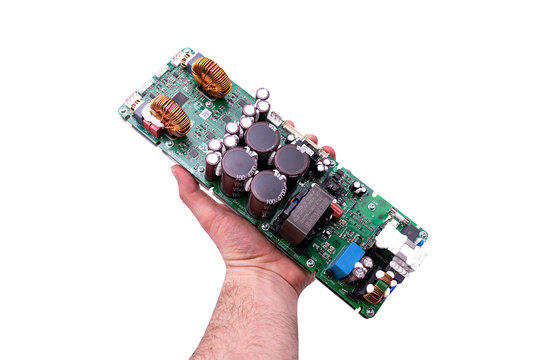

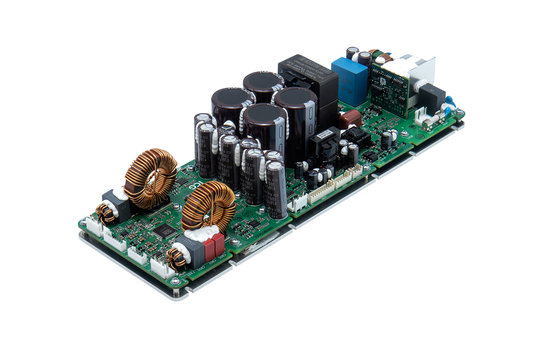

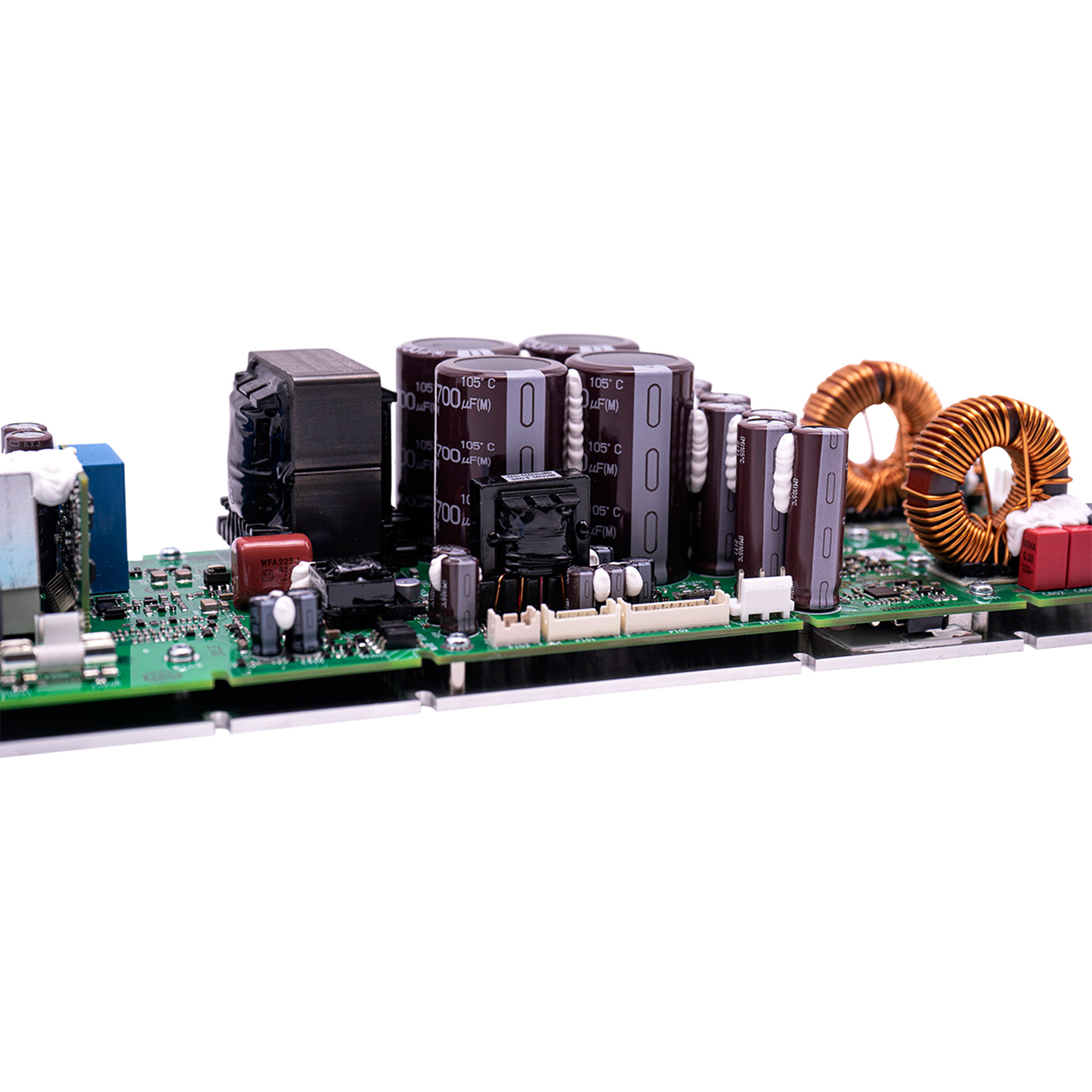

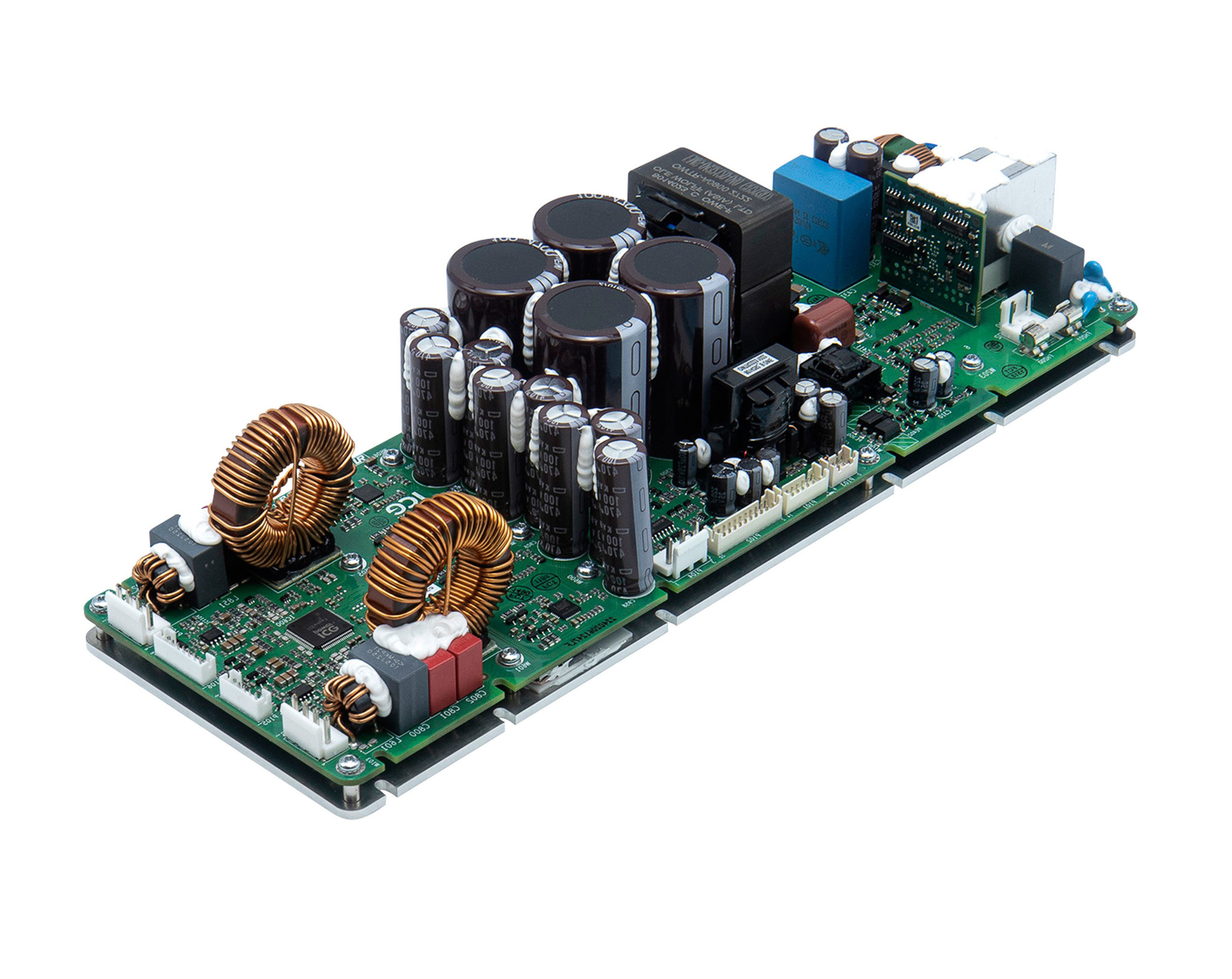

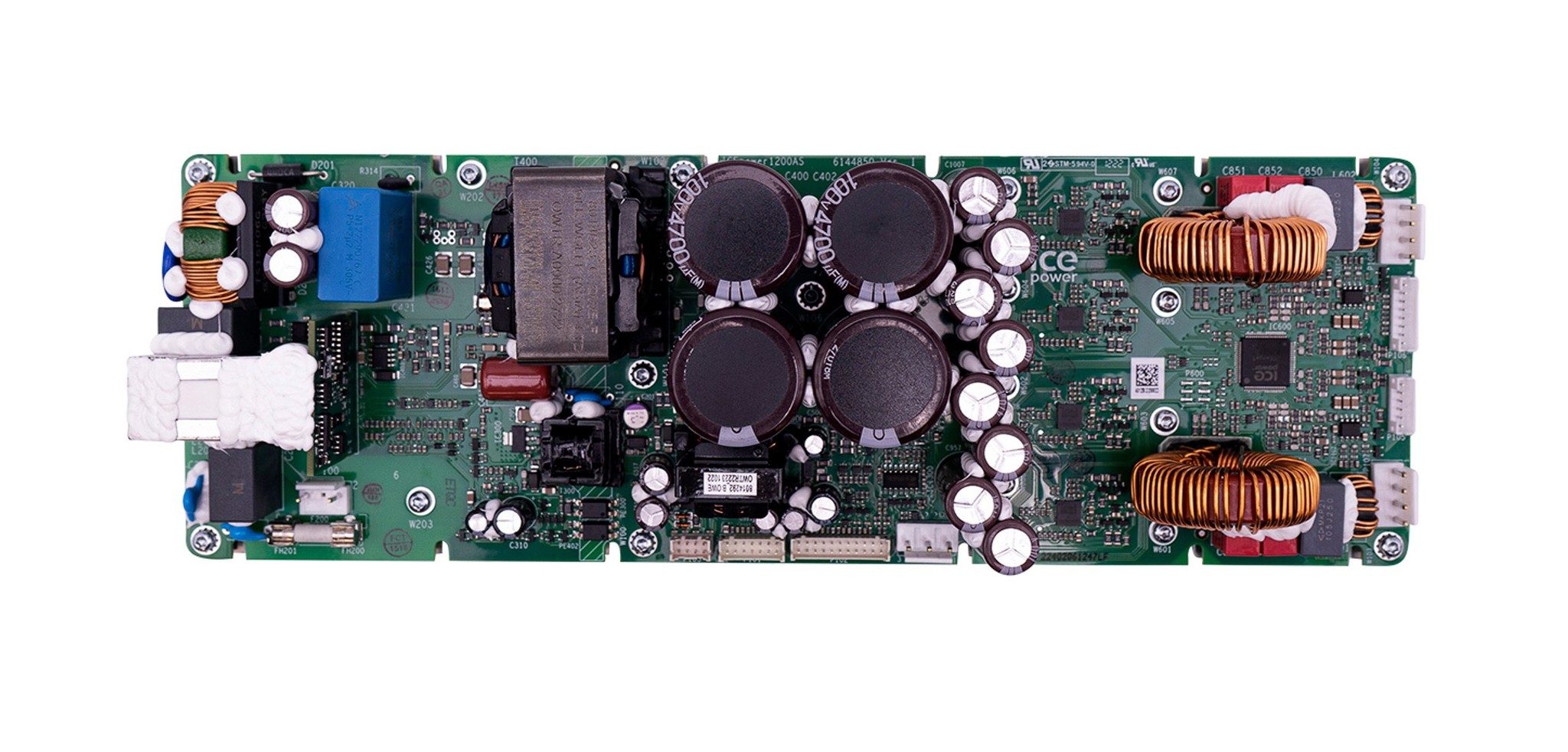

      ICEpower 2000AS2 HV Amplifier Module with Integrated Universal Mains Power Supply



      The ICEpower 2000AS2 HV combines two high-performance 2000 watt class D amplifier channels with an integrated mains power supply. Besides being the most powerful integrated solution, this is also the most convenient solution for two channels of extreme audio power and performance in the amplifier module category.


      Just as all ICEpower products the noise and distortion performance is very good. And with a maximum output voltage of 149 V, this powerhouse gives a dynamic drive for any speaker and has high power capabilities into 8-Ohm loads.



      A DC hanger bus with +/- 90 VDC output voltage is suitable for powering additional high power amplifier modules. Perfect for professional 2-way speakers and 2.1 systems as well as high-end consumer products such as subwoofers.



      The ICEpower 2000AS family uses a universal mains ErP and Energy Star compliant power supply and provides comprehensive protection and monitoring functions. All are accessible through an easy-to-use control interface. Additionally, dedicated monitor outputs for speaker connector output voltage and current enable real-time protection system of the loudspeaker. The integrated aluminium base plate on the 2000AS HV acts as both a cooling and mechanical interface. This enables easy mechanical integration and extra cooling can be added. This ICEpower 2000AS2 HV is a two-channel module. Check out the ICEpower 1200AS1 for a high power single-channel module.



      Cable set

      The included cable set gives access to all the functions of the 2000AS2 HV module. The leads are left unterminated so that it is possible to terminate the wires with the connections of your choice.



      What’s In The Box of the ICEpower 2000AS2 HV?

      • 1 x 2000AS2 HV Amplifier Module with Integrated Universal Mains Power Supply
      • Cable set:
        • 1 x (K) Mains without Earth
        • 2 x (G) Speaker 1200AS
        • 1 x (NC) Basic control/features
        • 1 x (ND) Signal
        • 1 x (NE) Voltage and Current Monitor 2 channel
        • 1 X (NA) Audio input 2 channel
        • 1 x (NG) Hanger Rail Supply
        • 1 x (NH) Hanger Small Signal Supply



      FAQ about the ICEpower 2000AS2

      I am afraid I have received a 1200AS2 instead of the 2000AS2, what can I do?

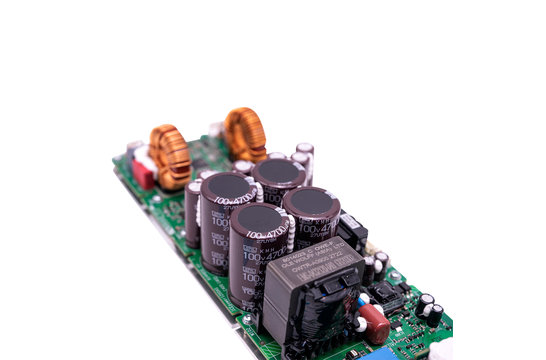

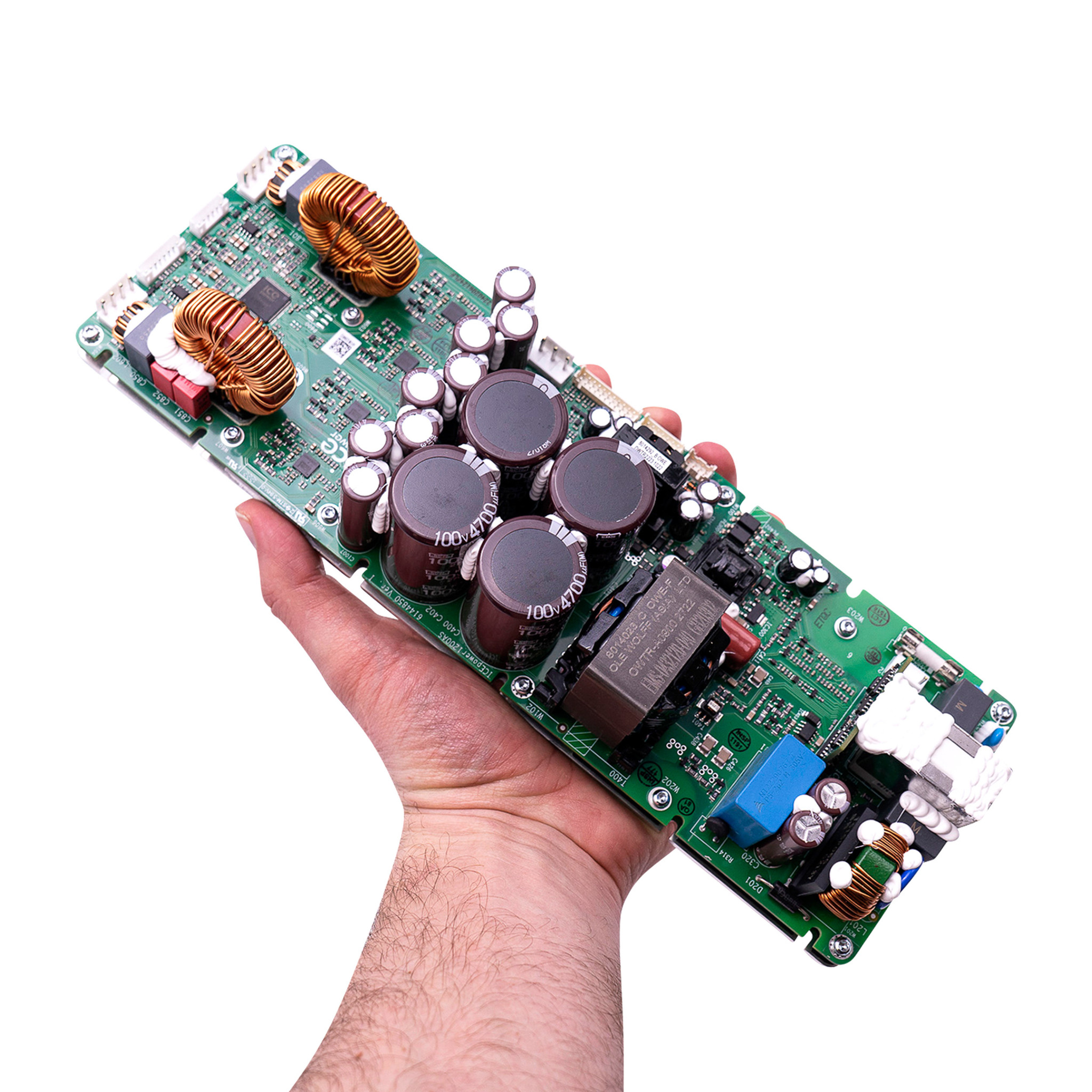

      The 2000AS2 uses the same PCB as the 1200AS2. You can verify you have received the right module by checking the voltage rating on the large capacitors: The 2000AS2 uses 100V rated caps instead of 80V rated caps

      Toon meer

      Specificaties

      Artikelnummer
      2000AS2
      Nominaal vermogen
      2 x 2000 watts at 4 ohms
      2 x 1400 watts at 8 ohms
      Minimale belasting
      3 Ohm
      Efficiëntie
      79%
      Vervorming
      0.001 % THD+N
      Versterkingsfactor
      29.7 dB
      Ingangsimpedantie
      50 kOhm
      Amplifier Classification
      Class D
      Uitgangskanalen
      2
      Stroomlimiet
      1 A
      Afmetingen (L x B x H)
      300 mm x 100 mm x 64 mm
      Diameter bevestigingsgaten
      3.5 mm

      Toon meer

      Reviews

      5 from 5Based on 1 reviews
      Schrijf een review
      5 van 5
      My honest review done only from listening with my own ears and no messurements involved and have been using them daily for almost 6 month.. This amps have a crystal clear amplification and does not color the sound in any way. This is how I prefer it, if I want to color the sound I do it by other means and the amp is only for amplification. The soundstage is the widest and biggest depth I have tested so far. I use the amp connected to an Anthem avm 90 processor and 7.4.6 Martin Logan speaker configuration. For my hifi/stereo listening and movie listening configured through the AVM input selection. I use the auto signal wake up function and it is a bit sluggish when it comes to turn on speakers. Which will make me investigate on 12v trigger connection instead for the movie listening configuration. I used this amp in conjunction with https://www.tcrastrs.com/tcr1200-diy-kit and it took around 15 minutes to put it together. This amps is so good that I will put toghether 4 more for my system. (remember to get good quality cables, power cleaners and an electric small screw driver isnt a bad thing.)
      Door Lars-Göran Holmberg on 16 Januari 2023
