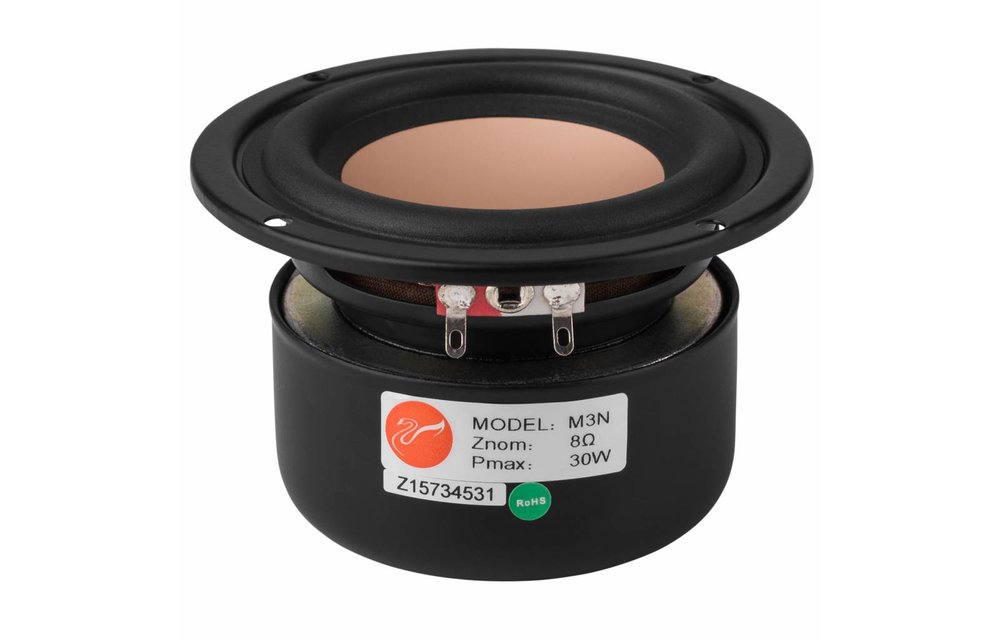

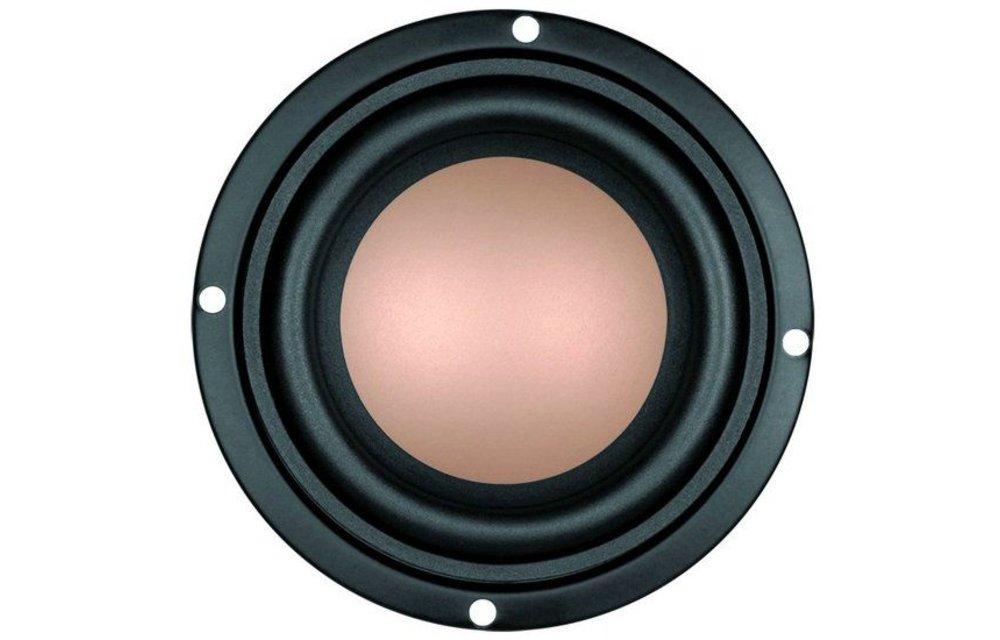

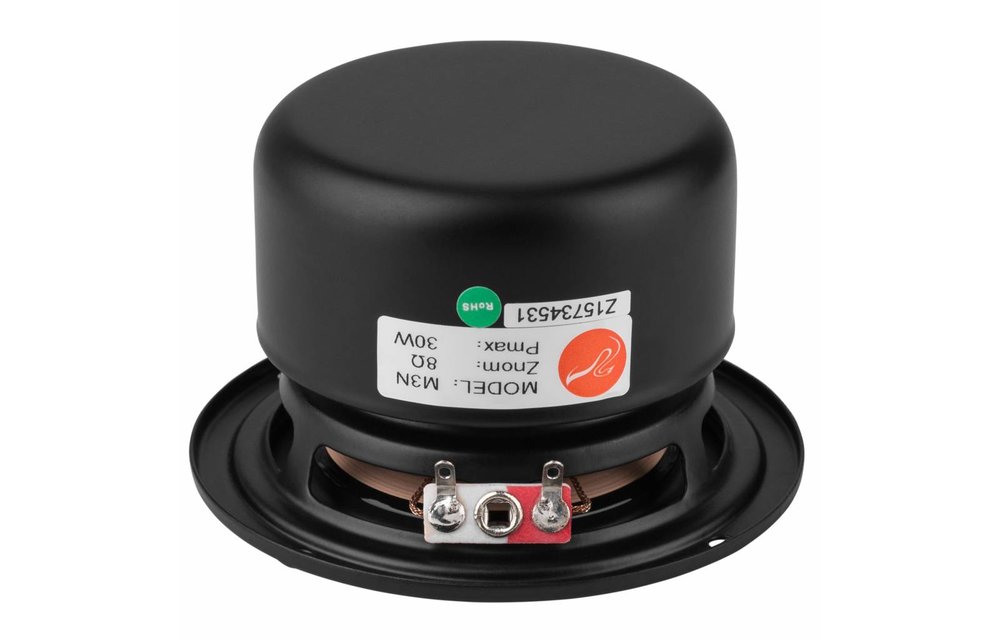

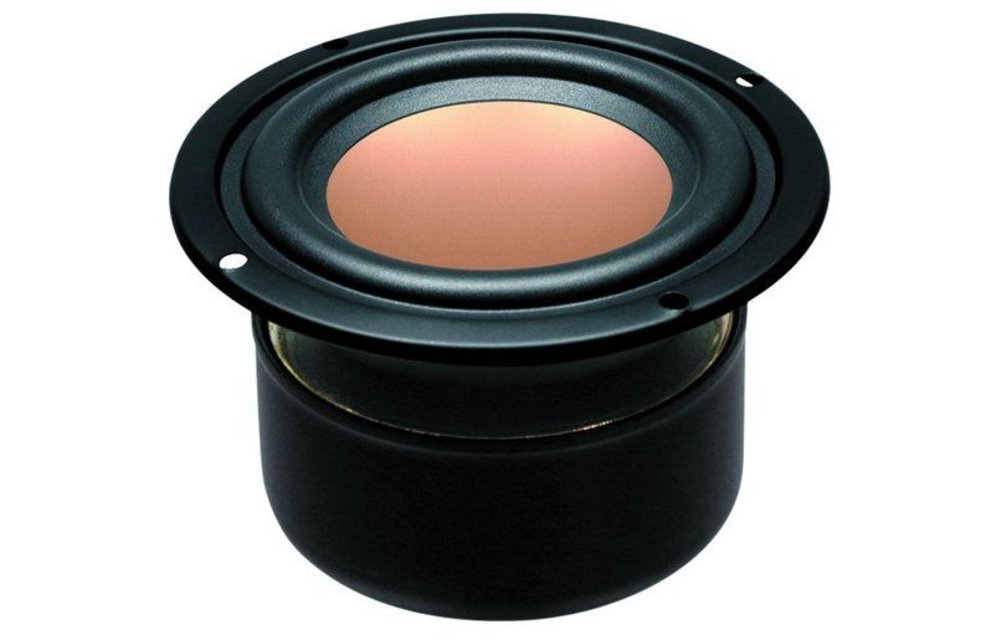

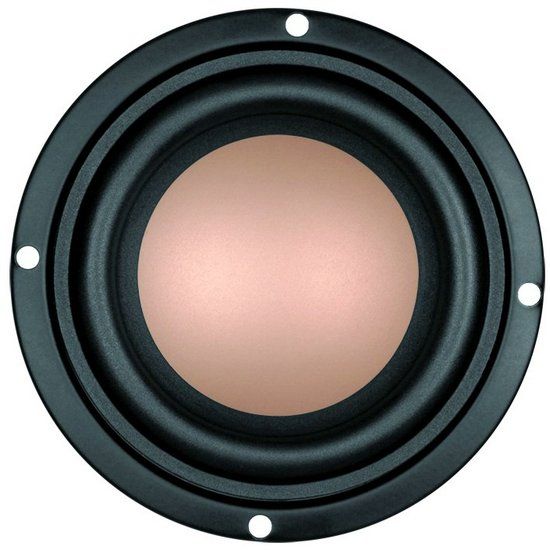

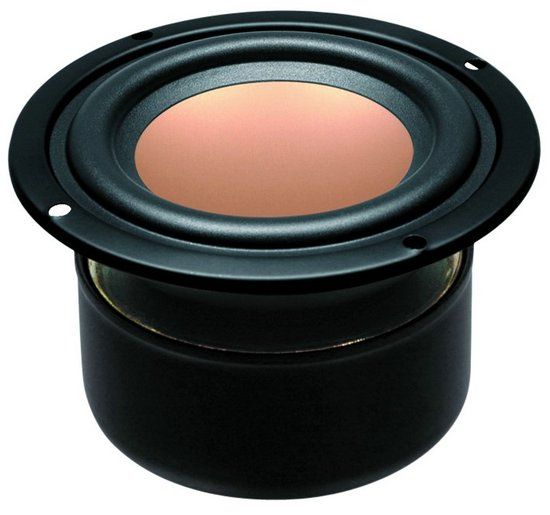

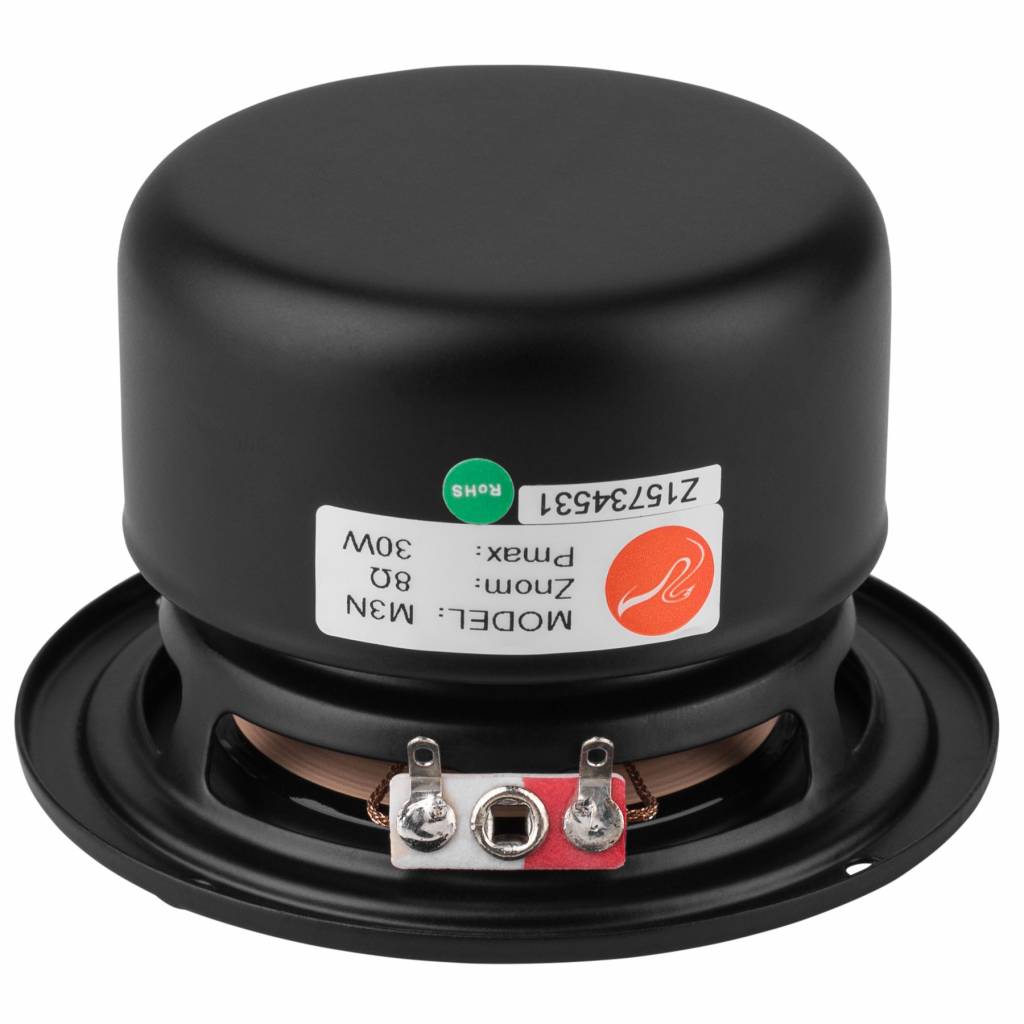

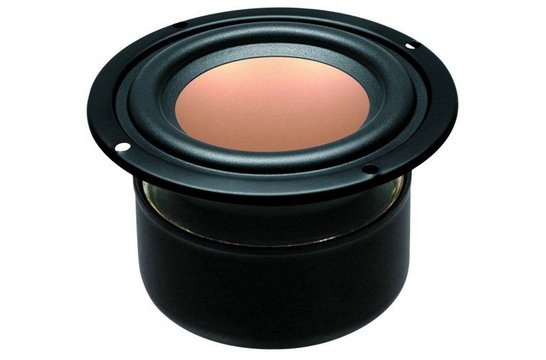

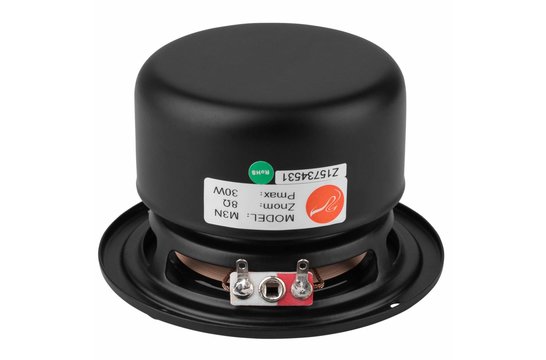

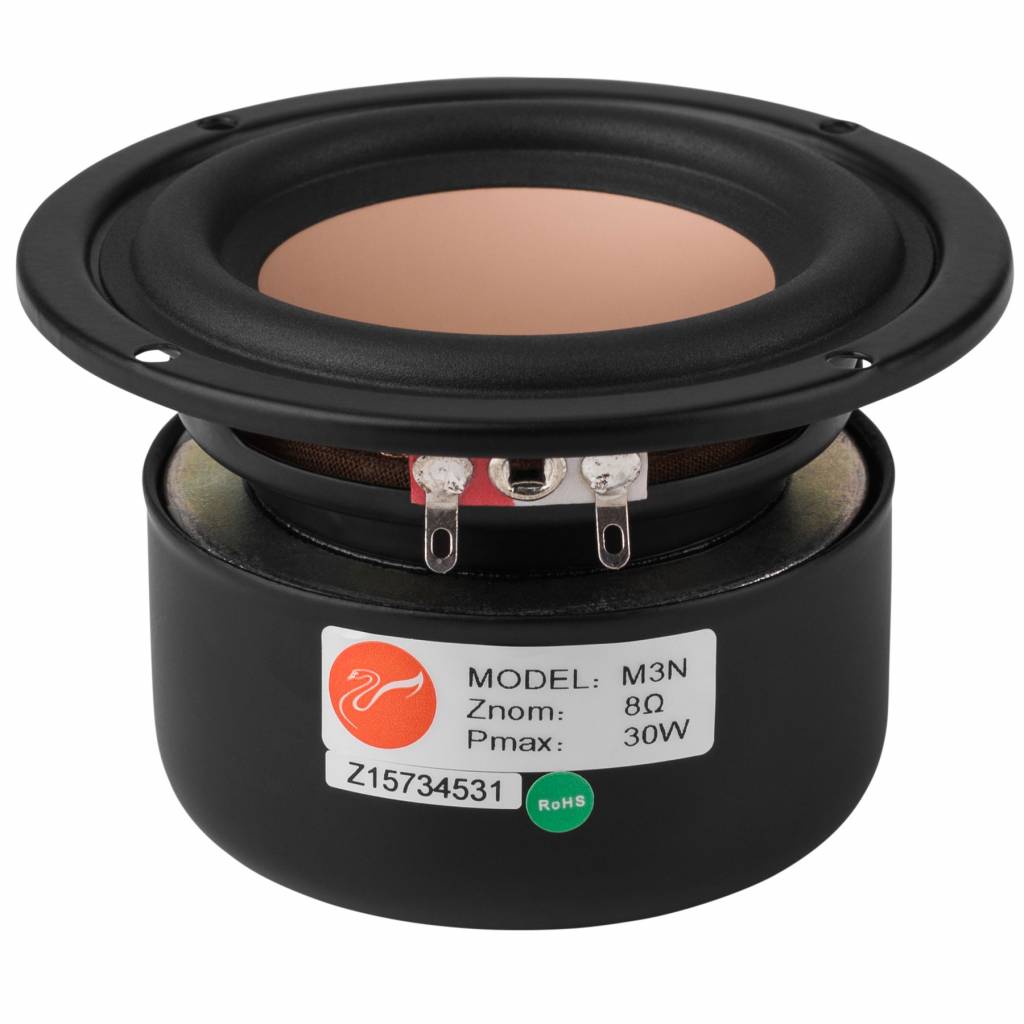

    HiVi M3N 3" Aluminum / Magnesium Midbass

    € 16,45 >10 Op voorraad: levertijd 1 werkdag
    The HiVi M3N 3" full-range speaker features a magnesium / aluminum alloy cone, stamped frame, and hi-temp voice coil and bobbin.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €15,63 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The HiVi M3N 3" full-range speaker features a magnesium/aluminum alloy cone, stamped frame, and hi-temp voice coil and bobbin.



    Highlights

    • Shielded magnet structure
    • Advanced alloy (magnesium/aluminum) cone, coated with special damping material
    • High power handling
    • Optimum recovery CONEX supporting system



    Product details

    HiVi M3N 3" Aluminum / Magnesium Midbass



    A shielded magnet structure allows the HiVi M3N 3" full-range speaker to be incorporated easily into audio/video and multimedia applications. The driver may be used in a small closed box as a midrange unit in a three-way system and the good extension (97 Hz) in a vented enclosure allows for use in a 2-way two-driver or MTM configured system. The M3N also features a magnesium/aluminum alloy cone, stamped frame, and hi-temp voice coil and bobbin.

    Specificaties

    Artikelnummer
    M3N
    Woofer Type
    Full-range
    Nominal Diameter
    3"
    Power Handling (RMS)
    15 Watts
    Power Handling (max)
    30 Watts
    Impedance
    8 ohms
    Sensitivity
    82 dB 2.83V/1m
    Frequency Response
    100 to 8,000 Hz
    Voice Coil Diameter
    0.875"
    DC Resistance (Re)
    6.5 ohms
    Resonant Frequency (Fs)
    100 Hz
    Mechanical Q (Qms)
    4.2
    Electromagnetic Q (Qes)
    1.2
    Total Q (Qts)
    0.92
    Diaphragm Mass Inc. Airload (Mms)
    2.6g
    Mechanical Compliance of Suspension (Cms)
    0.82 mm/N
    Surface Area of Cone (Sd)
    30 cm²
    Compliance Equivalent Volume (Vas)
    0.05 ft.³
    Maximum Linear Excursion (Xmax)
    3 mm
    Cone / Diaphragm Material
    Aluminum / Magnesium
    Voice Coil Wire Material
    CCA
    Voice Coil Former
    Kapton® / Polyimide
    Dual Voice Coil
    No
    Magnet Material
    Ferrite
    Shielded
    Yes
    Overall Outside Diameter
    3.5"
    Overall Depth
    2.625"
    Baffle Cutout Diameter
    3"
    # Mounting Holes
    4
    Sealed Volume
    0.12 ft.³
    Sealed F3
    95 Hz
    Vented Volume
    0.27 ft.³
    Vented F3
    57 Hz
