    HiVi F6 6-1/2" Bass/Midrange

    € 49,95 Niet op voorraad: binnen 5-6 weken leverbaar
    The HiVi F6 has been optimized for dynamic bass reproduction in small or medium vented systems. Midrange clarity and tonal balance are remarkable.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €47,45 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    The HiVi F6 has been optimized for dynamic bass reproduction in small or medium vented systems. Midrange clarity and tonal balance are remarkable.



    Highlights

    • Kevlar and paper fiber cone
    • Phase plug improves frequency response and dispersion
    • Magnetically shielded
    • Remarkable midrange clarity and tonal balance



    Product details

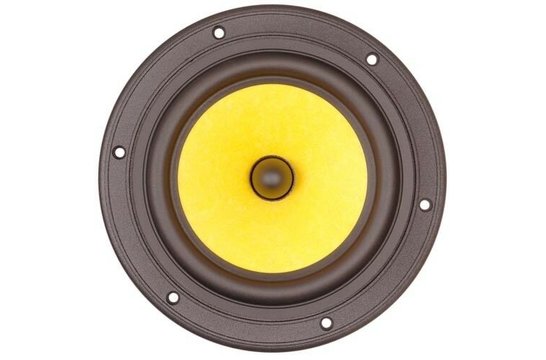

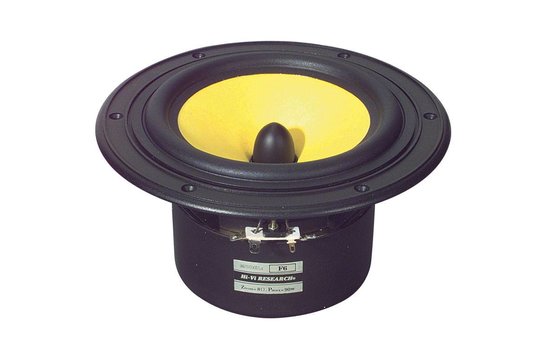

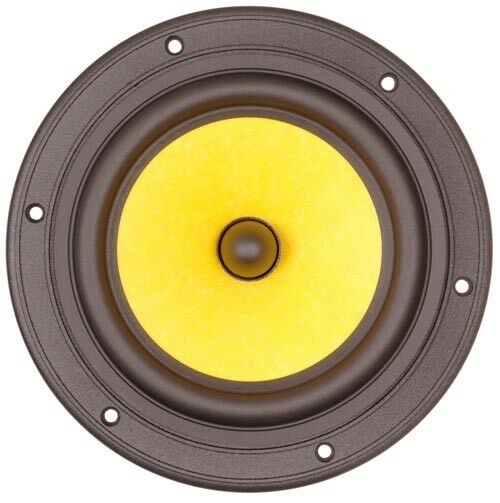

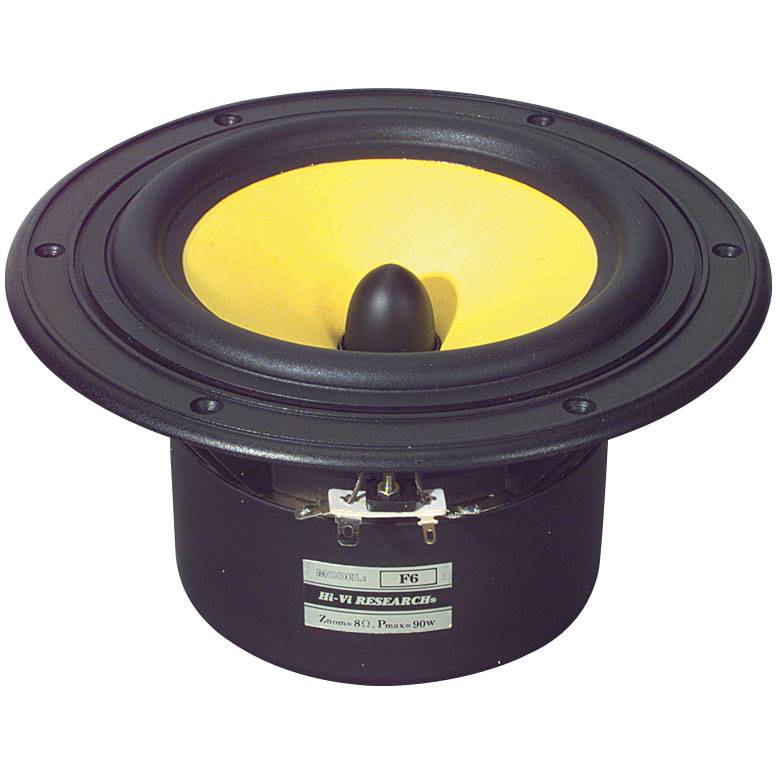

    HiVi F6 6-1/2" Bass/Midrange



    The HiVi F6 has been optimized for dynamic bass reproduction in small or medium vented systems. Midrange clarity and tonal balance are remarkable. The F6 utilizes a newly developed matrix of Kevlar and paper fibers, and the cone weighs less, is more rigid, and has an improved damping factor. The back of the cone is hand coated with a special damping compound to further maximize performance stability and control of structural resonances. The driver features a central phase plug to avoid air compression and internal air volume resonance, and the plug improves frequency response and dispersion as well. An aluminum former voice coil and spider contribute to the driver's linear operation at high power levels. The massive aluminum die-cast basket has been developed to minimize structural resonances, and the shielded magnet structure allows the F6 to be incorporated into audio/video applications. It may be used in a small vented or closed box when a subwoofer is employed.

    Specificaties

    Artikelnummer
    F6
    Woofer Type
    Midwoofer
    Nominal Diameter
    6-1/2"
    Power Handling (RMS)
    45 Watts
    Power Handling (max)
    90 Watts
    Impedance
    8 ohms
    Sensitivity
    88 dB 2.83V/1m
    Frequency Response
    42 to 4,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    6.5 ohms
    Resonant Frequency (Fs)
    45 Hz
    Mechanical Q (Qms)
    3.91
    Electromagnetic Q (Qes)
    0.38
    Total Q (Qts)
    0.35
    Diaphragm Mass Inc. Airload (Mms)
    18.3g
    Mechanical Compliance of Suspension (Cms)
    0.07 mm/N
    Surface Area of Cone (Sd)
    139 cm²
    Compliance Equivalent Volume (Vas)
    0.58 ft.³
    Maximum Linear Excursion (Xmax)
    4.3 mm
    Cone / Diaphragm Material
    Paper / Kevlar
    Surround Material
    Rubber
    Voice Coil Former
    Kapton® / Polyimide
    Dual Voice Coil
    No
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Shielded
    Yes
    Overall Outside Diameter
    7.75"
    Overall Depth
    3.75"
    Baffle Cutout Diameter
    5.875"
    # Mounting Holes
    6
    Sealed Volume
    0.19 ft.³
    Sealed F3
    94 Hz
    Vented Volume
    0.53 ft.³
    Vented F3
    53 Hz

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    nice woofer in a 3way system. unexpected felt pressure, precision and low range in a 20l cabinet. also i never had placement issues with systems using this woofer.
    if you have high expectations, you'd rather skip thinking of a 2way system with it, at least compared to the f5 the midrange isn't as musical and present. you might still like it for rock music in a 2way system, when trying to keep the xover at 2k or lower.
    Door Martin Z. on 28 Mei 2020
