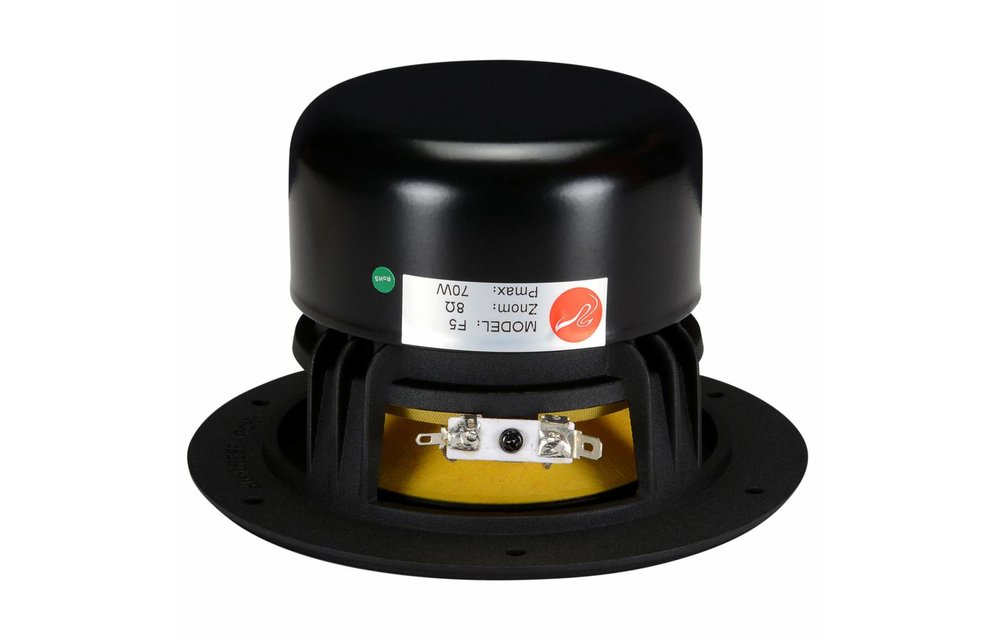

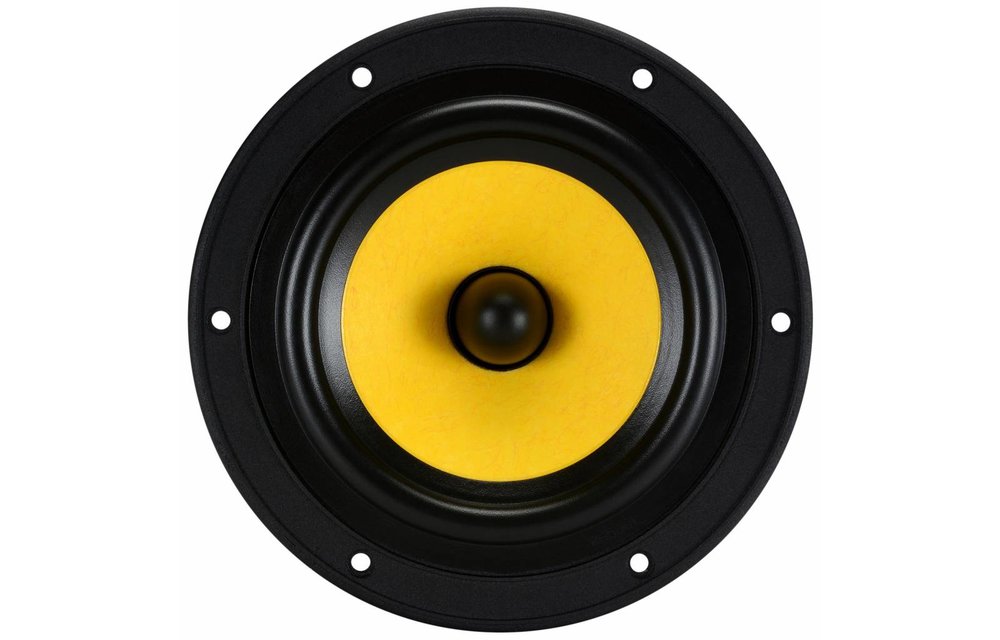

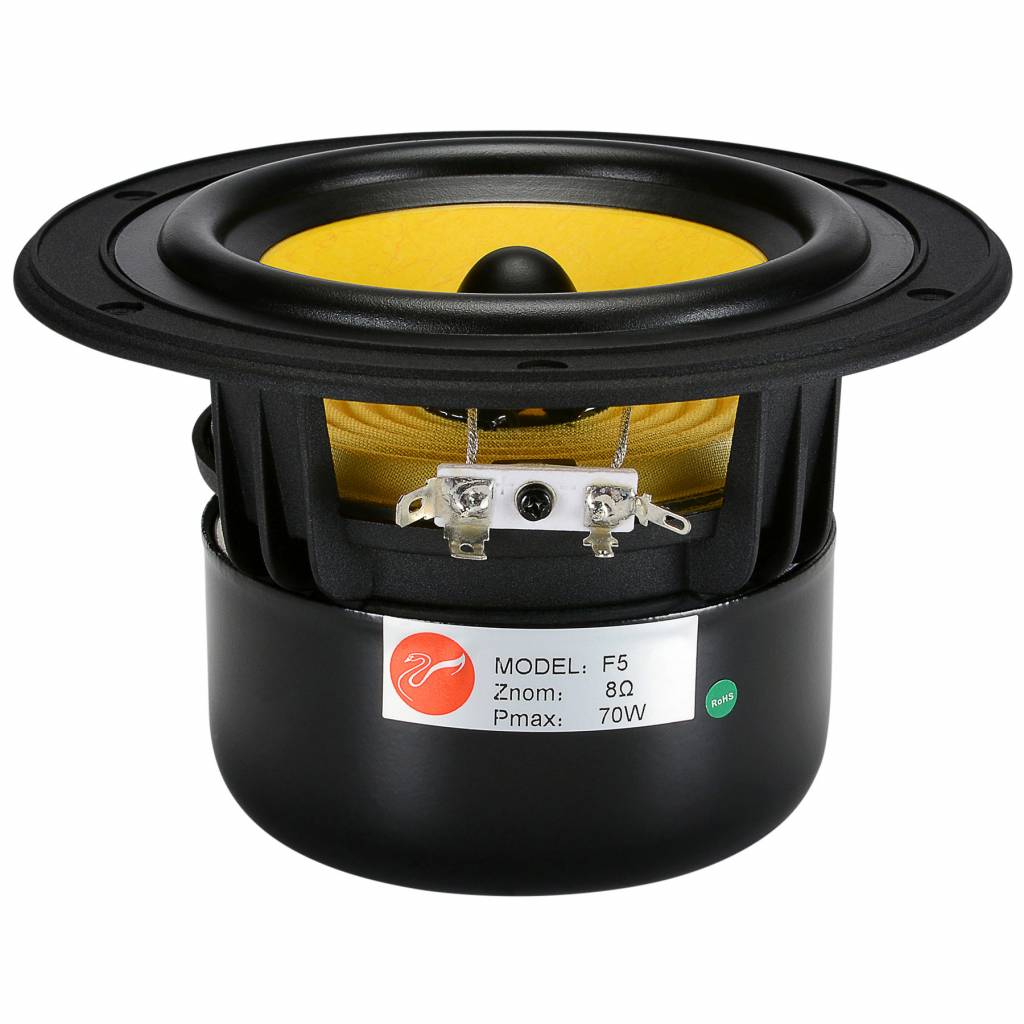

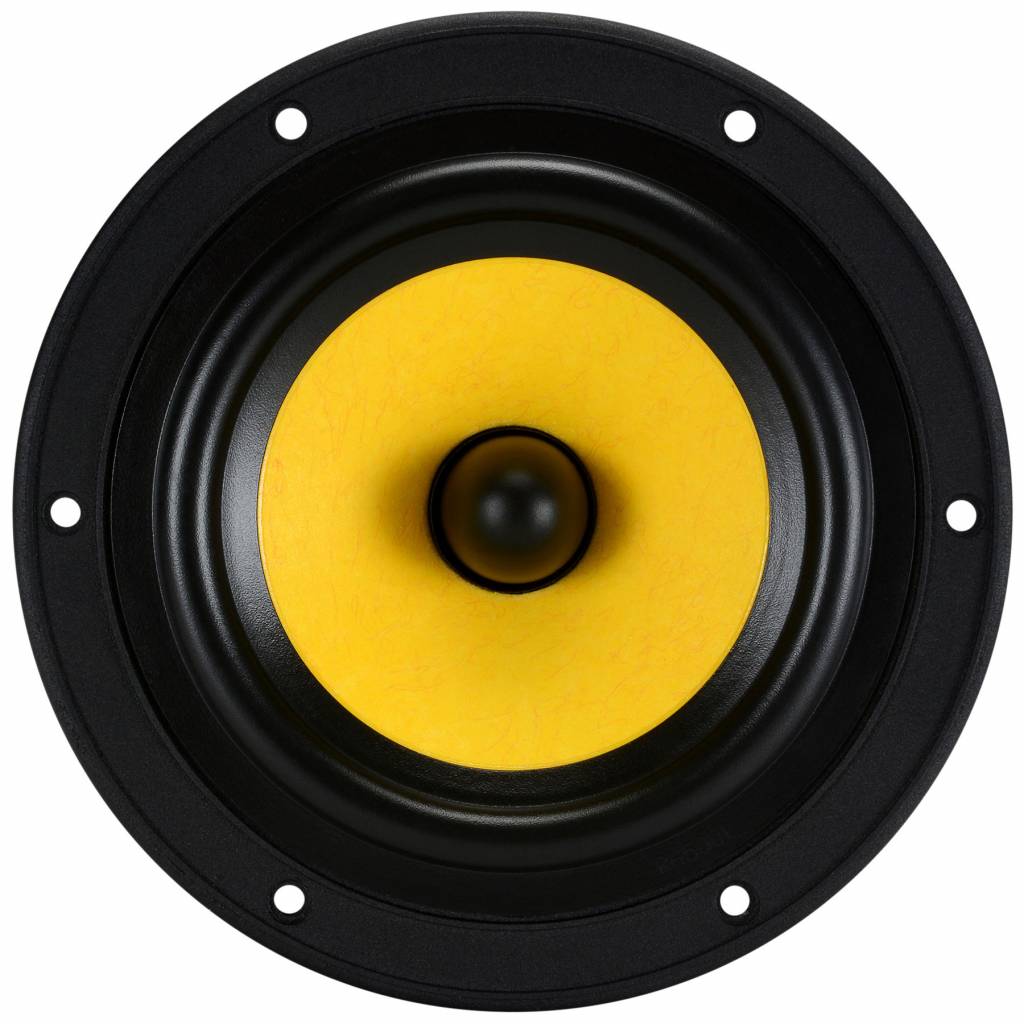

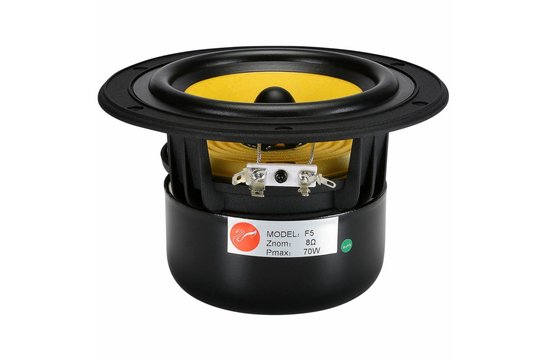

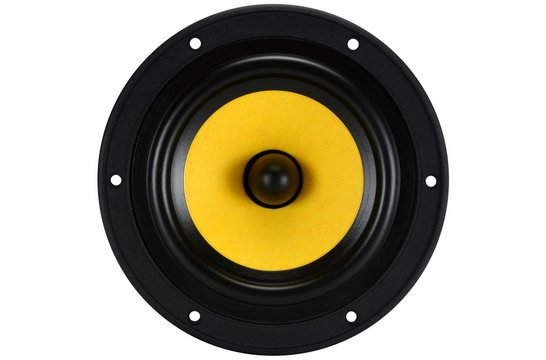

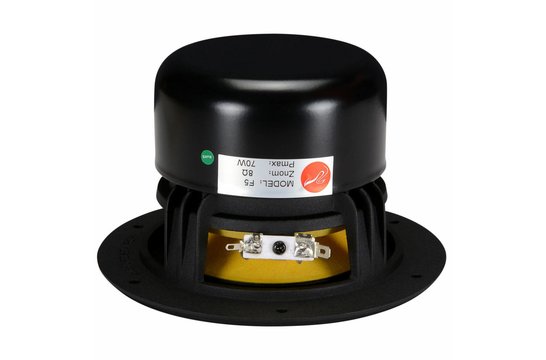

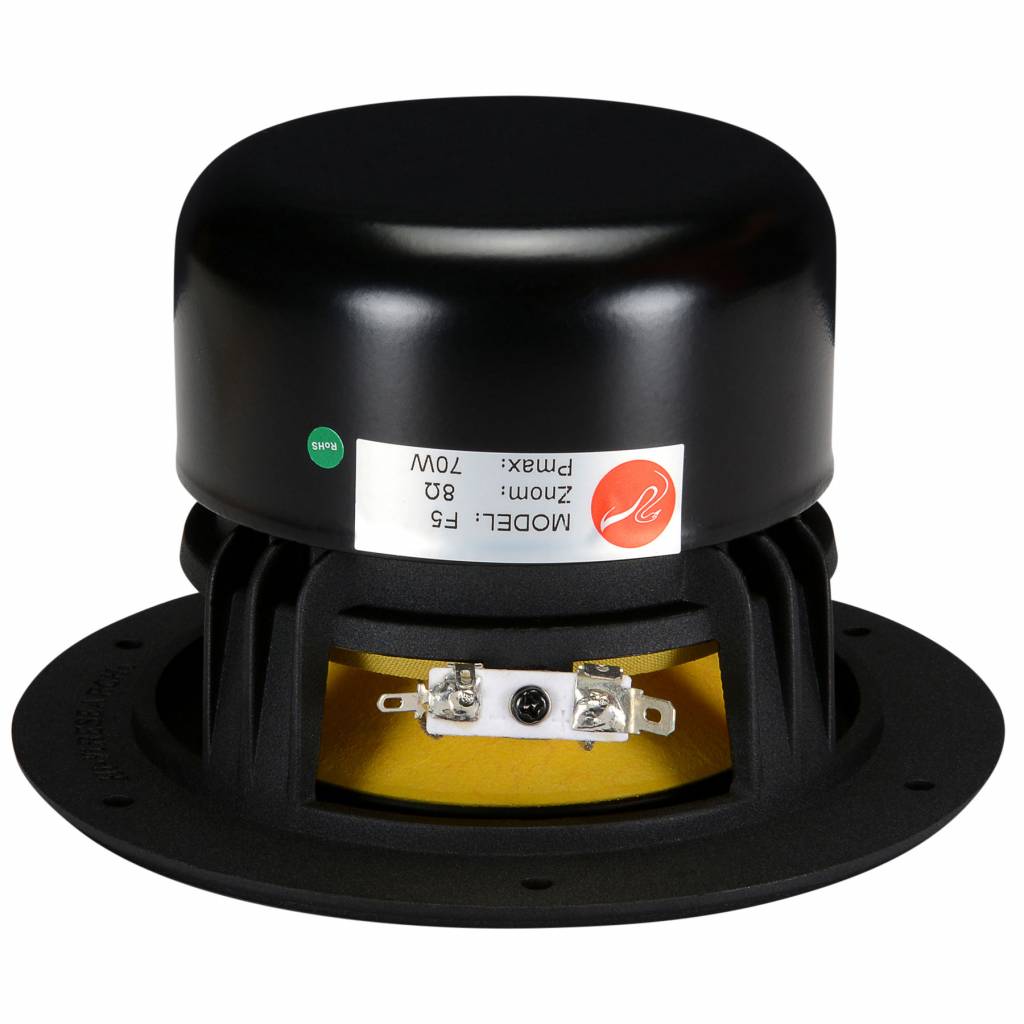

    HiVi F5 5" Bass/Midrange

    € 39,95 >10 Op voorraad: levertijd 1 werkdag
    The design of the HiVi F5 has been optimized for dynamic bass reproduction in small vented systems as well as for midrange clarity and accuracy.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €37,95 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    The design of the HiVi F5 has been optimized for dynamic bass reproduction in small vented systems as well as for midrange clarity and accuracy.



    Highlights

    • Light and extremely rigid cone made from Kevlar/paper composite
    • High loss rubber surround
    • Shielded double magnet motor structure
    • High power handling aluminum former voice coil
    • High-density aluminum die-cast basket
    • Central phase plug



    Product details

    HiVi F5 5" Bass/Midrange



    The design of the HiVi F5 has been optimized for dynamic bass reproduction in small vented systems as well as for midrange clarity and accuracy. Its cone weighs less, is more rigid, and has an improved damping factor. The driver utilizes a central phase plug to avoid air compression and internal air volume resonance, as well as improving frequency response and dispersion. The Kapton former voice coil and highly compliant spider contribute to the linear operation of the driver at high power levels. A massive aluminum die-cast basket has been developed to minimize structural resonances, and the shielded magnet structure allows the F5 to be incorporated easily into audio/video applications. The driver will perform superbly in a small box as a bass-midrange unit, especially when a subwoofer is employed. Recommended crossover frequency region for a two-way system design is 2-4 kHz.

    Specificaties

    Artikelnummer
    F5
    Woofer Type
    Midwoofer
    Nominal Diameter
    5"
    Power Handling (RMS)
    35 Watts
    Power Handling (max)
    70 Watts
    Impedance
    8 ohms
    Sensitivity
    86 dB 2.83V/1m
    Frequency Response
    45 to 5,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    6.5 ohms
    Voice Coil Inductance (Le)
    0.49 mH
    Resonant Frequency (Fs)
    52 Hz
    Mechanical Q (Qms)
    4.31
    Electromagnetic Q (Qes)
    0.36
    Total Q (Qts)
    0.33
    Diaphragm Mass Inc. Airload (Mms)
    11.5g
    Mechanical Compliance of Suspension (Cms)
    0.83 mm/N
    Surface Area of Cone (Sd)
    79 cm²
    Compliance Equivalent Volume (Vas)
    0.32 ft.³
    Maximum Linear Excursion (Xmax)
    2.7 mm
    Cone / Diaphragm Material
    Paper / Kevlar
    Surround Material
    Rubber
    Voice Coil Former
    Kapton® / Polyimide
    Dual Voice Coil
    No
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Shielded
    Yes
    Overall Outside Diameter
    6.06"
    Overall Depth
    3"
    Baffle Cutout Diameter
    4.5"
    # Mounting Holes
    6
    Sealed Volume
    0.09 ft.³
    Sealed F3
    108 Hz
    Vented Volume
    0.27 ft.³
    Vented F3
    59 Hz
