    HiVi F10 10" Woofer

    € 114,95 1 Op voorraad: levertijd 1 werkdag
    The HiVi F10's design has been optimized for dynamic low bass performance in a compact or medium size vented enclosure.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €109,20 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    The HiVi F10's design has been optimized for dynamic low bass performance in a compact or medium size vented enclosure.



    Highlights

    • Light and extremely rigid cone made from Kevlar/paper composite
    • High loss rubber surround
    • High power handling polyimide former voice coil
    • Long-throw motor system with extended linear excursion capability
    • High-density aluminum die-cast basket



    Product details

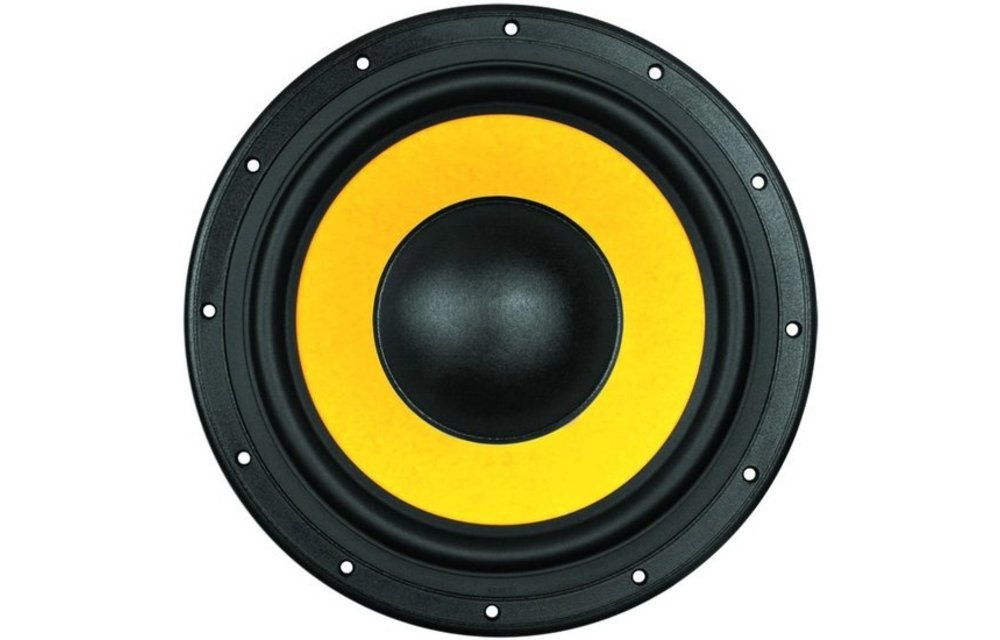

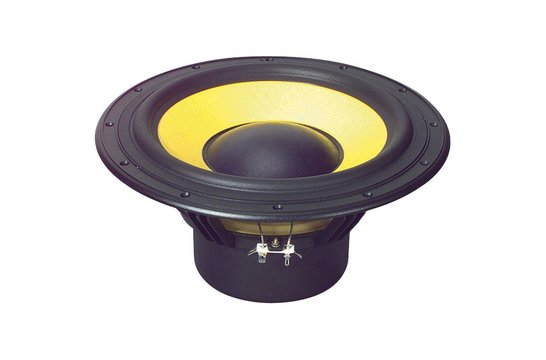

    HiVi F10 10" Woofer



    The HiVi F10's design has been optimized for dynamic low bass performance in a compact or medium size vented enclosure. The F10 utilizes a newly developed matrix of Kevlar and paper fibers. The cone weighs less, is more rigid, and has an improved damping factor. It keeps distortion very low through the woofer's wide frequency and power range. The driver has a vented pole piece to avoid air compression and ensure maximum power handling. The long-throw design provides clean and articulate bass performance at high volumes. A massive aluminum die-cast basket has been developed to minimize structural resonances. Recommended crossover frequency, 300Hz.

    Specificaties

    Artikelnummer
    F10
    Woofer Type
    Midwoofer
    Nominal Diameter
    10"
    Power Handling (RMS)
    100 Watts
    Power Handling (max)
    200 Watts
    Impedance
    8 ohms
    Sensitivity
    89 dB 2.83V/1m
    Frequency Response
    28 to 3,000 Hz
    Voice Coil Diameter
    2"
    DC Resistance (Re)
    6.5 ohms
    Resonant Frequency (Fs)
    28 Hz
    Mechanical Q (Qms)
    5.12
    Electromagnetic Q (Qes)
    0.33
    Total Q (Qts)
    0.31
    Diaphragm Mass Inc. Airload (Mms)
    72.6g
    Mechanical Compliance of Suspension (Cms)
    0.42 mm/N
    Surface Area of Cone (Sd)
    363 cm²
    BL Product (BL)
    16.2 Tm
    Compliance Equivalent Volume (Vas)
    2.78 ft.³
    Maximum Linear Excursion (Xmax)
    6 mm
    Cone / Diaphragm Material
    Paper / Kevlar
    Surround Material
    Rubber
    Voice Coil Former
    Kapton® / Polyimide
    Dual Voice Coil
    No
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Shielded
    Yes
    Overall Outside Diameter
    11.26"
    Overall Depth
    4.41"
    Baffle Cutout Diameter
    9.29"
    # Mounting Holes
    12
    Sealed Volume
    0.43 ft.³
    Sealed F3
    77 Hz
    Vented Volume
    0.99 ft.³
    Vented F3
    48 Hz
