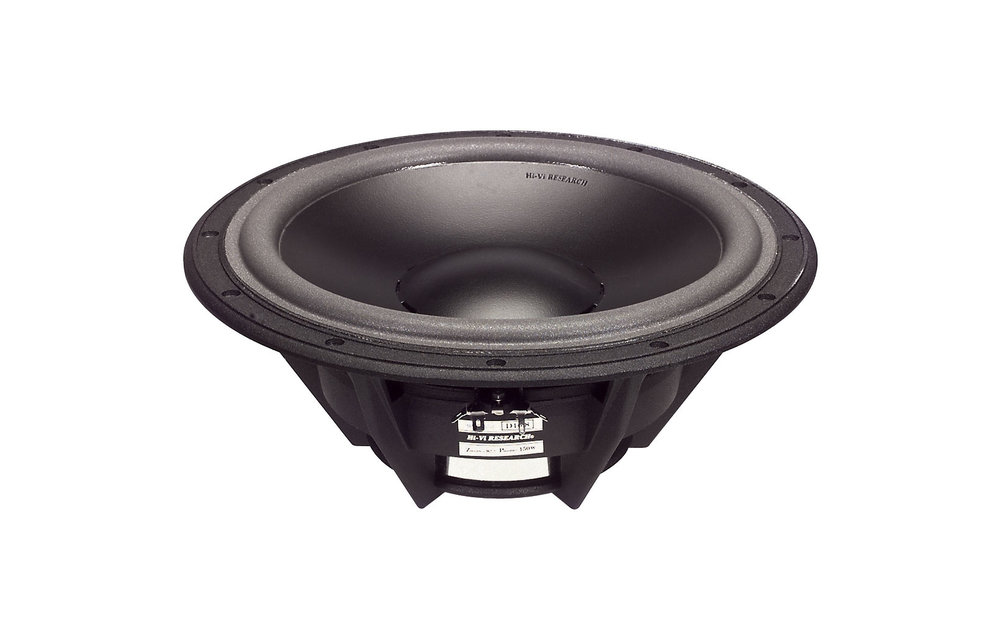

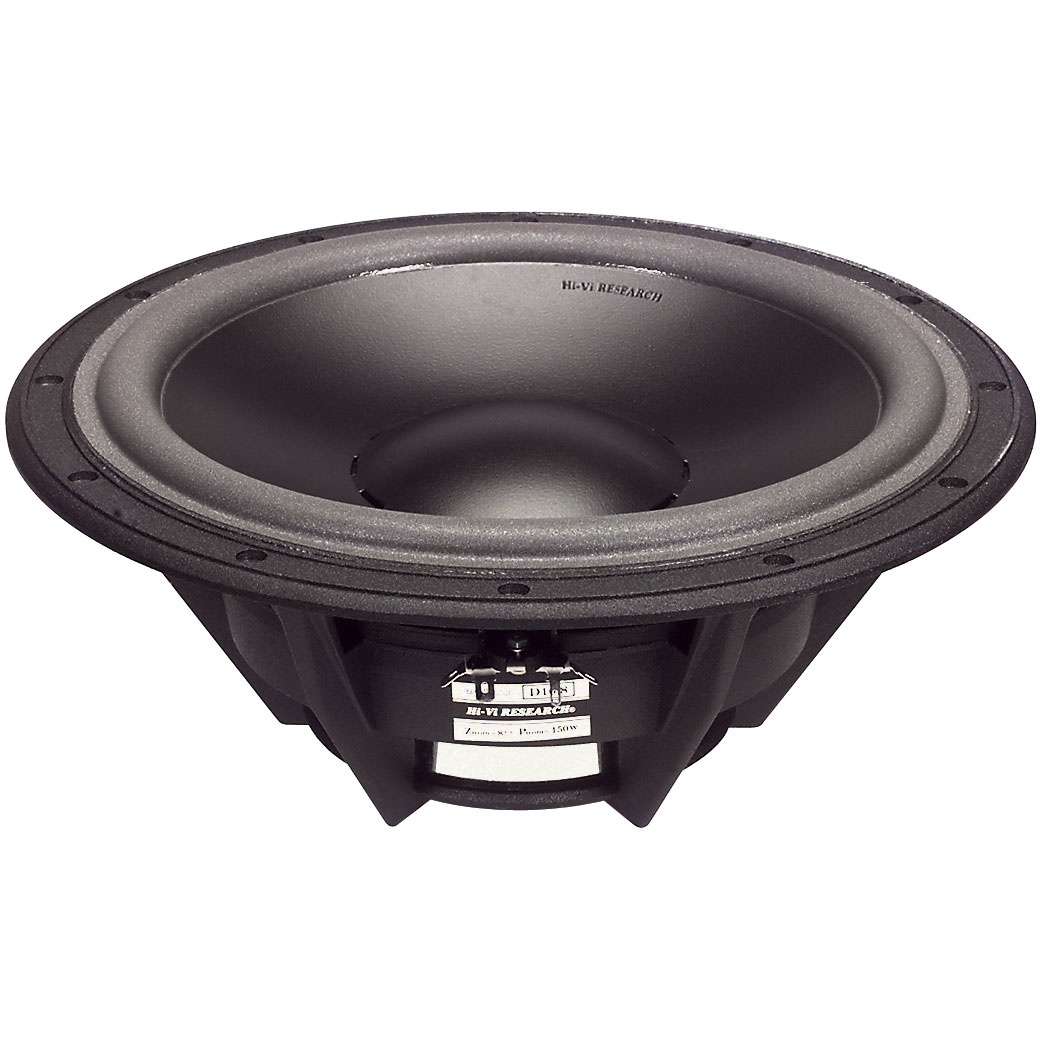

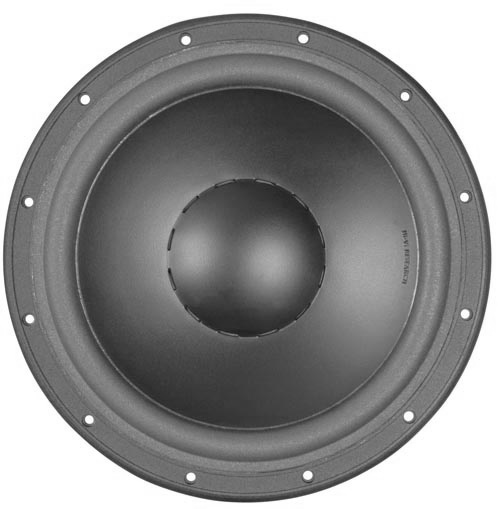

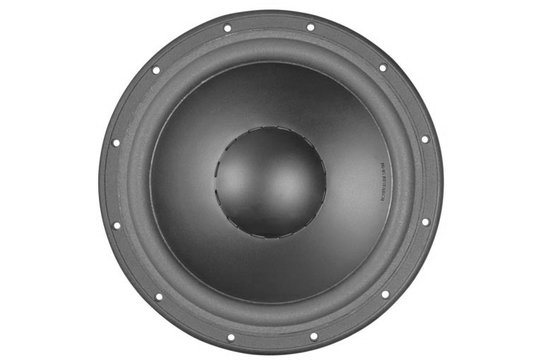

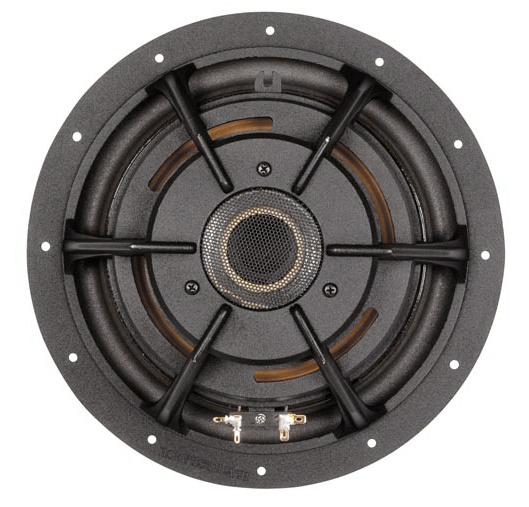

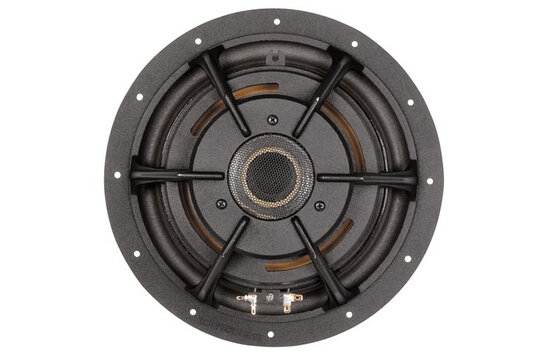

    HiVi D10.8 | 10"| Poly Cone Woofer

    € 179,95 4 Op voorraad: levertijd 1 werkdag
    The HiVi D10.8 represents a design in which the voice coil is positioned over an undercut central pole piece with a large thermally stabilized neodymium magnet at the bottom and a high energy ceramic magnet on the top.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €170,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The HiVi D10.8 represents a design in which the voice coil is positioned over an undercut central pole piece with a large thermally stabilized neodymium magnet at the bottom and a high energy ceramic magnet on the top.



    Highlights

    • Extreme power handling 100 mm voice coil with a black anodized aluminum former
    • Shielded vented magnet system with a huge Neodymium magnet
    • Fatigue resistant foam surround
    • Long-throw symmetrically driving motor structure
    • Progressive spider with decompressed rear volume
    • High density aluminum die-cast frame



    Product details

    HiVi D10.8 | 10"| Poly Cone Woofer



    The HiVi D10.8 represents a design in which the voice coil is positioned over an undercut central pole piece with a large thermally stabilized neodymium magnet at the bottom and a high energy ceramic magnet on the top. A specially shaped, CNC machined steel cup completes the magnetic structure from the outside, creating a shielded magnet system with symmetrical flux density distribution along the gap. The long-throw voice coil experiences a symmetric driving force that substantially decreases inductance and back electromotive force modulations. The magnet structure is optimized using Finite Element Analysis technique, resulting in a radical improvement of driver linearity. The cone has a shallow, high integrity structure that is extremely rigid and dynamically stable. The large voice coil diameter allows for a more uniform cone movement, delivering clear and accurate reproduction. The vented motor design and high temperature rated voice coil provide a dramatic increase in power handling. D10.8 is an excellent woofer for high power "no compromise" audiophile systems and control monitors. It also may be used as a subwoofer in various configurations.

    Specificaties

    Artikelnummer
    D10.8
    Woofer Series
    D10 Series
    Woofer Type
    Poly Cone Woofer
    Nominal Diameter
    10"
    Power Handling (RMS)
    150 Watts
    Power Handling (max)
    300 Watts
    Impedance
    8 ohms
    Sensitivity
    90 dB 2.83V/1m
    Frequency Response
    24 to 2,300 Hz
    Voice Coil Diameter
    4"
    DC Resistance (Re)
    6.5 ohms
    Resonant Frequency (Fs)
    24 Hz
    Mechanical Q (Qms)
    6.84
    Electromagnetic Q (Qes)
    0.44
    Total Q (Qts)
    0.41
    Diaphragm Mass Inc. Airload (Mms)
    75.5g
    Mechanical Compliance of Suspension (Cms)
    0.56 mm/N
    Surface Area of Cone (Sd)
    434 cm²
    BL Product (BL)
    13.4 Tm
    Compliance Equivalent Volume (Vas)
    5.2 ft.³
    Maximum Linear Excursion (Xmax)
    8 mm
    Cone / Diaphragm Material
    Poly
    Surround Material
    Foam
    Voice Coil Wire Material
    CCA
    Voice Coil Former
    Kapton® / Polyimide
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Neodymium
    Sealed Volume
    1.93 ft.³
    Sealed F3
    43 Hz
    Vented Volume
    5.71 ft.³
    Vented F3
    24 Hz
