    HiVi B3S 3" Shielded Aluminum Driver Square Frame

    € 18,45 1 Op voorraad: levertijd 1 werkdag
    Magnesium/aluminum alloy concave cones and square frames are the distinguishing features of the BS series. The B3S 3" full-range speaker's magnetically shielded design allows use in center channel and other multimedia applications.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €17,53 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Magnesium/aluminum alloy concave cones and square frames are the distinguishing features of the BS series. The B3S 3" full-range speaker's magnetically shielded design allows use in center channel and other multimedia applications.



    Highlights

    • Magnesium/aluminum alloy concave cones and square frames
    • Magnetically shielded design allows use in center channel and other multimedia applications
    • Symmetric Motor Drive (SMD) technology
    • Impressive low distortion



    Product details

    HiVi B3S 3" Shielded Aluminum Driver Square Frame

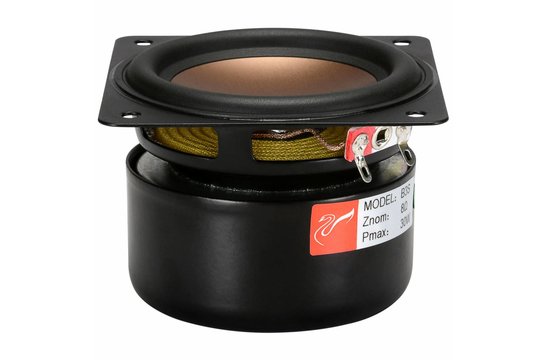

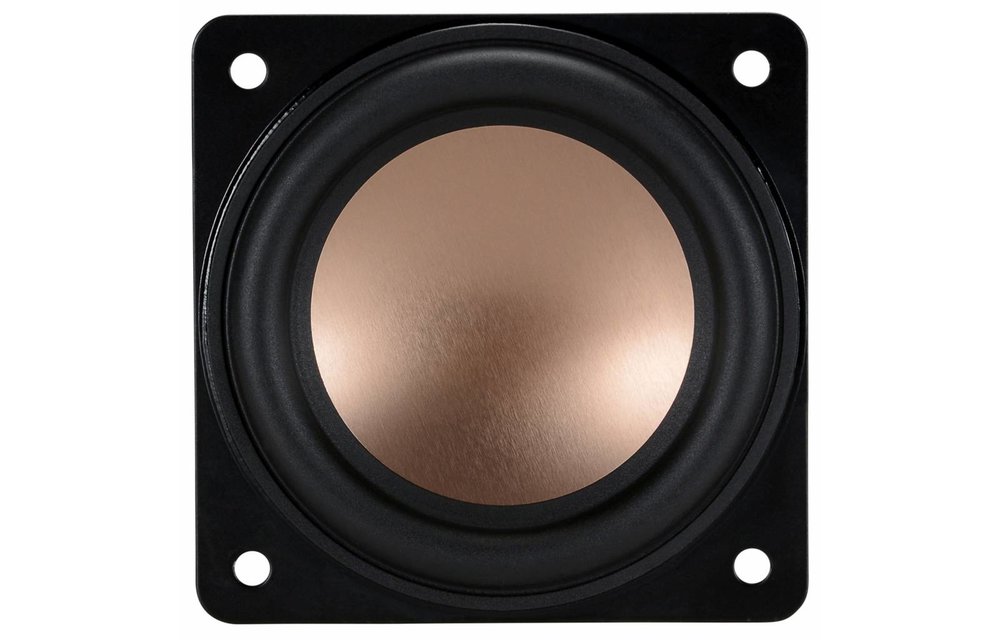

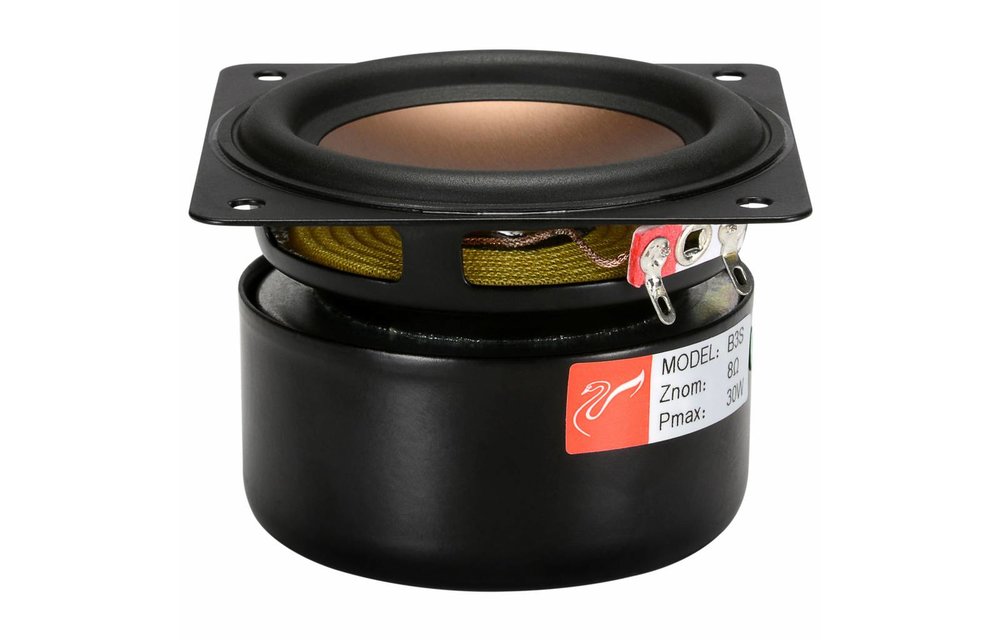

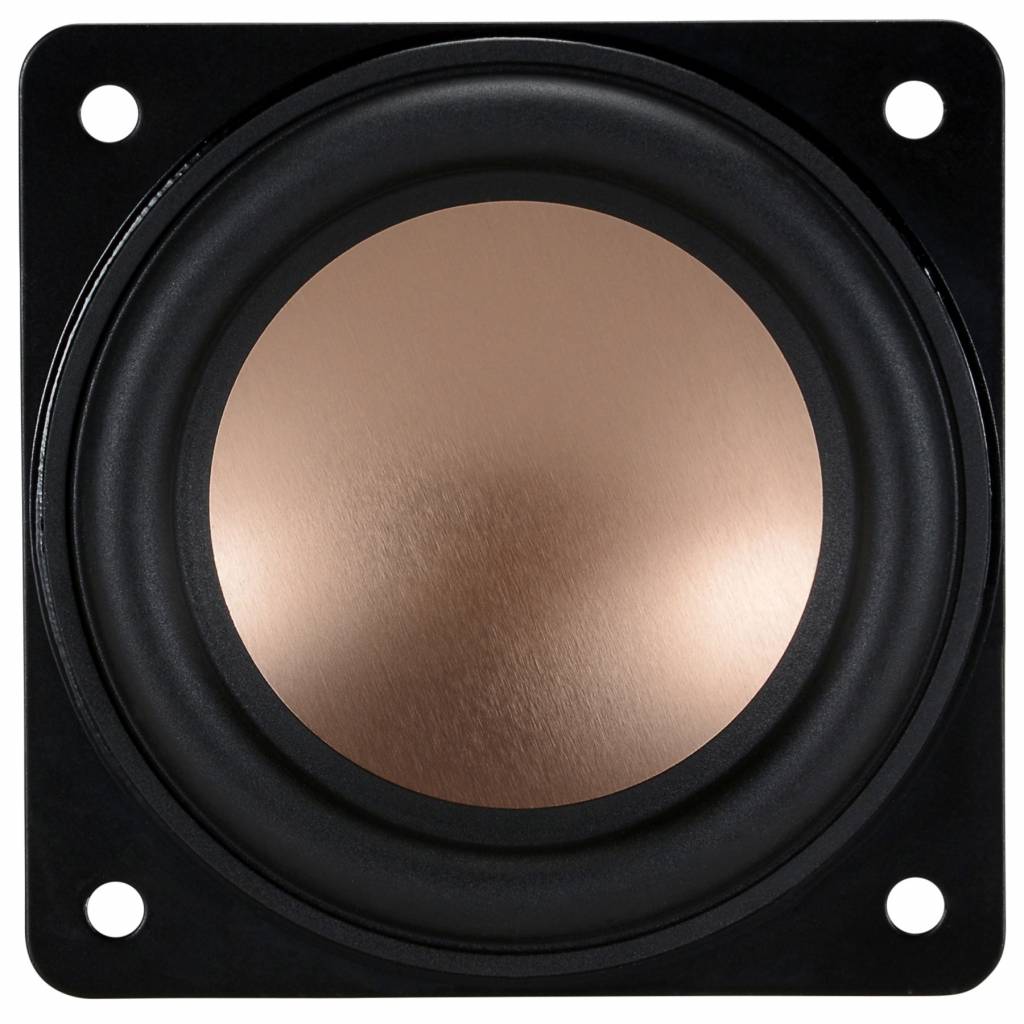

    Magnesium/aluminum alloy concave cones and square frames are the distinguishing features of the BS series. The B3S 3" full-range speaker's magnetically shielded design allows use in center channel and other multimedia applications. HiVi's Symmetric Motor Drive (SMD) technology reduces the voice coil's inductance modulation and back EMF, thereby improving the speaker's controllability and achieving impressively low distortion. Stamped steel frame and rubber surround. These drivers are capable of covering a wide portion of the audio spectrum and are easy to install without the need for cutting complicated driver recesses.

    Specificaties

    Artikelnummer
    B3S
    Woofer Type
    Midwoofer
    Nominal Diameter
    3"
    Power Handling (RMS)
    15 Watts
    Power Handling (max)
    30 Watts
    Impedance
    8 ohms
    Sensitivity
    82 dB 2.83V/1m
    Frequency Response
    100 to 10,000 Hz
    Voice Coil Diameter
    0.75"
    DC Resistance (Re)
    6.5 ohms
    Resonant Frequency (Fs)
    100 Hz
    Mechanical Q (Qms)
    3.75
    Electromagnetic Q (Qes)
    1.15
    Total Q (Qts)
    0.88
    Diaphragm Mass Inc. Airload (Mms)
    2.6g
    Mechanical Compliance of Suspension (Cms)
    0.99 mm/N
    Surface Area of Cone (Sd)
    30 cm²
    BL Product (BL)
    3.06 Tm
    Compliance Equivalent Volume (Vas)
    0.04 ft.³
    Maximum Linear Excursion (Xmax)
    3 mm
    Cone / Diaphragm Material
    Aluminum / Magnesium
    Voice Coil Wire Material
    CCA
    Voice Coil Former
    Kapton® / Polyimide
    Dual Voice Coil
    No
    Magnet Material
    Ferrite
    Shielded
    Yes
    Overall Outside Diameter
    3"
    Overall Depth
    2.13"
    Baffle Cutout Diameter
    2.75"
    # Mounting Holes
    4
    Sealed F3
    0.1 ft.³
    Vented Volume
    0.19 ft.³
    Vented F3
    57 Hz
