    Visaton WS 17 E 6.5" HiFi Woofer 8 Ohm

    € 21,45 >10 Op voorraad: levertijd 1 werkdag
    17 cm (6.5") HiFi woofer with coated paper cone, elastic rubber surround and inverse dust-cap.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €20,38 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

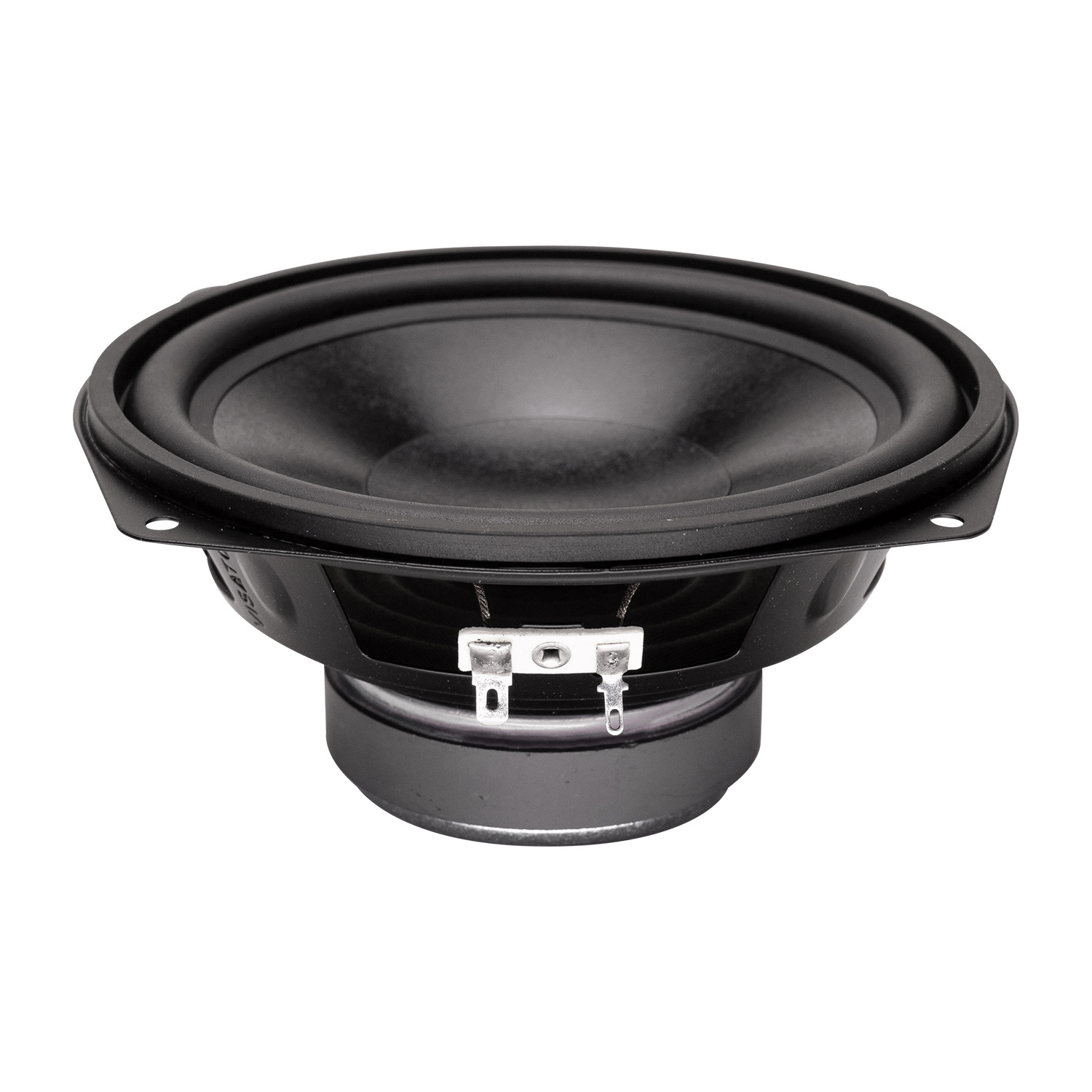

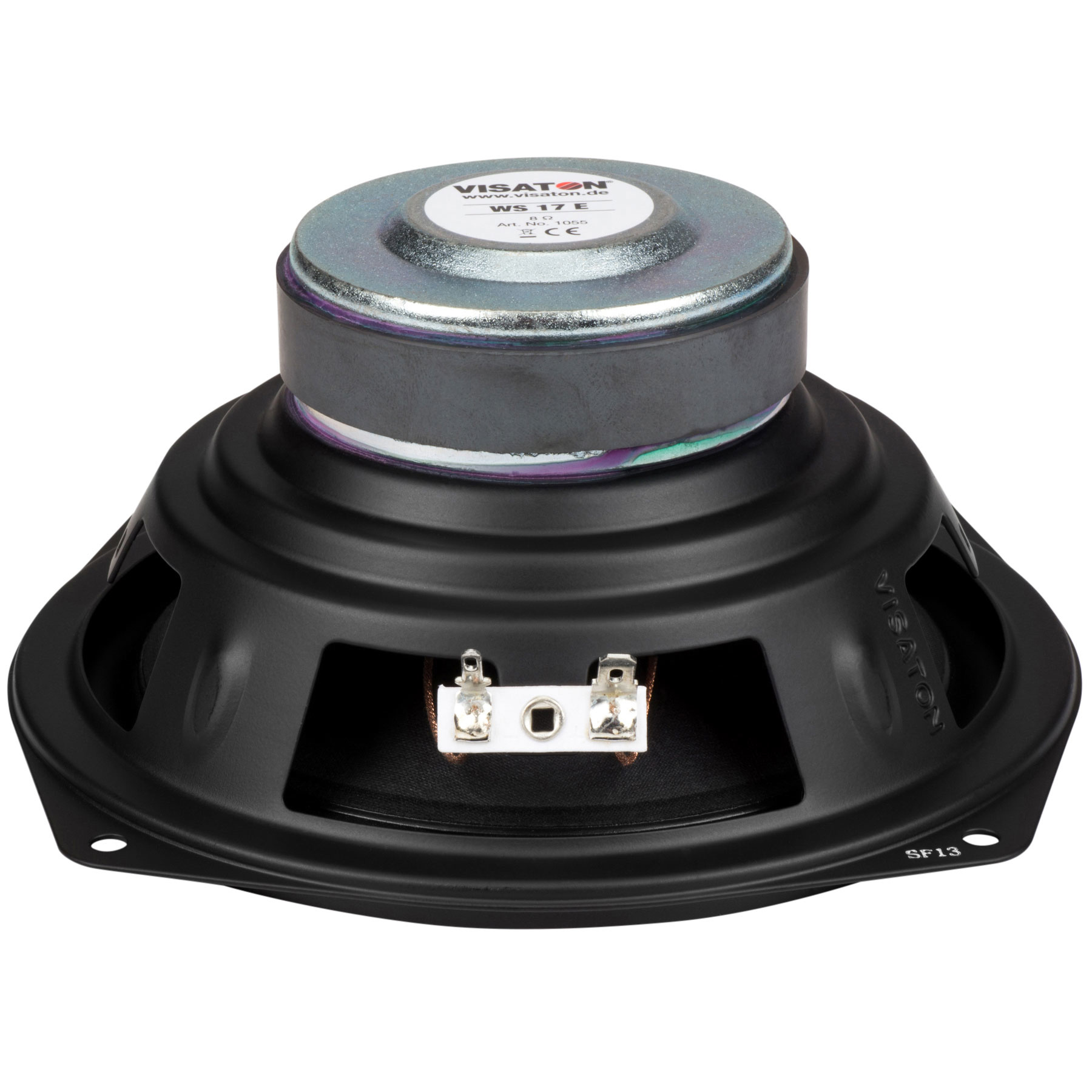

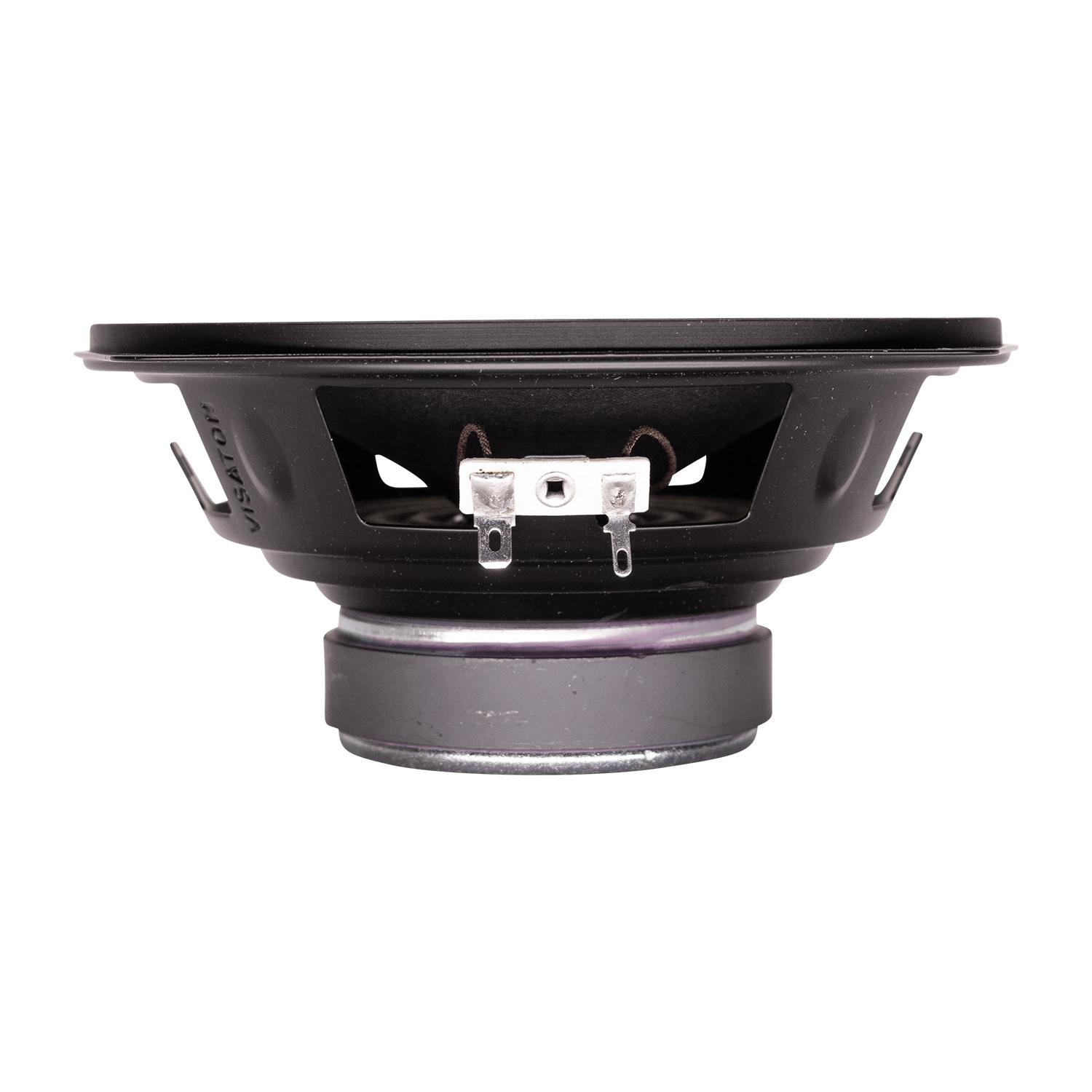

    17 cm (6.5") HiFi woofer with coated paper cone, elastic rubber surround and inverse dust-cap.



    Highlights

    • Flat frequency response for easy system integration
    • Great replacement driver
    • Special basket design



    Product details

    Visaton WS 17 E 6.5" HiFi Woofer 8 Ohm



    This woofer has a balanced frequency response and is suitable as low-midrange driver for 4-way speaker systems. Due to the special basket design especially suitable as replacement driver for many HiFi speakers.



    Choose the HiFi Visaton WS 17 E 6.5" driver for use as a woofer in small two and three-way speaker designs, as a midrange or midbass in large multi-way systems, or even as a small format personal computer subwoofer. The rubber surround and treated paper cone resist fatigue and create a warm, natural sound that matches that of the golden age of audio in the 1970s. A low Fs allows this 6.5" speaker to play all the way down into the 40 Hz region, while its upper response extends out to 7,000 Hz.

    Specificaties

    Artikelnummer
    WS 17 E - 8
    Woofer Series
    HiFi Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    6.5"
    Power Handling (RMS)
    60 Watts
    Power Handling (max)
    90 Watts
    Impedance
    8 ohms
    Sensitivity
    88 dB (1 W/1 m)
    Frequency Response
    45 - 7,000 Hz
    Voice Coil Diameter
    25 mm
    DC Resistance (Re)
    5.8 ohms
    Voice Coil Inductance (Le)
    0.9 mH
    Resonant Frequency (Fs)
    45 Hz
    Mechanical Q (Qms)
    2.2
    Electromagnetic Q (Qes)
    1.28
    Total Q (Qts)
    0.81
    Diaphragm Mass Inc. Airload (Mms)
    16g
    Surface Area of Cone (Sd)
    143 cm2
    BL Product (BL)
    3.9 Tm
    Compliance Equivalent Volume (Vas)
    22 liters
    Maximum Linear Excursion (Xmax)
    3.5 mm
    Cone / Diaphragm Material
    Treated Paper
    Surround Material
    Rubber
    Overall Outside Diameter
    165 mm
    Overall Depth
    79 mm
    Baffle Cutout Diameter
    150 mm
    Bolt Circle Diameter
    175 mm
    # Mounting Holes
    4
    Mounting Hole Diameter
    5 mm

    Reviews

    3 from 5Based on 3 reviews
    Schrijf een review
    2 van 5
    So - so.
    Door Tomaz G. on 12 Januari 2021
    4 van 5
    na 25 jaar de speaker vervangen
    goede kwaliteit/prijs
    Door Arthur B. on 1 December 2020
