    Visaton W 130 S - 8 5" Woofer 8 Ohm

    € 29,95 Niet op voorraad: binnen 1 week leverbaar
    The 9023 W130S 5" woofer from Visaton delivers amazing bass, Xmax, and midrange performance not normally found in 5" drivers at its price point.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €28,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

    • Relatively flat frequency response from 80 to 4,000 Hz
    • Able to play below 40 Hz in a proper vented cabinet
    • Great power handling and Xmax



    Product details

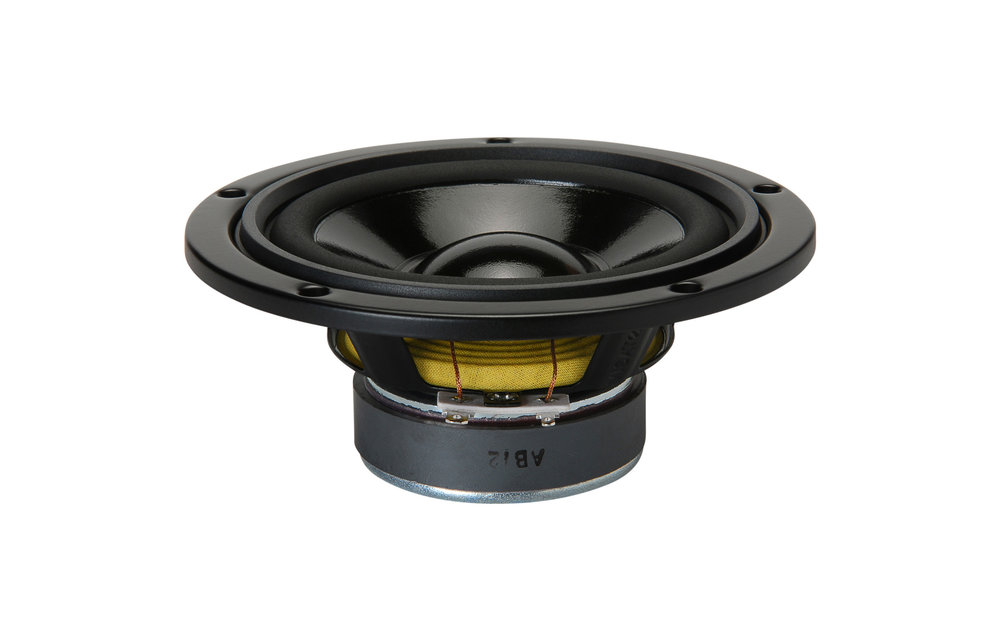

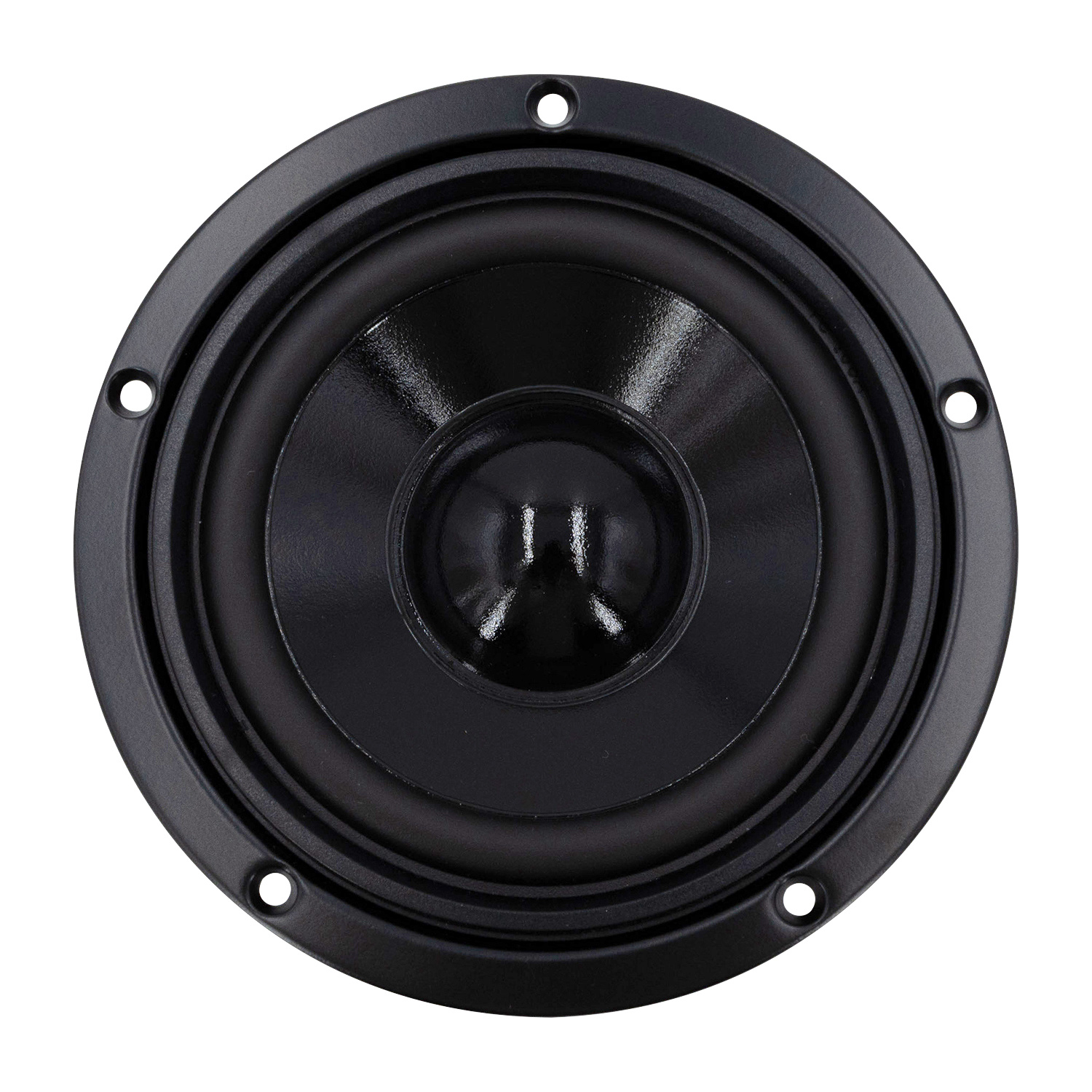

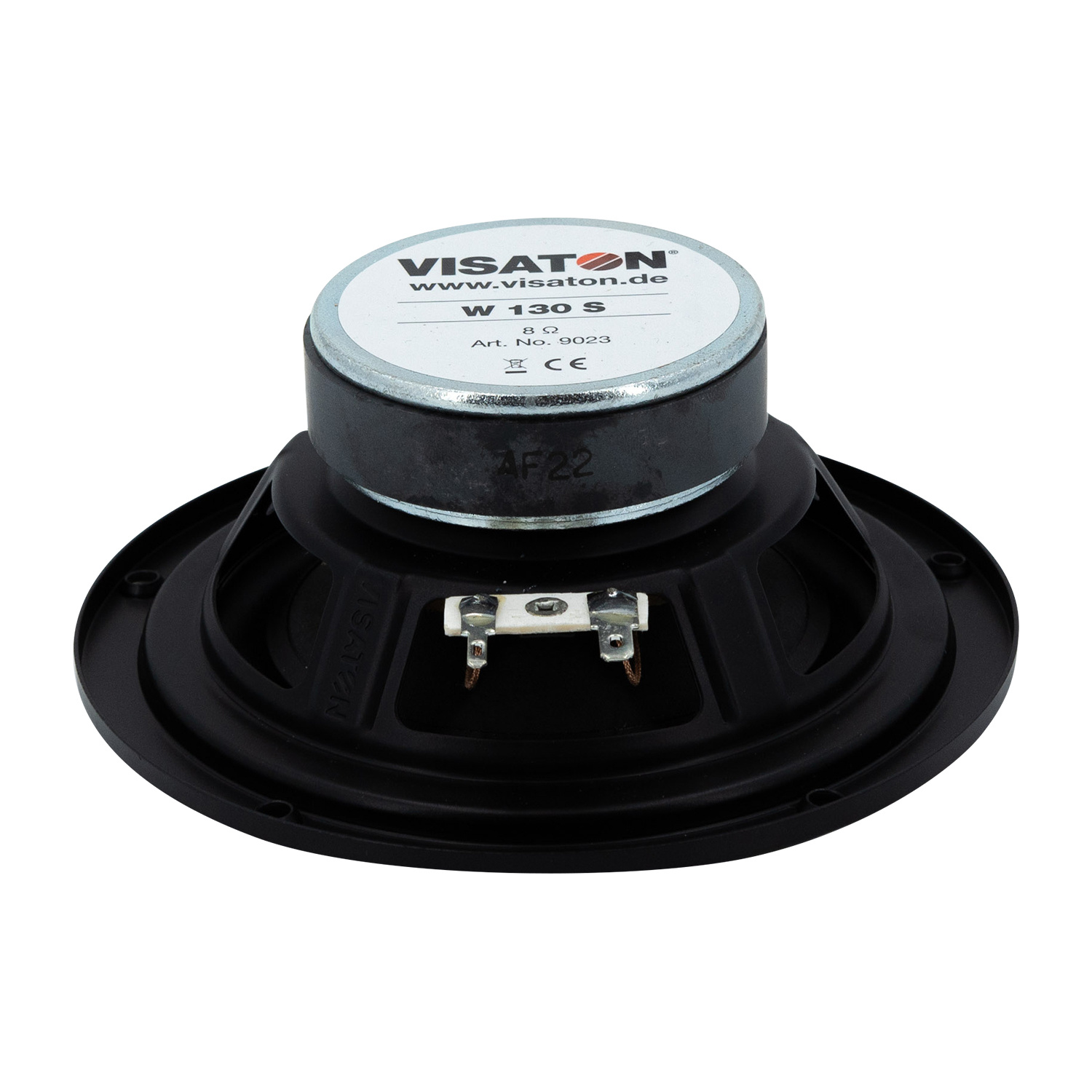

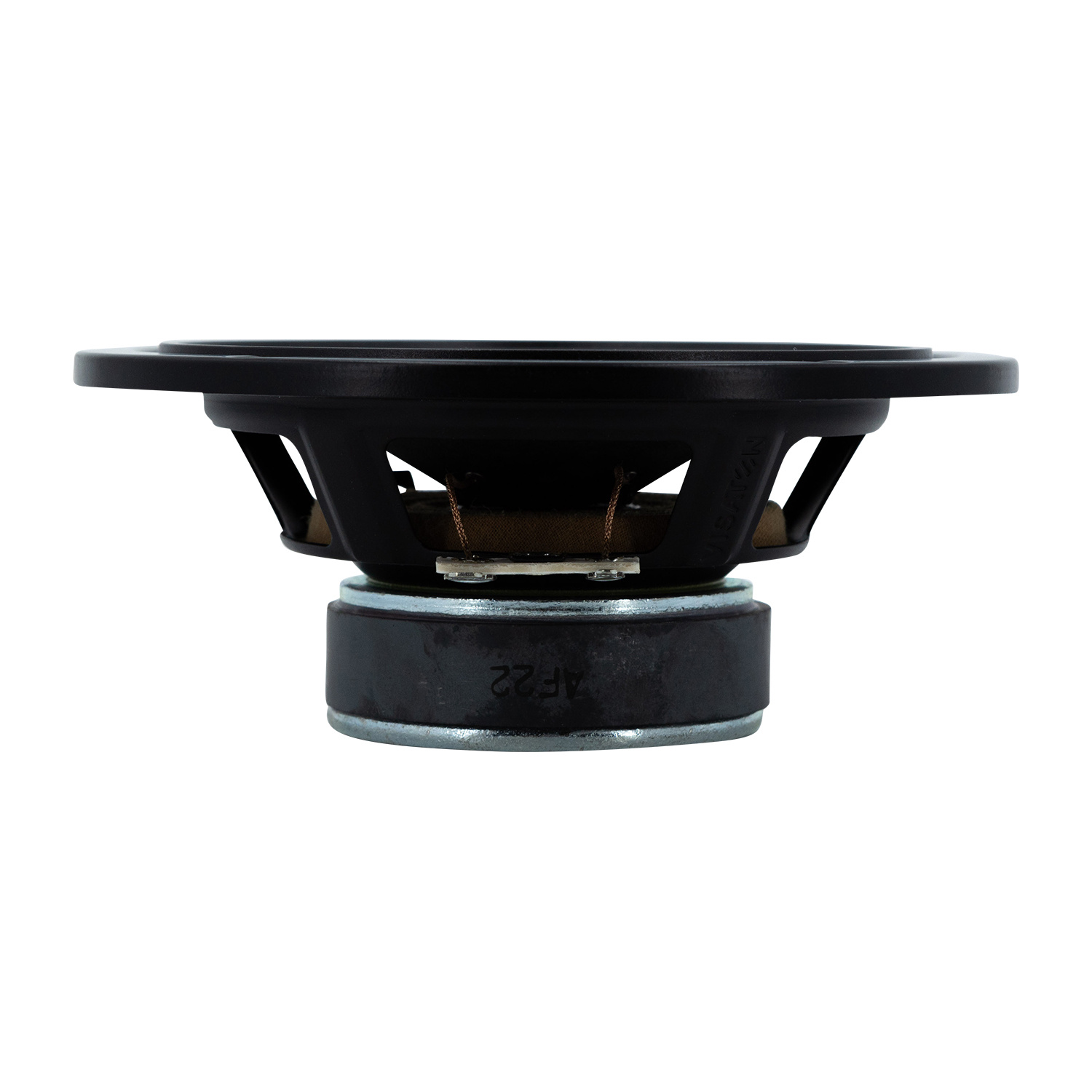

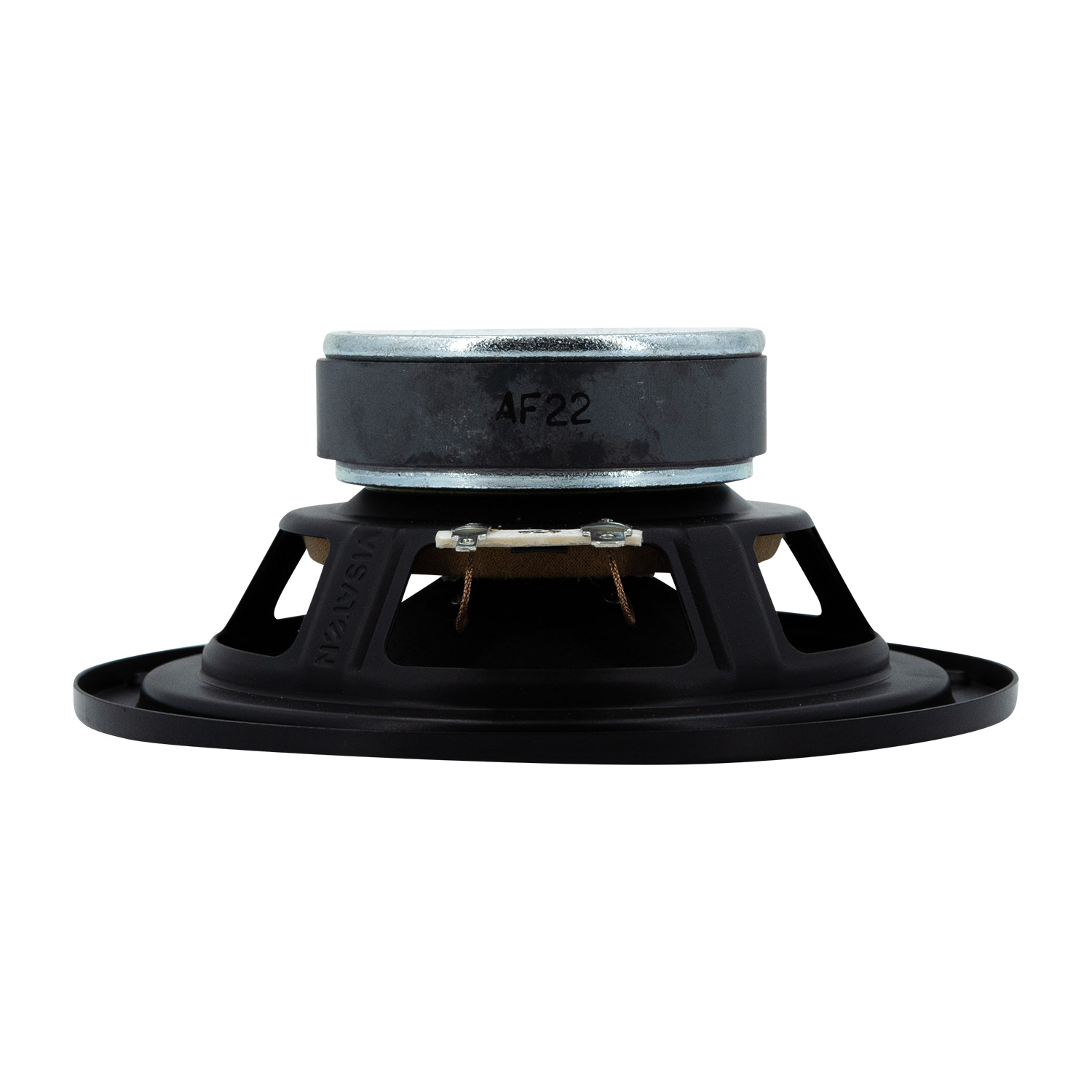

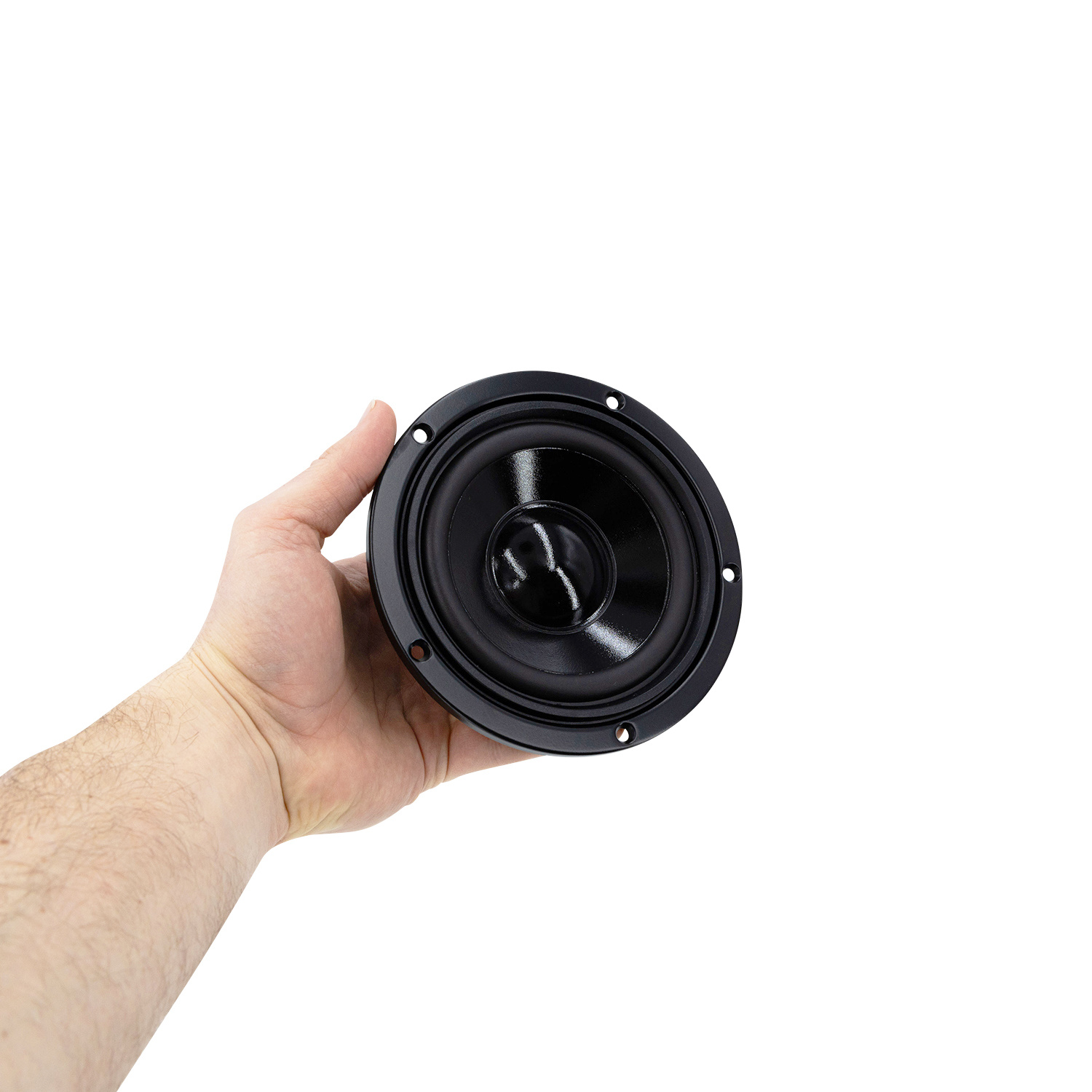

    Visaton W 130 S - 8 5" Woofer 8 Ohm



    Visaton's 9023 W130S 5" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W130S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 4,000 Hz. This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers.



    For best bass performance, install the W130S into one of the following cabinets: A 0.25 cubic foot sealed cabinet (F3 is 86 Hz with a Qtc of 0.75) • A 0.71 cubic foot cabinet tuned to 44 Hz with a 1-1/4" diameter port that is 1-9/16" long • A 1.06 cubic foot cabinet tuned to 39 Hz with a 2-3/8" diameter port that is 4-3/4"" long.

    Specificaties

    Artikelnummer
    W 130 S - 8
    Woofer Series
    HiFi Series
    Woofer Type
    Bass-mid woofer
    Nominal Diameter
    5"
    Power Handling (RMS)
    50 watts
    Power Handling (max)
    80 watts
    Impedance
    8 ohms
    Sensitivity
    87 dB 1W/1m
    Frequency Response
    52 - 12,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    6 ohms
    Voice Coil Inductance (Le)
    0.6 mH
    Resonant Frequency (Fs)
    52 Hz
    Mechanical Q (Qms)
    2.26
    Electromagnetic Q (Qes)
    0.59
    Total Q (Qts)
    0.47
    Compliance Equivalent Volume (Vas)
    0.42 ft.³
    Maximum Linear Excursion (Xmax)
    2.25 mm
    Cone / Diaphragm Material
    Treated Paper
    Surround Material
    Rubber
    Overall Outside Diameter
    146 mm
    Overall Depth
    53.1 mm
    Baffle Cutout Diameter
    106.9 mm
    # Mounting Holes
    5
    Sealed Volume
    5.95 liters
    Sealed F3
    88 Hz
    Vented Volume
    15.86 liters
    Vented F3
    43 Hz
