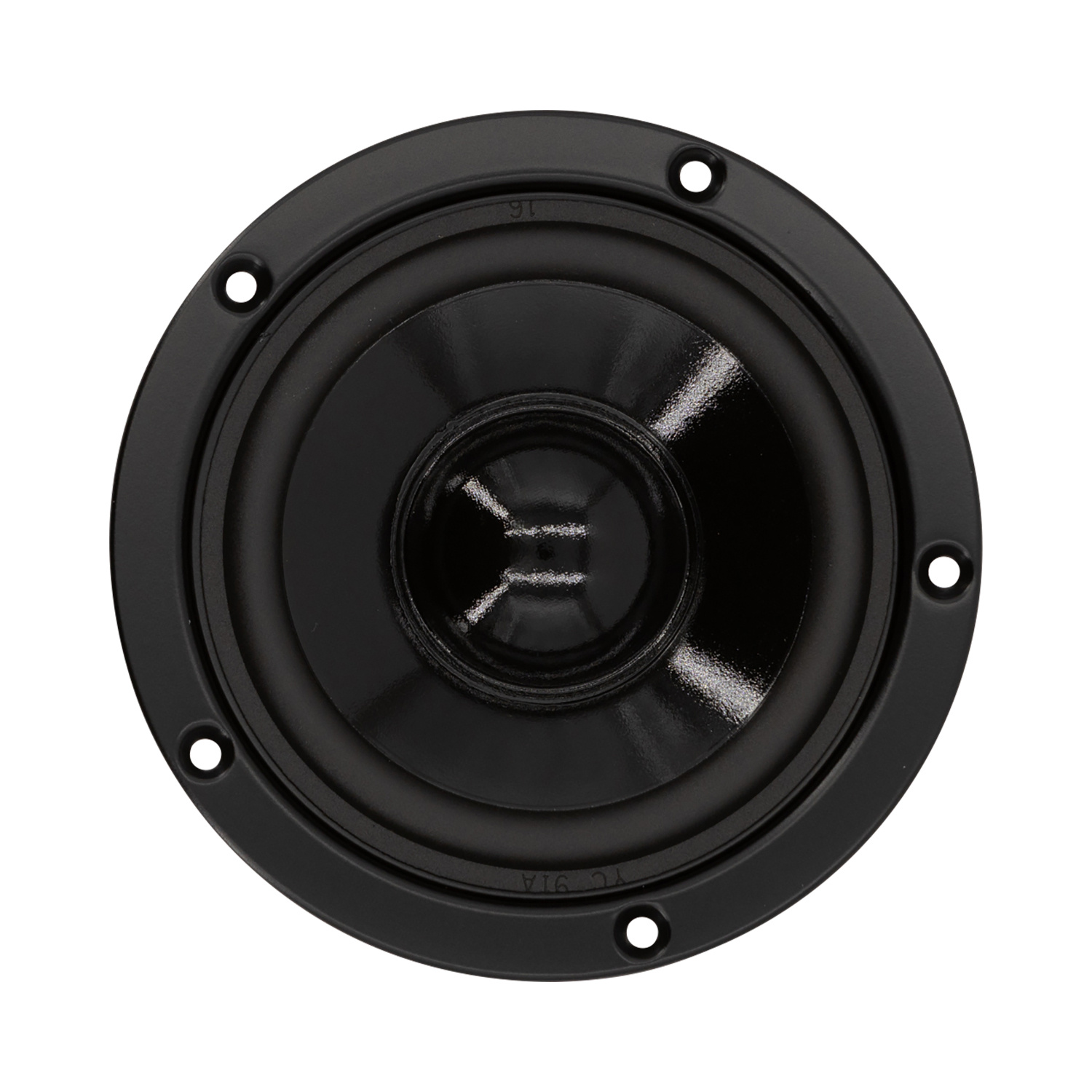

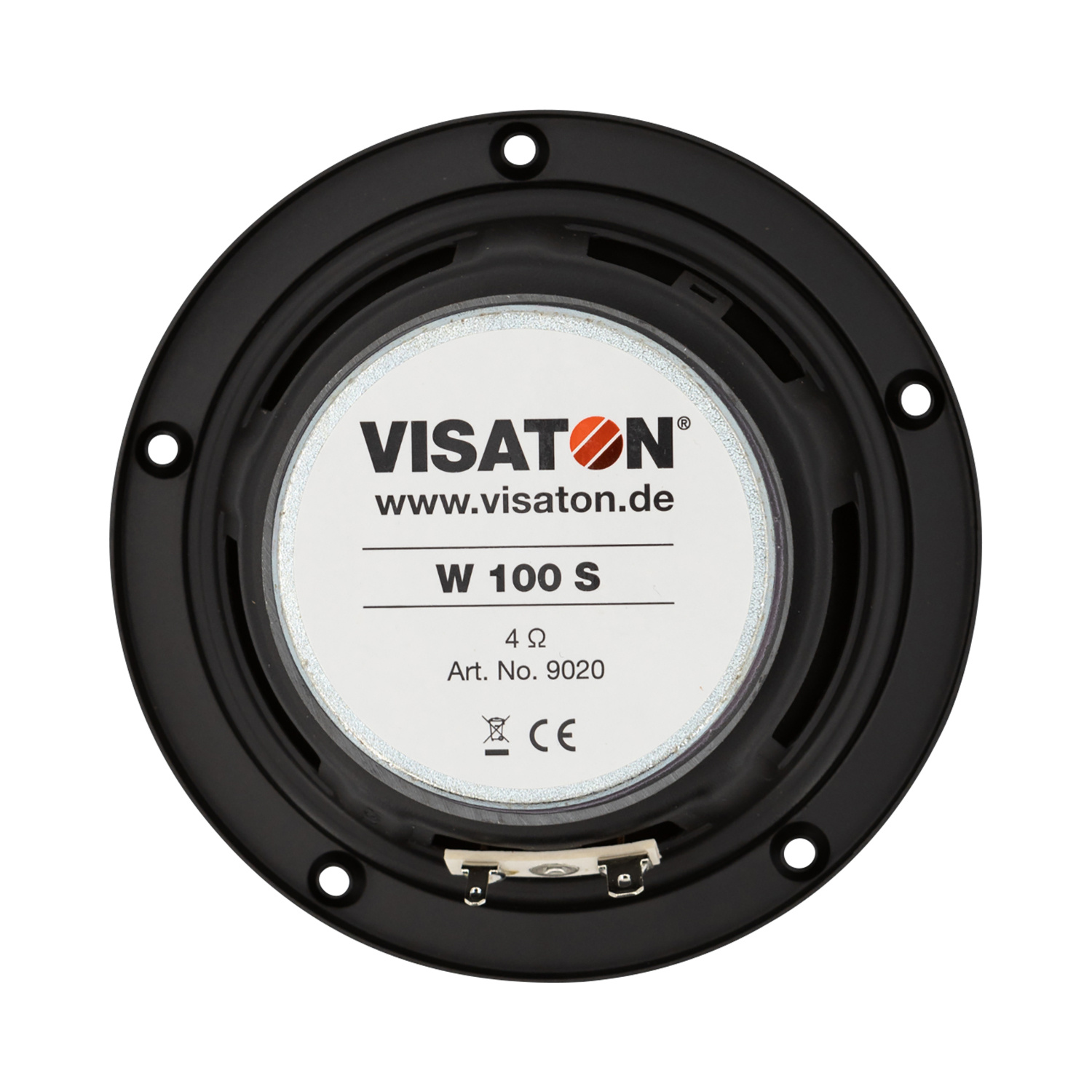

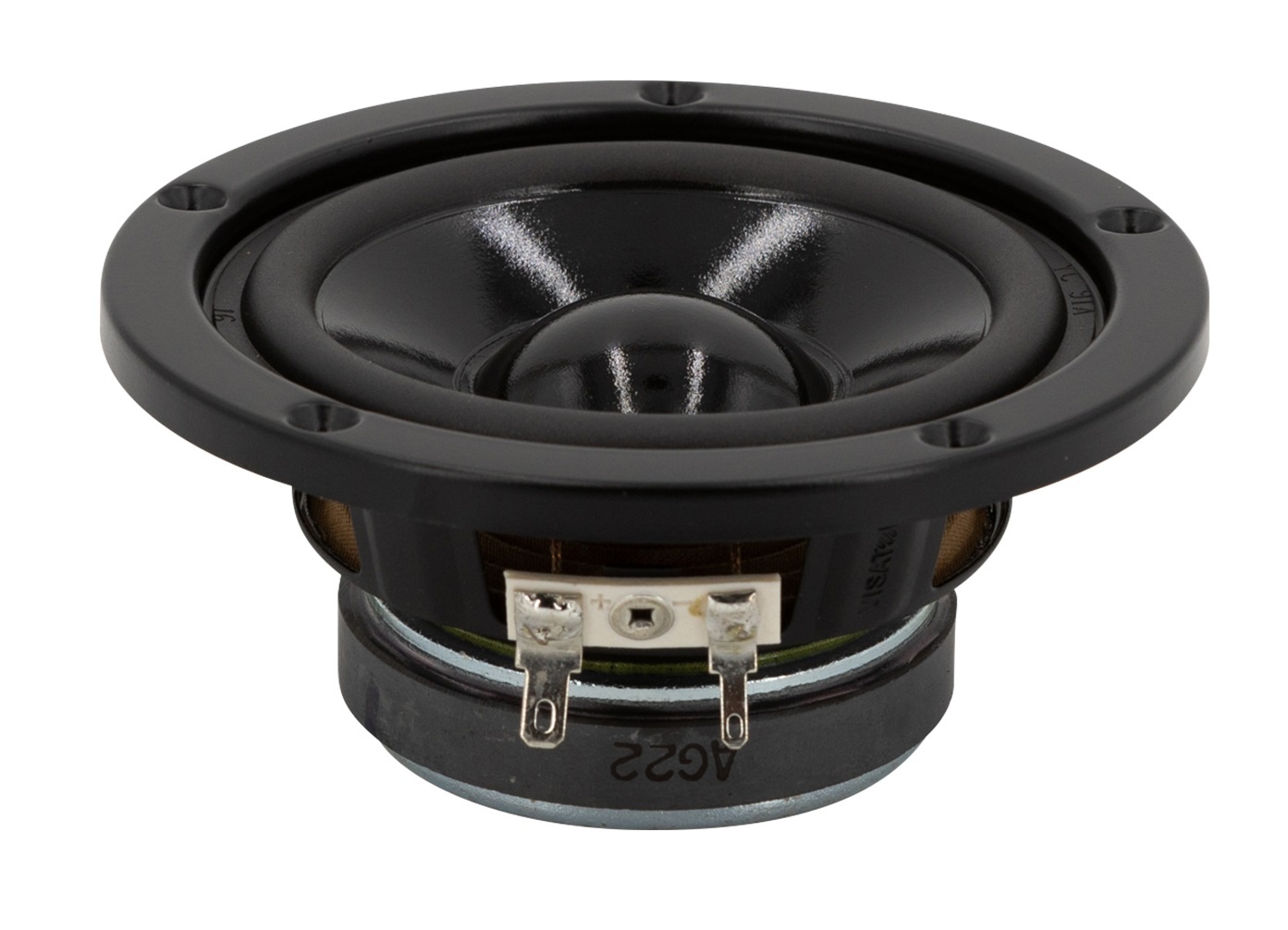

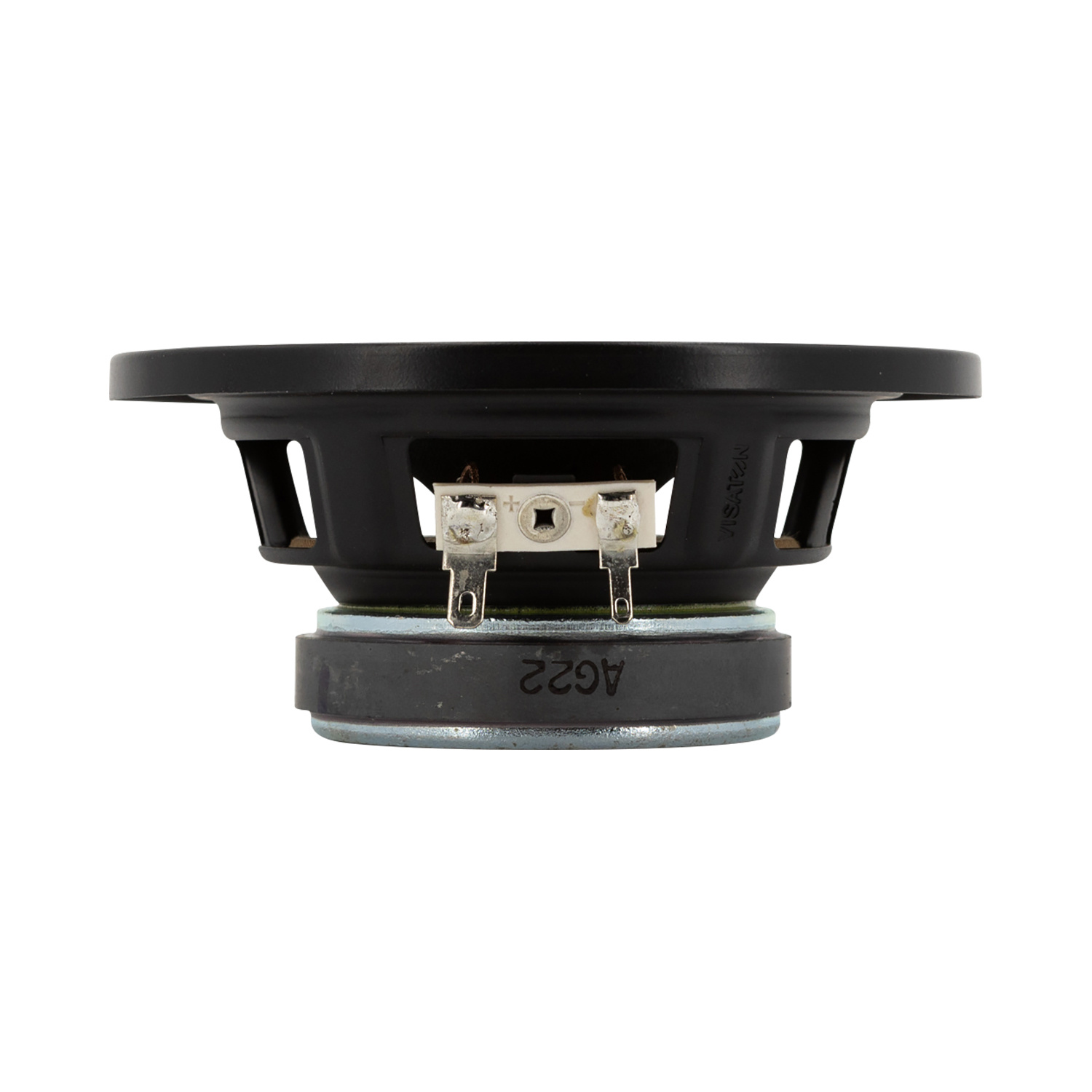

    Visaton W 100 S - 4 4" Woofer 4 Ohm

    € 27,45 4 Op voorraad: levertijd 1 werkdag
    The 10 cm (4") woofer with coated paper cone, elastic rubber surround and 20 mm voice-coil from Visaton delivers amazing bass and midrange performance not normally found in drivers at its price point. This 4-ohm version is great for use in series pairs fo... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €26,08 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The 10 cm (4") woofer with coated paper cone, elastic rubber surround and 20 mm voice-coil from Visaton delivers amazing bass and midrange performance not normally found in drivers at its price point. This 4-ohm version is great for use in series pairs for MTMs and center-channels.



    Highlights

    • Relatively flat frequency response from 100 to 5,000 Hz
    • Able to play below 60 Hz in a proper vented cabinet
    • Great power handling and decent Xmax
    • 4-ohm impedance for series pair use in MTM and center-channel speakers



    Product details

    Visaton W 100 S 4" woofer 4 Ohm



    Visaton's W 100 S 4" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W 100 S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 5,000 Hz. This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers. 4-ohm impedance for use in series pairs, which is great for MTM and center-channel speakers.



    Note: For best bass performance, install the W130S into one of the following cabinets:


    • A 3.96 liters sealed cabinet (F3 is 100 Hz with a Qtc of 0.7).
    • A 5 liters cabinet tuned to 70 Hz with a 31.75 mm diameter port that is 6 cm long.
    • A 10 liters cabinet tuned to 56 Hz with a 31.75 mm diameter port that is 5.8 cm long.



    Specificaties

    Artikelnummer
    W 100 S - 4
    Woofer Series
    HiFi Series
    Woofer Type
    Bass-mid woofer
    Nominal Diameter
    4"
    Power Handling (RMS)
    30 Watts
    Power Handling (max)
    50 Watts
    Impedance
    4 ohms
    Sensitivity
    86 dB (1 W/1 m)
    Frequency Response
    65 - 15000 Hz
    Voice Coil Diameter
    20 mm
    DC Resistance (Re)
    3.4 ohms
    Voice Coil Inductance (Le)
    0.5 mH
    Resonant Frequency (Fs)
    65 Hz
    Mechanical Q (Qms)
    3.04
    Electromagnetic Q (Qes)
    0.54
    Total Q (Qts)
    0.46
    Diaphragm Mass Inc. Airload (Mms)
    5.3 g
    Surface Area of Cone (Sd)
    53 cm2
    BL Product (BL)
    3.7 Tm
    Compliance Equivalent Volume (Vas)
    4.49 L
    Maximum Linear Excursion (Xmax)
    2 mm
    Cone / Diaphragm Material
    Treated Paper
    Surround Material
    Rubber
    Overall Outside Diameter
    122 mm
    Overall Depth
    54 mm
    Baffle Cutout Diameter
    94 mm
    Bolt Circle Diameter
    111 mm
    # Mounting Holes
    5
    Mounting Hole Diameter
    3.7 mm
    Sealed Volume
    2,27 liters
    Sealed F3
    111 Hz
    Vented Volume
    5,95 liters
    Vented F3
    55 Hz
