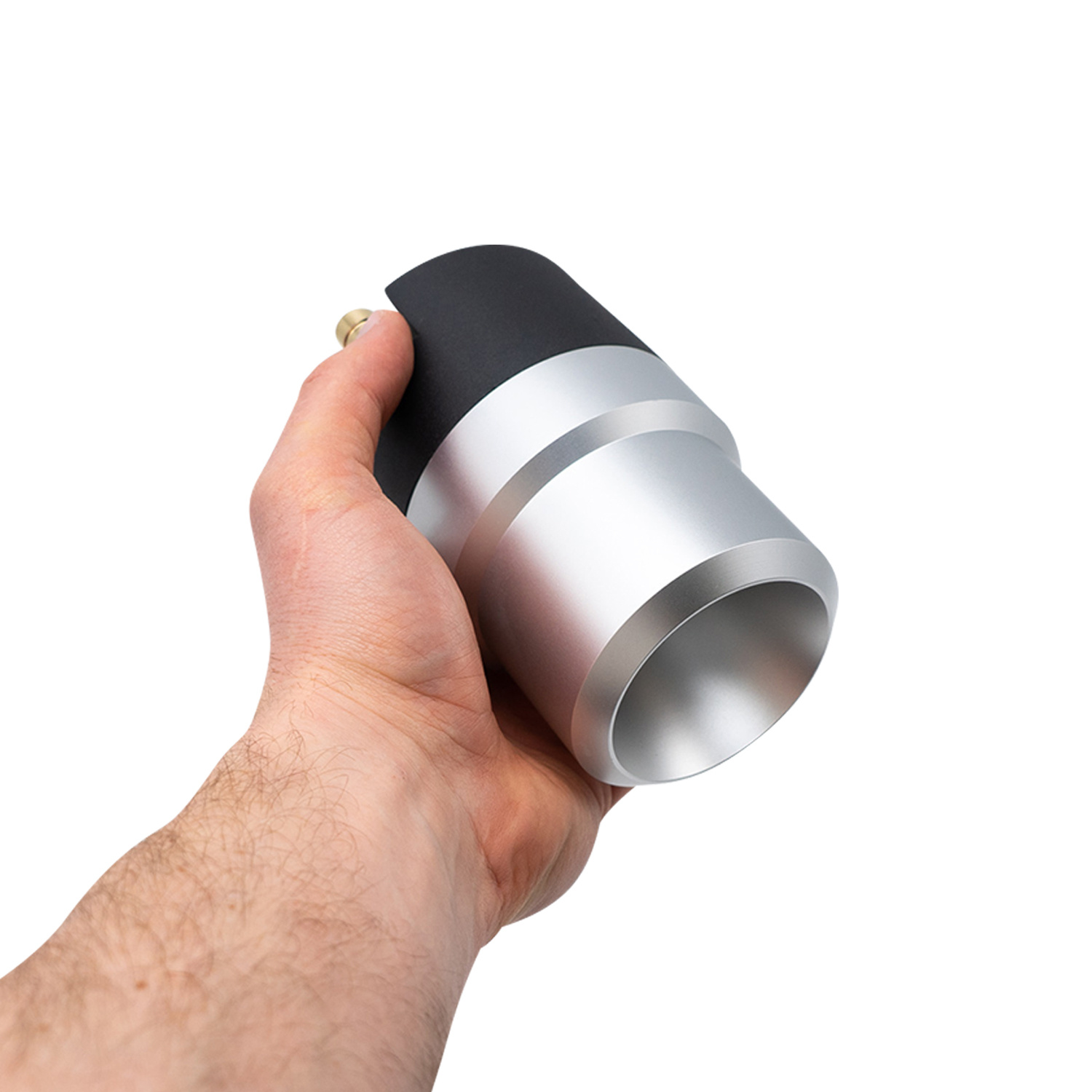

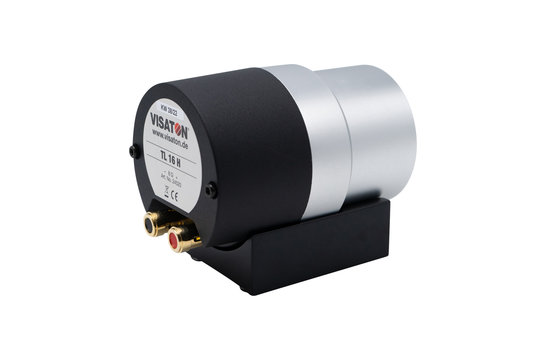

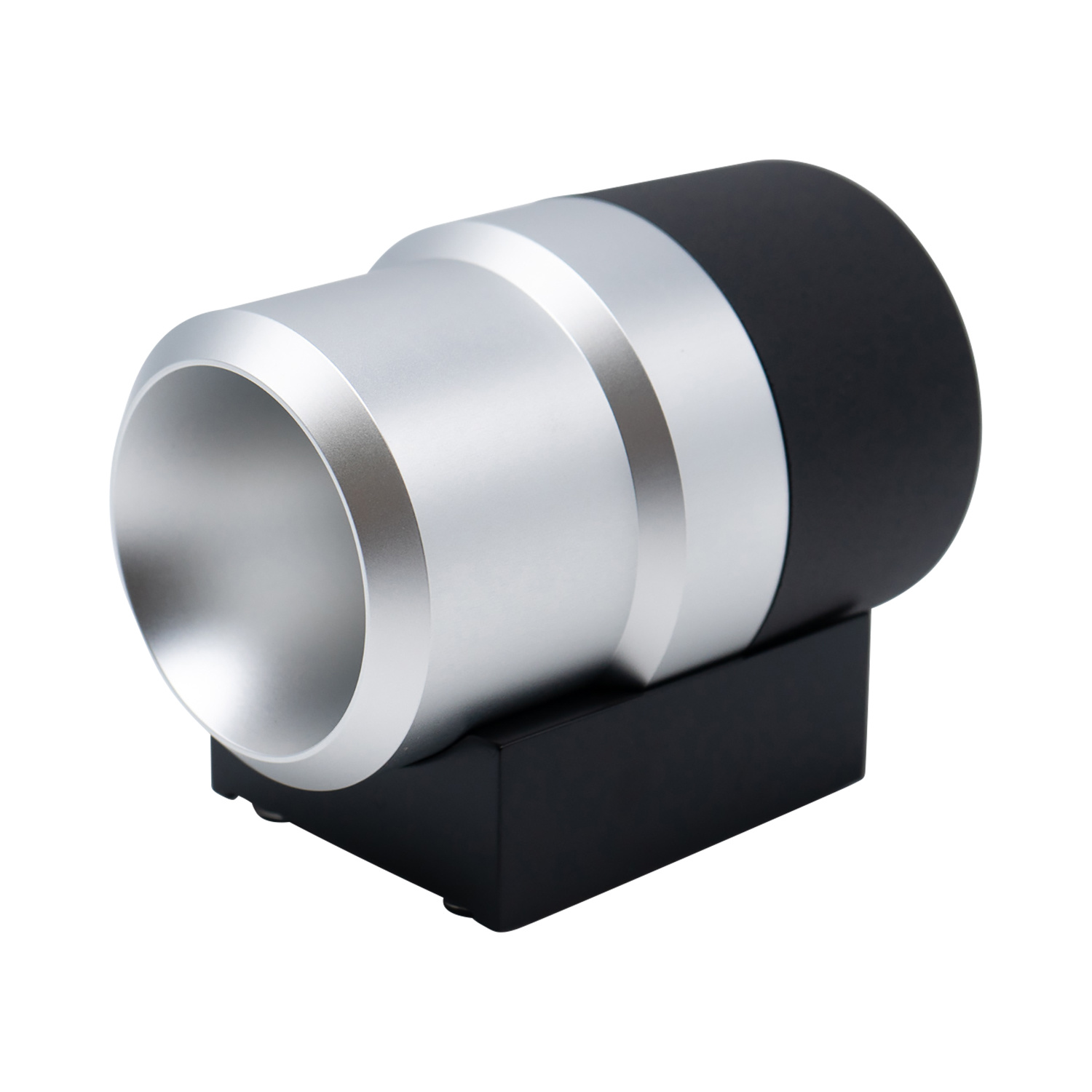

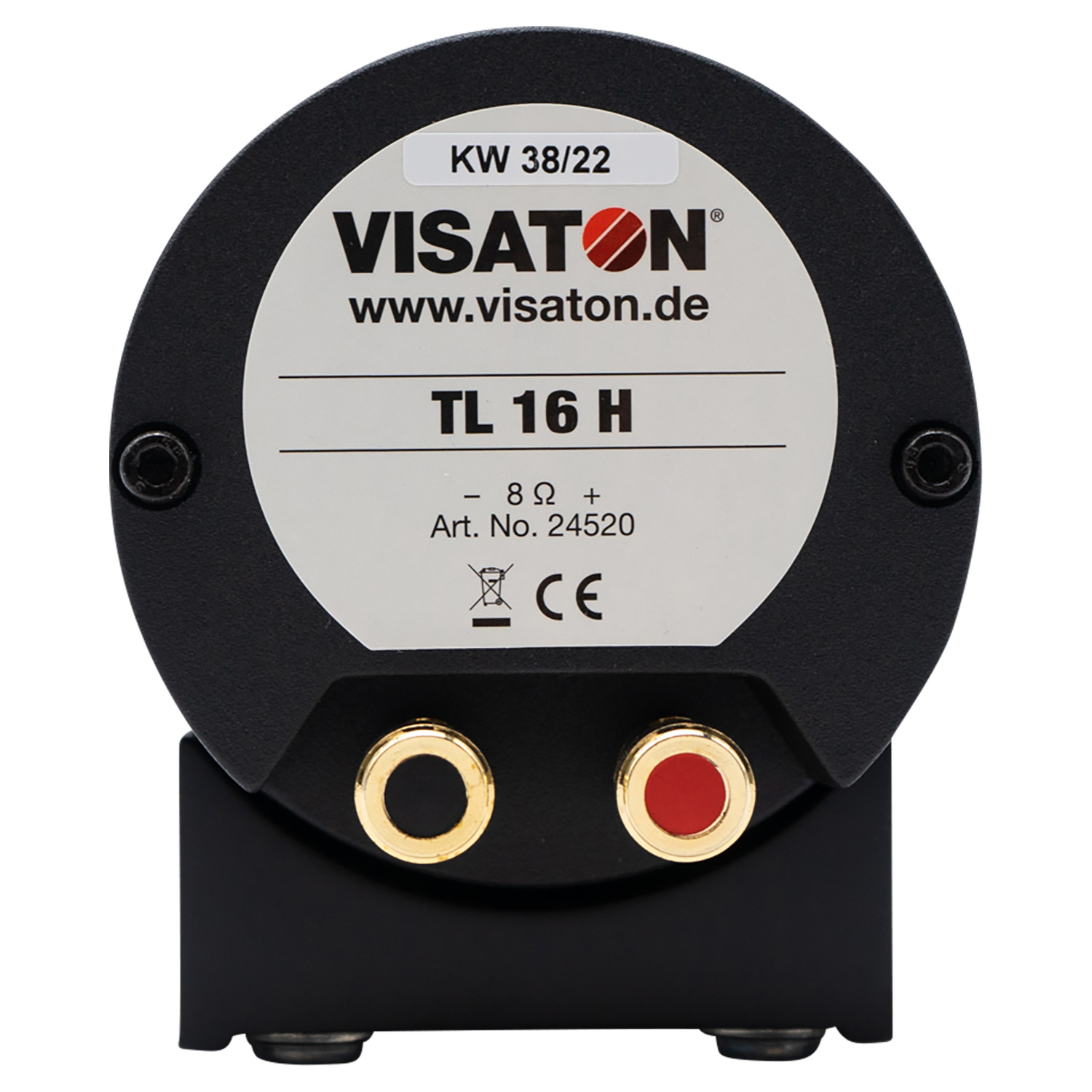

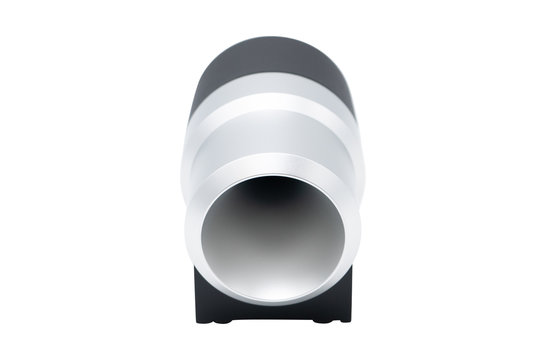

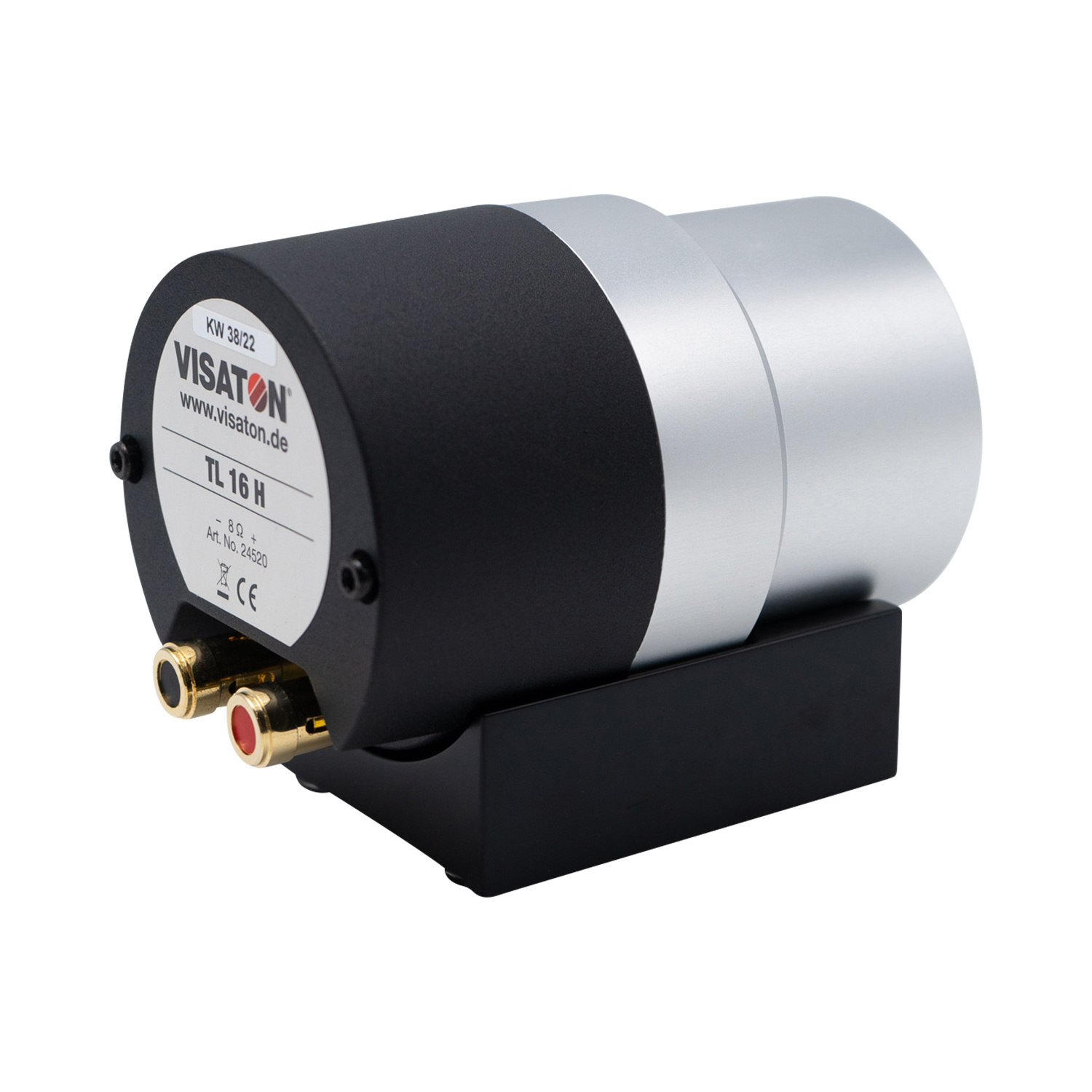

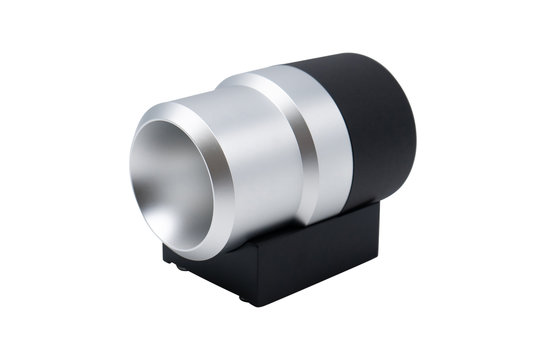

      Visaton TL 16 H High-End horn driver 8 Ohm

      € 214,83€ 259,95 2 Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestelling 4 voor slechts € 246,95 per stuk
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL & BE)
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      High-End horn driver for the high-frequency range above 5,000 Hz.



      Highlights

      • Aluminum-titanium alloy diaphragm
      • Very dynamic pulse response
      • High sensitivity



      Product details

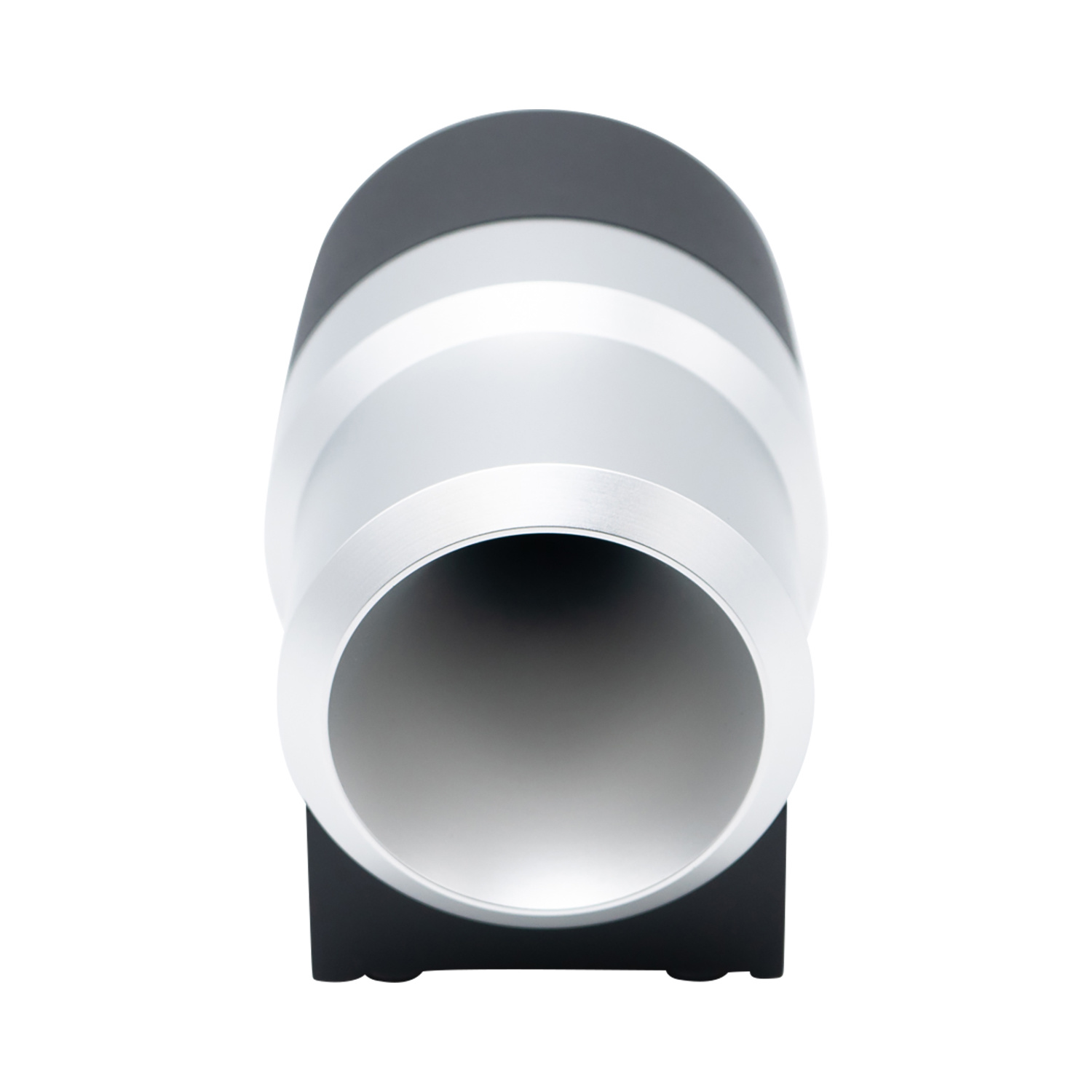

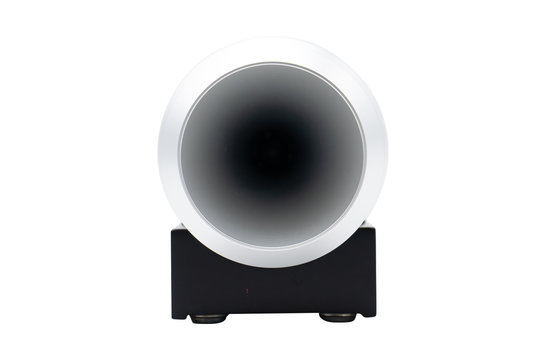

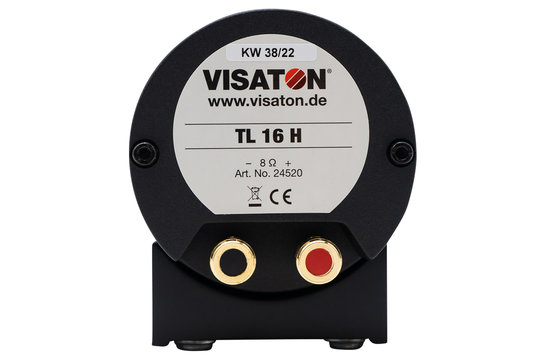

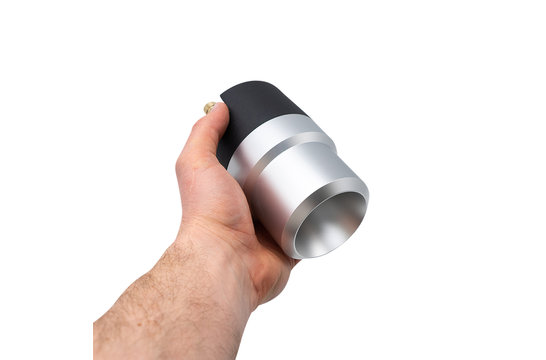

      Visaton TL 16 H High-End horn driver



      The extremely light aluminum titanium alloy diaphragm shows, apart from a very dynamic pulse response, a very linear frequency response. The powerful strontium-ferrite magnet and the 16 mm voice-coil are a guarantee for highest efficiency.

      Specificaties

      Artikelnummer
      TL 16 H
      Tweeter type
      Horn
      Tweeter serie
      High-End
      Belastbaarheid (RMS)
      150 Watts
      Power Handling (max)
      200 Watts
      Impedantie (Z)
      8 Ω
      Gevoeligheid
      100 dB (1 W/1 m)
      Resonantiefrequentie (Fs)
      6,000 Hz
      Gelijstroomweerstand (Re)
      6.9 ohms
      Voice Coil Inductance (Le)
      0.17 mH
      Totale buitendiameter
      84 mm
      Diepte
      135 mm
      Aanbevolen kantelfrequentie
      >5,000 Hz

      Toon meer

      Reviews

      4 from 5Based on 4 reviews
      Schrijf een review
      5 van 5
      These are not intended for "putting vocals through"..Not sure why some people are so clueless!! This is a fantastic high efficiency super tweeter. The 19mm diaphram and solid ali cast horn provide very flat response to 35kHz with a very clean impulse. Response plots show little or no break up in the operational range to well above 20kHz and the cumulative spectral display and burst decay ARTA plots confirm this. Super clean. If I have one criticism, the dispersion is relatively narrow so not for "nearfield" unless you angle them in. Their impedance graph is very flat with only a very small peak at Fs, around 6kHz..so a 4th order LR crossover anywhere between 6k8 and 8kHz would be optimal. If you are using DSP, time alignment will ensure minimum phase and minimal ripple response through the crossover point. I find it hard to believe, except for brand name and folk law that the "other" bullet tweeters, at much higher price points, will perform audibly better. If you believe in science that is..the plots don't lie!!
      Door David Purton on 8 Augustus 2022
      5 van 5
      Bought a pair of it. Sounds excellent. Using a selfmade Crossover Linkwitz Riley with 24dB/Octave at 7050 Hz reproduces the highest of the highest frequencies. It´s a high tweeter, not usable for midrange application!! So don´t expect high SPL in the mid range area!! Highly recommended with the correct filter :-)
      Door VISATON TL16H Fine Art High Tweeter :-) on 23 Januari 2021
