- Artikelnummer

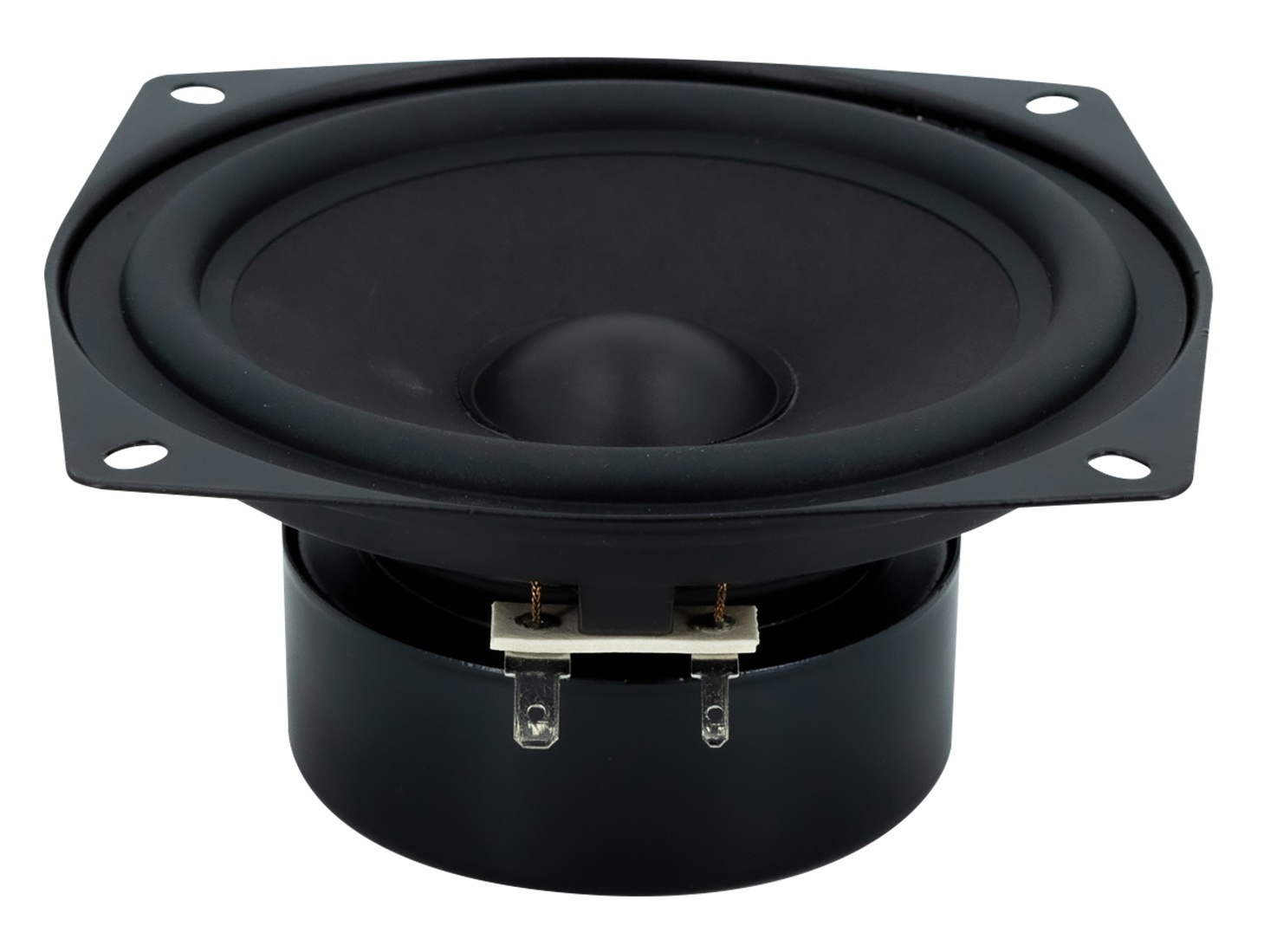

- SC 13
- Woofer Series
- HiFi Series
- Woofer Type
- Full-Range
- Nominal Diameter
- 5"
- Power Handling (RMS)
- 40 Watts
- Power Handling (max)
- 60 Watts
- Impedance
- 8 ohms
- Sensitivity
- 90 dB (1 W/1 m)
- Frequency Response
- 78 - 13,000 Hz
- Voice Coil Diameter
- 20 mm
- DC Resistance (Re)
- 7.2 ohms
- Voice Coil Inductance (Le)
- 0.7 mH
- Resonant Frequency (Fs)
- 78 Hz
- Mechanical Q (Qms)
- 2.95
- Electromagnetic Q (Qes)
- 0.94
- Total Q (Qts)
- 0.71
- Surface Area of Cone (Sd)
- 79 cm2
- BL Product (BL)
- 4.2 Tm
- Compliance Equivalent Volume (Vas)
- 7.4 liters
- Maximum Linear Excursion (Xmax)
- 0.75 mm
- Cone / Diaphragm Material
- Cellulose
- Surround Material
- Rubber
- Shielded
- Yes
- Overall Outside Diameter
- 162 mm
- Overall Depth
- 62 mm
- Baffle Cutout Diameter
- 113 mm
- Bolt Circle Diameter
- 145 mm
- # Mounting Holes
- 5 mm
