- Artikelnummer

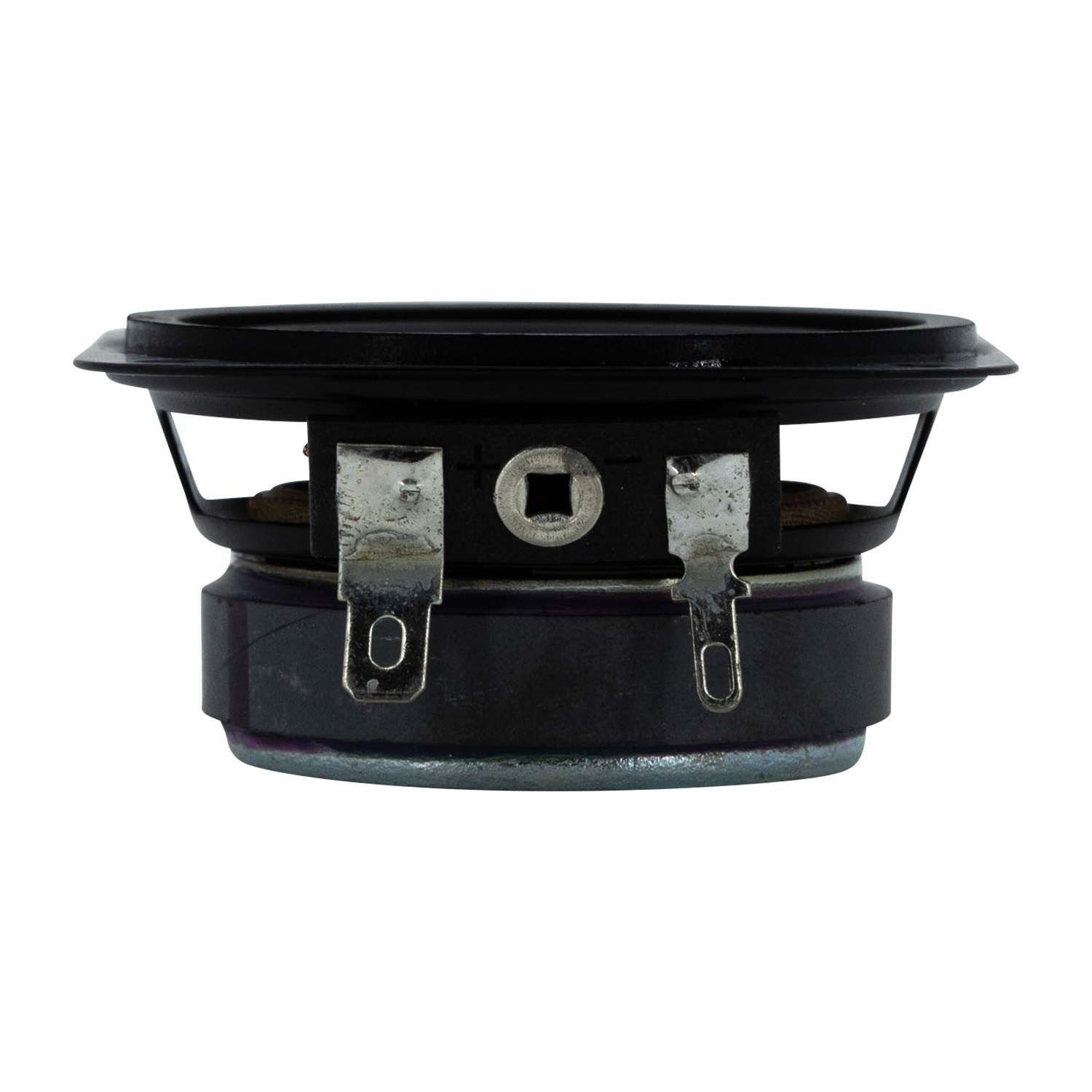

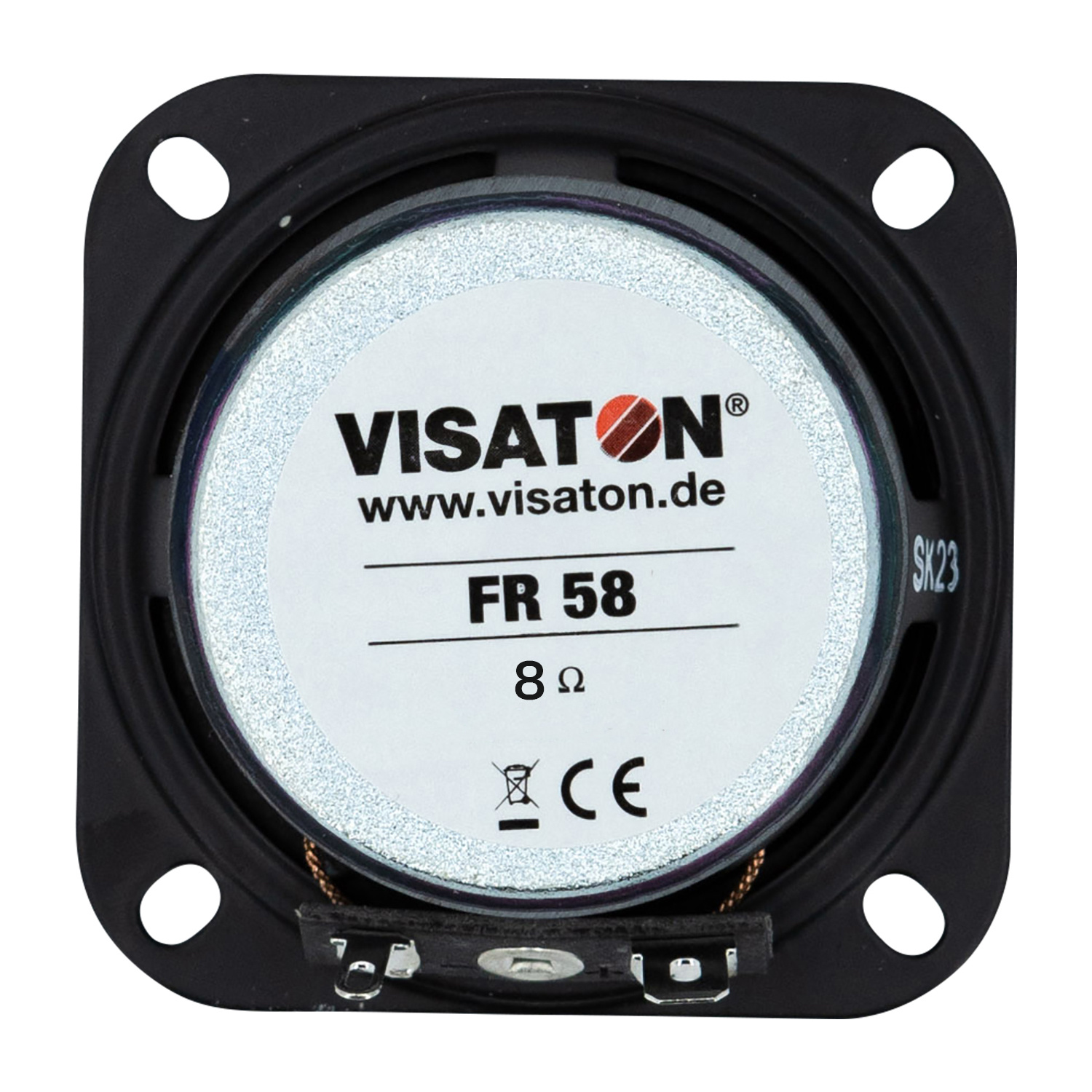

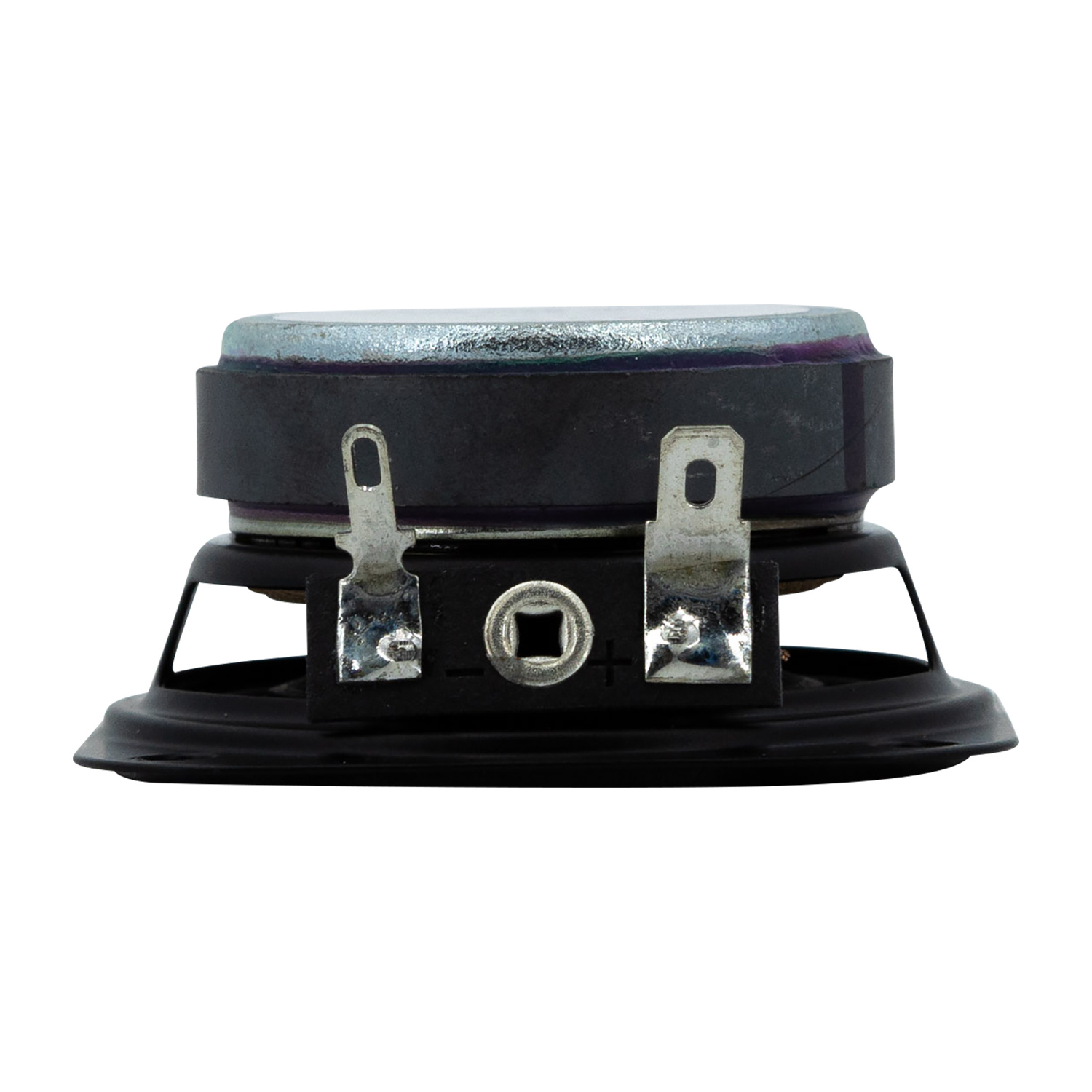

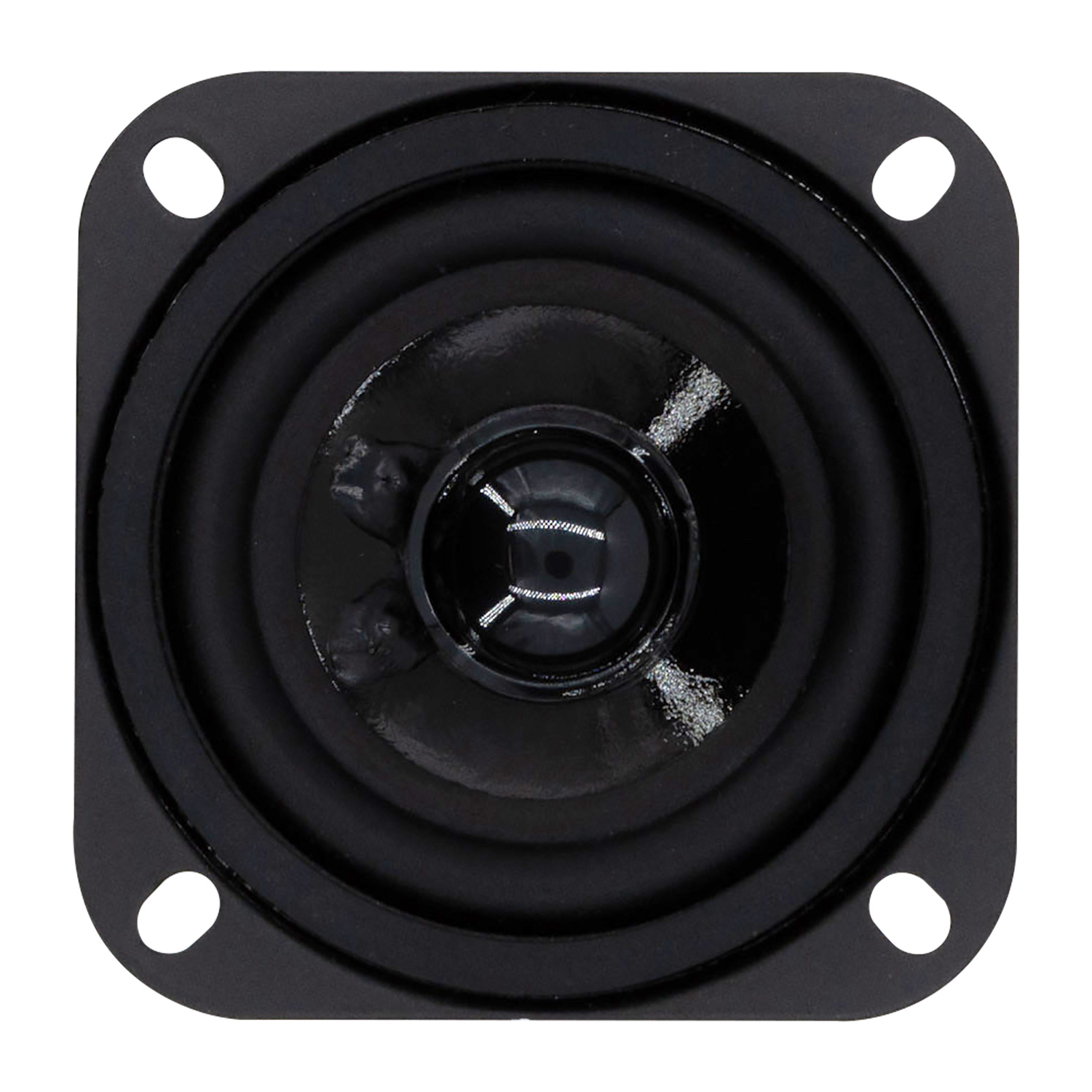

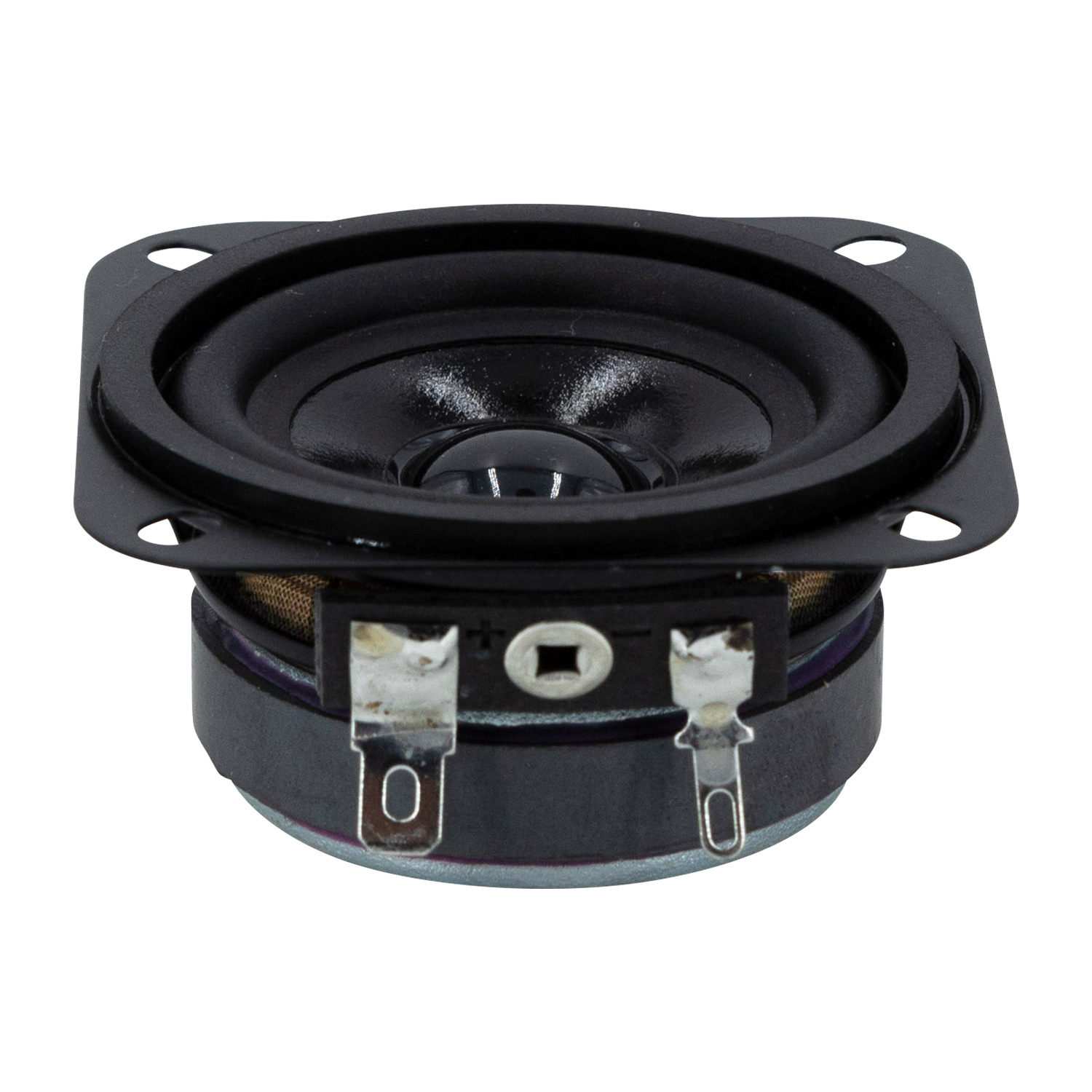

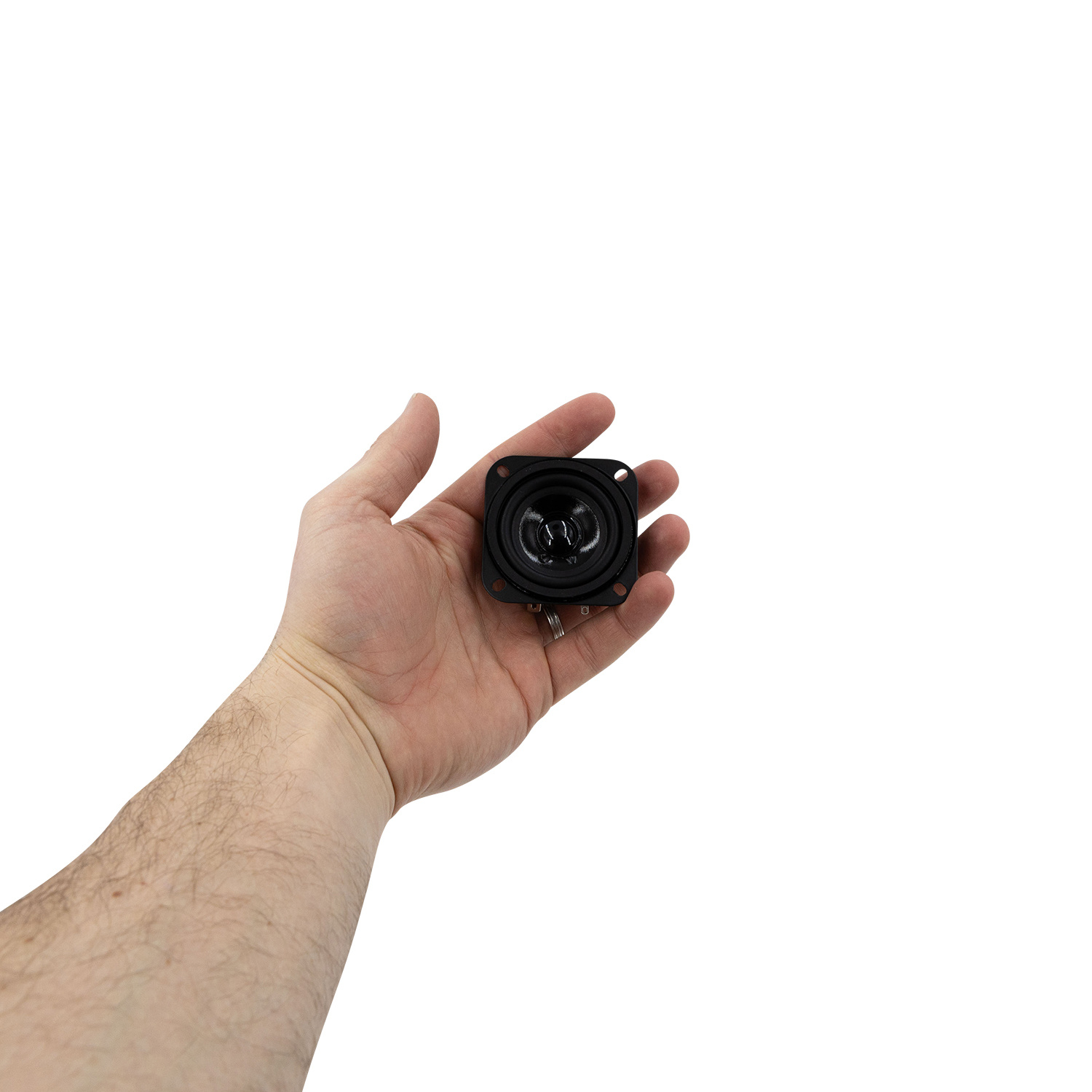

- FR 58 - 8
- Woofer Series
- FR Series
- Woofer Type
- Full-Range
- Nominal Diameter
- 2.3"
- Power Handling (RMS)
- 10 Watts
- Power Handling (max)
- 12 Watts
- Impedance
- 8 ohms
- Sensitivity
- 81 dB (1 W/1 m)
- Frequency Response
- 120 - 20,000 Hz
- Voice Coil Diameter
- 14 mm
- DC Resistance (Re)
- 7.3 ohms
- Voice Coil Inductance (Le)
- 0.15 mH
- Resonant Frequency (Fs)
- 190 Hz
- Mechanical Q (Qms)
- 2.41
- Electromagnetic Q (Qes)
- 1.64
- Total Q (Qts)
- 0.98
- Diaphragm Mass Inc. Airload (Mms)
- 0.97g
- Surface Area of Cone (Sd)
- 13.2 cm2
- BL Product (BL)
- 2.27 Tm
- Compliance Equivalent Volume (Vas)
- 0.18 liters
- Maximum Linear Excursion (Xmax)
- 0.55 mm
- Cone / Diaphragm Material
- Treated Paper
- Surround Material
- Rubber
- Basket / Frame Material
- Steel
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 56 mm
- Overall Depth
- 28 mm
- Baffle Cutout Diameter
- 57 mm
- Bolt Circle Diameter
- 64.5 mm
- # Mounting Holes
- 4
- Mounting Hole Diameter
- 5.5 mm
