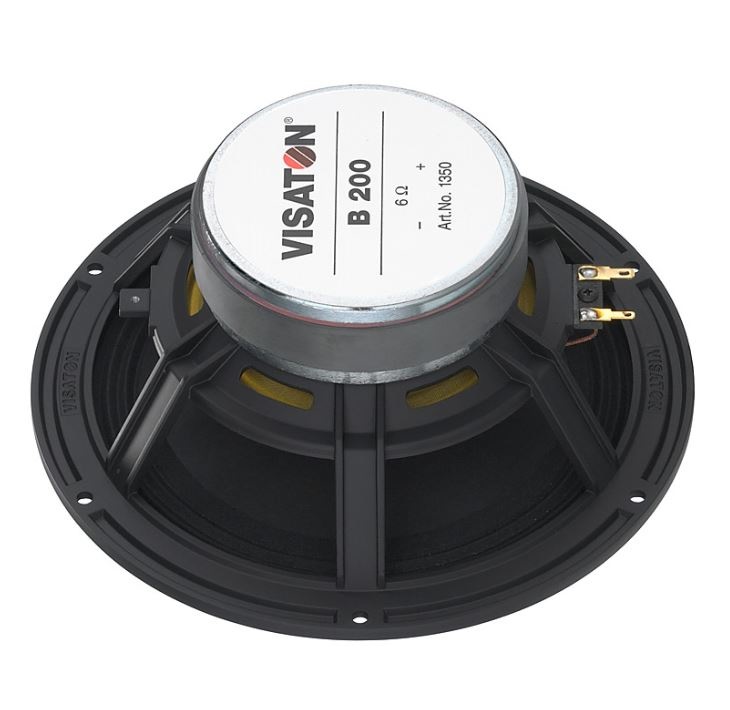

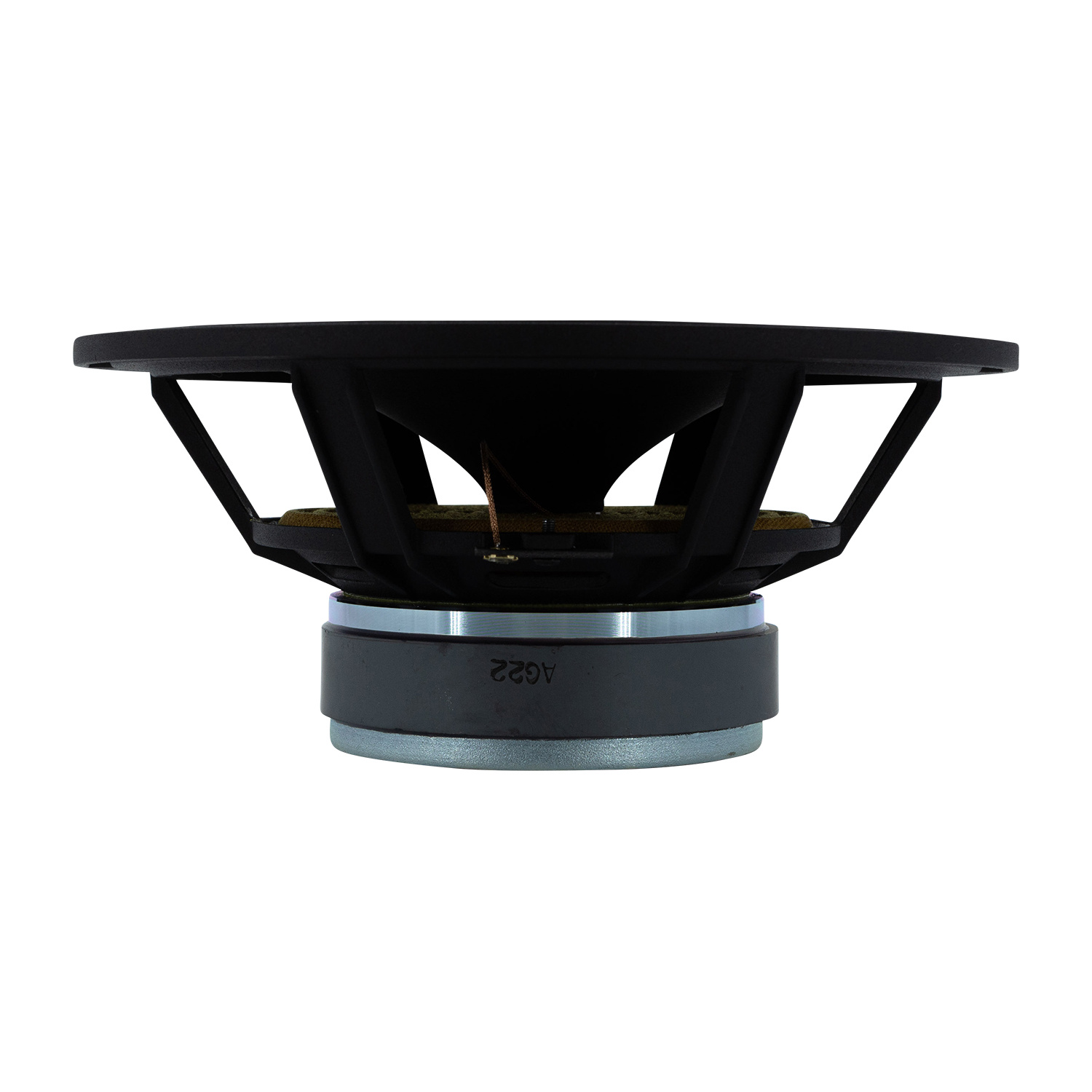

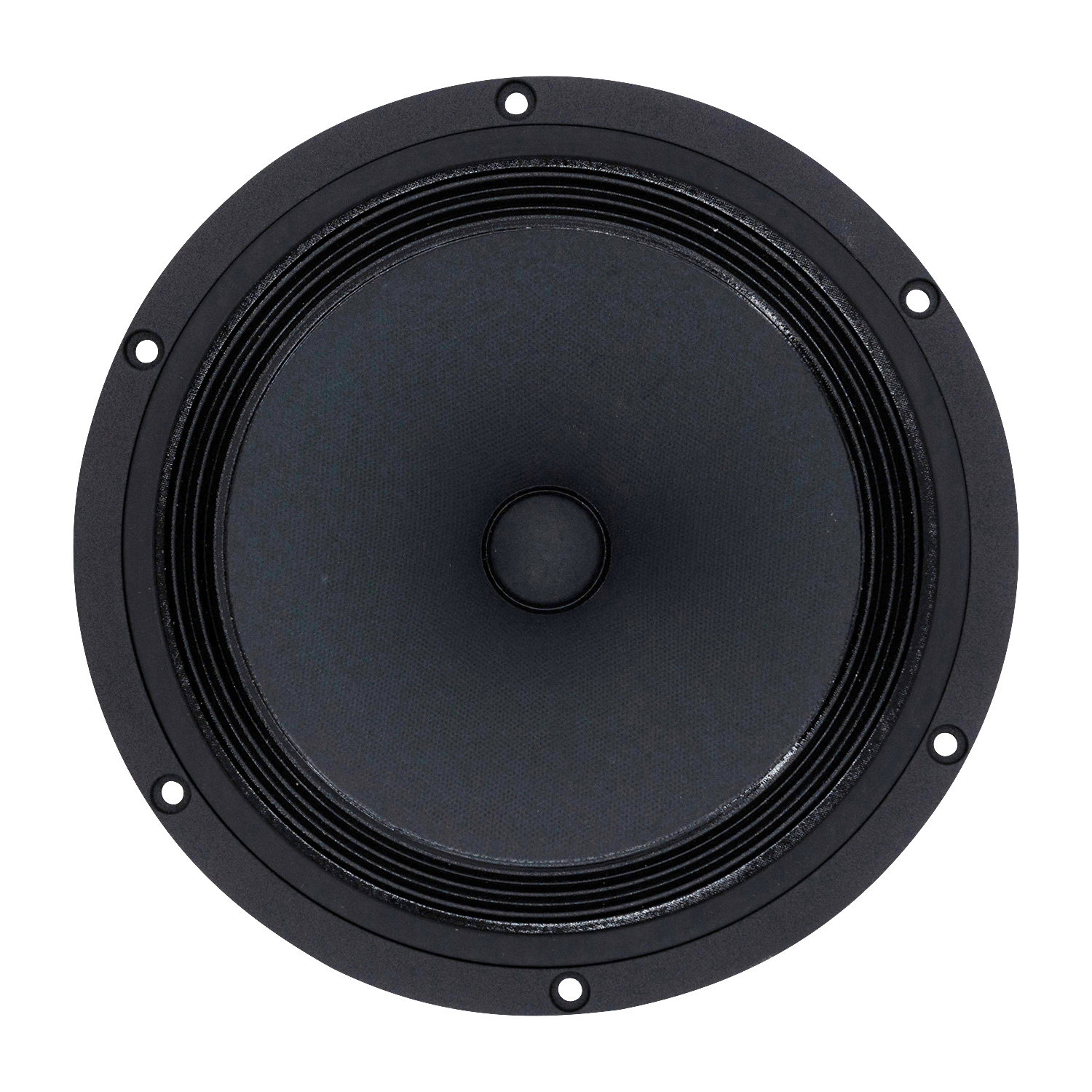

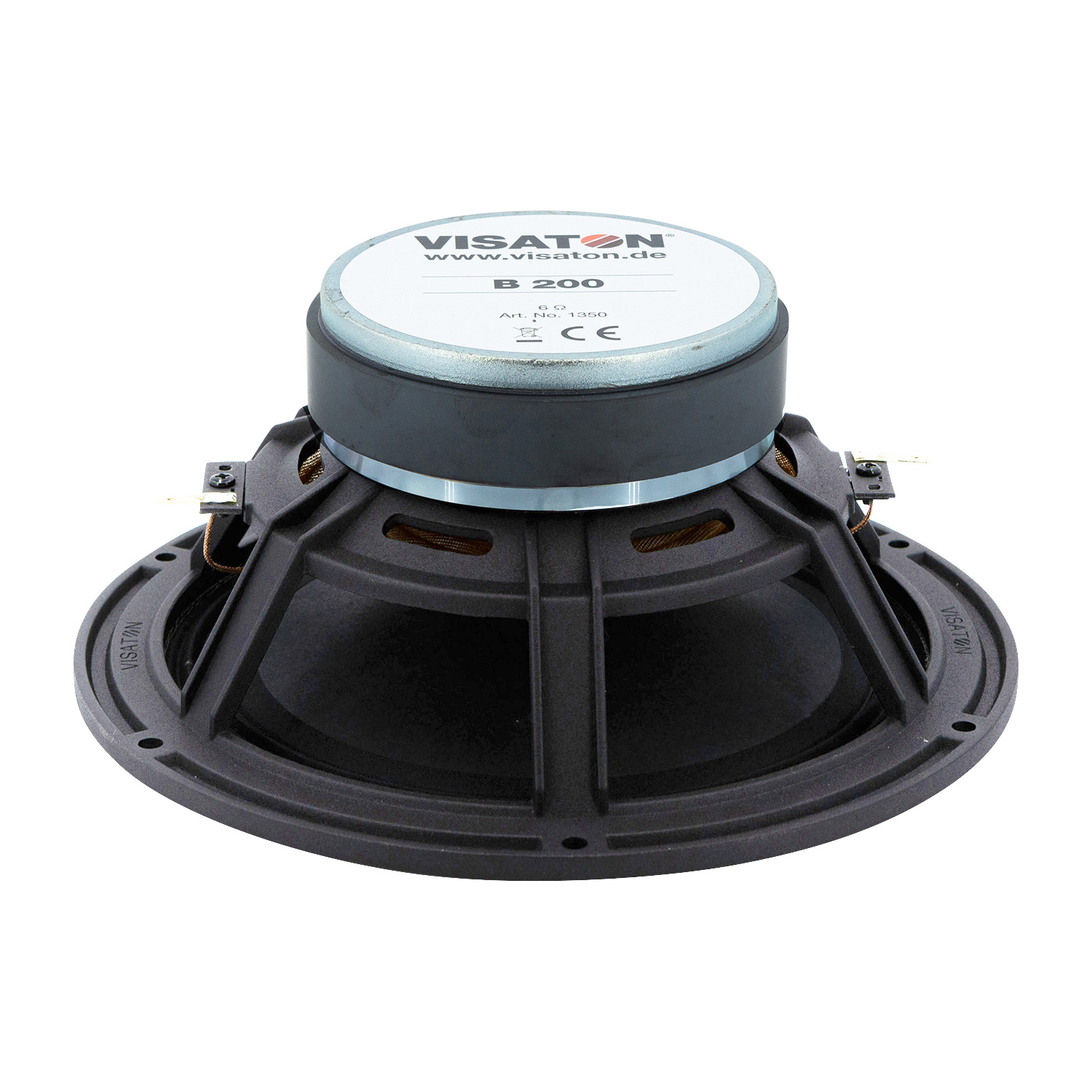

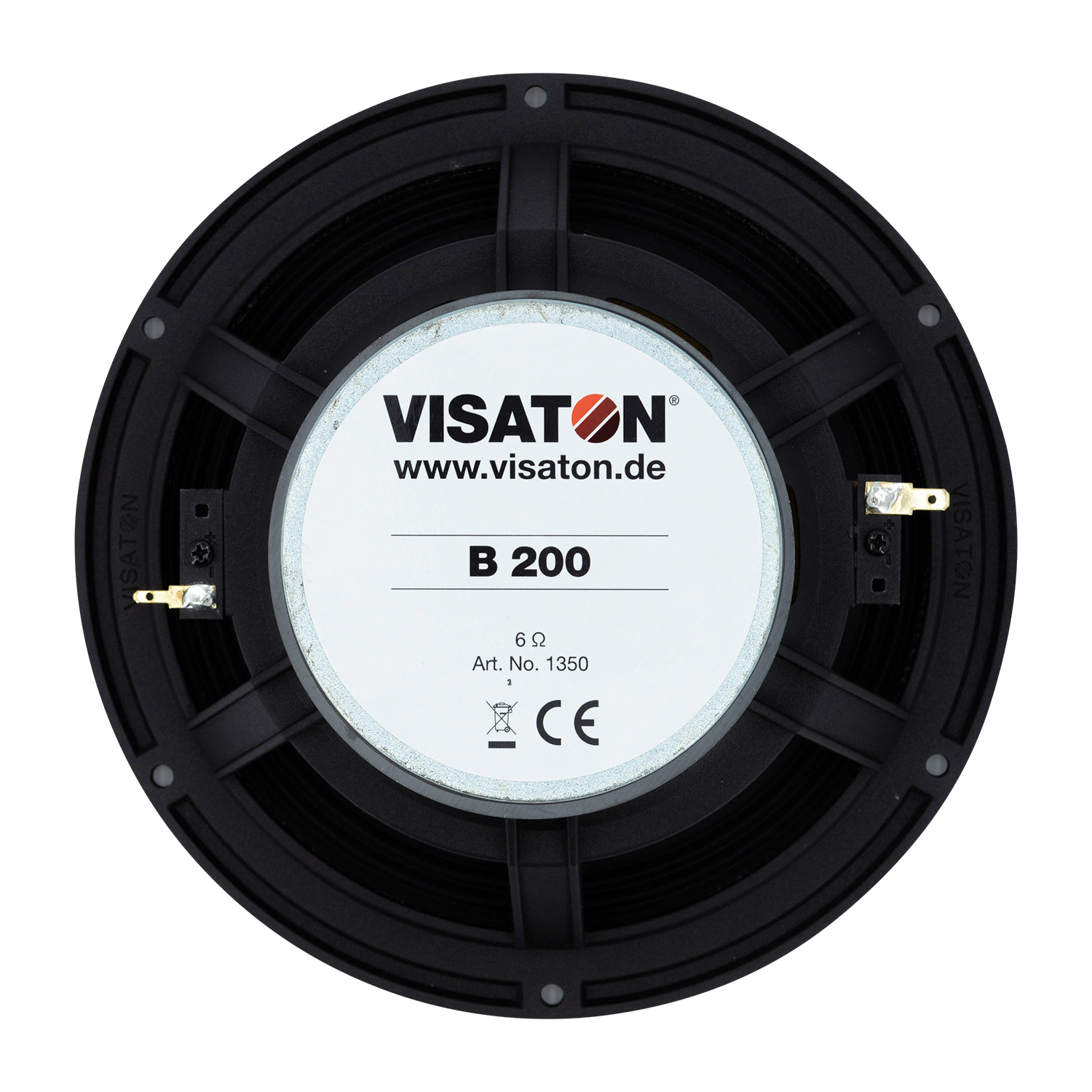

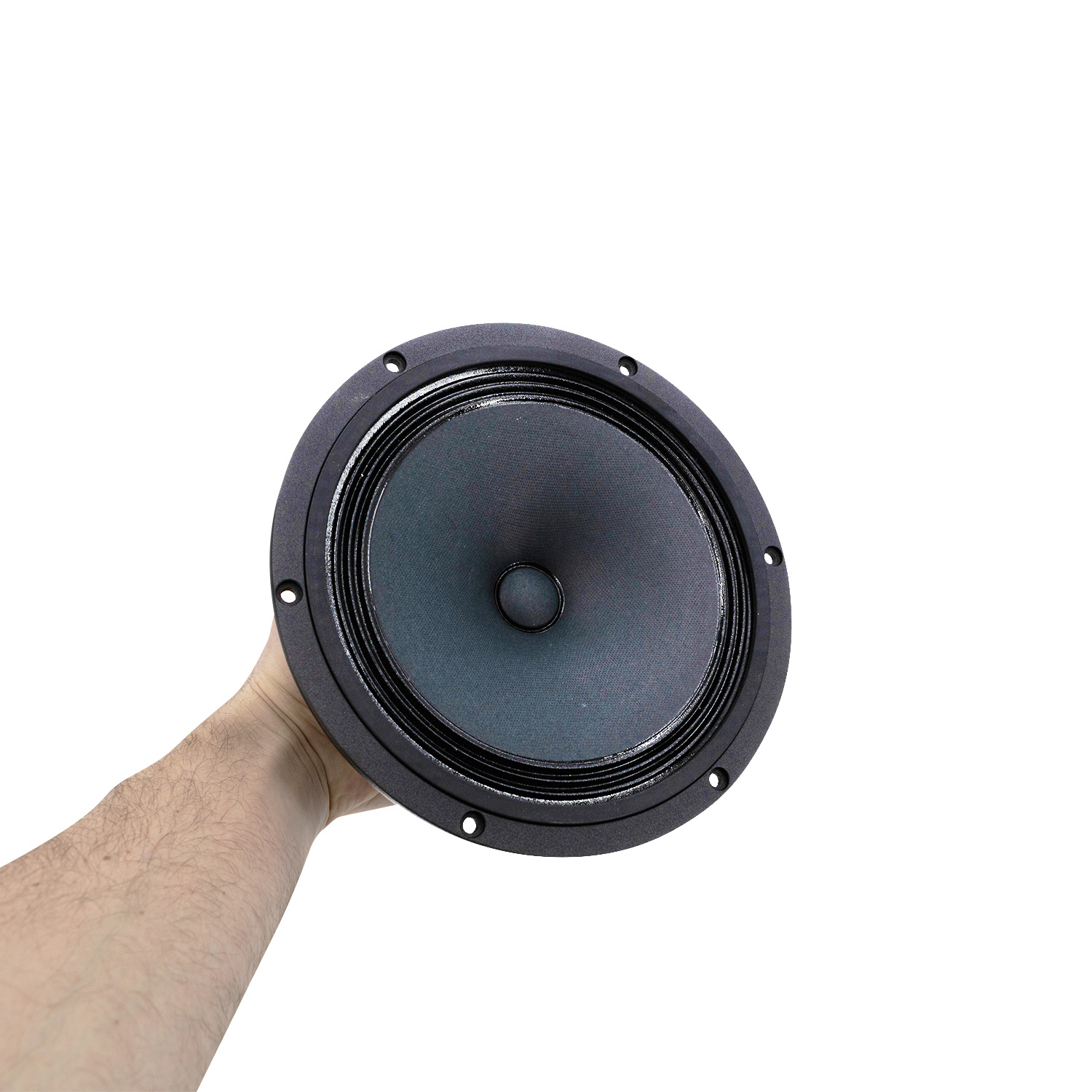

Visaton B 200 8" High-End Full-Range Loudspeaker 6 Ohm

    € 159,95 6 Op voorraad: levertijd 1 werkdag
    20 cm (8") High-end full-range loudspeaker with lightweight paper cone and fabric surround.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €151,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support


    20 cm (8") High-end full-range loudspeaker with lightweight paper cone and fabric surround.



    • High sensitivity
    • Fabric surround
    • Die cast aluminum basket


    Product details

    Visaton B 200 8" High-End Full-Range Loudspeaker 6 Ohm


    These high-end speakers stand out because of their high degree of sensitivity and extremely well-balanced frequency response free of noticeable deviations. This is achieved by using a very light-weight paper cone, a fabric surround and an optimized driver equipped with a 25 mm voice coil (aluminum wire) which makes optimum use of the magnetic field in the air gap. The Kapton voice coil carrier is vented. The sturdy aluminum diecast basket is not only optically appealing but, thanks to its rear-venting openings, ensures that physical losses are minimized. Distortion is suppressed to a very low, uniform level.


    The B 200 is ideally suited to use in high-quality, powerful single-band speakers, where the cabinet design need not be restricted to classic, fully enclosed or vented cabinets, but more exotic alternatives like horns or open baffles can be used to create amazing results.


    B 200
    Woofer Series
    Woofer Type
    Nominal Diameter
    Power Handling (RMS)
    40 Watts
    Power Handling (max)
    70 Watts
    6 ohms
    96 dB (1 W/1 m)
    Frequency Response
    40 - 18,000 Hz
    Voice Coil Diameter
    25 mm
    DC Resistance (Re)
    5 ohms
    Voice Coil Inductance (Le)
    0.5 mH
    Resonant Frequency (Fs)
    40 Hz
    Mechanical Q (Qms)
    Electromagnetic Q (Qes)
    Total Q (Qts)
    Diaphragm Mass Inc. Airload (Mms)
    Surface Area of Cone (Sd)
    214 cm2
    BL Product (BL)
    3.9 Tm
    Compliance Equivalent Volume (Vas)
    102 liters
    Maximum Linear Excursion (Xmax)
    3.5 mm
    Cone / Diaphragm Material
    Surround Material
    Voice Coil Wire Material
    Voice Coil Former
    Basket / Frame Material
    Cast Aluminum
    Overall Outside Diameter
    222 mm
    Overall Depth
    92 mm
    Baffle Cutout Diameter
    190 mm
    Bolt Circle Diameter
    210 mm
    # Mounting Holes
    Mounting Hole Diameter
    5 mm


    2 from 5Based on 1 reviews
    Schrijf een review
    2 van 5
    I don't see why you should buy this driver for this kind of price. I used it in La Belle and in La Belle CR. While the big ones were great, mostly thank to great tweeter and woofers, the small ones (CR) only have a good tweeter and absolutely no bass.
    Door Tomas K on 22 Maart 2020
