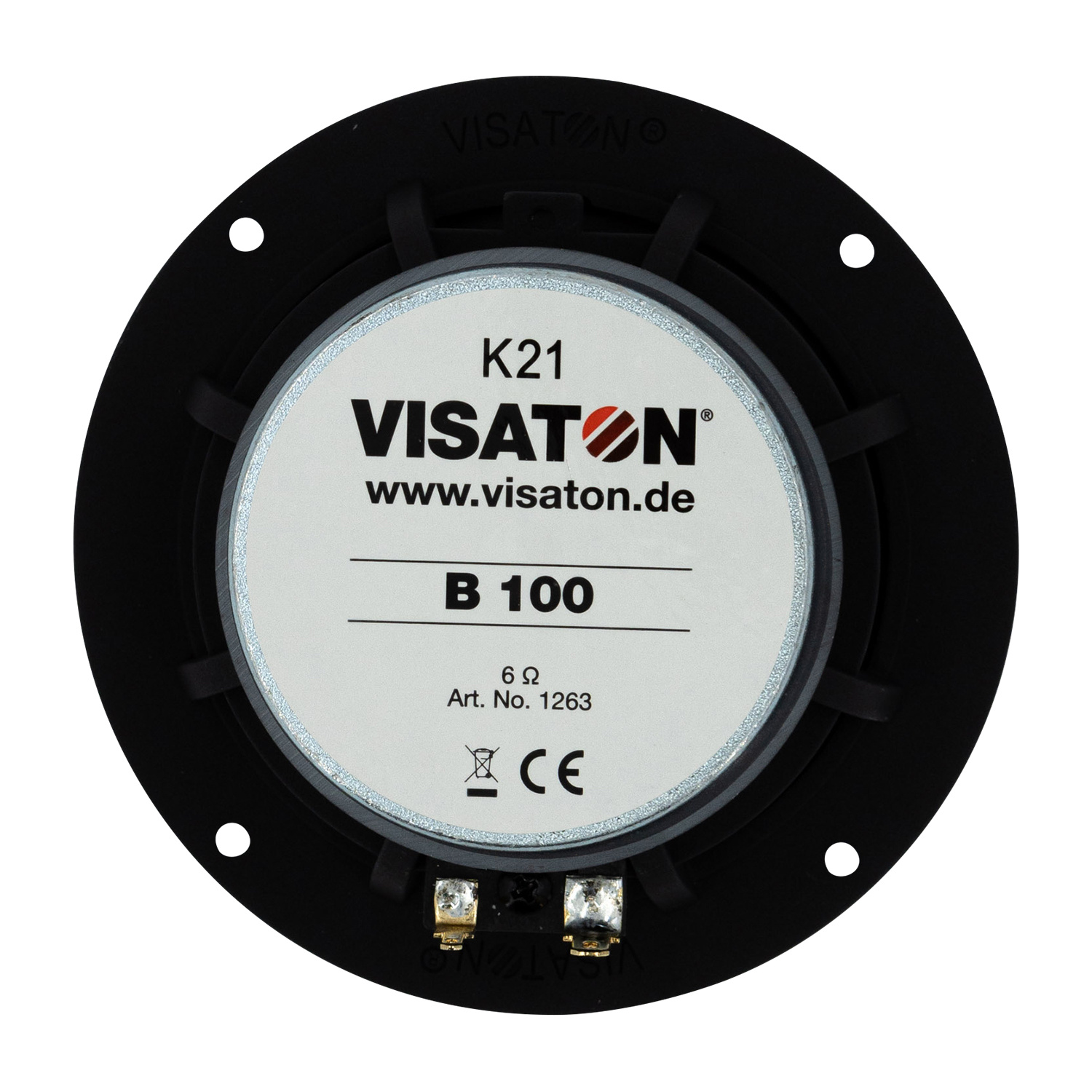

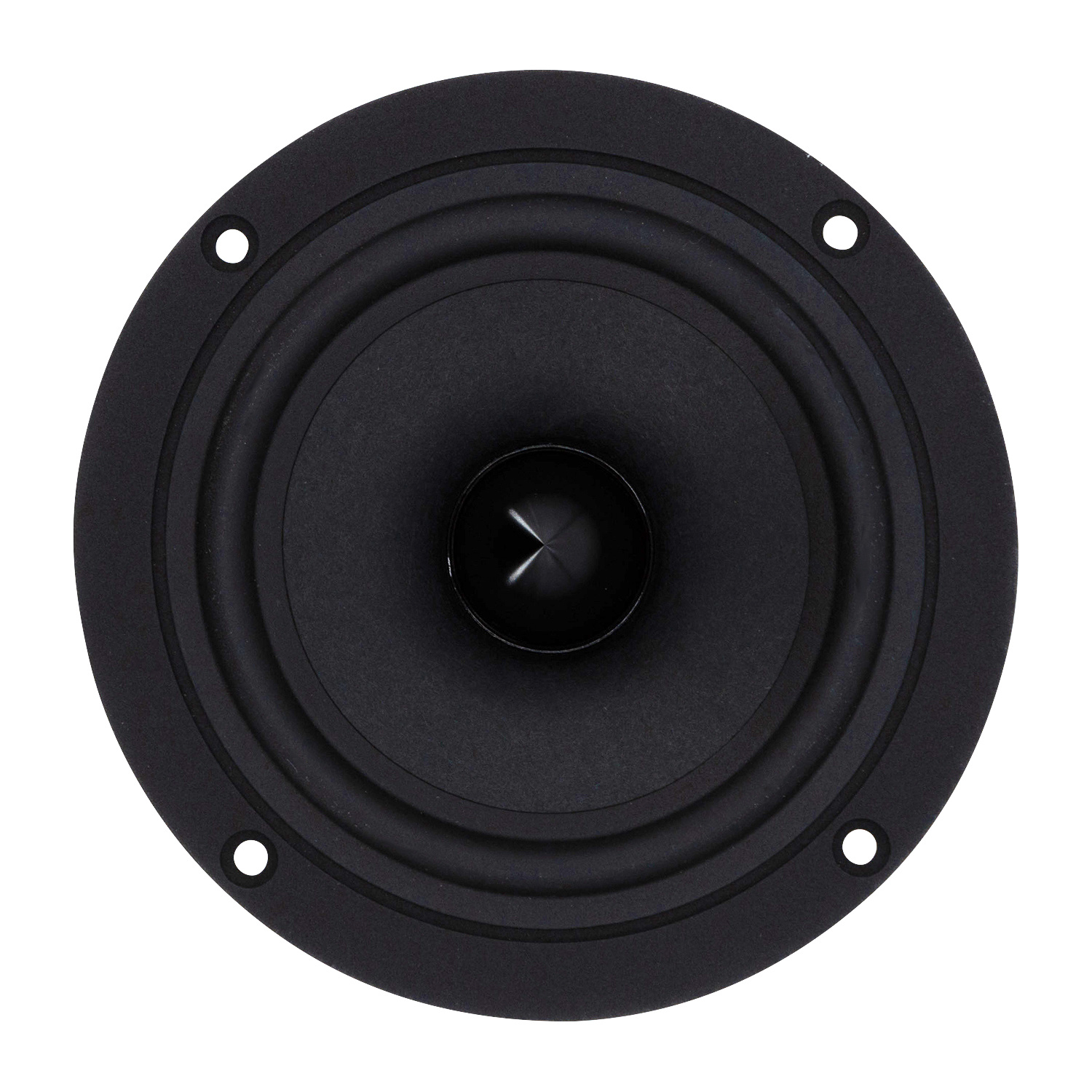

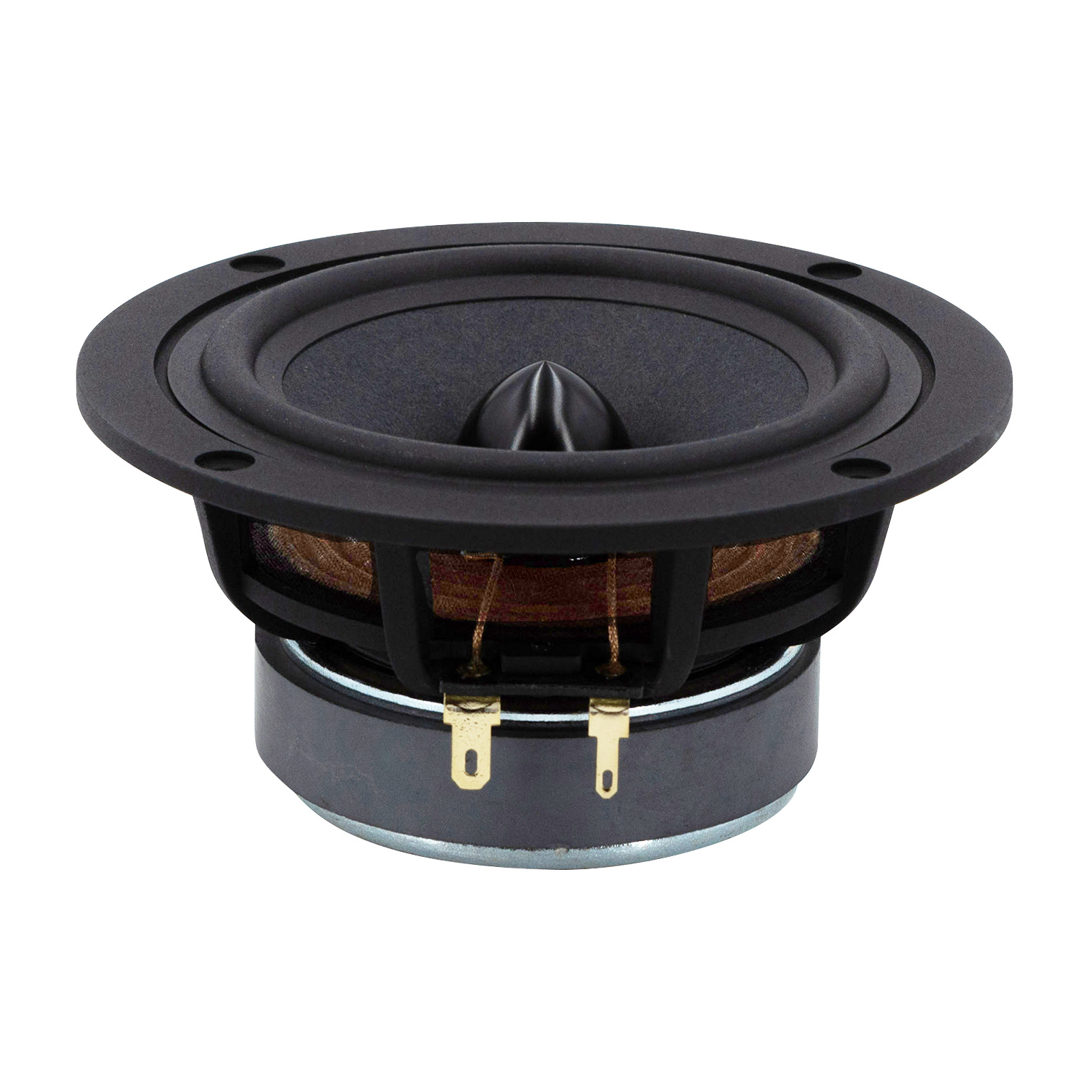

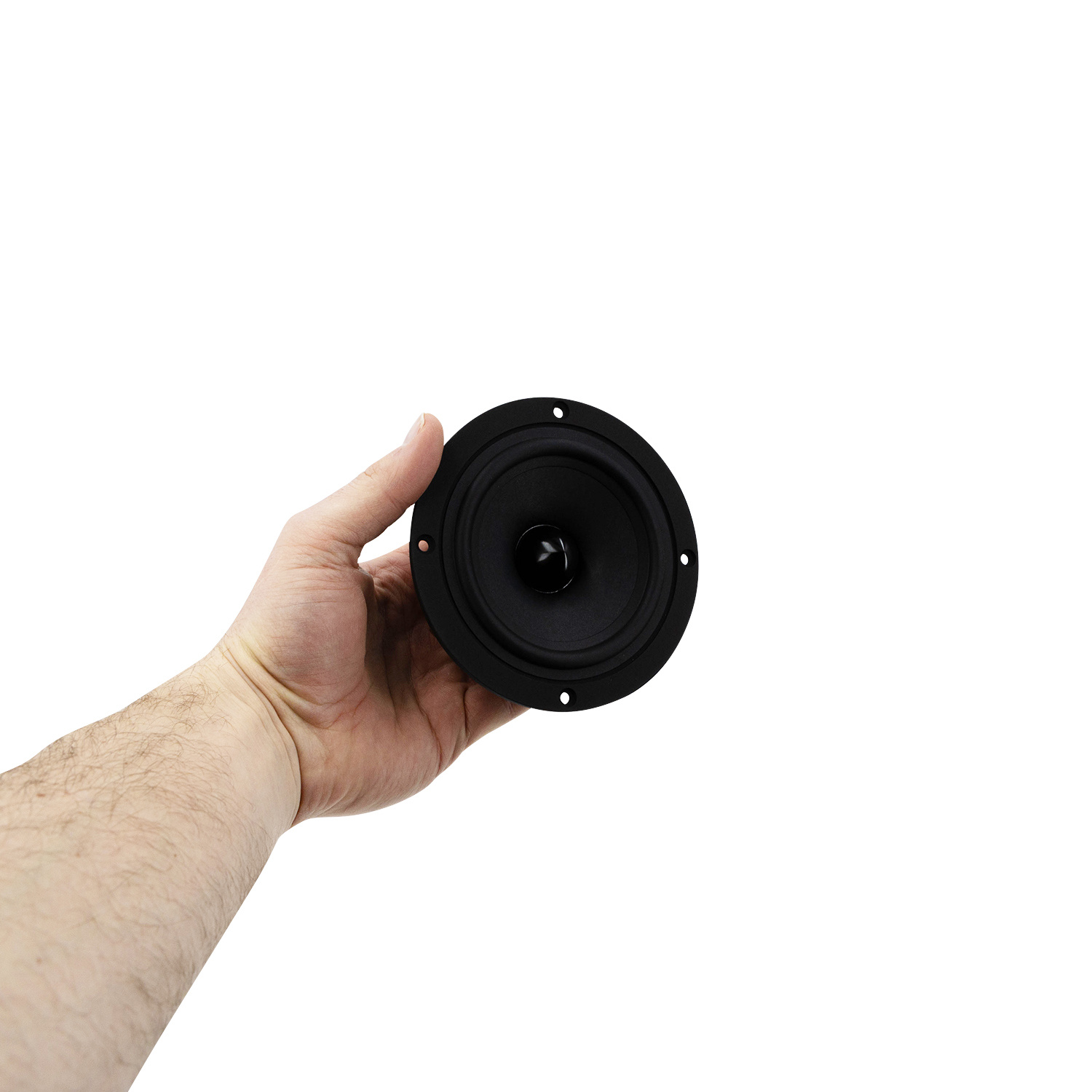

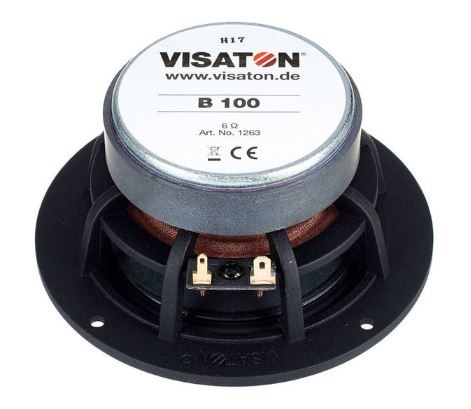

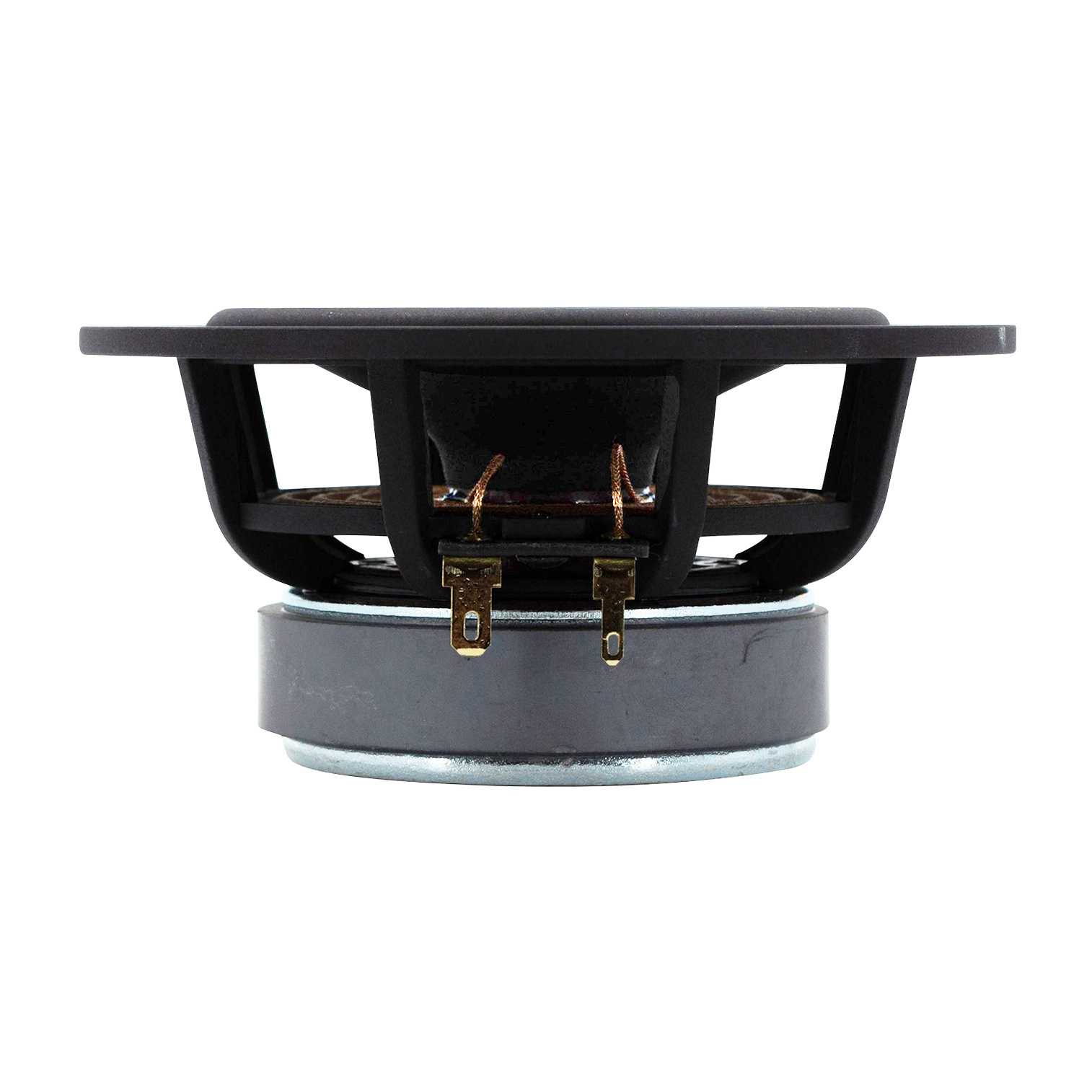

      Visaton B 100 4" High-End Full-Range Loudspeaker 6 Ohm

      Merk: Visaton
      Toon alle Audio componenten
      4" | 6 Ω
      B 100 4" High-End Full-Range Loudspeaker 6 Ohm
      B 100 4" High-End Full-Range Loudspeaker 6 Ohm
      B 100 4" High-End Full-Range Loudspeaker 6 Ohm
      B 100 4" High-End Full-Range Loudspeaker 6 Ohm
      B 100 4" High-End Full-Range Loudspeaker 6 Ohm
      B 100 4" High-End Full-Range Loudspeaker 6 Ohm
      € 73,95 2 Op voorraad: levertijd 1 werkdag
      10 cm (4") high-end full-range loudspeaker with excellent balanced response characteristics and slightly increasing high-range for a pleasant sound even outside of 0-axis.... Toon meer
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €70,25 per stuk
      +-
      In winkelwagen
      • Verzending altijd verzekerd en met track & trace
      • Voor 16u besteld, vandaag verstuurd*
      • Gratis verzending vanaf €99
      • In-house technische support
      B 100 4" High-End Full-Range Loudspeaker 6 Ohm
      B 100 4" High-End Full-Range Loudspeaker 6 Ohm
      B 100 4" High-End Full-Range Loudspeaker 6 Ohm
      B 100 4" High-End Full-Range Loudspeaker 6 Ohm
      B 100 4" High-End Full-Range Loudspeaker 6 Ohm
      B 100 4" High-End Full-Range Loudspeaker 6 Ohm

      Productomschrijving

      10 cm (4") high-end full-range loudspeaker with excellent balanced response characteristics and slightly increasing high-range for a pleasant sound even outside of 0-axis.



      Highlights

      • Lightweight paper membrane
      • Impedance control ring
      • Aluminum die cast basket



      Product details

      Visaton B 100 4" High-End Full-Range Loudspeaker 6 Ohm



      This woofer has excellent balanced response characteristics and slightly increasing high-range for a pleasant sound even outside of 0-axis. High efficiency with low distortion are just some of the qualities of this speaker.

      Specificaties

      Artikelnummer
      B 100
      Woofer Series
      High-End
      Woofer Type
      Full-Range
      Nominal Diameter
      4"
      Power Handling (RMS)
      30 Watts
      Power Handling (max)
      60 Watts
      Impedance
      6 ohms
      Sensitivity
      88 dB (1 W/1 m)
      Frequency Response
      75 - 20,000 Hz
      Voice Coil Diameter
      26 mm
      DC Resistance (Re)
      5.8 ohms
      Voice Coil Inductance (Le)
      0.36 mH
      Resonant Frequency (Fs)
      75 Hz
      Mechanical Q (Qms)
      10.13
      Electromagnetic Q (Qes)
      0.54
      Total Q (Qts)
      0.52
      Diaphragm Mass Inc. Airload (Mms)
      3.2g
      Surface Area of Cone (Sd)
      54.1 cm2
      BL Product (BL)
      4.1 Tm
      Maximum Linear Excursion (Xmax)
      1.6 mm
      Cone / Diaphragm Material
      Treated Paper
      Surround Material
      Rubber
      Basket / Frame Material
      Cast Aluminum
      Overall Outside Diameter
      121.5 mm
      Overall Depth
      57 mm
      Baffle Cutout Diameter
      101 mm
      Bolt Circle Diameter
      111 mm
      # Mounting Holes
      4
      Mounting Hole Diameter
      4.2 mm

      Reviews

      5 from 5Based on 2 reviews
      Schrijf een review
      5 van 5
      Prima solide speaker. Zit in parabolische hoorn en er komt gezien het formaat een zeer stevig geluid uit. Moet alleen nog met de demping aan de slag. Conclusie: AANRADER !!!!
      Door Paul G. on 4 November 2020
      4 van 5
      i have build it in a 3 liter cabinet made of azobe wood with bass reflex tube. the bass is excellent and there is a clear sound for the high frequenties. it is a better soundspectrum as the W4-1320.
      Door maurice v. on 21 Februari 2020
