        MOWW Multicore Hook-up Wire White per meter

        MOWW Multicore Hook-up Wire White per meter

        €0,75

        Niet op voorraad

        Toevoegen aan winkelwagen

        MOWW Multicore Hook-up Wire White per meter

        0 reviews
        0 van 5
        0 reviews
        5 sterren
        0%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Toon alle Nieuwe producten
        1.4 mm3
        MOWW Multicore Hook-up Wire White per meter
        MOWW Multicore Hook-up Wire White per meter
        MOWW Multicore Hook-up Wire White per meter
        MOWW Multicore Hook-up Wire White per meter
        MOWW Multicore Hook-up Wire White per meter
        MOWW Multicore Hook-up Wire White per meter
        € 0,62€ 0,75 Niet op voorraad
        +-
        Toevoegen aan winkelwagen

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Snel weer op voorraad
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        MOWW Multicore Hook-up Wire White per meter
        MOWW Multicore Hook-up Wire White per meter
        MOWW Multicore Hook-up Wire White per meter
        MOWW Multicore Hook-up Wire White per meter
        MOWW Multicore Hook-up Wire White per meter
        MOWW Multicore Hook-up Wire White per meter

        Productomschrijving MOWW Multicore Hook-up Wire White

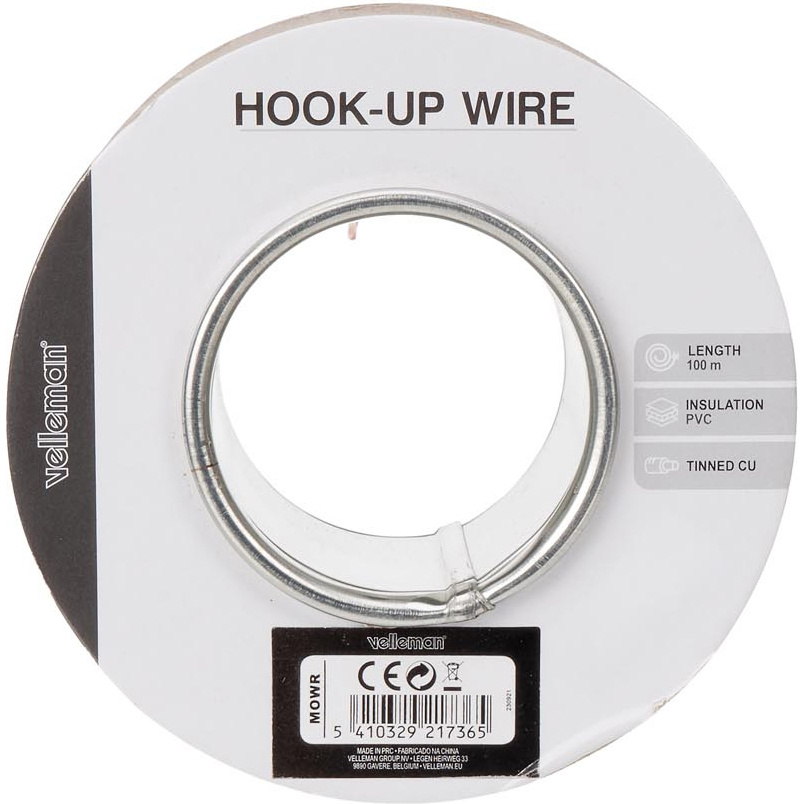

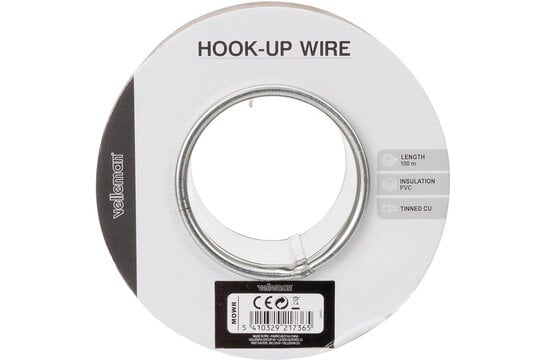

        This white stranded hook-up wire with a conductor cross-section of 0.2 mm² (AWG24) is designed for reliable internal wiring in electronic circuits and prototype applications. The flexible stranded construction and durable PVC insulation make it easy to route and solder in a wide range of low-voltage electronic projects.



        Highlights of the Hook-Up Wire 1.4 mm² White

        • Flexible stranded conductor with 7 x 0.193 mm tinned copper strands.
        • 0.2 mm² conductor cross-section equivalent to AWG24.
        • PVC insulation with an outer diameter of 1.4 mm for reliable protection.
        • Rated for up to 30 V and 4.3 A in low-voltage electronic circuits.



        Product details Hook-Up Wire 1.4 mm² White

        Stranded Hook-Up Wire 0.2 mm² AWG24 White

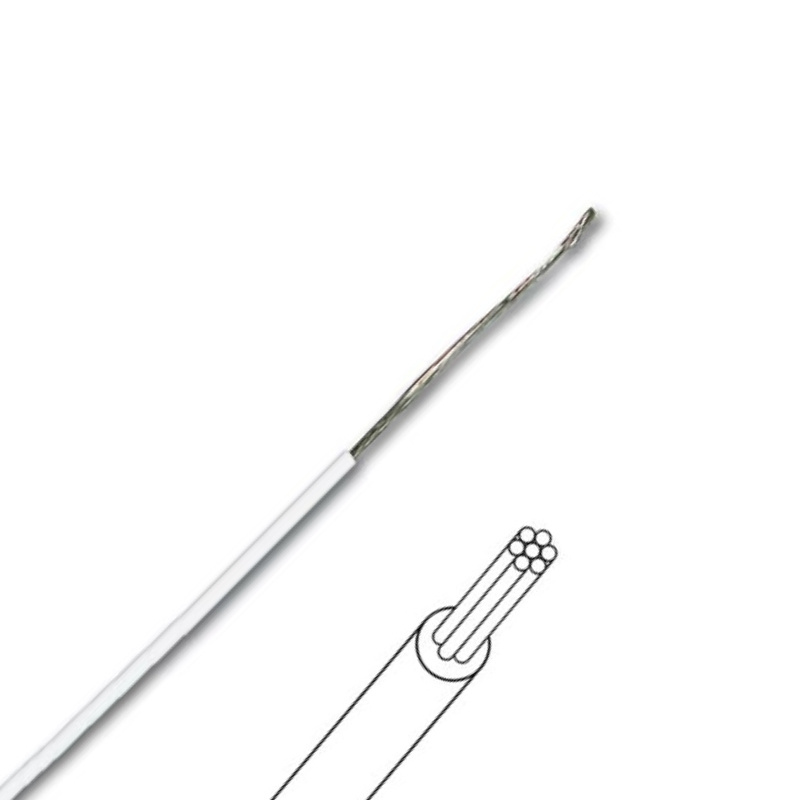

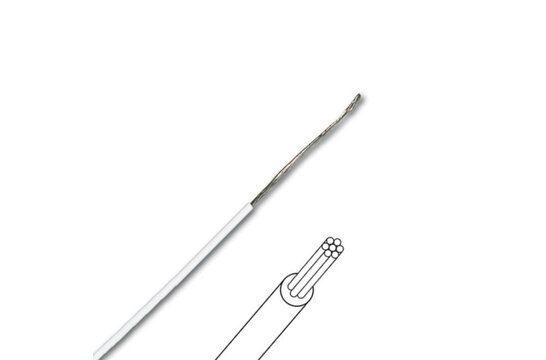

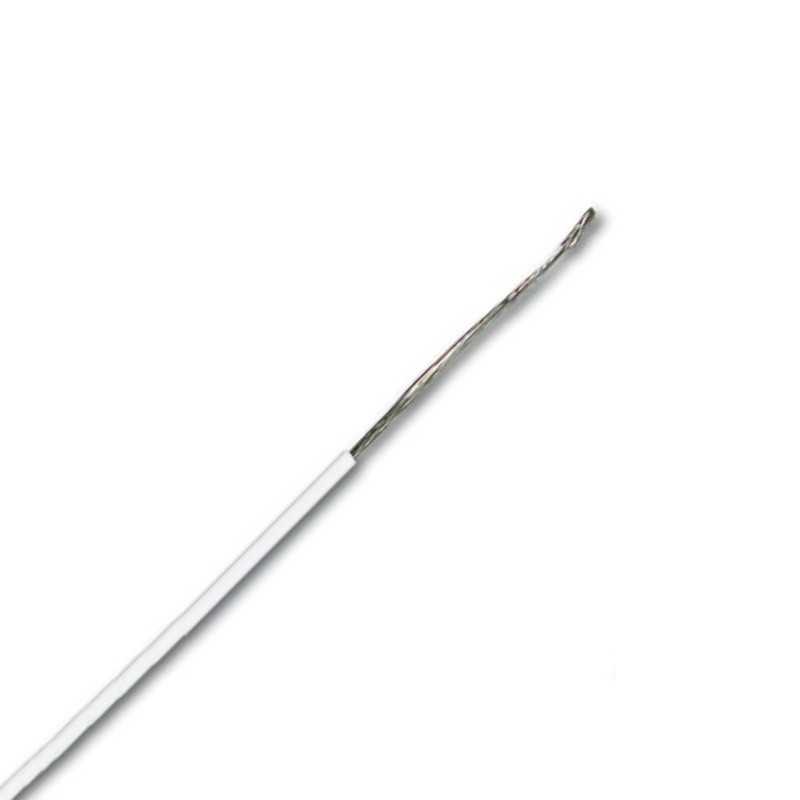

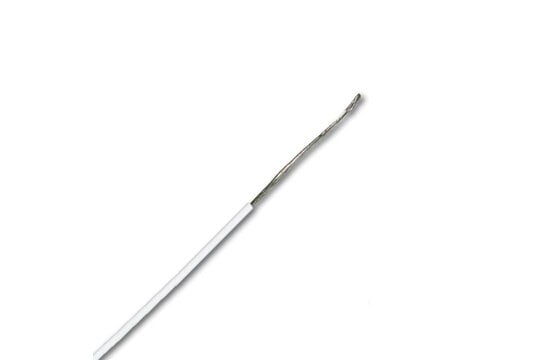

        This stranded hook-up wire features a conductor made of 7 tinned copper strands with a diameter of 0.193 mm each, providing a total conductor cross-section of 0.2 mm². The stranded design ensures good flexibility, allowing the wire to be easily routed within compact electronic assemblies and prototype circuits.



        The tinned copper conductor improves solderability and helps protect the wire against oxidation. This makes the wire well suited for soldered connections on printed circuit boards, breadboards and other electronic modules commonly used in DIY electronics and development projects.



        The wire is insulated with durable PVC and has an overall outer diameter of 1.4 mm. It supports a maximum voltage of 30 V and a maximum current of 4.3 A under appropriate operating conditions. The white insulation provides clear identification in wiring setups and is often used for neutral or signal connections in electronic circuits.

        Toon meer

        Specificaties

        Artikelnummer
        MOWW
        EAN
        5410329217389
