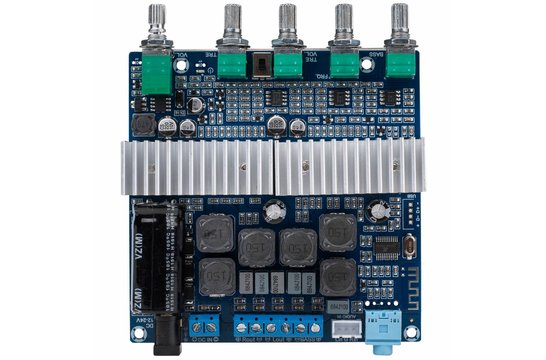

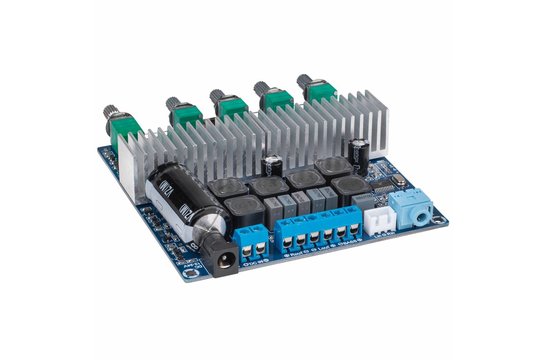

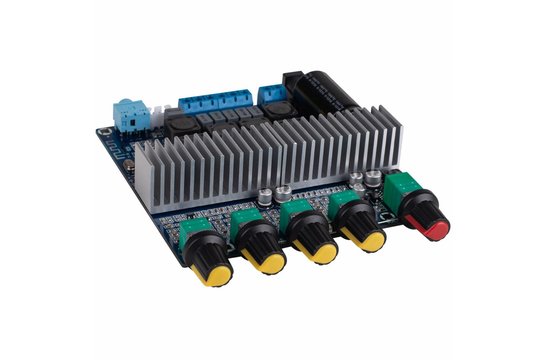

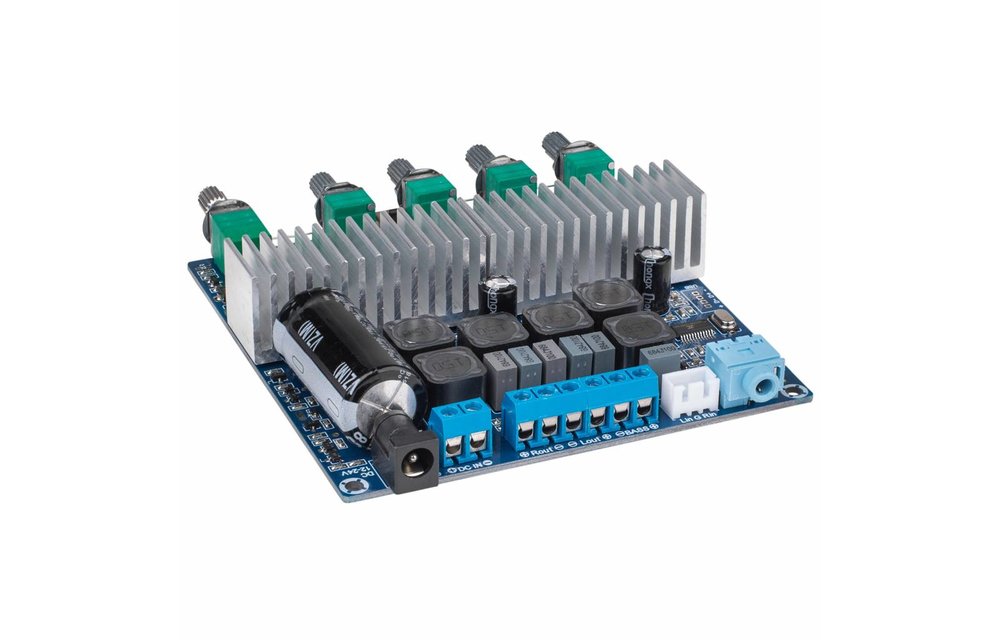

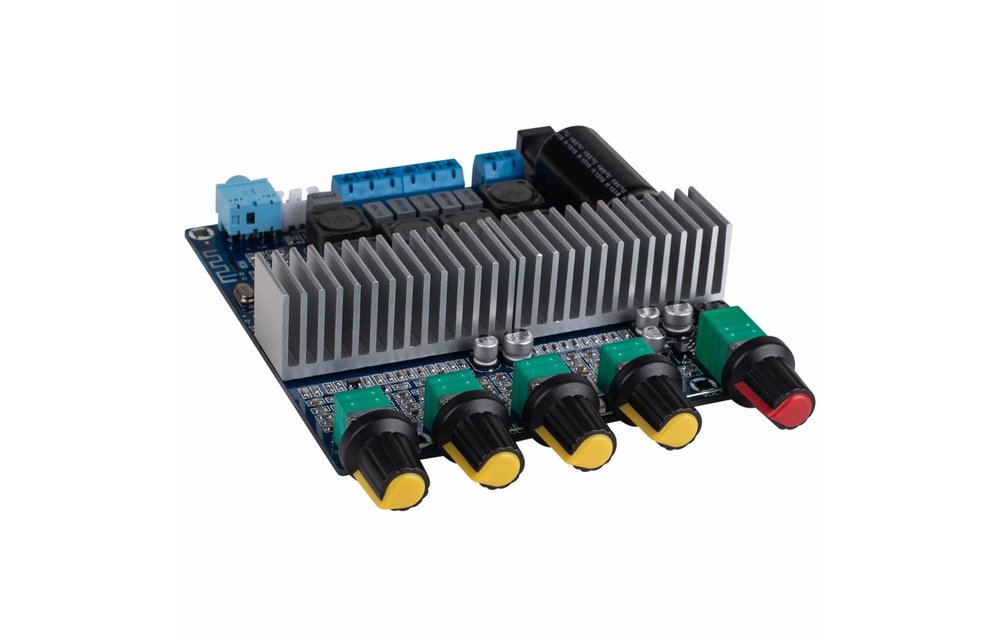

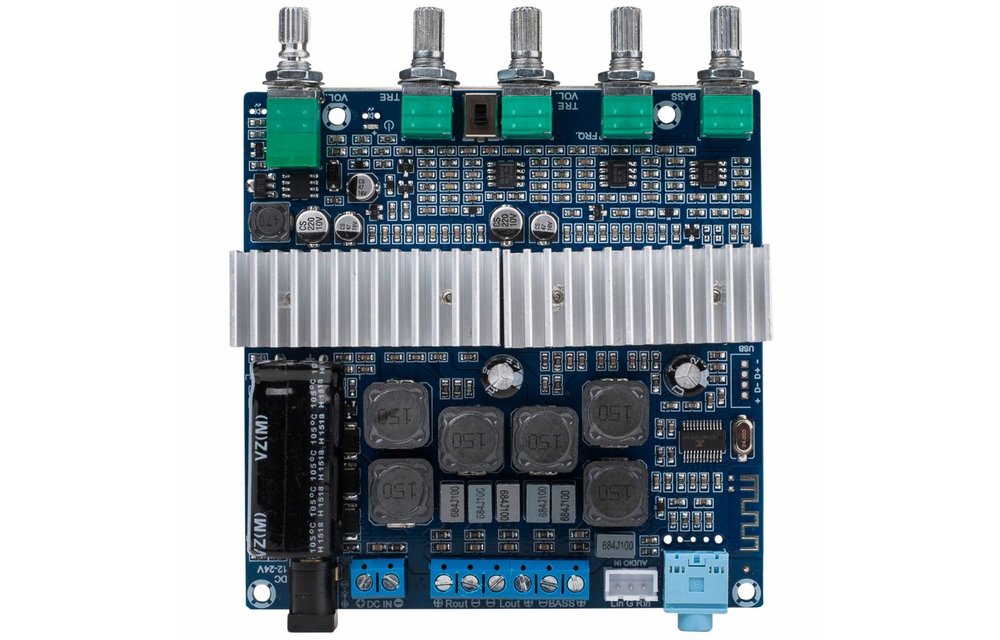

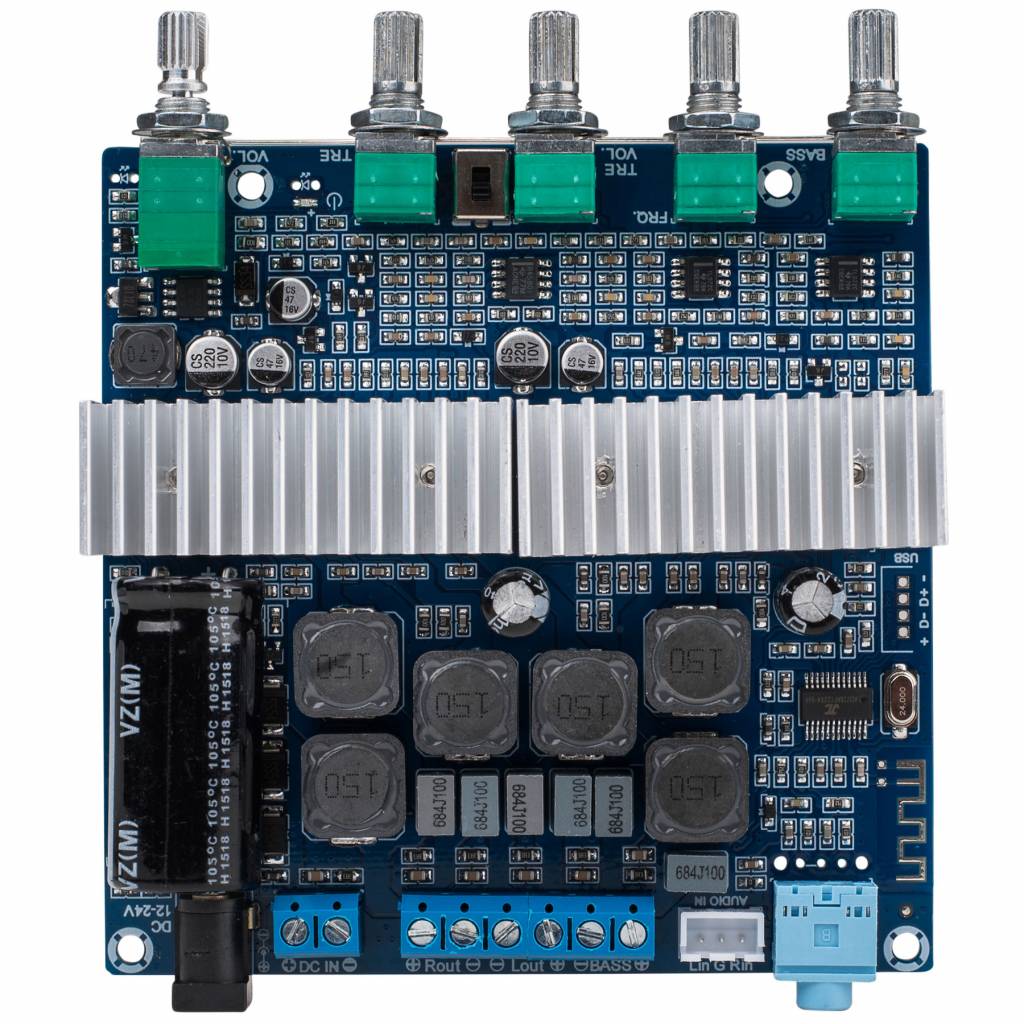

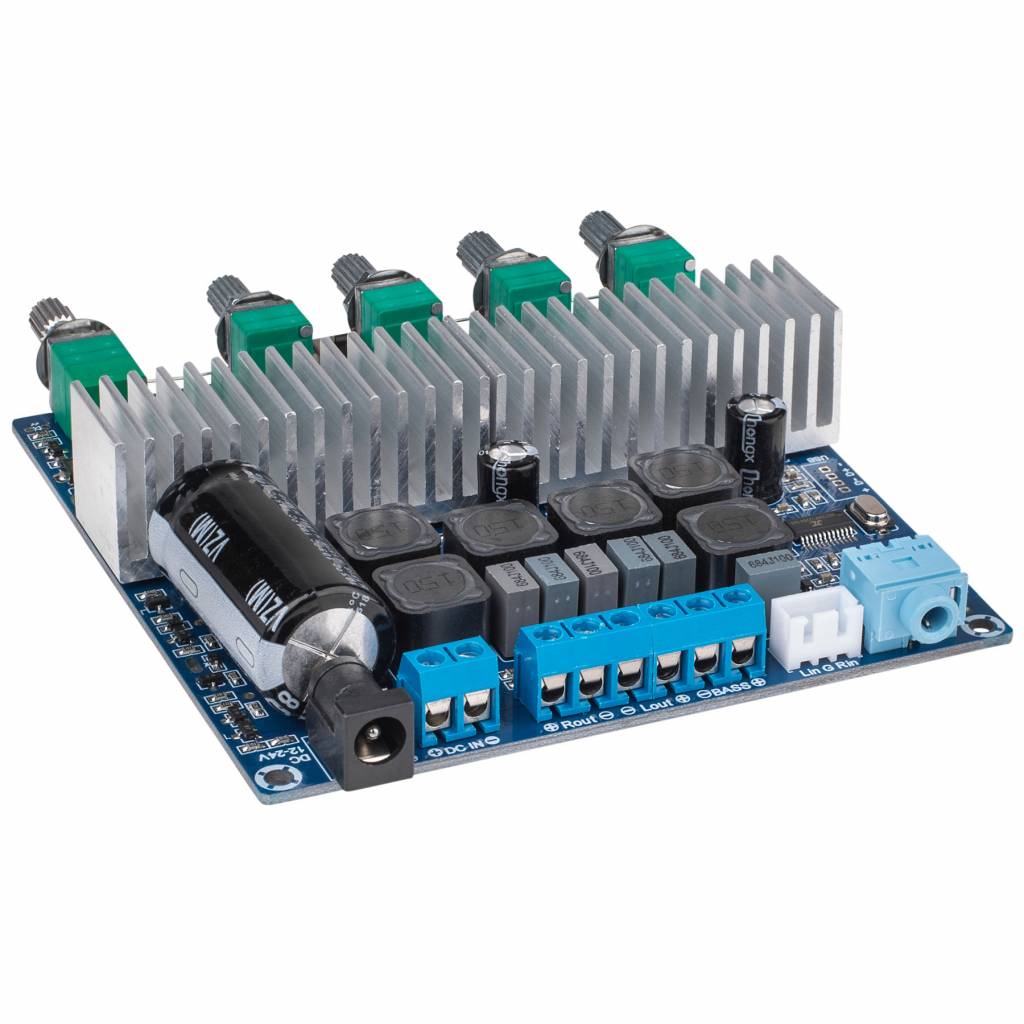

      TPA3116D2.1-BT Class D versterkermodule

      € 60,70€ 73,45 10+ Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts € 69,78 per stuk
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL & BE)
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Enjoy creating new audio projects with this all-in-one, easy to use 5.0 Bluetooth 2.1 channel small amplifier board with bass, treble, and variable low pass filter controls. Its delivers 50W into stereo channels and an additional 100W into a mono subwoofer channel for making a big sounding boom box, portable speaker, or even a mobile power amp.



      Highlights

      • 12 to 24 VDC for versatility
      • DC power jack, 3.5 mm Aux-in jack, and Phoenix speaker connectors for quick hookup
      • Built-in master volume, treble, satellite volume, subwoofer volume, and low-pass filter potentiometers for sound customization
      • Pre-assembled and pre-tested for easy project integration
      • Class D efficiency and wireless 5.0 Bluetooth in one compact size board
      • Easily switch between Bluetooth and line-in source by pushing and holding in the master volume control for three seconds



      Product details

      TPA3116D2.1-BT 2 x 50W + 100W Class D 2.1 Bluetooth 5.0 Amplifier Board with Filter and Volume Controls



      Make your own 2.1 multimedia wireless Bluetooth amplifier or portable speaker with this 2 x 50W + 100W amplifier board. The board accepts 12 VDC to 24 VDC which makes it perfect for making home or mobile audio projects. Make your audio project truly portable by adding three to five 18650 Li-Ion batteries.



      These boards are pre-tested and pre-assembled, which makes your project easy to complete. The on-board jacks, potentiometer, and screw terminals let you get this board powered up and playing music in minutes. Just connect your power source using a 2.1 x 5.5 mm DC power plug, a 3.5 mm stereo audio source, and run speaker wire from the six screw terminals to you speakers and you are done. If you don't want to use the 3.5 mm jack, an optional 3-pin connector for internal line-in audio is available (wiring harnesses not included). Push and hold in the master volume control for three seconds to switch from Bluetooth to line-in source. Push in master volume control to switch back to Bluetooth.

      Specificaties

      Artikelnummer
      TPA3116D2.1-BT
      Nominaal vermogen
      2 x 50 watt + 1 x 100 watt at 4 ohms
      Minimale belasting
      4 ohms
      Efficiëntie
      -
      Signaal-ruisverhouding (SNR)
      100 dB
      Vervorming
      -
      Frequentierespons
      20 - 20,000 Hz
      Versterkingsfactor
      -
      Ingangsgevoeligheid
      -
      Ingangsimpedantie
      -
      Amplifier Classification
      Class D
      Versterkertopologie
      Texas Instruments TPA3116D2
      Uitgangskanalen
      3
      Ingangsconnector
      3.5 mm stereo jack or 3-pin line-in socket
      Uitgangsconnector
      Screw terminal
      DSP-functionaliteit
      -
      Bluetooth
      EQ-correctie
      Voedingsvereisten
      12 - 24 VDC
      Voedingsconnector
      DC jack 2.1 x 5.5 mm or srew terminals
      Stroomlimiet
      3 A
      Onder-/overspanningsbeveiliging
      -
      Afmetingen (L x B x H)
      100 x 100 x 23 mm without potmeter (shaft length potmeter: 15.3 mm)
      Afstand tussen bevestigingsgaten
      -
      Diameter bevestigingsgaten
      -

      Toon meer

      Reviews

      4 from 5Based on 7 reviews
      Schrijf een review
      4 van 5
      Overall a good amp for the price but only for the price. The great thing is that its easy to set up and it has many pots to change the sound. Im not sure about the 100w on the sub-out tho. It more seems like 50w and the bass also starts to distort and is unuseable above 50-60% volume. Most 8" and 6.5" subwoofers will already be underpowered by those "100W" of bass. The 50w on the L and R channel seem legit, altough it still doesent get that loud on full volume. The bluetooth connection however is fantastic, speaker is in the first floor of the house, I am standing on the third floor with many walls inbetween and the connection is still perfectly fine.
      Door GIZMO320 on 8 Januari 2022
      3 van 5
      Tut was es soll. Keine Doku; Schiebeschalter zwischen den Potis ohne Beschriftung. Das Pairing/Umschalten zwischen Line-In und Bluetooth ist hakelig.
      Door Uwe H. on 29 September 2020
