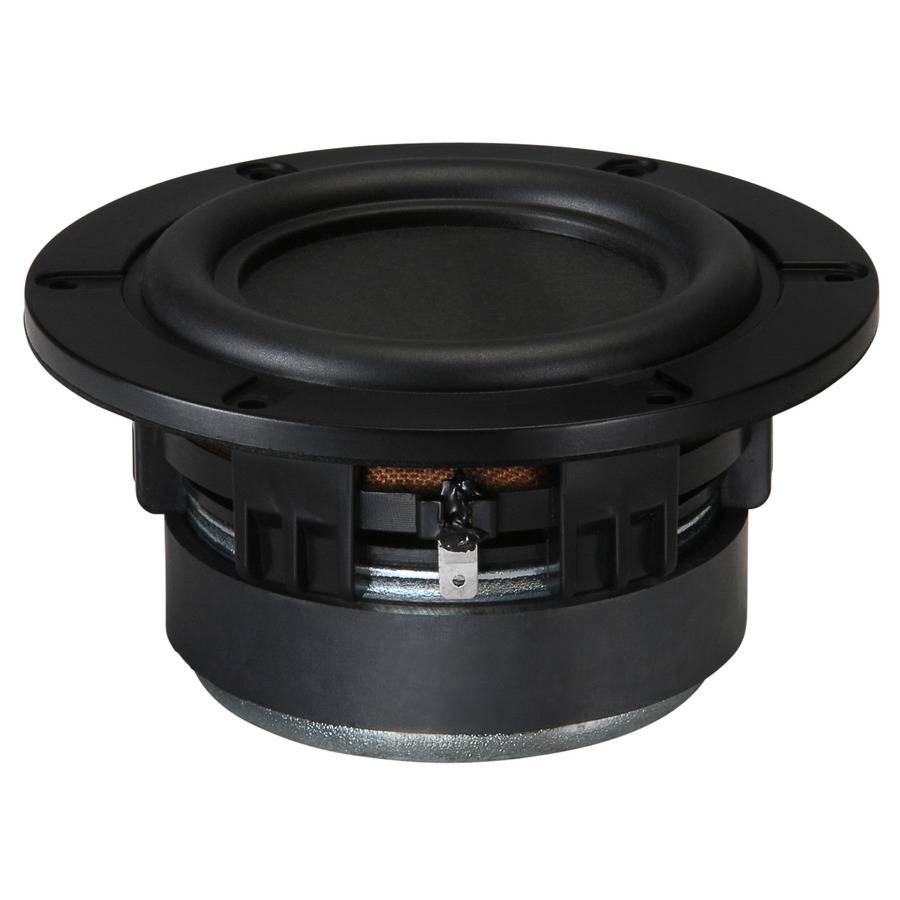

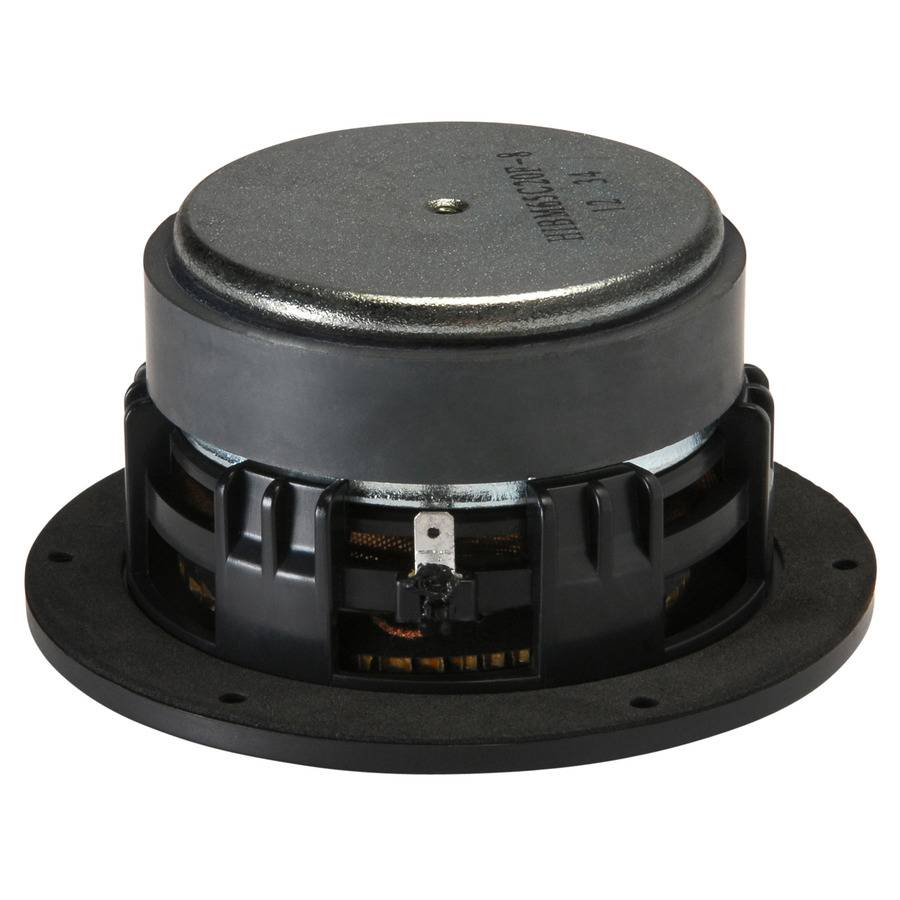

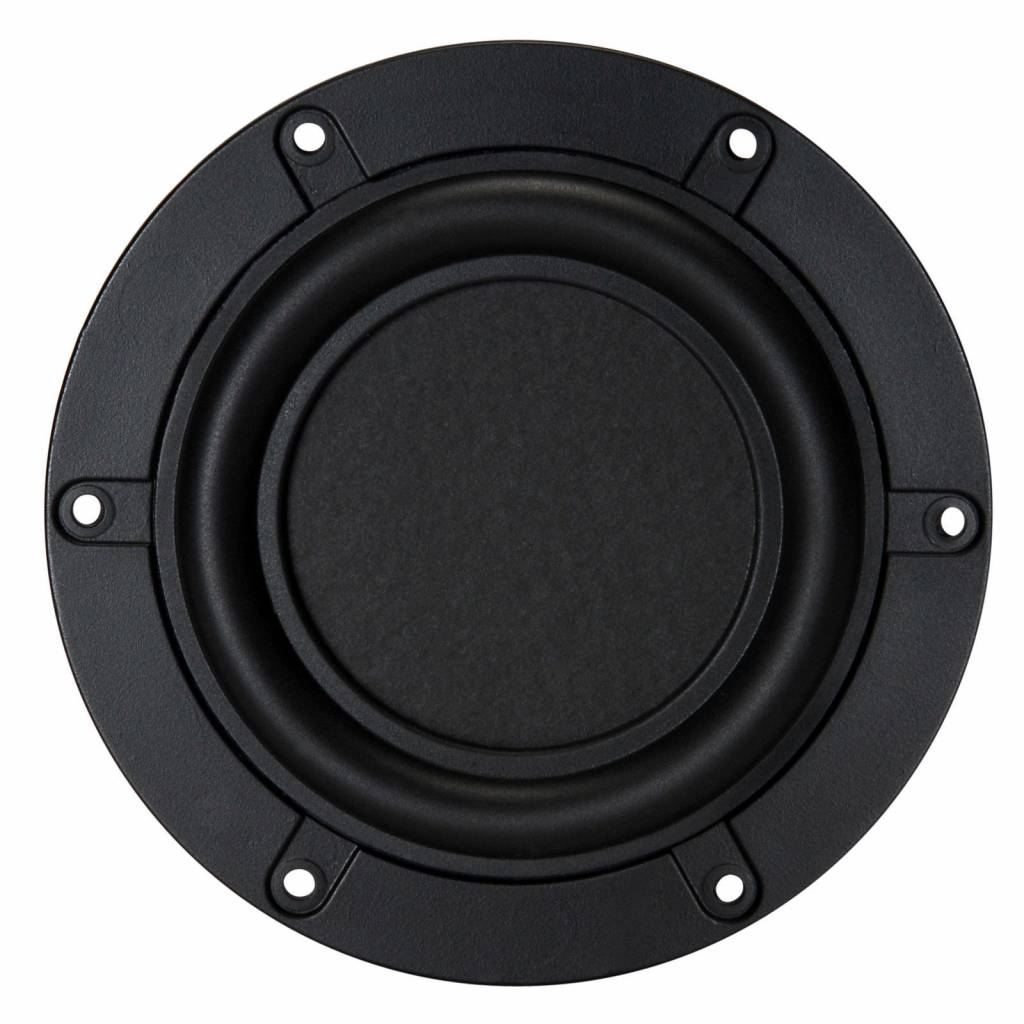

    Tectonic Elements TEBM65C20F-8 3-1/2" BMR Full-Range Speaker

    € 29,95 6 Op voorraad: levertijd 1 werkdag
    For audio applications that require extended frequency response, and superior off-axis response in a small form factor, choose the Tectonic TEBM65C20F-8 3-1/2" full-range transducer. Nearly all of the audio in the pass band of the driver is available up t... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €28,45 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    For audio applications that require extended frequency response, and superior off-axis response in a small form factor, choose the Tectonic Elements TEBM65C20F-8 3-1/2" full-range transducer. Nearly all of the audio in the pass band of the driver is available up to 100° off-axis.



    Highlights

    • Amazing off-axis frequency response
    • Small form factor with decent Xmax
    • Perfect for modern speaker applications such as soundbars



    Product details

    Tectonic Elements TEBM65C20F-8 3-1/2" BMR Full-Range Speaker 8 Ohm



    Tectonic Elements TEBM65C20F-8 Balanced-Mode Radiator (BMR) features extended frequency response and wide dispersion compared to that of a conventional drive unit. It combines the benefits of Tectonic Elements Elements bending-wave technology and pistonic modes of operation. It is ideally suited for compact audio applications that require a full-range, high performance acoustic solution such as a soundbar. An advanced ferrite-based motor is combined with special cone dampers to ensure a small size that outperforms conventional drivers, especially in off-axis performance.

    Specificaties

    Artikelnummer
    TEBM65C20F-8
    Woofer Type
    Full-range
    Nominal Diameter
    3-1/2"
    Power Handling (RMS)
    20 Watts
    Power Handling (max)
    40 Watts
    Impedance
    8 ohms
    Sensitivity
    81 dB 2.83V/1m
    Frequency Response
    80 to 20,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    7.2 ohms
    Voice Coil Inductance (Le)
    0.055 mH
    Resonant Frequency (Fs)
    86 Hz
    Mechanical Q (Qms)
    4.9
    Electromagnetic Q (Qes)
    1.09
    Total Q (Qts)
    0.89
    Diaphragm Mass Inc. Airload (Mms)
    5.25g
    Mechanical Compliance of Suspension (Cms)
    0.65 mm/N
    BL Product (BL)
    4.33 Tm
    Compliance Equivalent Volume (Vas)
    0.04 ft.³
    Maximum Linear Excursion (Xmax)
    3.5 mm
    Cone / Diaphragm Material
    Paper
    Magnet Material
    Ferrite
    Overall Outside Diameter
    4.25"
    Overall Depth
    1.88"
    Baffle Cutout Diameter
    3.4"
    # Mounting Holes
    4
    Sealed Volume
    0.1 ft.³
    Sealed F3
    84 Hz
    Vented Volume
    0.2 ft.³
    Vented F3
    50 Hz
