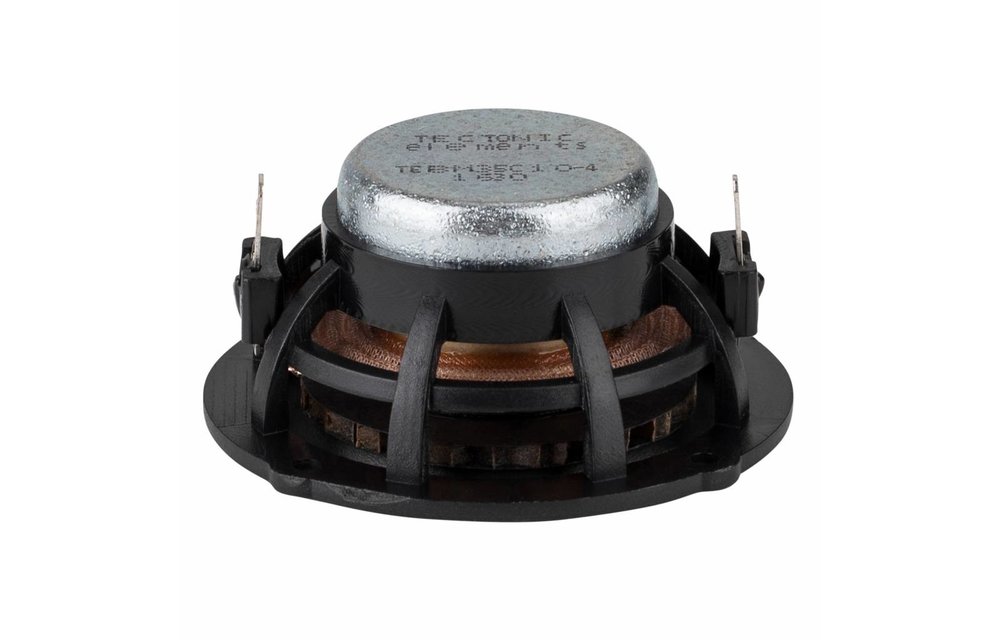

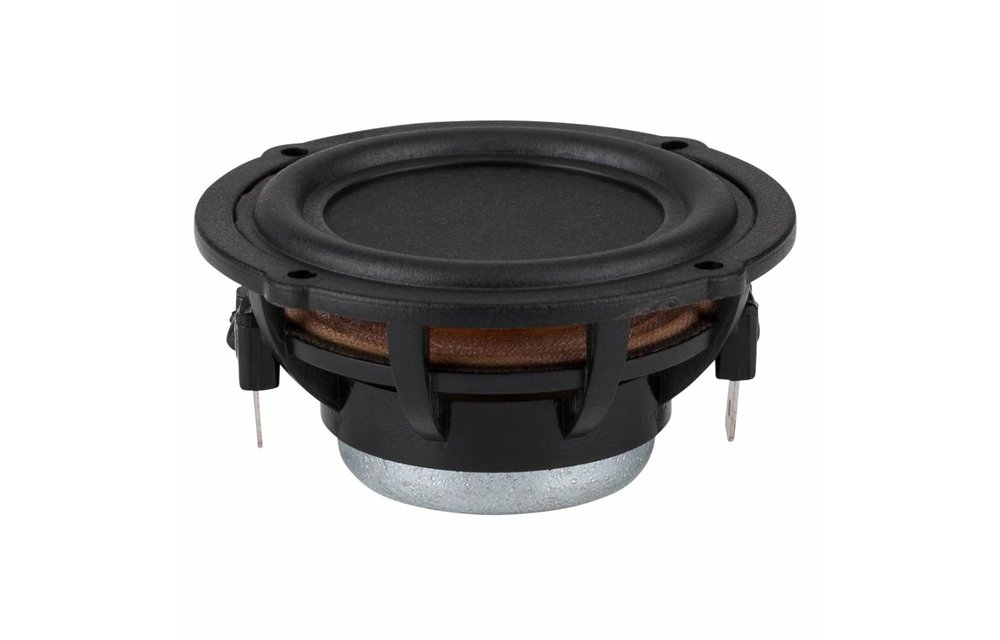

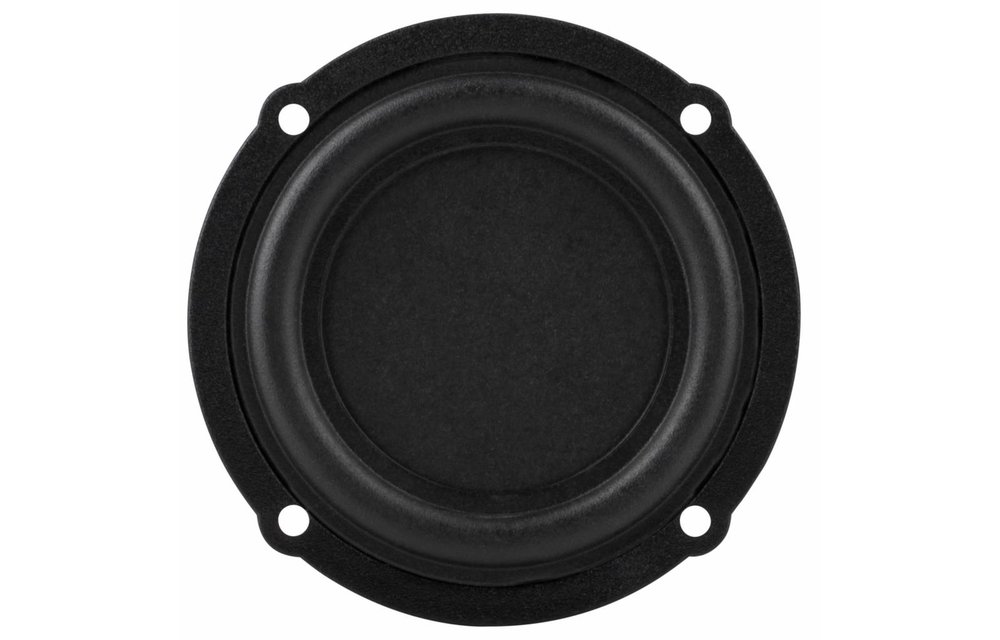

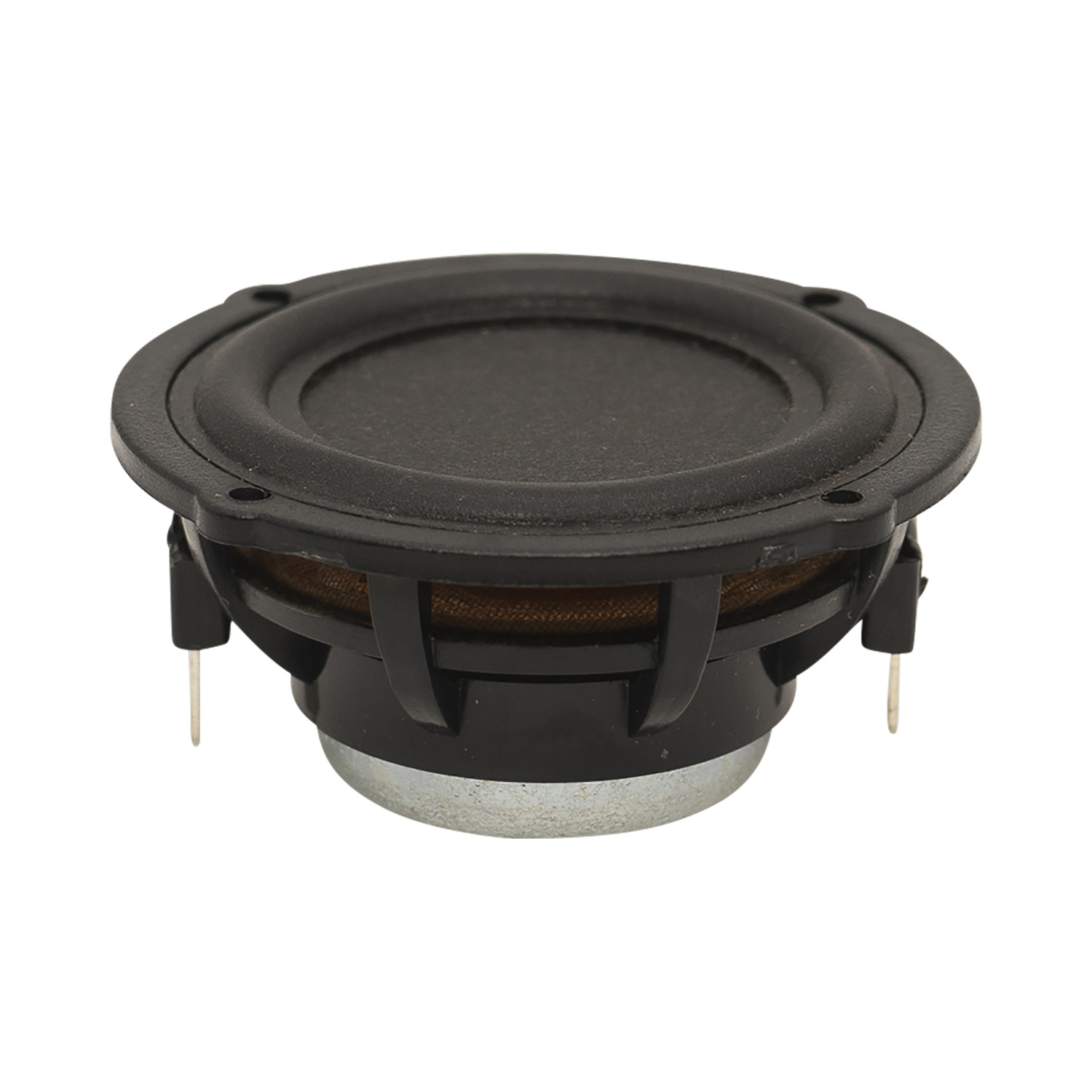

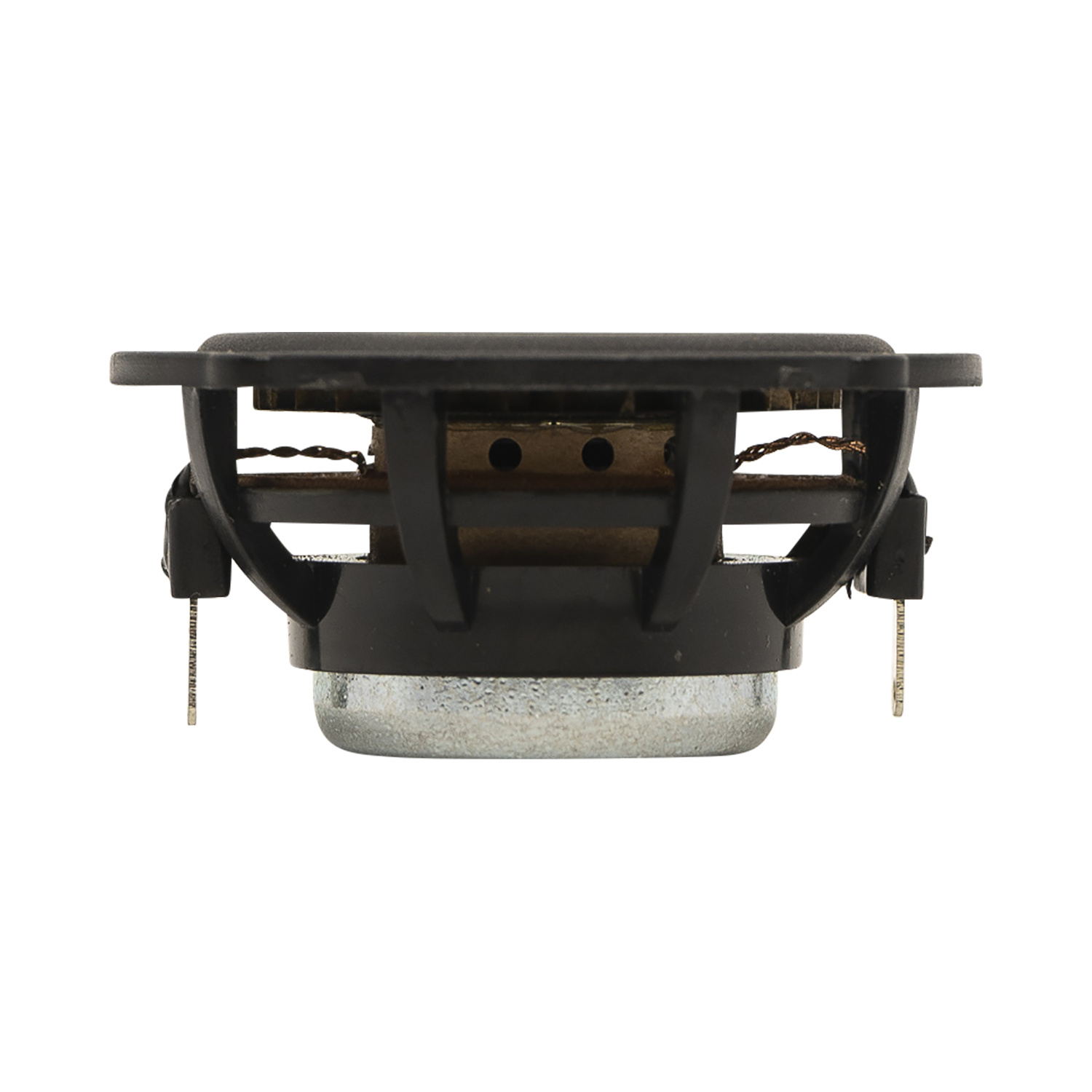

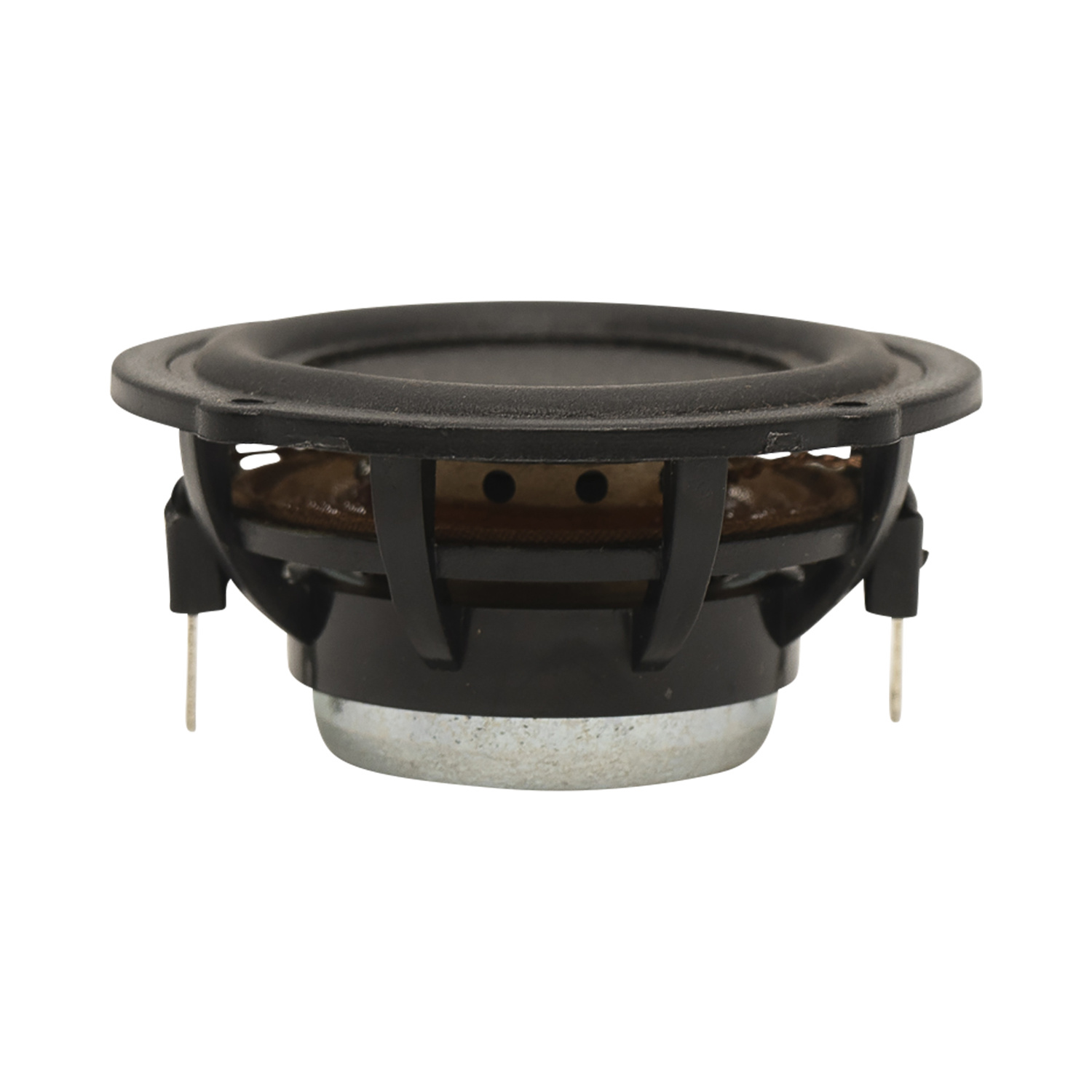

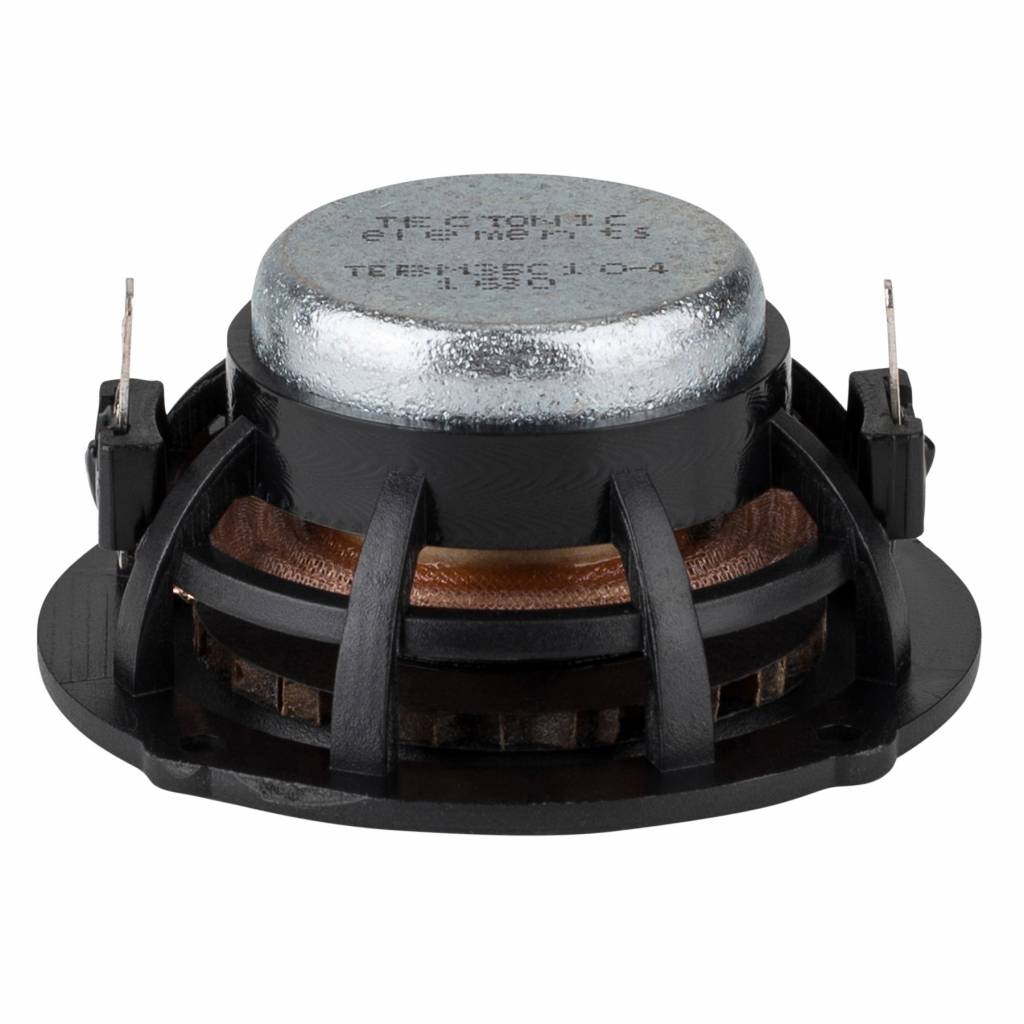

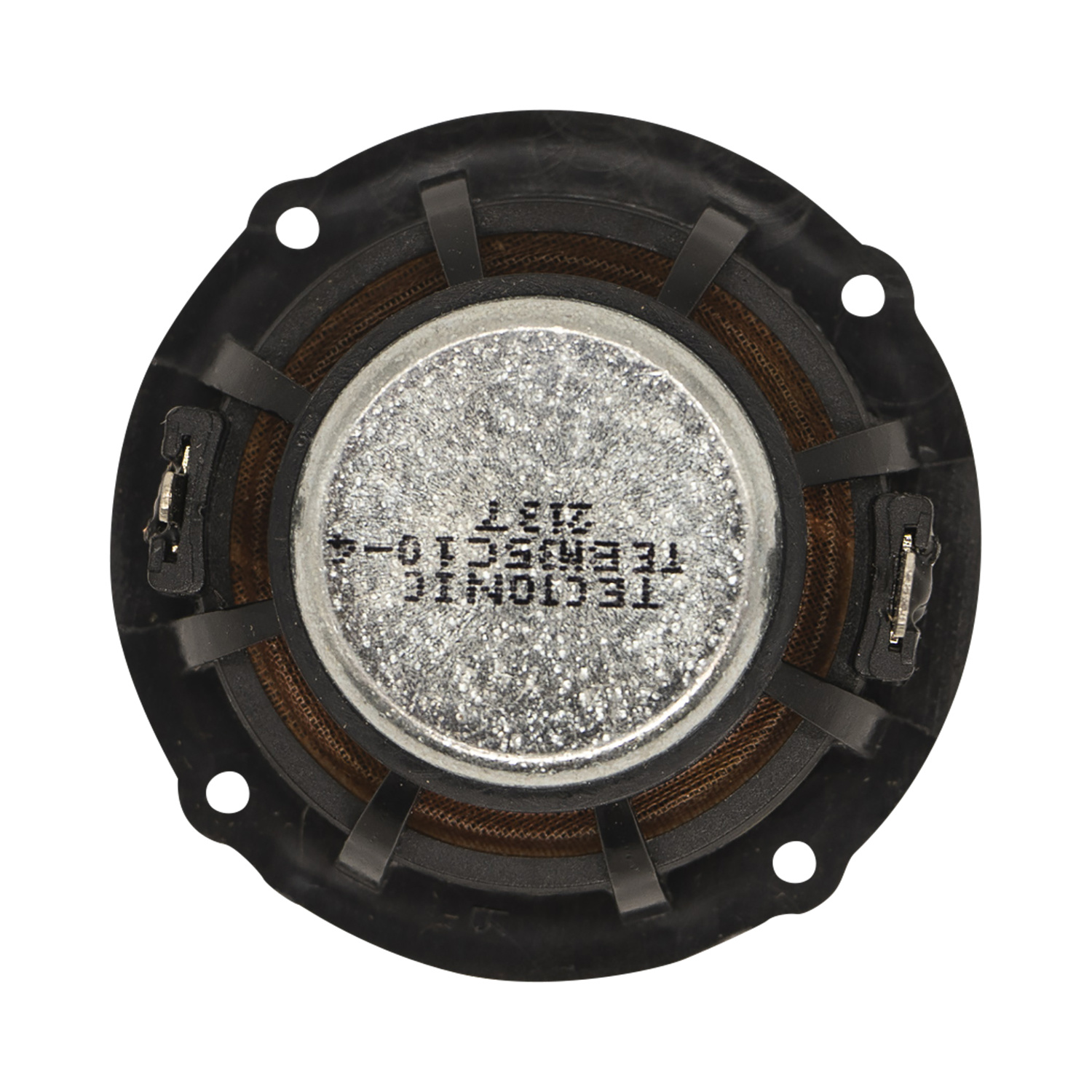

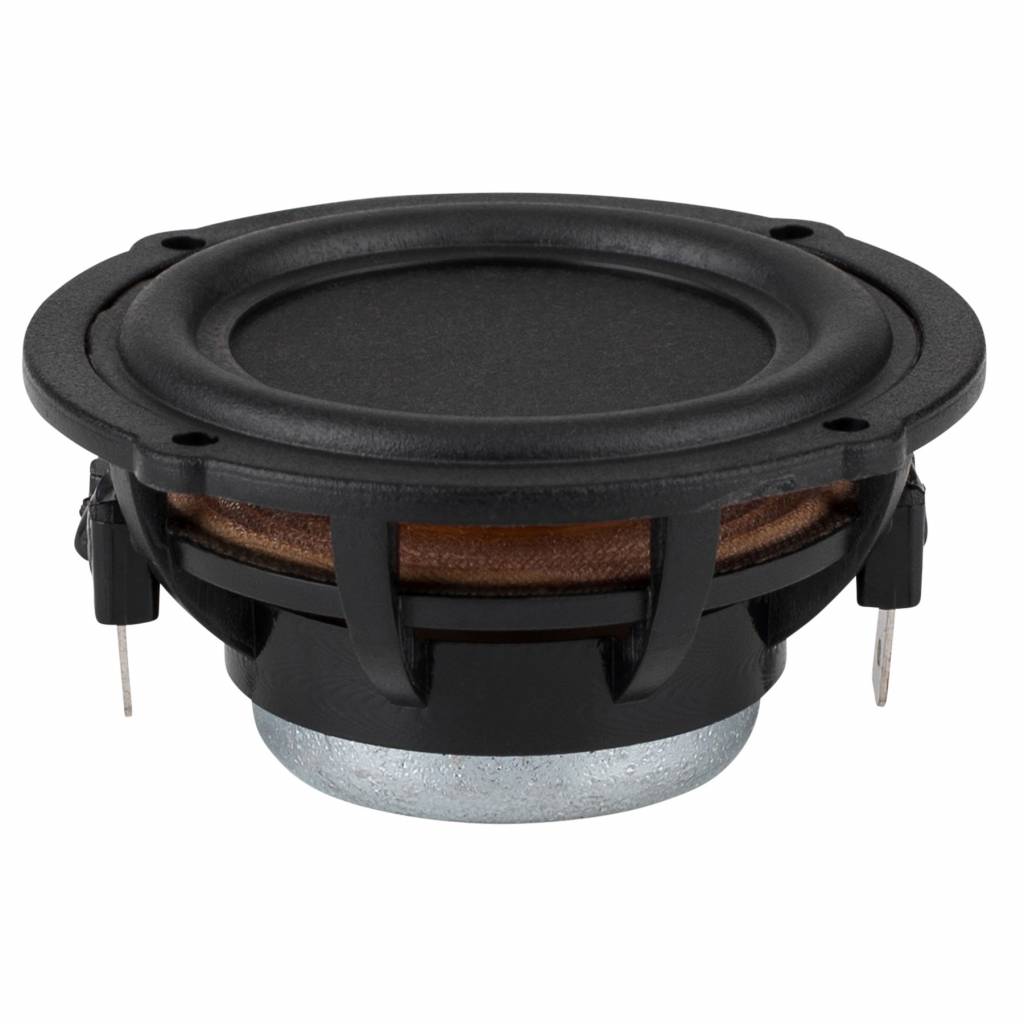

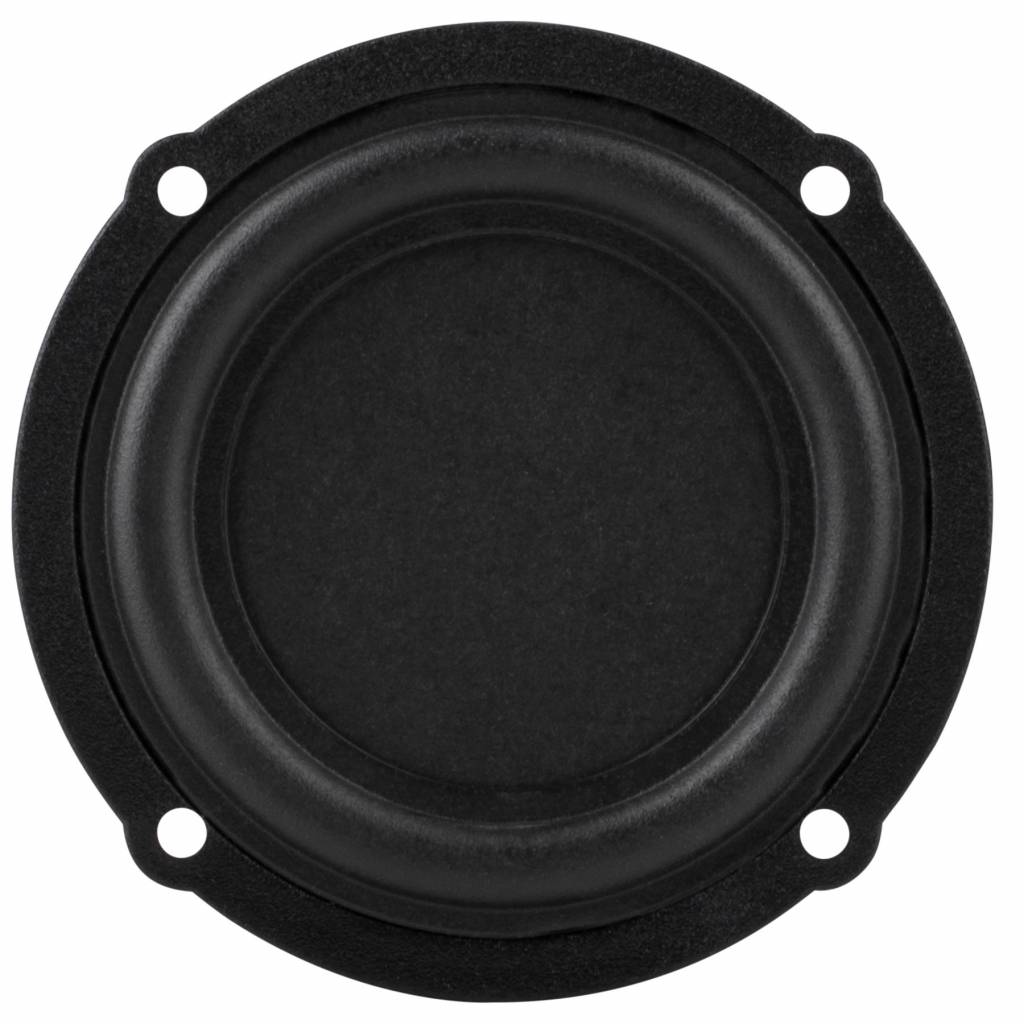

        TEBM35C10-4 BMR  Full-range Woofer

        TEBM35C10-4 BMR Full-range Woofer

        €15,95

        Tectonic Elements TEBM35C10-4 BMR Full-range Woofer

        9 reviews
        5 van 5
        9 reviews
        5 sterren
        89%
        4 sterren
        11%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        € 13,18€ 15,95 5 Op voorraad10+ verwacht op 30-08-2024
        • -5% Bestel 4 voor slechts € 15,15 per stuk
        • -10% Bestel 10 voor slechts € 14,36 per stuk

        Buy now, pay later

        • Gratis verzending vanaf € 99
        • Nu besteld, dinsdag bezorgd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        The TEBM35C10-4 BMR 2" full-range is an audio drive unit with an extended frequency response and extremely wide directivity. It combines the benefits of Tectonic Elements bending-wave technology and pistonic modes of operation.



        Highlights

        • Blends pistonic and resonant mode output for wide frequency response
        • The small form-factor is ideally suited for compact audio enabled products
        • Nearly 180° dispersion all the way up to 20,000 Hz

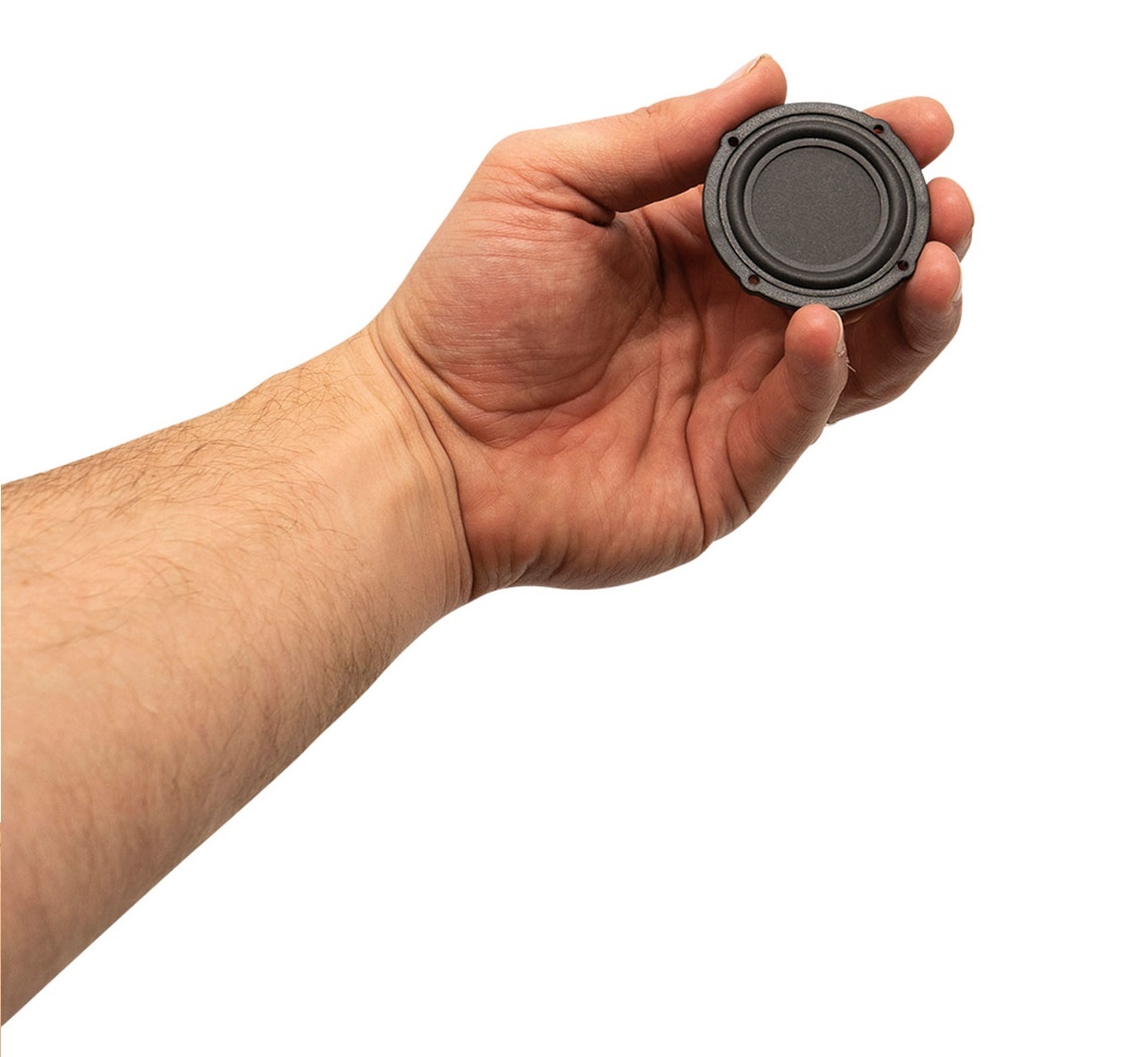

        • Only 2" diameter and 1" deep allows mounting almost anywhere



        Product details

        Tectonic Elements TEBM35C10-4 BMR 2" Full-Range Speaker 4 Ohm



        By combining the benefits of bending-wave technology and pistonic modes of operation, Tectonic Element's TEBM35C10-4 BMR 2" full-range delivers extended frequency response and extremely wide directivity. The small form-factor is ideally suited for compact products that require a full-range drive unit, room filling sound and a high performance acoustic solution. The small size, extended response, and low cost also make the TEBM35C10-4 an excellent choice for use in higher output line array designs. This unique driver can be used for anything from small handheld speakers, toys and displays to larger TV speaker bars, Wi-Fi speaker systems, and even compact sound reinforcement systems.

        Toon meer

        Specificaties

        Artikelnummer
        TEBM35C10-4
        Nominale diameter
        2"
        Belastbaarheid (RMS)
        10 Watts
        Belastbaarheid (max)
        20 Watts
        Impedantie (Z)
        4 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        83 dB
        Frequentierespons
        100 to 20,000 Hz
        Spreekspoeldiameter
        0.80"
        Gelijkstroomweerstand (Re)
        4.2 ohms
        Spreekspoelinductie (Le)
        0.05 mH
        Resonantiefrequentie (Fs)
        145 Hz
        Mechanische Q (Qms)
        3.84
        Elektrische Q (Qes)
        1.06
        Totale Q (Qts)
        0.83
        Bewegende massa (Mms)
        1.11g
        Compliantie van de ophanging (Cms)
        1.085 mm/N
        Effectief oppervlak (Sd)
        11.04 cm²
        Krachtsfactor (BL)
        2.0 Tm
        Equivalentvolume (Vas)
        0.0063 ft.³
        Maximale excursie (Xmax)
        2.5 mm
        Surroundmateriaal
        Rubber
        Mand- /framemateriaal
        Polymer
        Magneetmateriaal
        Neodymium
        Totale buitendiameter
        2.04"
        Totale diepte
        0.98"
        Montagegatdiameter
        1.69"
        Bolt Circle Diameter
        1.9"
        # Bevestigingsgaten
        4
        Gesloten volume
        0.016 ft.³
        Gesloten F3
        154 Hz
        Gepoort volume
        0.026 ft.³
        Gepoort F3
        85 Hz

        Toon meer

        5 van 5
        Great as a tweeter, okay as a full-range. The higher frequencies sound very expansive and quite natural, but mine had a hard dip around 15 kHz that needed to be fixed with DSP. The midrange sounds a little artificial and empty, but on par with other drivers of this size. For ported desktop speakers you can tune them to around 65 Hz before they start over exerting at a reasonable volume.
        Door Nino on 18 Januari 2024
        5 van 5
        -
        Door Boštjan on 18 Oktober 2023
