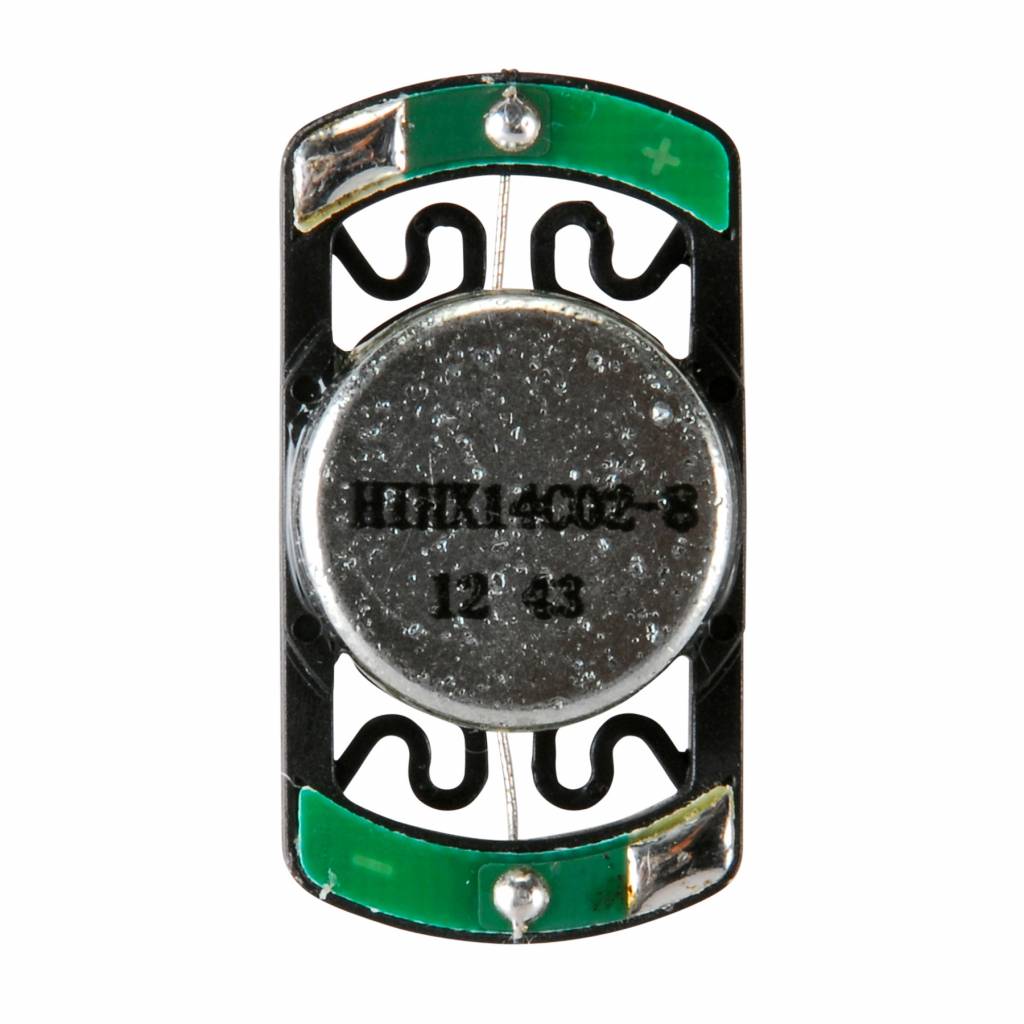

    Tectonic Elements TEAX14C02-8 14mm 2W Exciter

    € 7,25 6 Op voorraad: levertijd 1 werkdag
    Designed to be used with tablet PCs, eBooks, and appliance control panels, the bending waves generated by the TEAX14C02-8 brings life to devices. Adhesive is pre-applied for permanent device attachment, and the 9.55 mm (3/8") thickness is enhanced by a ne... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €6,89 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Tectonic's 14 mm, 8 ohm TEAX14C02-8 exciter is designed be used with tablet PCs, eBooks, and appliance control panels. Bending waves, and sound, generated by the TEAX14C02-8 brings life to devices.



    Highlights

    • Larger size for larger surfaces and 2 watt RMS power handling
    • Great for with tablet PCs and e-Book readers



    Product details

    Tectonic Elements TEAX14C02-8 14mm 2W Exciter



    Designed to be used with tablet PCs, eBooks, and appliance control panels, the bending waves generated by the TEAX14C02-8 brings life to devices. Adhesive is pre-applied for permanent device attachment, and the 9.55 mm (3/8") thickness is enhanced by a neodymium motor to accommodate into existing designs.



    Note: An exciter's frequency response and sensitivity are completely dependent on the exciter's designated surface. Thinner, smaller materials will tend to be louder and create a mid/tweeter response. Thicker, larger materials (with multiple exciters) will be slightly quieter but result in a more full-range sound.

    Specificaties

    Artikelnummer
    TEAX14C02-8
    Exciter type
    Full-Range Exciter
    Power Handling (RMS)
    2 watts
    Power Handling (max)
    -
    Impedance
    8 ohms
    Frequency Response
    300 - 20000 Hz
    Resonant Frequency (Fs)
    600 Hz
    DC Resistance (Re)
    7.8 ohms
    Voice Coil Inductance (Le)
    0.13 mH
    Total Q (Qts)
    -
    Diaphragm Mass Inc. Airload (Mms)
    355 mg
    Mechanical Compliance of Suspension (Cms)
    0.20e-3 m.N-1
    BL Product (BL)
    2.4 Tm
    Voice Coil Diameter
    14 mm
    Overall Outside Diameter
    -
    Overall Depth
    9.85 mm
    Overall Dimensions (L x W x H)
    37 x 20 x 9.85 mm
    Adhesive dimensions
    -
    Mounting type
    3M VHB adhesive pre-applied
    Weight
    12.8 grams
