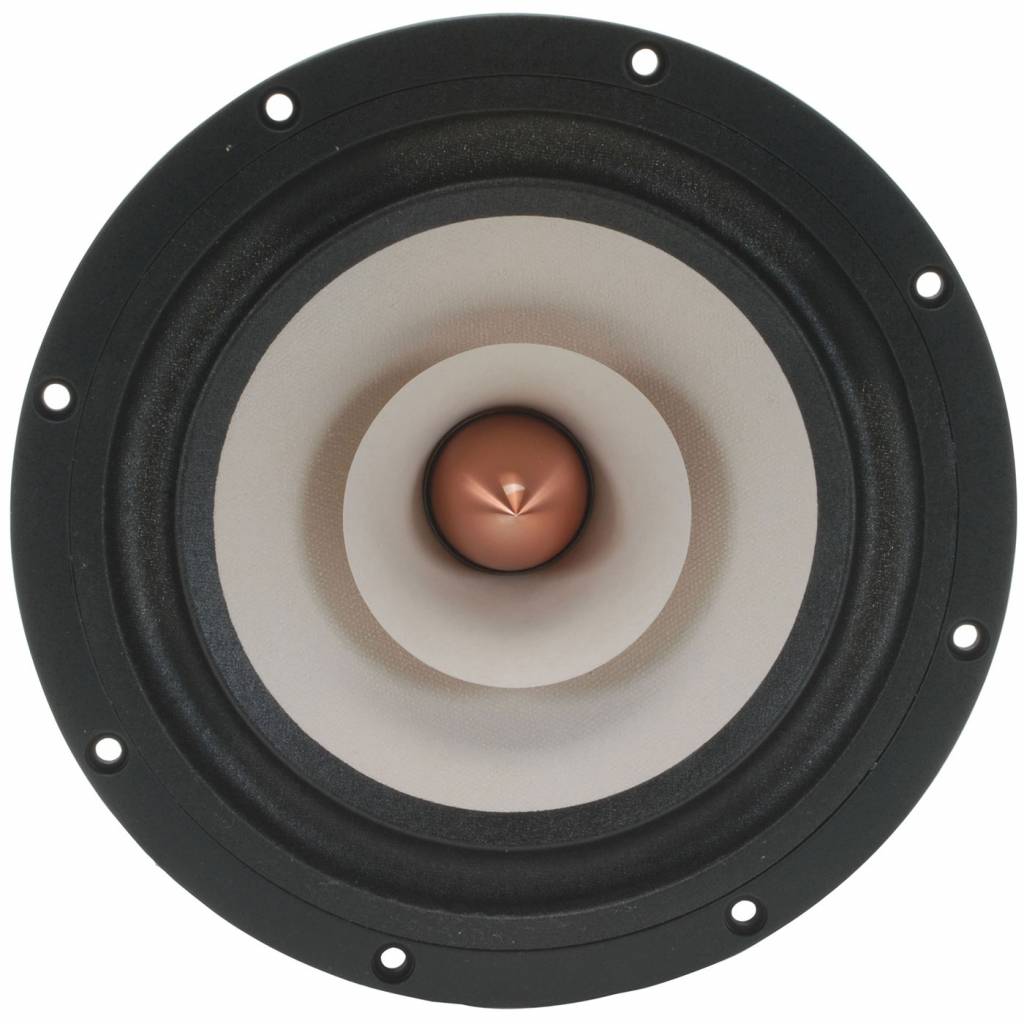

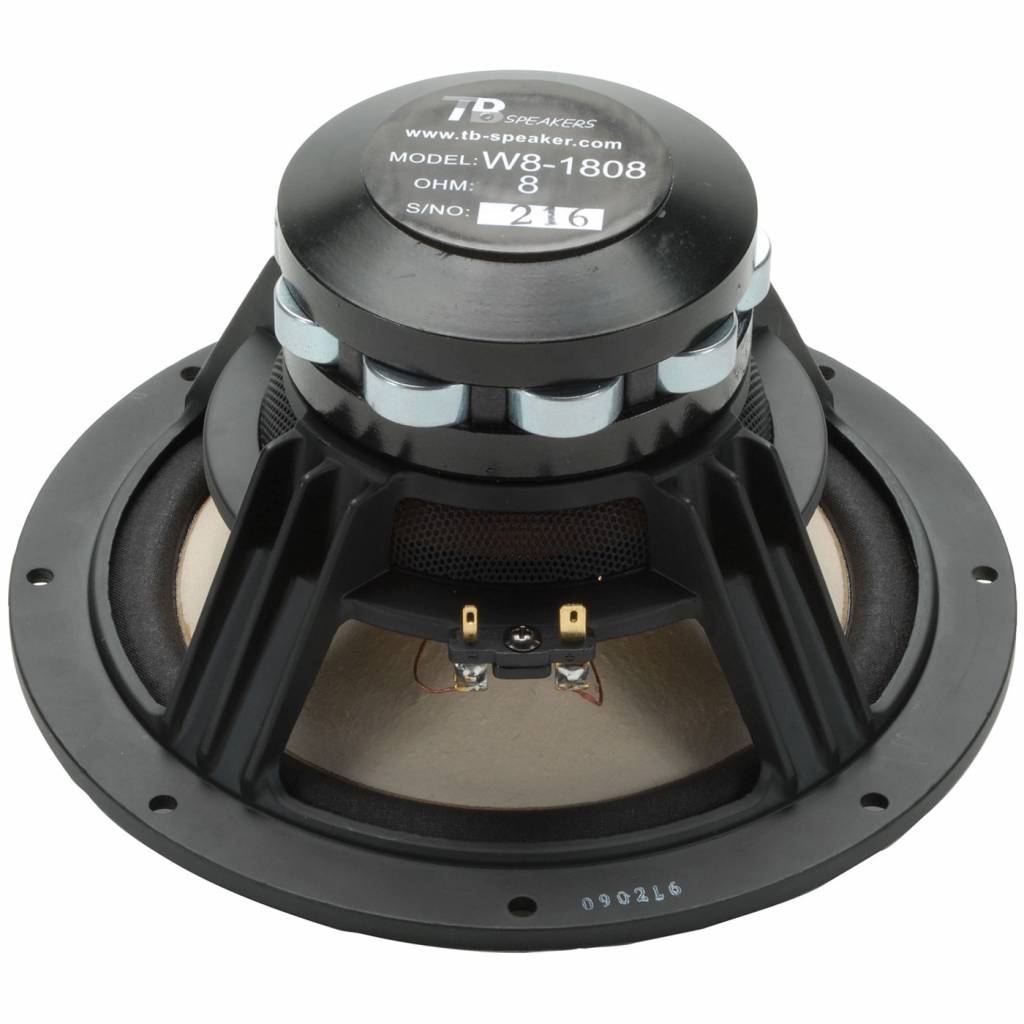

    Tang Band W8-1808 8" Neodymium Full Range Driver

    € 329,95 Niet op voorraad: binnen 1 week leverbaar
    The W8-1808 neo full range driver incorporates a higher Qts for large or open enclosures. An underhung voice coil and carefully balanced paper cone contribute to smooth response with exceptionally low distortion.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €313,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The W8-1808 neo full range driver incorporates a higher Qts for large or open enclosures. An underhung voice coil and carefully balanced paper cone contribute to smooth response with exceptionally low distortion.



    Highlights

    • Underhung 1-1/2" voice coil
    • Copper plated aluminum phase plug
    • Secondary "whizzer" cone improves HF response
    • Optimized for larger single-driver enclosures
    • Cast frame and neodymium magnet structure
    • 5 mm Xmax



    Product details

    Tang Band W8-1808 8" Neodymium Full Range Driver



    The W8-1808 neo full range driver incorporates a higher Qts for large or open enclosures. An underhung voice coil and carefully balanced paper cone contribute to smooth response with exceptionally low distortion. Other features include a copper plated aluminum phase plug, die cast frame, and treated cloth surround. An ideal driver for single-ended tube amp systems.

    Specificaties

    Artikelnummer
    W8-1808
    Woofer Type
    Full-range
    Nominal Diameter
    8"
    Power Handling (RMS)
    30 Watts
    Power Handling (max)
    60 Watts
    Impedance
    8 ohms
    Sensitivity
    93 dB 1W/1m
    Frequency Response
    45 to 20,000 Hz
    Voice Coil Diameter
    1.5"
    DC Resistance (Re)
    6.8 ohms
    Voice Coil Inductance (Le)
    0.04 mH
    Resonant Frequency (Fs)
    45 Hz
    Mechanical Q (Qms)
    1.33
    Electromagnetic Q (Qes)
    0.66
    Total Q (Qts)
    0.44
    Diaphragm Mass Inc. Airload (Mms)
    9.43g
    Mechanical Compliance of Suspension (Cms)
    1.28 mm/N
    Surface Area of Cone (Sd)
    220 cm²
    BL Product (BL)
    5.28 Tm
    Compliance Equivalent Volume (Vas)
    3.11 ft.³
    Maximum Linear Excursion (Xmax)
    5 mm
    Cone / Diaphragm Material
    Paper
    Surround Material
    Cloth
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Neodymium
    Overall Outside Diameter
    8.81"
    Overall Depth
    4.53"
    Baffle Cutout Diameter
    7.48"
    # Mounting Holes
    8
    Sealed Volume
    1.04 ft.³
    Sealed F3
    87 Hz
    Vented Volume
    3.27 ft.³
    Vented F3
    47 Hz
