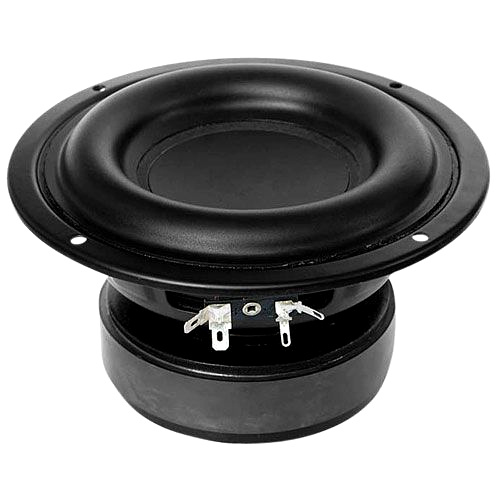

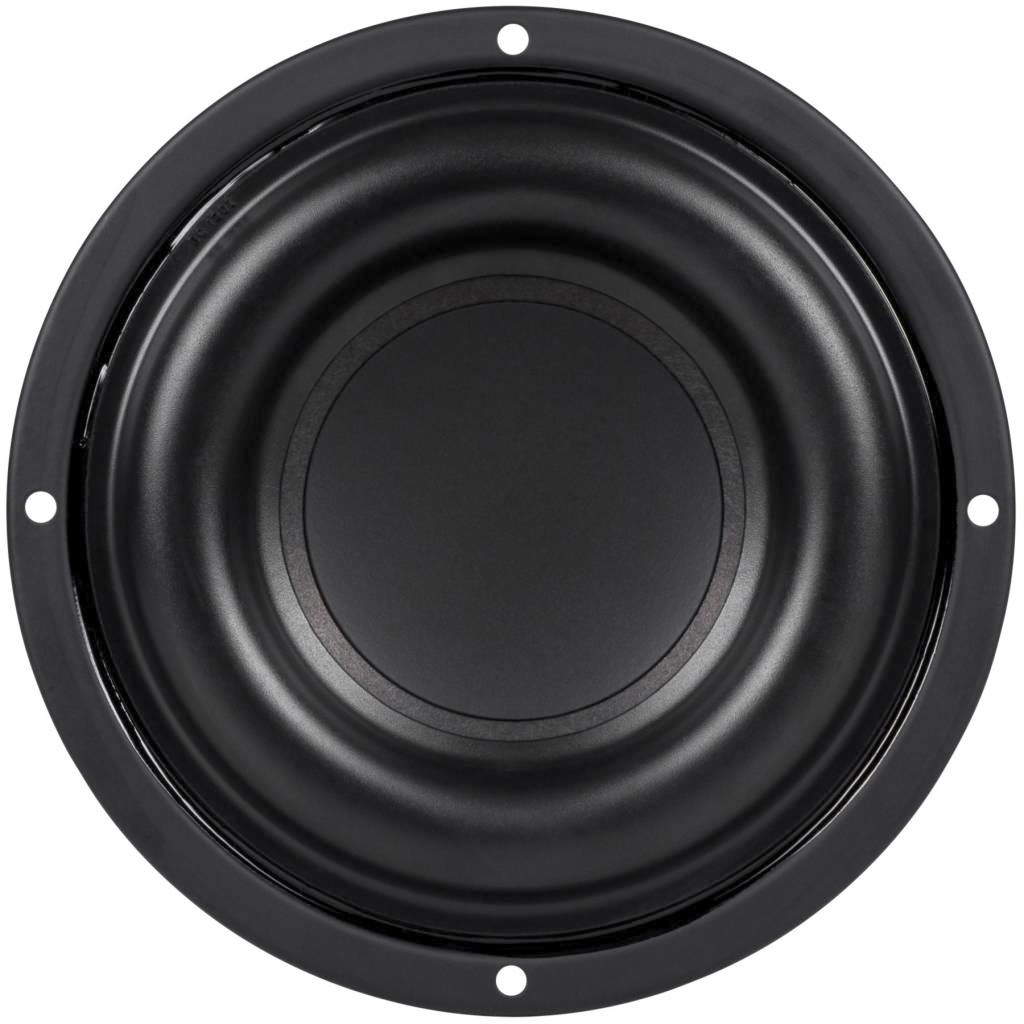

    Tang Band W5-1138SMF 5-1/4" Paper Cone Subwoofer Speaker

    € 49,95 >10 Op voorraad: levertijd 1 werkdag
    Tang Band's unique W5-1138SMF is the 5-1/4" driver of choice for ultra-miniaturized subwoofer systems intended for computer workstations, offices, and even mobile audio applications.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €47,45 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Tang Band's unique W5-1138SMF is the 5-1/4" driver of choice for ultra-miniaturized subwoofer systems intended for computer workstations, offices, and even mobile audio applications.



    Highlights

    • Long-throw high-power loading design (X-max = 9.25mm)
    • Paper cone with big roll, less damping rubber surround
    • Vented pole piece
    • Stamping steel basket
    • Suitable for subwoofer application



    Product details

    Tang Band W5-1138SMF 5-1/4" Paper Cone Subwoofer Speaker



    Amazing bass in a compact package! The one-of-a-kind Tang Band W5-1138SMF 5-1/4" subwoofer has a generous 9.25 mm of Xmax. A wide roll surround, raised flat spider, and large 1-1/4" 4-layer voice coil ensure impressive bass performance and high power handling. The vented pole and vented spider allow good airflow around the coil to improve heat dissipation and reduce power compression. The ultimate miniature subwoofer driver!

    Specificaties

    Artikelnummer
    W5-1138SMF
    Woofer Type
    Subwoofer
    Nominal Diameter
    5-1/4"
    Power Handling (RMS)
    40 Watts
    Power Handling (max)
    80 Watts
    Impedance
    4 ohms
    Sensitivity
    82 dB 1W/1m
    Frequency Response
    45 to 1,500 Hz
    Voice Coil Diameter
    1.25"
    DC Resistance (Re)
    3.4 ohms
    Voice Coil Inductance (Le)
    0.34 mH
    Resonant Frequency (Fs)
    45 Hz
    Mechanical Q (Qms)
    3.56
    Electromagnetic Q (Qes)
    0.57
    Total Q (Qts)
    0.49
    Diaphragm Mass Inc. Airload (Mms)
    28.81g
    Mechanical Compliance of Suspension (Cms)
    0.37 mm/N
    Surface Area of Cone (Sd)
    94 cm²
    BL Product (BL)
    7.17 Tm
    Compliance Equivalent Volume (Vas)
    0.17 ft.³
    Maximum Linear Excursion (Xmax)
    9.25 mm
    Cone / Diaphragm Material
    Paper
    Surround Material
    Rubber
    Basket / Frame Material
    Steel
    Magnet Material
    Ferrite
    Overall Outside Diameter
    6.14"
    Overall Depth
    3.67"
    Baffle Cutout Diameter
    4.74"
    # Mounting Holes
    4
    Sealed Volume
    0.1 ft.³
    Sealed F3
    73 Hz
    Vented Volume
    0.26 ft.³
    Vented F3
    35 Hz

    Reviews

    5 from 5Based on 9 reviews
    Schrijf een review
    3 van 5
    The advertised specs for this small subwoofer are nowhere close to actual figures as tested with Dayton Audio DATS V3. I could not get any of the free air properties to come even within an acceptable margin of error close to the ones advertised in the Tang Bang data sheet. As for Fs it is advertised as 45HZ but mine read 66HZ. I purchased another similar unit from another supplier just to check and it read 63HZ. I asked a friend on mine who has one installed on a small speaker to remove the driver and test it and he had similar results, 59HZ after many months of use. So take these advertised specs with a scoup of salt as they say, especially if you are using software like WinDS for specifying box dimensions based on the advertised free air parameters, you will be dissapointed.
    Door George on 9 Februari 2021
    5 van 5
    Just what I was looking for and SoundImports are the company to get it from having bought previously from them.
    Door Anthony M. on 5 Augustus 2020
