      Tang Band W4-1320SIF Full-range Woofer

      € 57,81€ 69,95 1 Op voorraad
      • -5% Bestelling 4 voor slechts € 66,45 per stuk

      Buy now, pay later

      • Gratis verzending vanaf € 99 (NL & BE)
      • Voor 16u besteld, vandaag verstuurd
      • In-house technische support
      • 45 dagen bedenktijd voor retourneren
      Zakelijke offerteaanvraag
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Bamboo, highly regarded for its strength and durability, is an important part of the Tang Band W4-1320SIF 4" speaker's excellent audio performance.



      Highlights

      • Features a bamboo fiber paper cone with half-roll rubber surround
      • A strong cast aluminum chassis maintains proper component alignment
      • Also available in a truncated frame version



      Product details

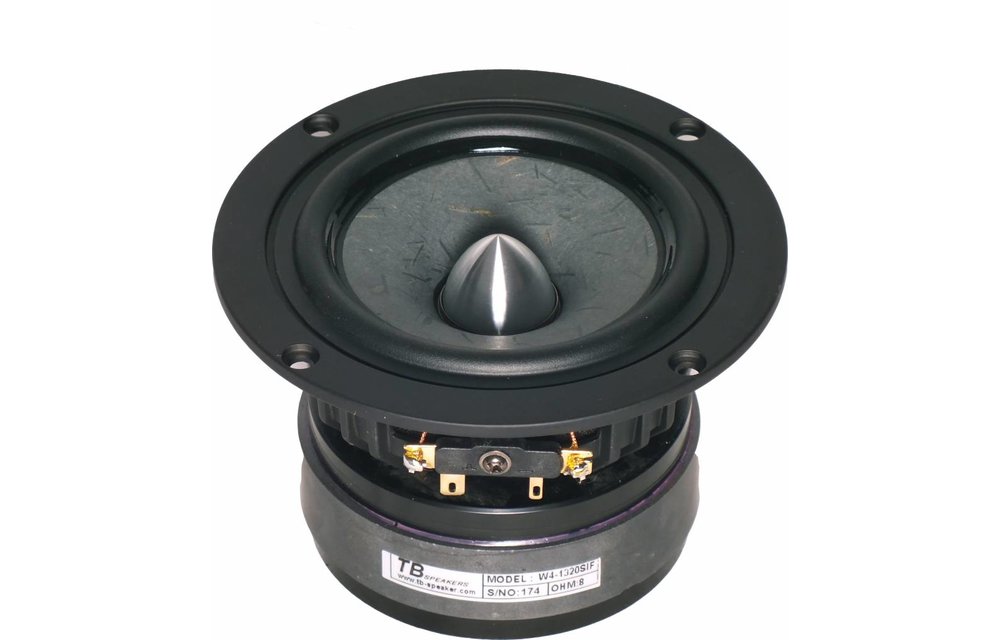

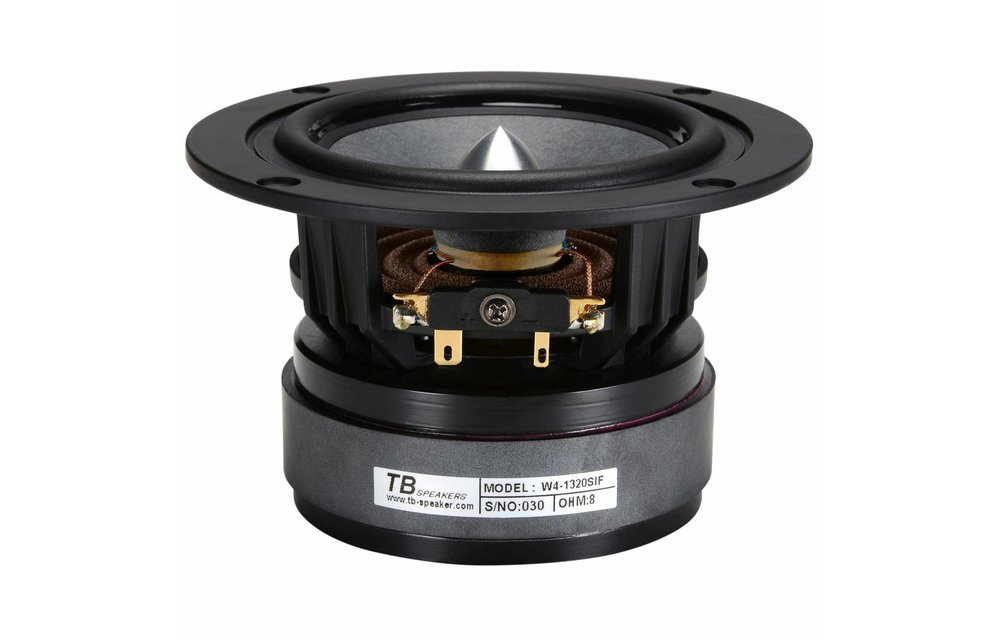

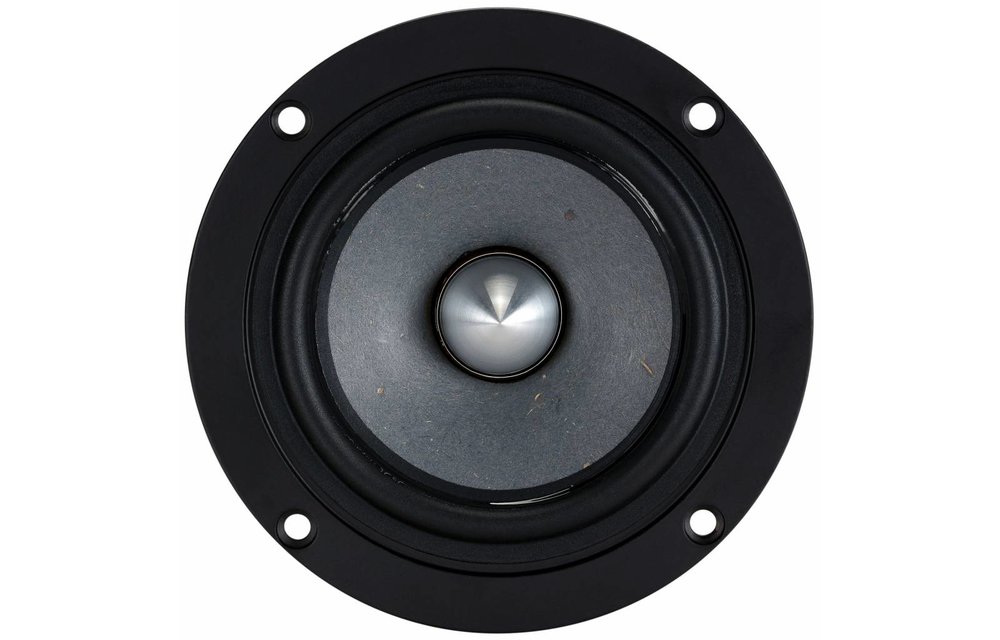

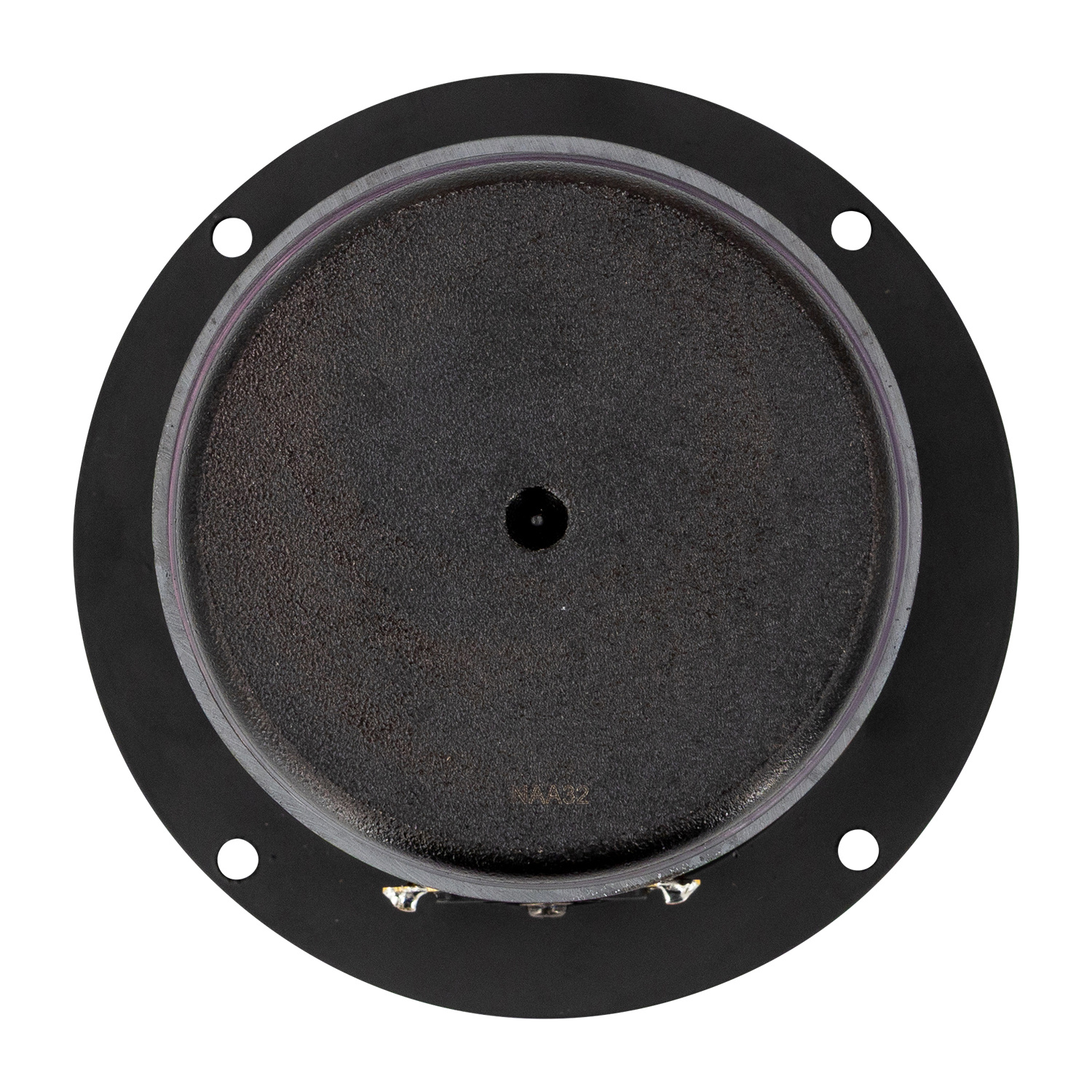

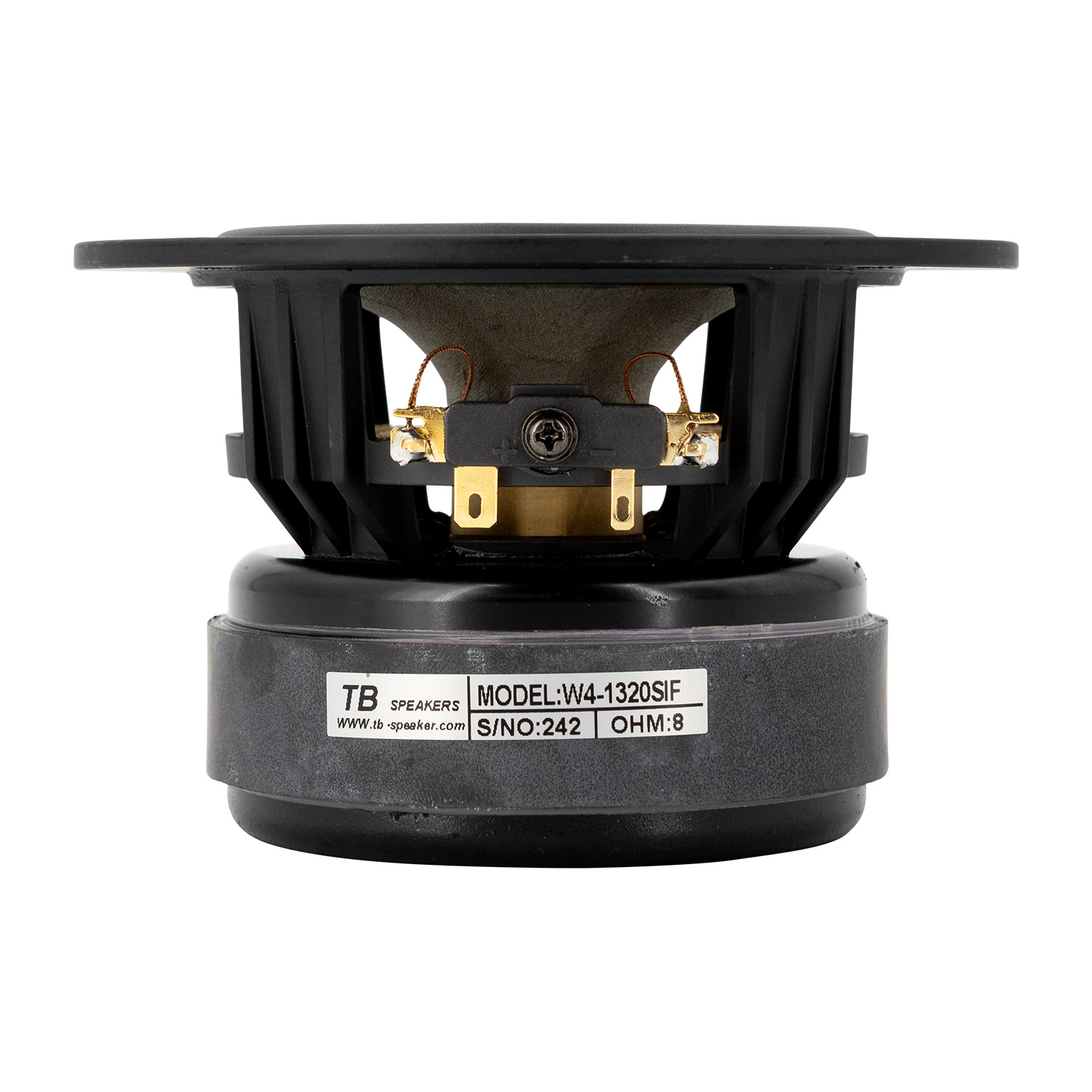

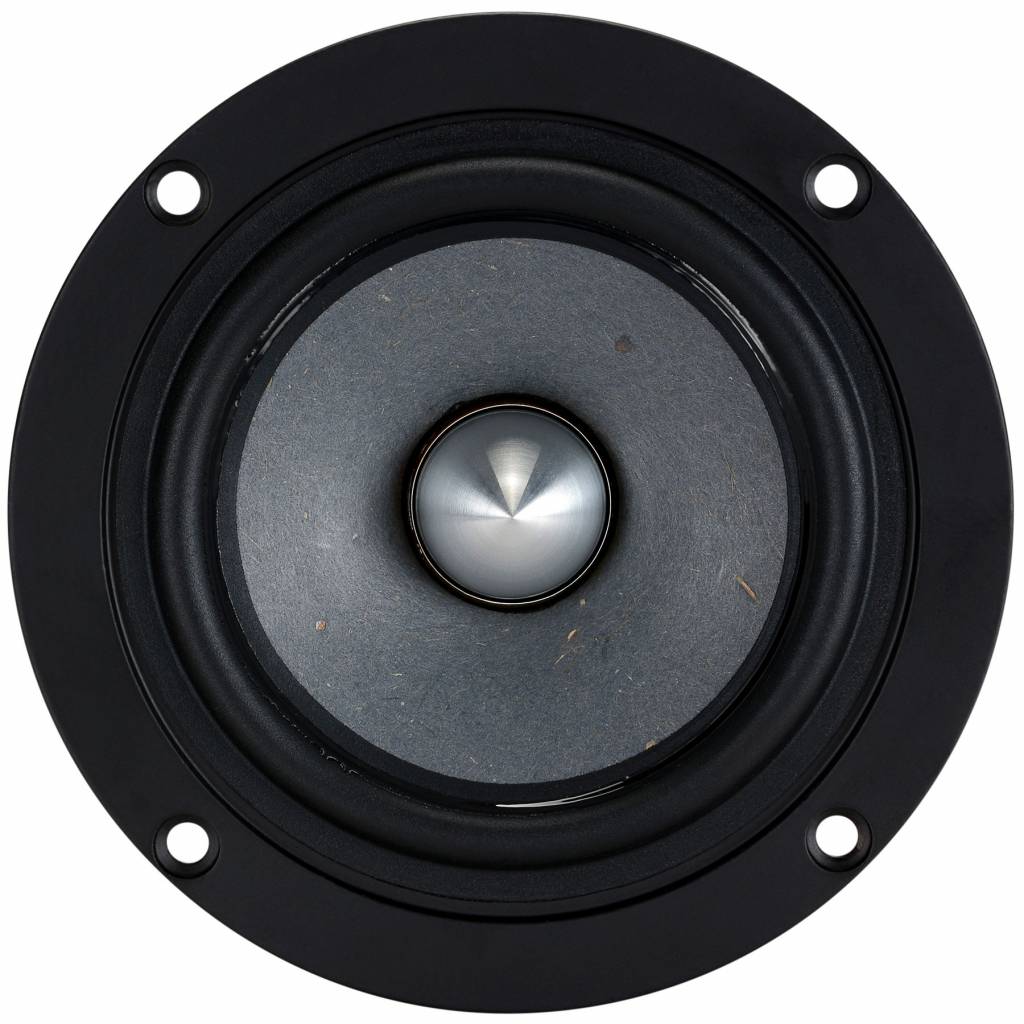

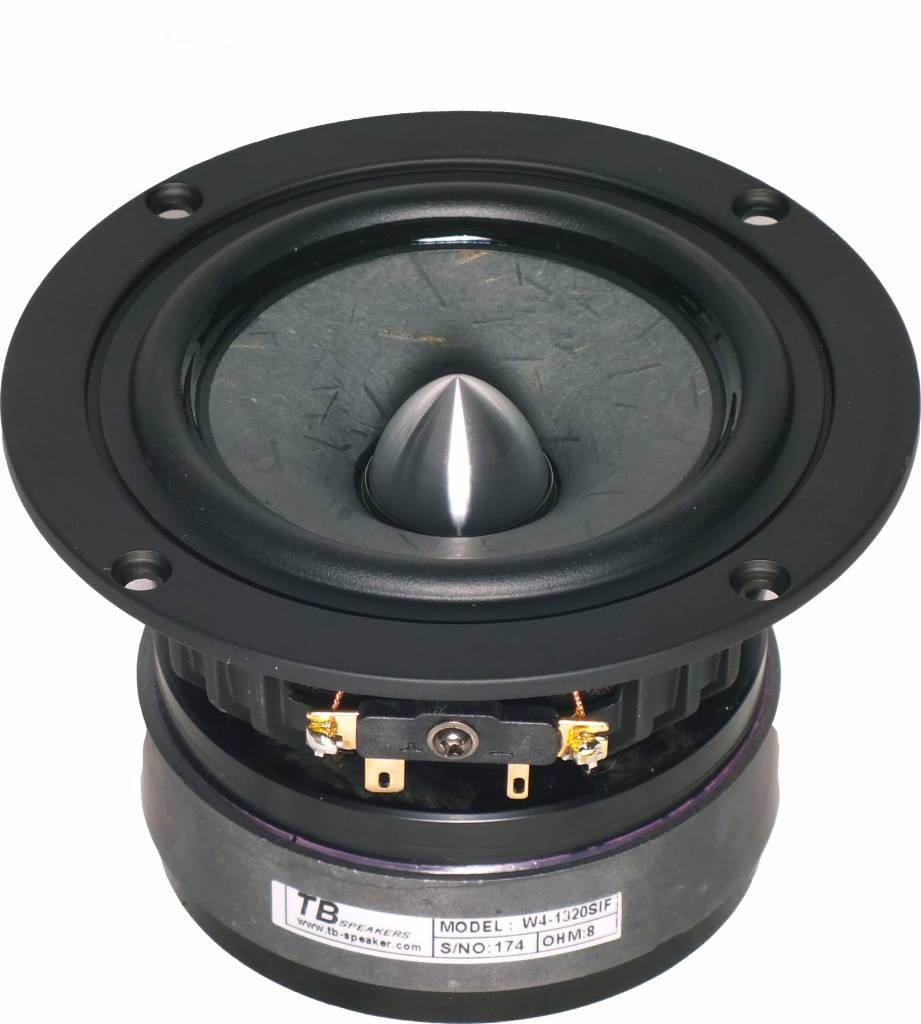

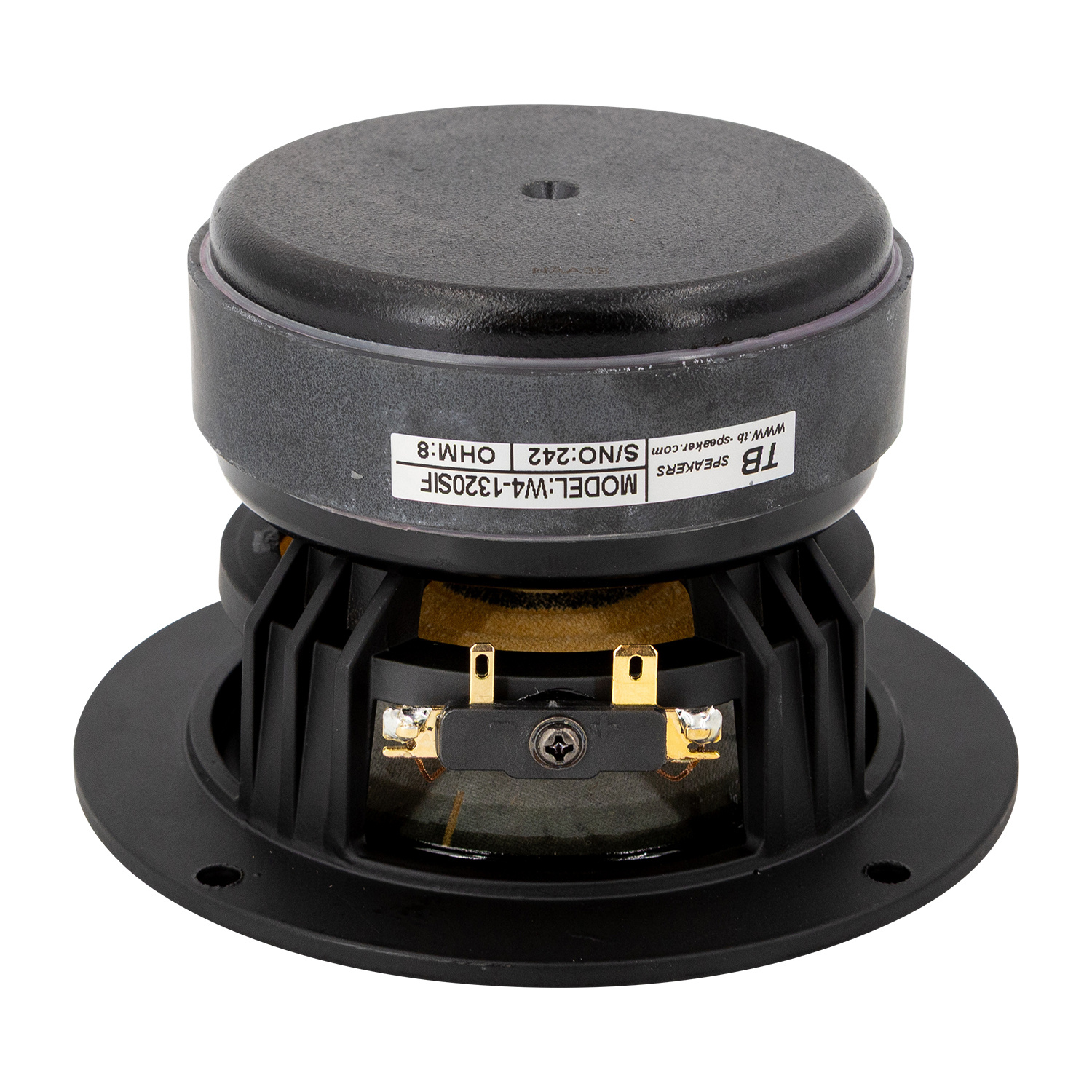

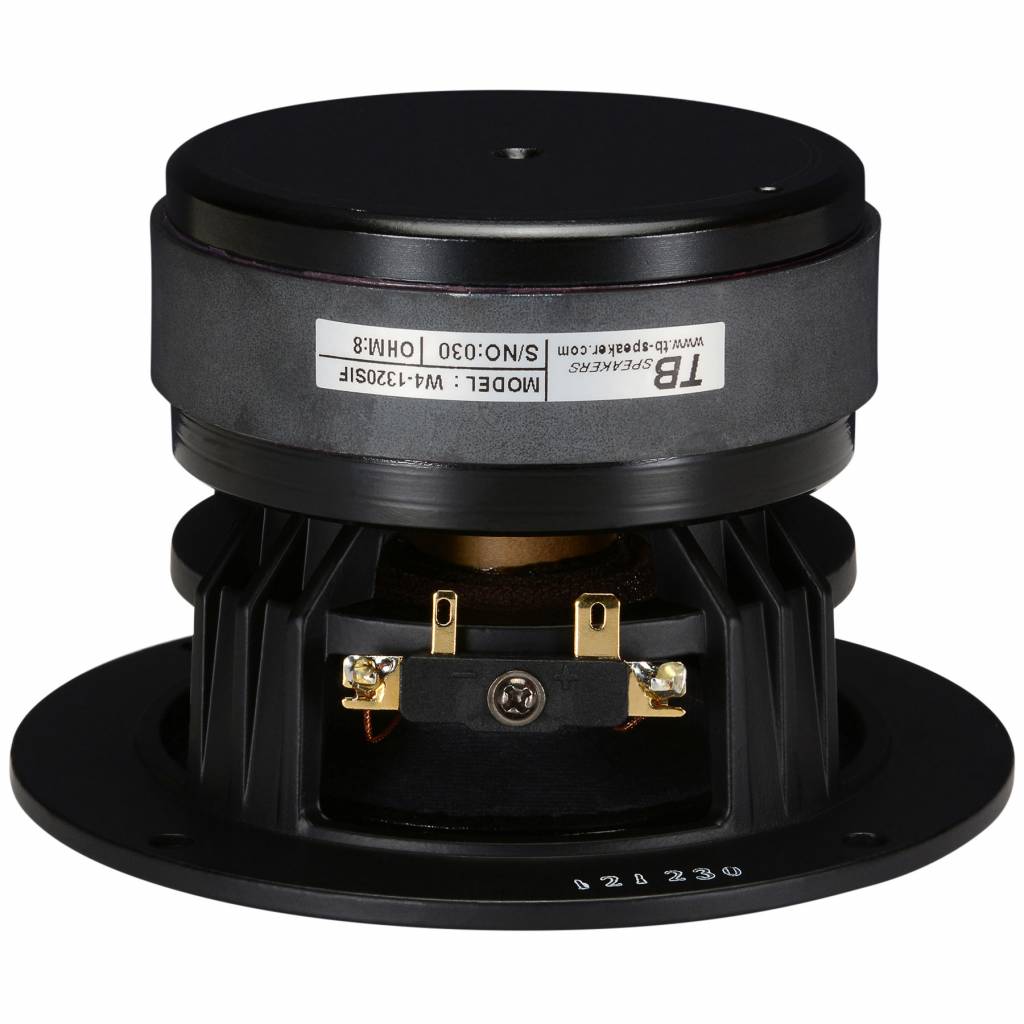

      Tang Band W4-1320SIF 4" Bamboo Full Range Speaker



      Tang Band's W4-1320SIF 4" speaker features a bamboo fiber paper cone with half-roll rubber surround. This optimally damped cone material is rigid, lightweight, and durable. The driver's 18 oz. ceramic ferrite magnet and underhung 1" voice coil do their part to ensure very low 2nd and 3rd order distortion. A machined aluminum phase plug improves high frequency performance, and a strong cast aluminum chassis maintains proper component alignment. Also available in a truncated frame version, the W4-1320SJF.

      Toon meer

      Specificaties

      Artikelnummer
      W4-1320SIF
      Woofer type
      Full-range
      Nominale diameter
      4"
      Belastbaarheid (RMS)
      25 Watts
      Belastbaarheid (max)
      50 Watts
      Impedantie (Z)
      8 ohms
      Gevoeligheid
      88 dB 1W/1m
      Frequentierespons
      75 to 20,000 Hz
      Spreekspoeldiameter
      1"
      Gewicht magneet
      18.6 oz.
      Gelijkstroomweerstand (Re)
      6.3 ohms
      Spreekspoelinductie (Le)
      0.02 mH
      Resonantiefrequentie (Fs)
      75 Hz
      Mechanische Q (Qms)
      2.52
      Elektrische Q (Qes)
      0.42
      Totale Q (Qts)
      0.36
      Bewegende massa (Mms)
      3.99g
      Compliantie van de ophanging (Cms)
      1.13 mm/N
      Effectief oppervlak (Sd)
      57 cm²
      Krachtsfactor (BL)
      5.31 Tm
      Equivalentvolume (Vas)
      0.18 ft.³
      Maximale excursie (Xmax)
      3 mm
      Cone / Diaphragm Material
      Bamboo Fiber / Paper
      Surroundmateriaal
      Rubber
      Mand- /framemateriaal
      Cast Aluminum
      Magneetmateriaal
      Ferrite
      Totale buitendiameter
      4.94"
      Totale diepte
      3.24"
      Montagegatdiameter
      3.74"
      # Bevestigingsgaten
      4
      Gesloten volume
      0.04 ft.³
      Gesloten F3
      166 Hz
      Gepoort volume
      0.1 ft.³
      Gepoort F3
      96 Hz

      Toon meer

      Reviews

      5 from 5Based on 5 reviews
      Schrijf een review
      5 van 5
      Really good fullrange speaker. Sounds surprisingly great in a 3L bassreflex housing, with a solid bass for this mall size. I use it also as monitor speakers for mixing because of the natural sound
      Door Christian on 27 December 2022
      5 van 5

      I had one pair under name CSS (=same speaker) ain in 6.5 litres bass reflex box it sounds great. You won't believe that sound comes from so small box. I did not make that box myself - I brought them from ValeriaBond, in Moldova :) Now I have to order 2 more pairs. They will replace my olde B&O CX-boxes. I also will try how they perform as an open baffle lowed to distant use whit separate bass box.

      • +Great Soun/value, and a quite cute too
      • -For that price no con. Well remember to have enough damping material.
      Door Jari on 28 Maart 2022
