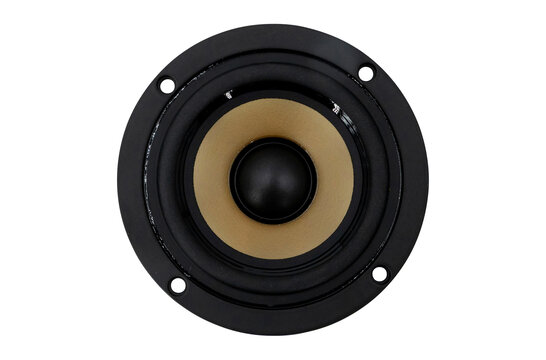

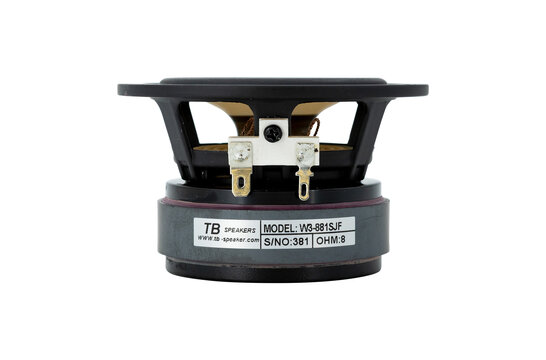

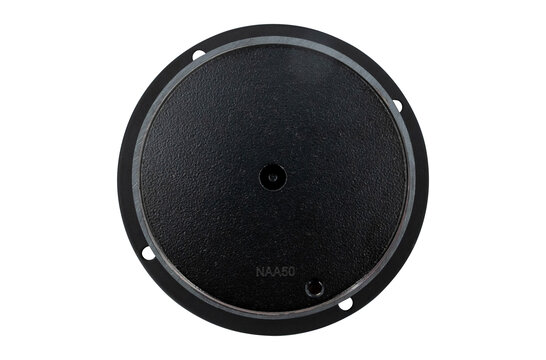

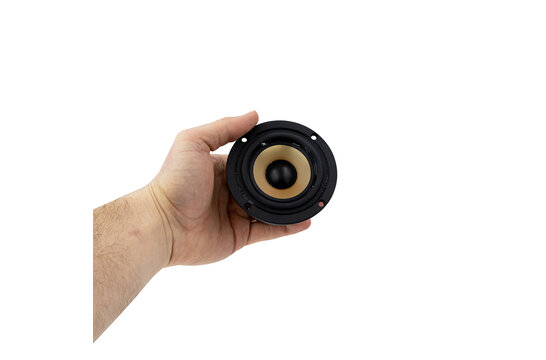

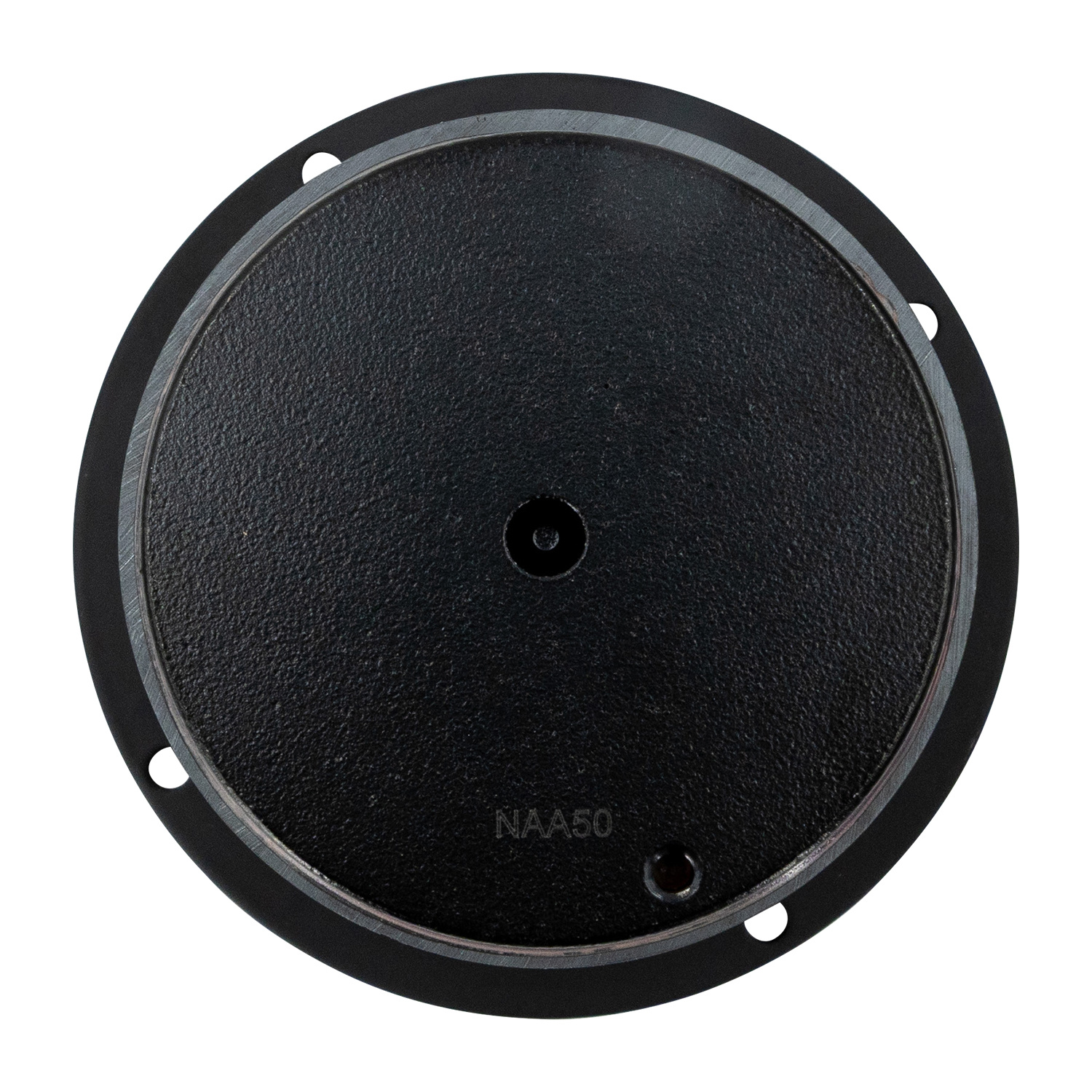

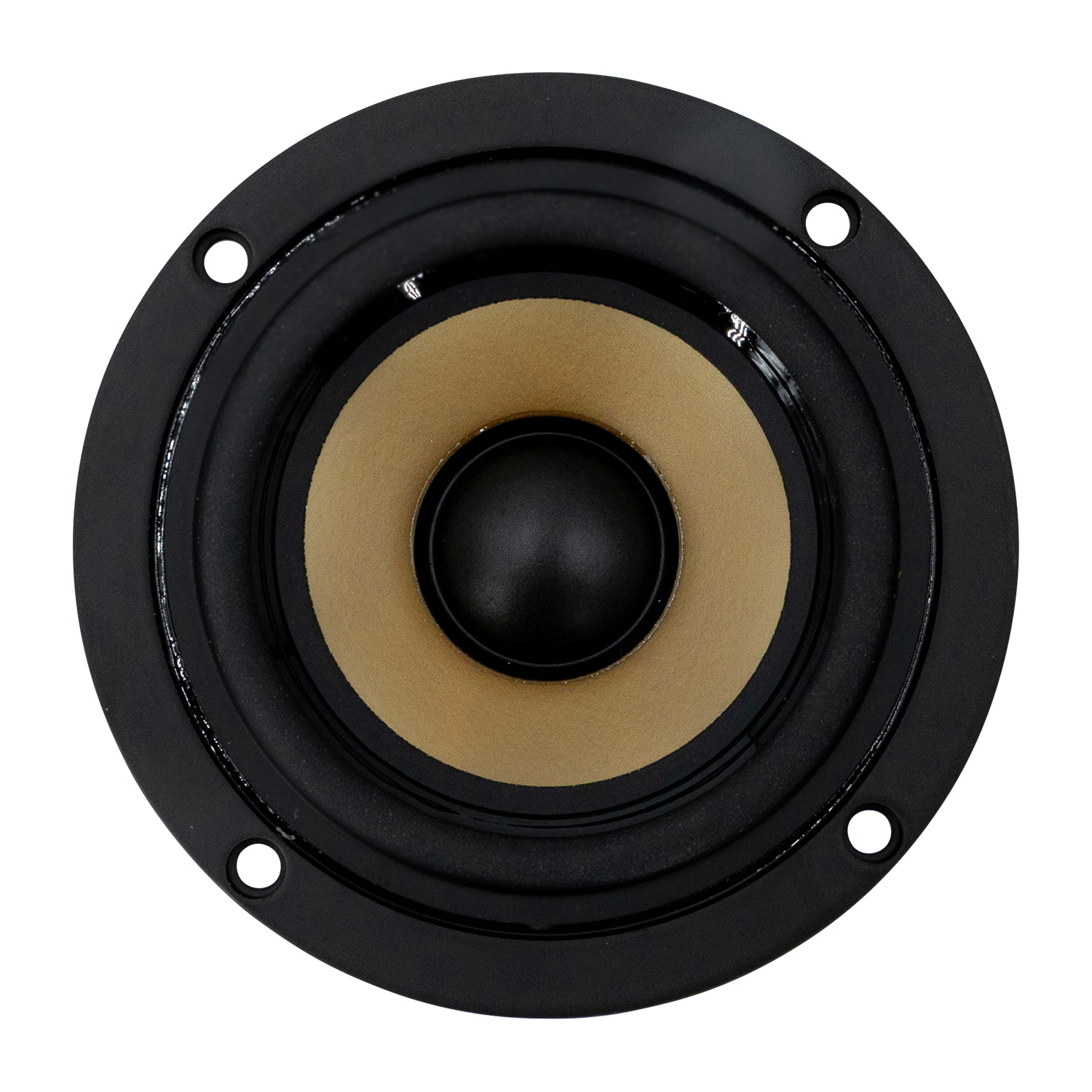

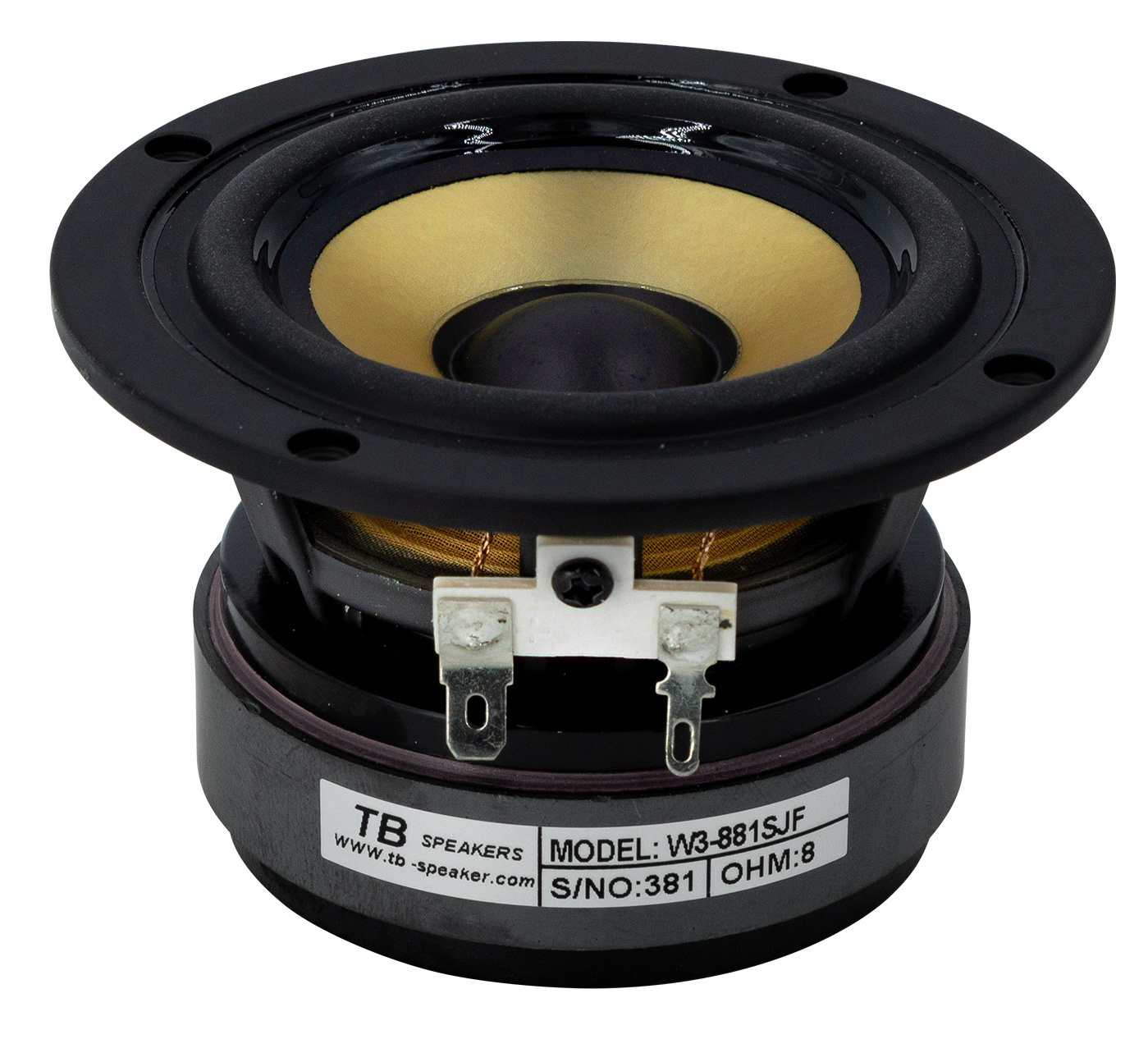

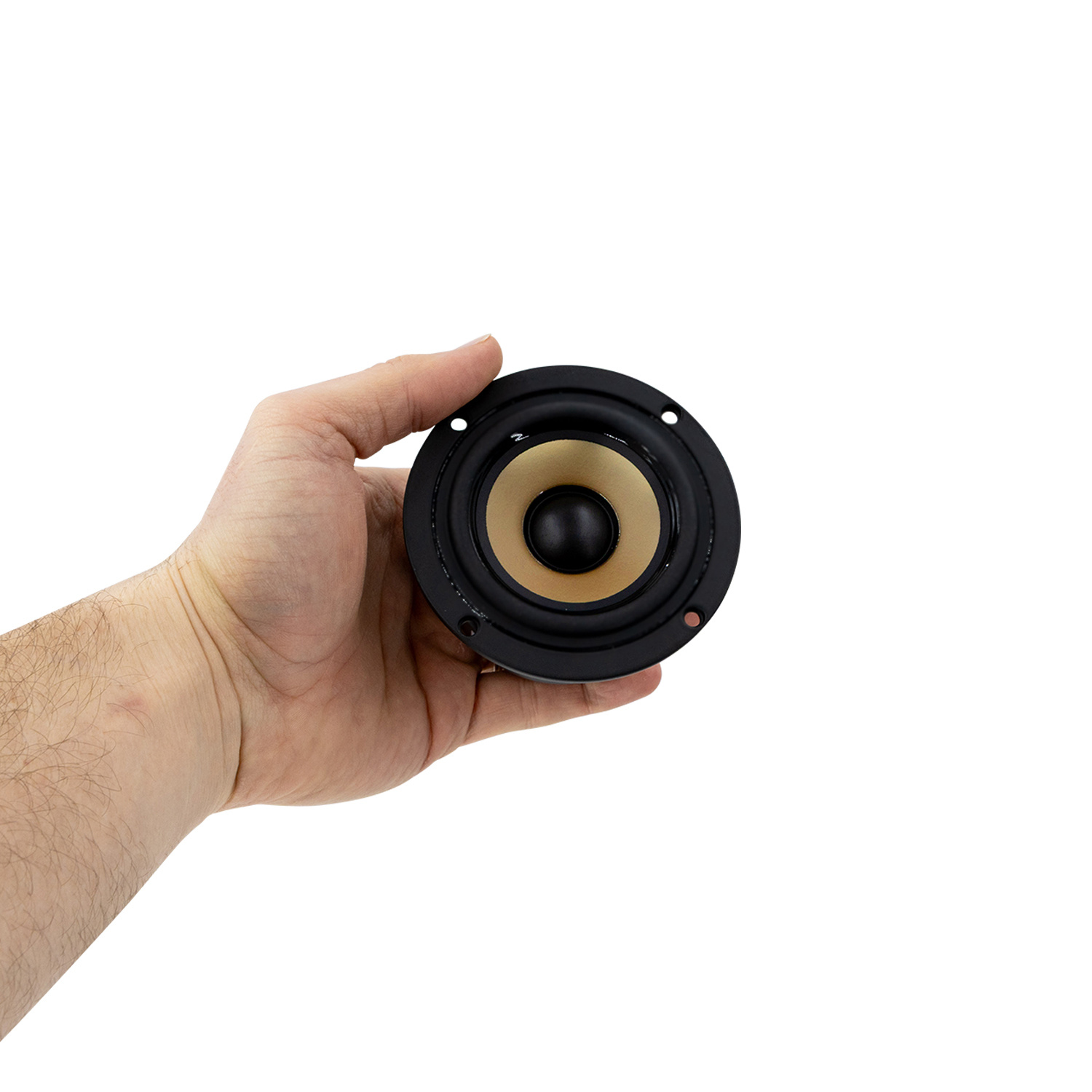

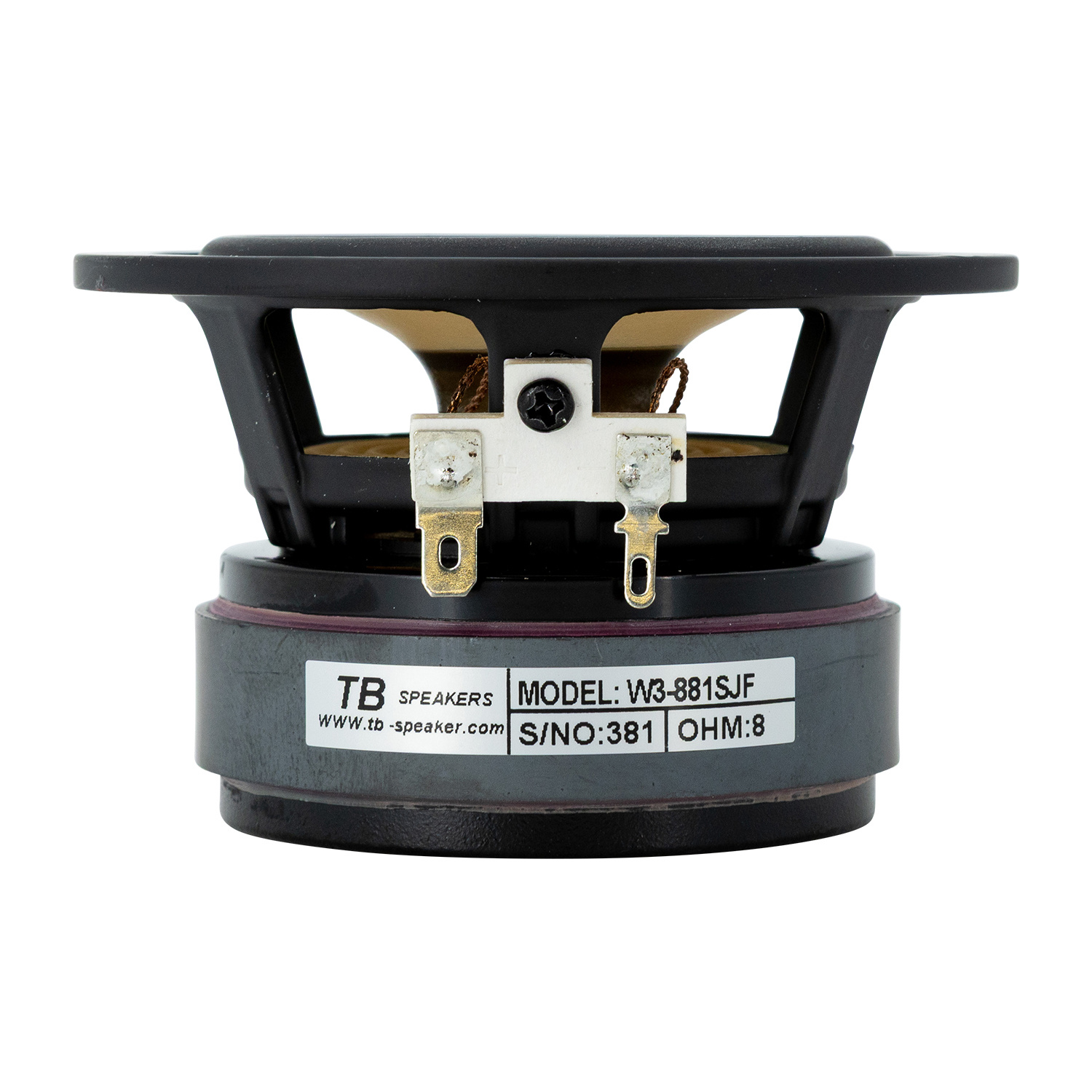

    Tang Band W3-881SJF 3" Full Range Speaker

    € 34,95 >10 Op voorraad: levertijd 1 werkdag
    The Tang Band W3-881SJF is characterized by extended, very smooth frequency response. Its powerful ceramic magnet system and underhung voice coil contribute to extremely low distortion.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €33,20 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    The Tang Band W3-881SJF is characterized by extended, very smooth frequency response. Its powerful ceramic magnet system and underhung voice coil contribute to extremely low distortion.



    Highlights

    • Full range frequency response
    • Die cast basket
    • PPM cone with santoprene surround
    • CCAW with Kapton bobbin



    Product details

    Tang Band W3-881SJF 3" Full Range Speaker



    The Tang Band W3-881SJF is an exceptional 3" transducer that features a PPM cone, santoprene surround, cast aluminum frame, and powerful underhung-design ceramic motor. Its copper-clad aluminum wire voice coil is wound on a polyimide former, the combination of which provides high power handling and extended HF response. The W3-881SJF is an ideal choice for single driver full-range applications, as well as deployment in multiple speaker configurations such as line arrays.

    Specificaties

    Artikelnummer
    W3-881SJF
    Woofer Type
    Full-range
    Nominal Diameter
    3"
    Power Handling (RMS)
    15 Watts
    Power Handling (max)
    30 Watts
    Impedance
    8 ohms
    Sensitivity
    88 dB 1W/1m
    Frequency Response
    100 to 20,000 Hz
    Voice Coil Diameter
    0.8"
    Magnet Weight
    7.7 oz.
    DC Resistance (Re)
    6.6 ohms
    Voice Coil Inductance (Le)
    0.8 mH
    Resonant Frequency (Fs)
    100 Hz
    Mechanical Q (Qms)
    6.44
    Electromagnetic Q (Qes)
    0.41
    Total Q (Qts)
    0.39
    Diaphragm Mass Inc. Airload (Mms)
    2g
    Mechanical Compliance of Suspension (Cms)
    1.32 mm/N
    Surface Area of Cone (Sd)
    32 cm²
    BL Product (BL)
    4.47 Tm
    Compliance Equivalent Volume (Vas)
    0.07 ft.³
    Maximum Linear Excursion (Xmax)
    0.5 mm
    Cone / Diaphragm Material
    Poly
    Surround Material
    Santoprene®
    Voice Coil Wire Material
    CCA
    Voice Coil Former
    Kapton® / Polyimide
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    3.66"
    Overall Depth
    2.32"
    Baffle Cutout Diameter
    2.95"
    # Mounting Holes
    4
    Sealed Volume
    0.02 ft.³
    Sealed F3
    207 Hz
    Vented Volume
    0.05 ft.³
    Vented F3
    115 Hz
