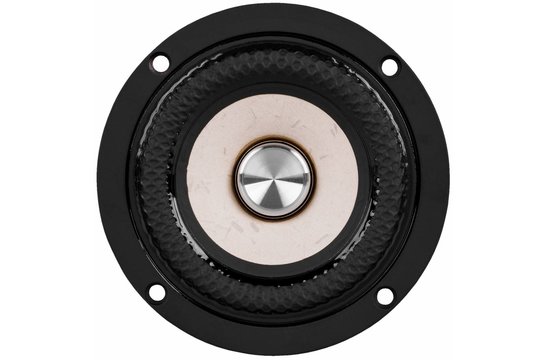

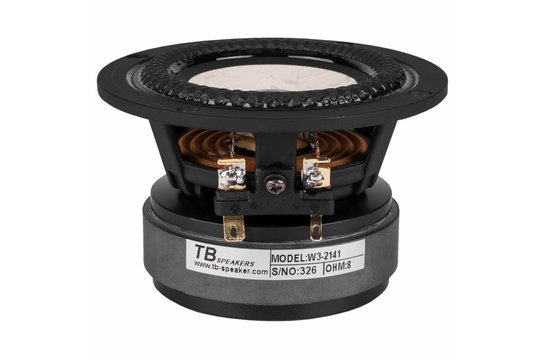

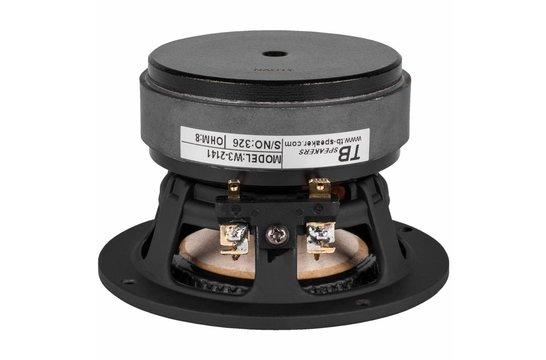

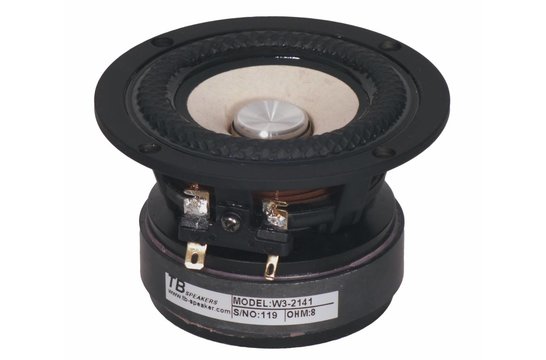

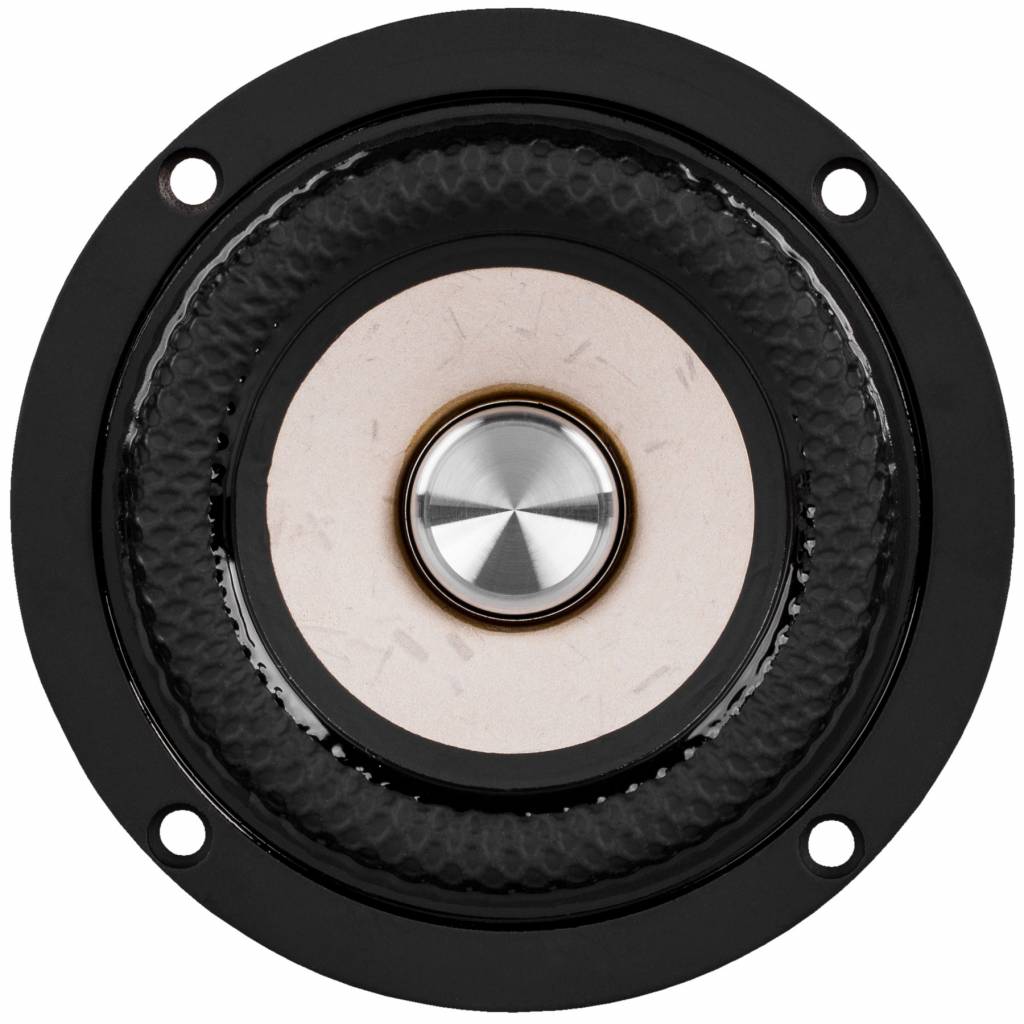

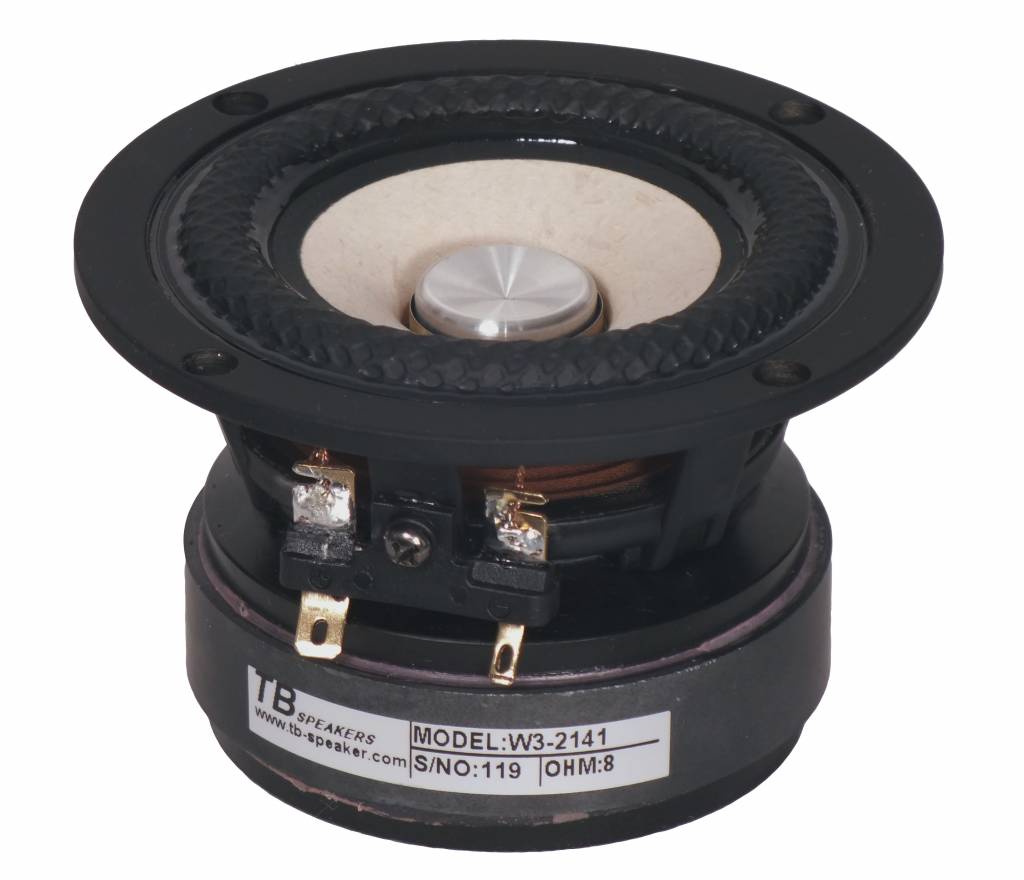

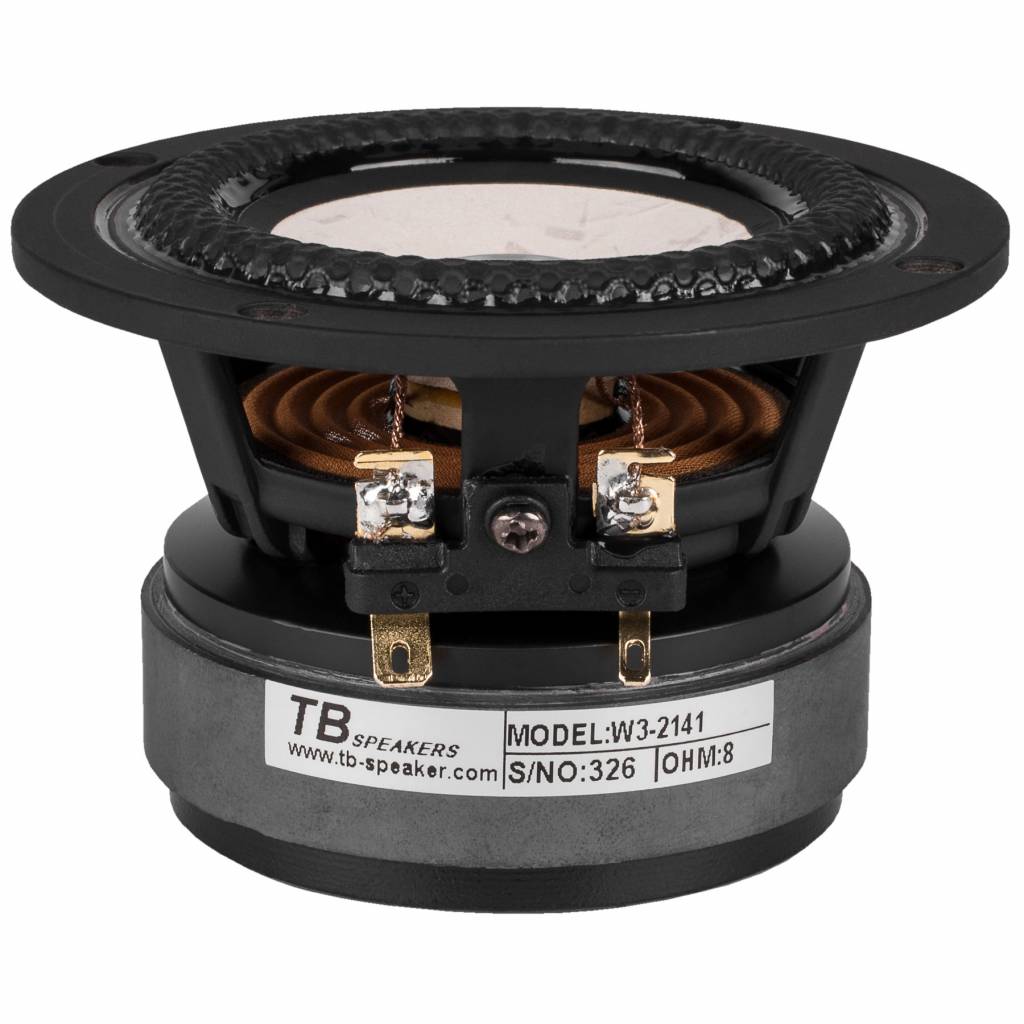

    Tang Band W3-2141 3-1/2" Paper Cone Full Range Driver 8 Ohm

    € 37,15€ 44,95 >10 Op voorraad: levertijd 1 werkdag
    With a bamboo fiber paper cone, structured Santoprene surround, and underhung motor, the W3-2141 3" full range from Tang Band has impressive response from 75 to 20,000 with very low distortion.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €42,70 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    With a bamboo fiber paper cone, structured Santoprene surround, and underhung motor, the W3-2141 3" full range from Tang Band has impressive response from 75 to 20,000 with very low distortion.



    Highlights

    • Aluminum phase plug also acts as a shorting ring for lower distortion
    • Underhung voice coil improves control for lower distortion
    • Impressive efficiency (87 dB 1W/1m) for a driver this small
    • Unique surround and large spider keeps cone linear well beyond the rated xmax



    Product details

    Tang Band W3-2141 3" Paper Cone Full Range Driver 8 Ohm



    Tang Band's versatile W3-2141 full range driver uses an underhung voice coil, which places the entire coil inside the magnetic gap, for the utmost in control and accuracy. Designed for minimum distortion and resonance, the bamboo fiber paper cone and structured surround produces smooth response without harsh peaks or dips. The aluminum phase plug improves off axis response while also acting as a shorting ring providing greater control of the voice coil resulting in lower distortion.

    Specificaties

    Artikelnummer
    W3-2141
    Woofer Type
    Full-range
    Nominal Diameter
    3-1/2"
    Power Handling (RMS)
    25 Watts
    Power Handling (max)
    50 Watts
    Impedance
    8 ohms
    Sensitivity
    87 dB 1W/1m
    Frequency Response
    75 to 20,000 Hz
    Voice Coil Diameter
    0.8"
    DC Resistance (Re)
    6.5 ohms
    Voice Coil Inductance (Le)
    0.02 mH
    Resonant Frequency (Fs)
    75 Hz
    Mechanical Q (Qms)
    2.51
    Electromagnetic Q (Qes)
    0.46
    Total Q (Qts)
    0.39
    Diaphragm Mass Inc. Airload (Mms)
    1.996g
    Mechanical Compliance of Suspension (Cms)
    2.25 mm/N
    Surface Area of Cone (Sd)
    32.09 cm²
    BL Product (BL)
    3.64 Tm
    Compliance Equivalent Volume (Vas)
    0.116 ft.³
    Maximum Linear Excursion (Xmax)
    0.5 mm
    Cone / Diaphragm Material
    Bamboo Fiber / Paper
    Surround Material
    Santoprene®
    Voice Coil Wire Material
    Copper
    Voice Coil Former
    Kapton® / Polyimide
    Basket / Frame Material
    Cast Aluminum
    Magnet Material
    Ferrite
    Overall Outside Diameter
    3.625"
    Overall Depth
    2.25"
    Baffle Cutout Diameter
    2.92"
    # Mounting Holes
    4
    Sealed Volume
    0.035 ft.³
    Sealed F3
    150 Hz
    Vented Volume
    0.087 ft.³
    Vented F3
    84 Hz

    Reviews

    5 from 5Based on 5 reviews
    Schrijf een review
    5 van 5
    Soooo geil
    Door Thomas B. on 1 Juli 2020
    5 van 5
    Ik gebruik deze Driver icm een 3D geprinte behuizing, ontworpen door Hexibase. Het model is op Thingiverse te vinden.

    De versterker is een oude Z-5500 van Logitech.
    Prestaties zijn uitmuntend.
    Door Steef J. on 14 Februari 2020
    Toon meer
