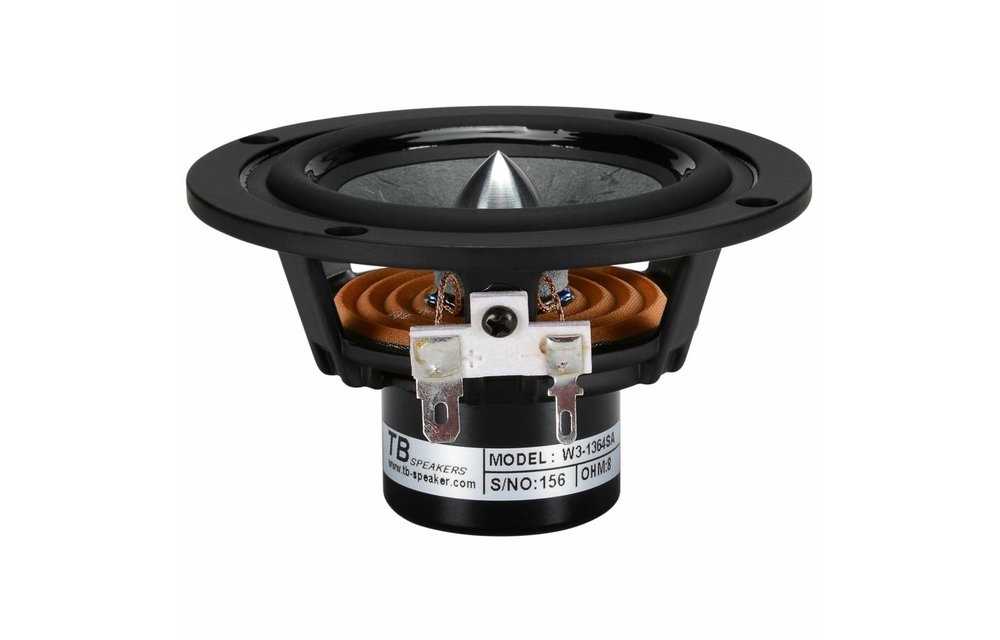

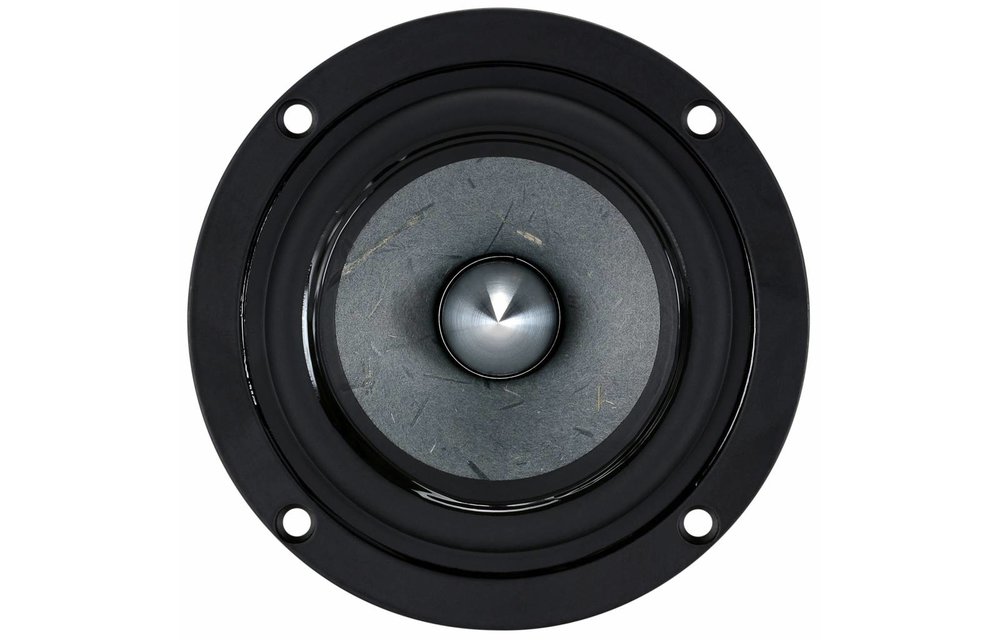

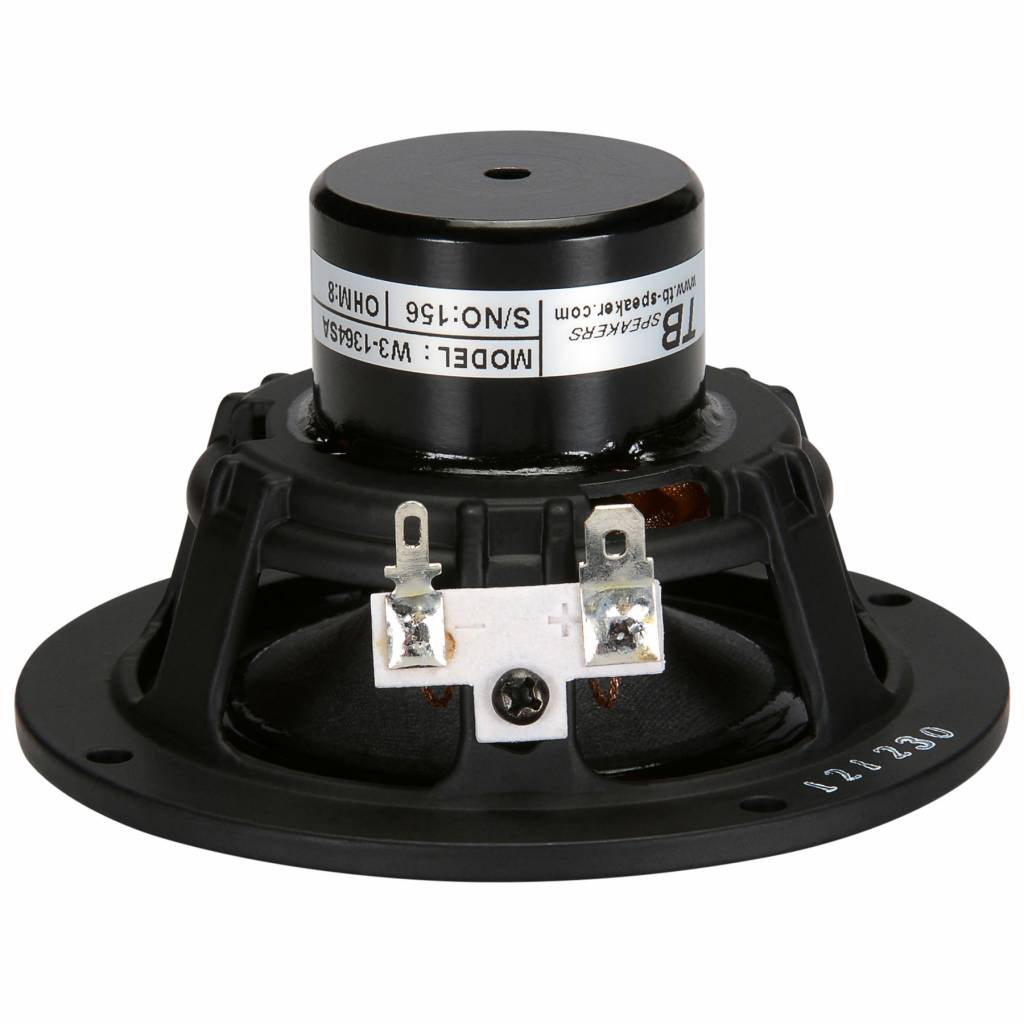

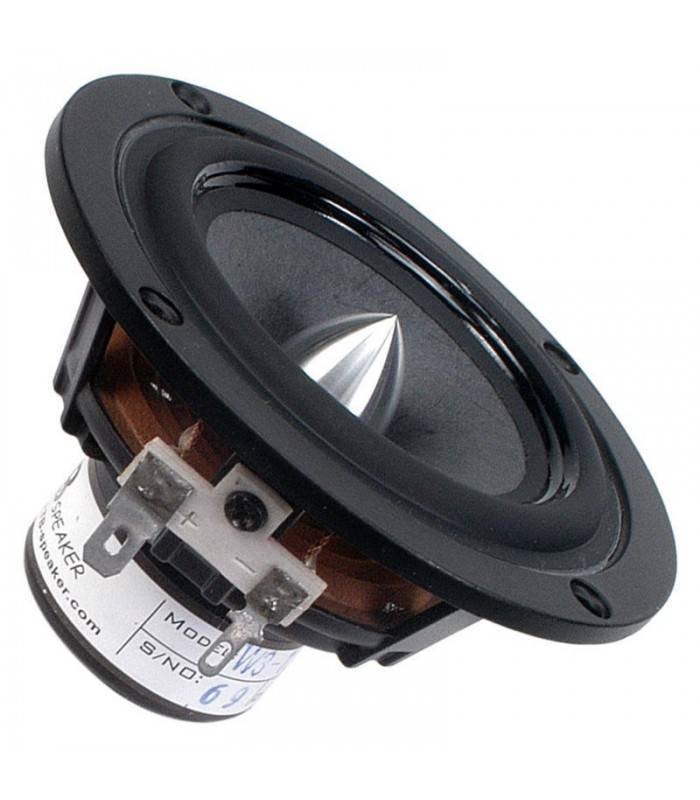

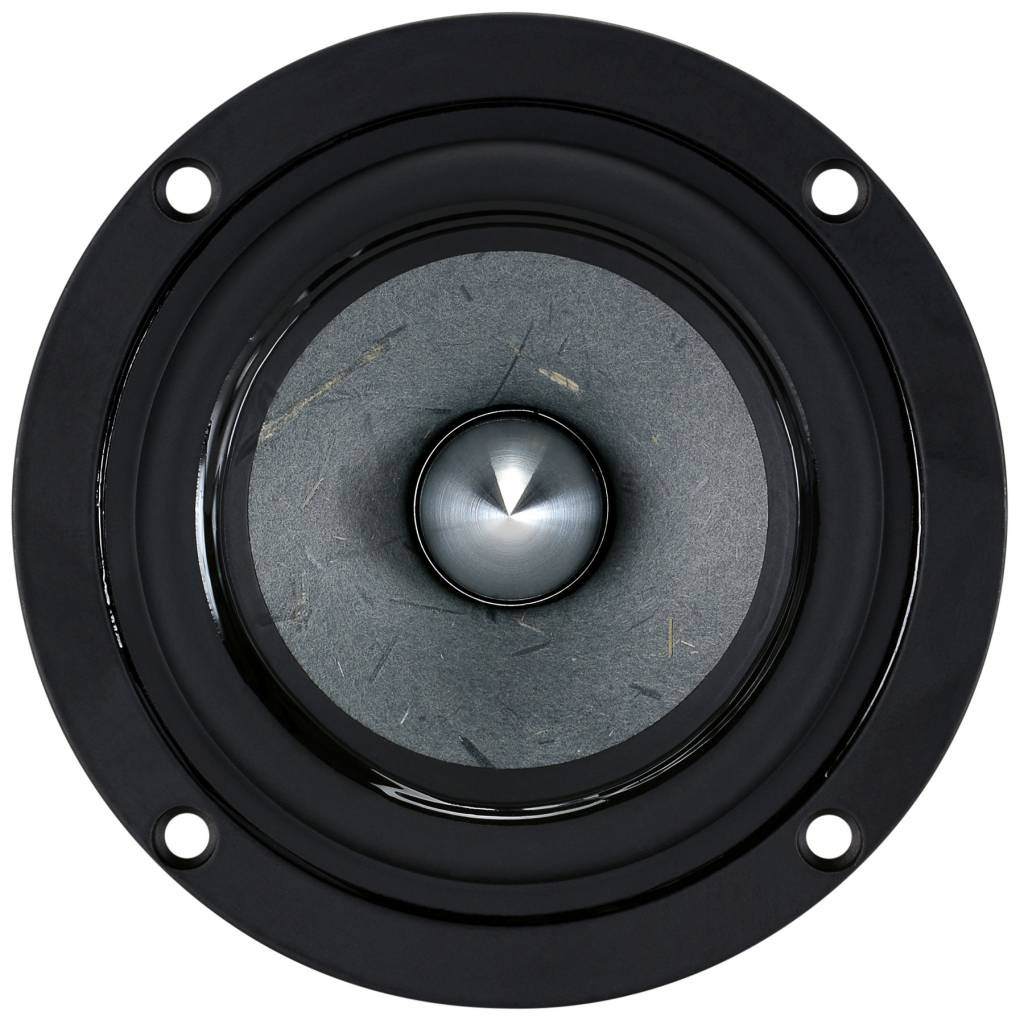

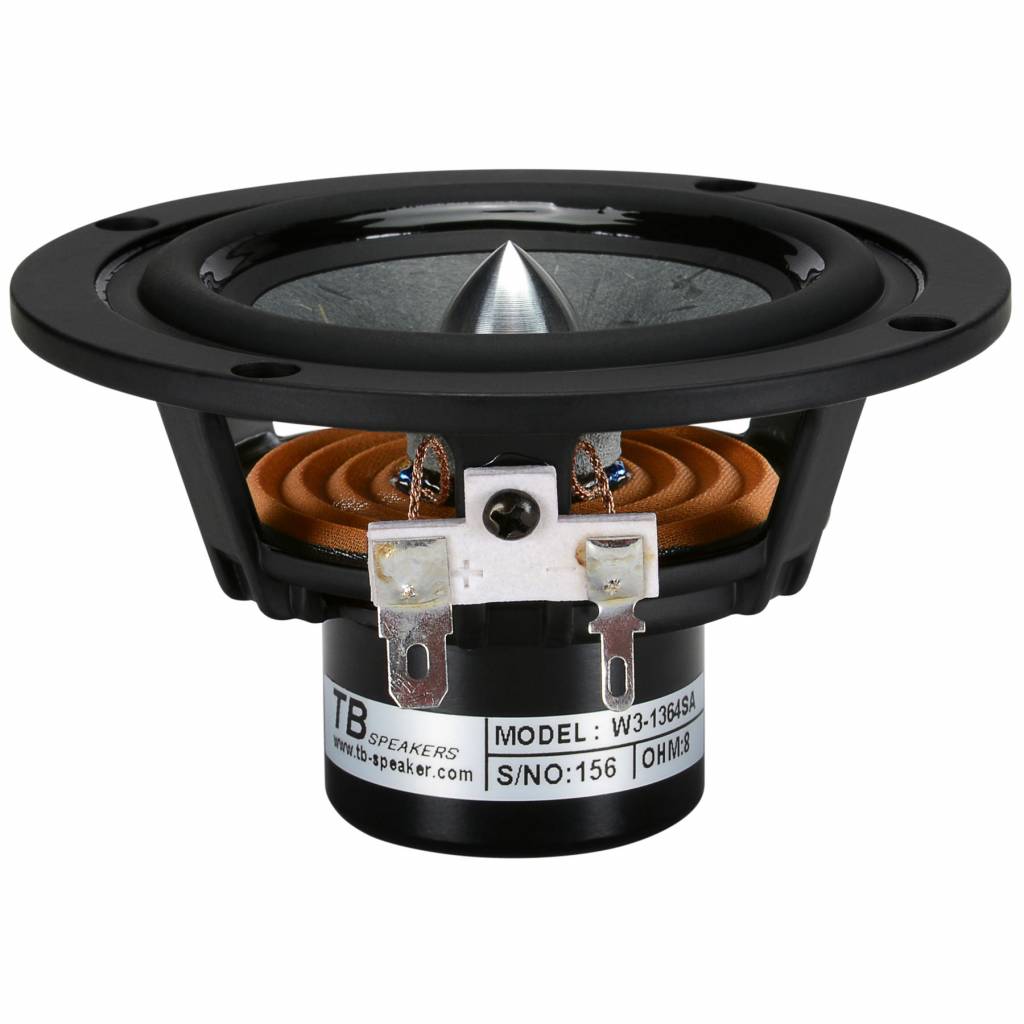

      Tang Band W3-1364SA 3" Bamboo Cone Driver

      Merk: Tang Band
      Toon alle Audio componenten
      3" | 8 Ω
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      € 36,45 7 Op voorraad: levertijd 1 werkdag
      A blend of paper and Bamboo fibers provides a perfect combination of light weight and self-damping. A neodymium motor with a copper ring reduces distortion even further. The result of these features is a smooth frequency response with a very natural, open... Toon meer
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts €34,63 per stuk
      +-
      In winkelwagen
      • Gratis verzending vanaf €99,
      • Voor 16u besteld, vandaag verstuurd*
      • Betaal met IDEAL, PayPal en meer
      • In-house technische support
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver
      W3-1364SA 3" Bamboo Cone Driver

      Productomschrijving

      A blend of paper and Bamboo fibers provides a perfect combination of light weight and self-damping. A neodymium motor with a copper ring reduces distortion even further. The result of these features is a smooth frequency response with a very natural, open sound.



      Highlights

      • Paper cone reinforced with bamboo fibers reduces cone resonances
      • Copper shorting ring lowers inductance and distortion
      • Powerful neodymium motor cuts weight without sacrificing performance
      • Suprisingly smooth response from 100 to 20,000 Hz



      Product details

      Tang Band W3-1364SA 3" Bamboo Cone Driver



      Another Tang Band first, Bamboo fiber cones! A blend of paper and Bamboo fibers provides a perfect combination of light weight and self-damping. A neodymium motor with a copper ring reduces distortion even further. The result of these features is a smooth frequency response with a very natural, open sound.

      Specificaties

      Artikelnummer
      W3-1364SA
      Woofer Type
      Full-range
      Nominal Diameter
      3"
      Power Handling (RMS)
      12 Watts
      Power Handling (max)
      25 Watts
      Impedance
      8 ohms
      Sensitivity
      86 dB 1W/1m
      Frequency Response
      105 to 20,000 Hz
      Voice Coil Diameter
      0.75"
      DC Resistance (Re)
      6.6 ohms
      Resonant Frequency (Fs)
      105 Hz
      Mechanical Q (Qms)
      2.48
      Electromagnetic Q (Qes)
      0.77
      Total Q (Qts)
      0.59
      Compliance Equivalent Volume (Vas)
      0.07 ft.³
      Maximum Linear Excursion (Xmax)
      0.5 mm
      Cone / Diaphragm Material
      Bamboo Fiber / Paper
      Magnet Material
      Neodymium
      Overall Outside Diameter
      3.625"
      Overall Depth
      2"
      Baffle Cutout Diameter
      3"
      # Mounting Holes
      4
      Sealed Volume
      0.08 ft.³
      Sealed F3
      143 Hz
      Vented Volume
      0.15 ft.³
      Vented F3
      71 Hz

      Reviews

      4 from 5Based on 3 reviews
      Schrijf een review
      5 van 5
      No description was given
      Door Oliver S. on 12 Mei 2019
      4 van 5
      some qualitys remember on electrostatic speakers but over all to cool for my taste
      Door Gerald S. on 16 Februari 2019
      Toon meer
