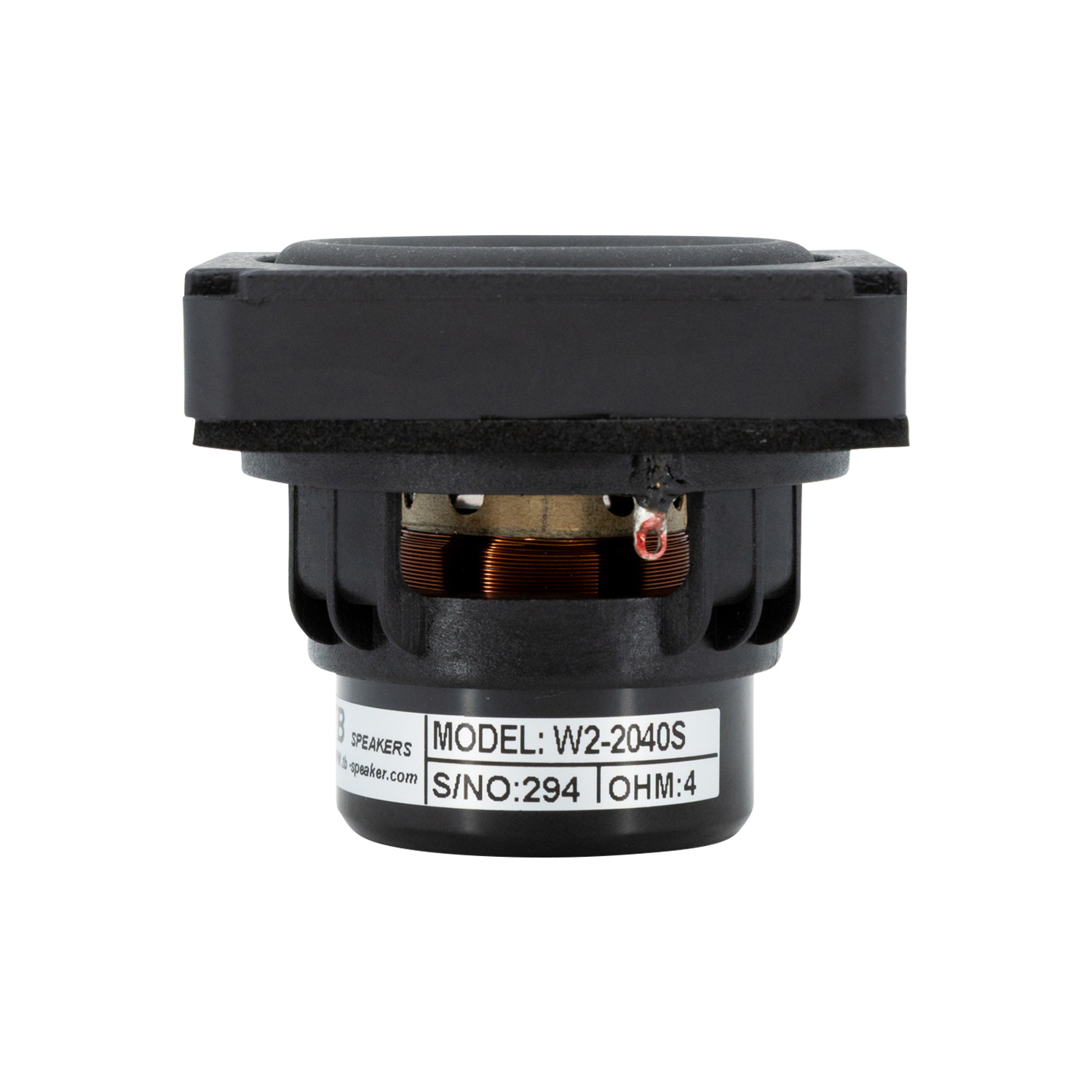

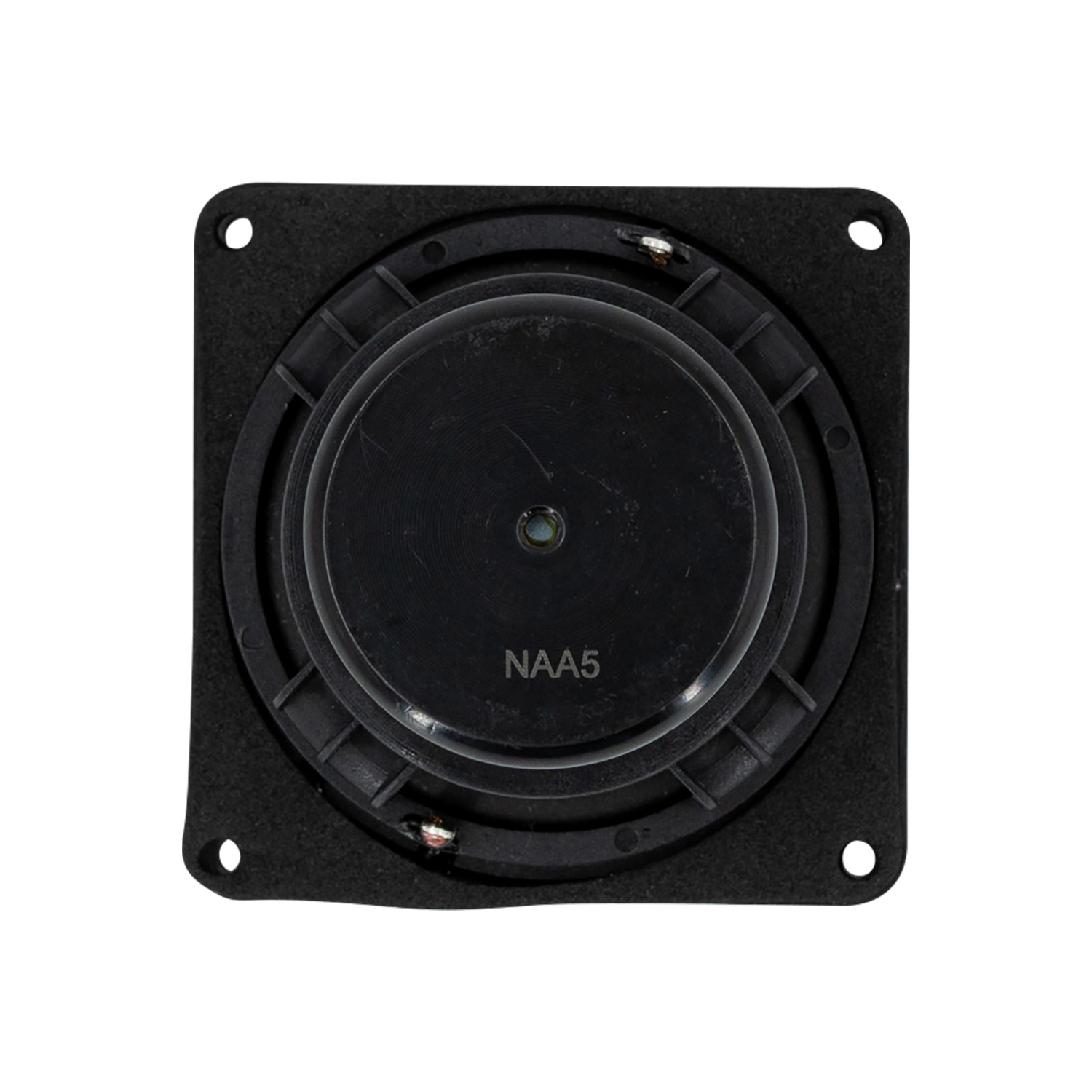

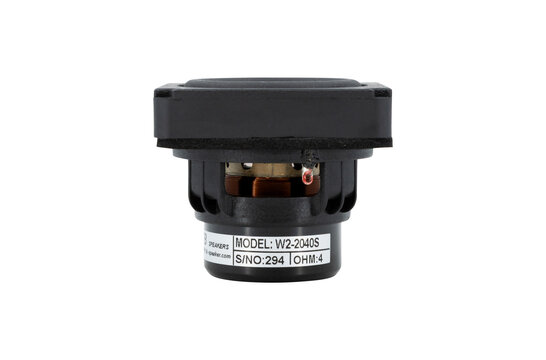

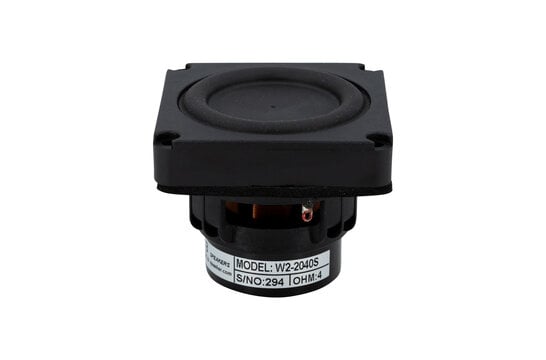

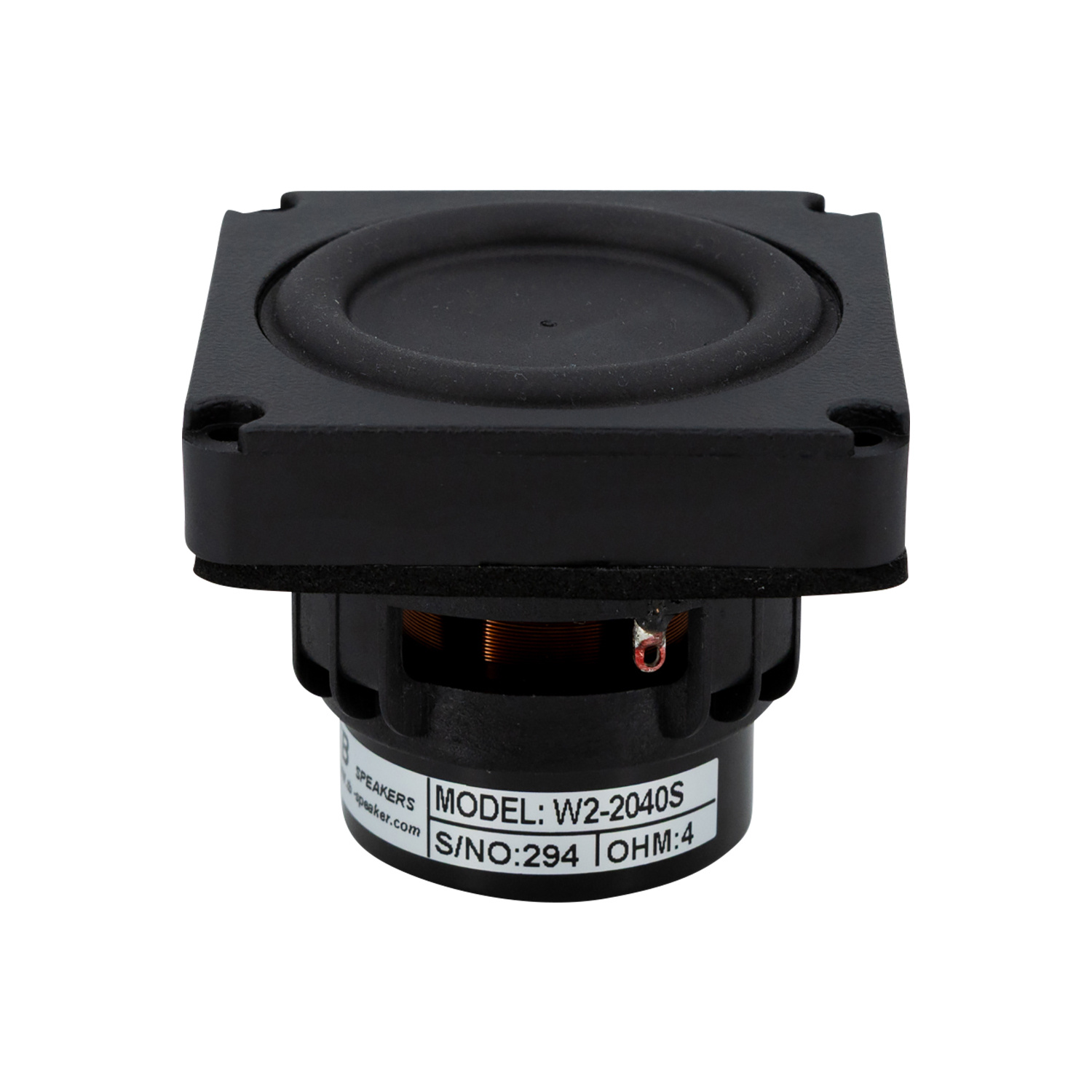

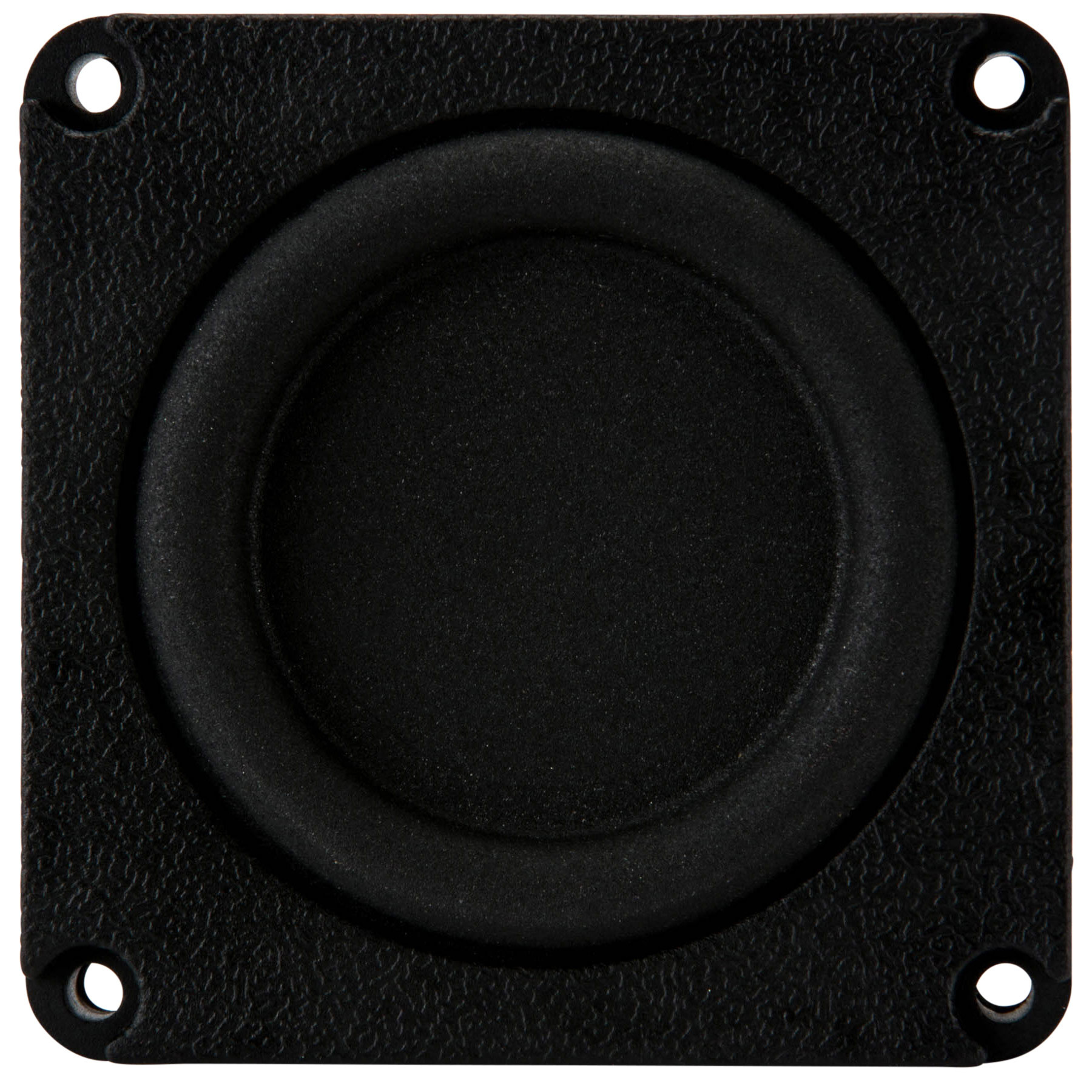

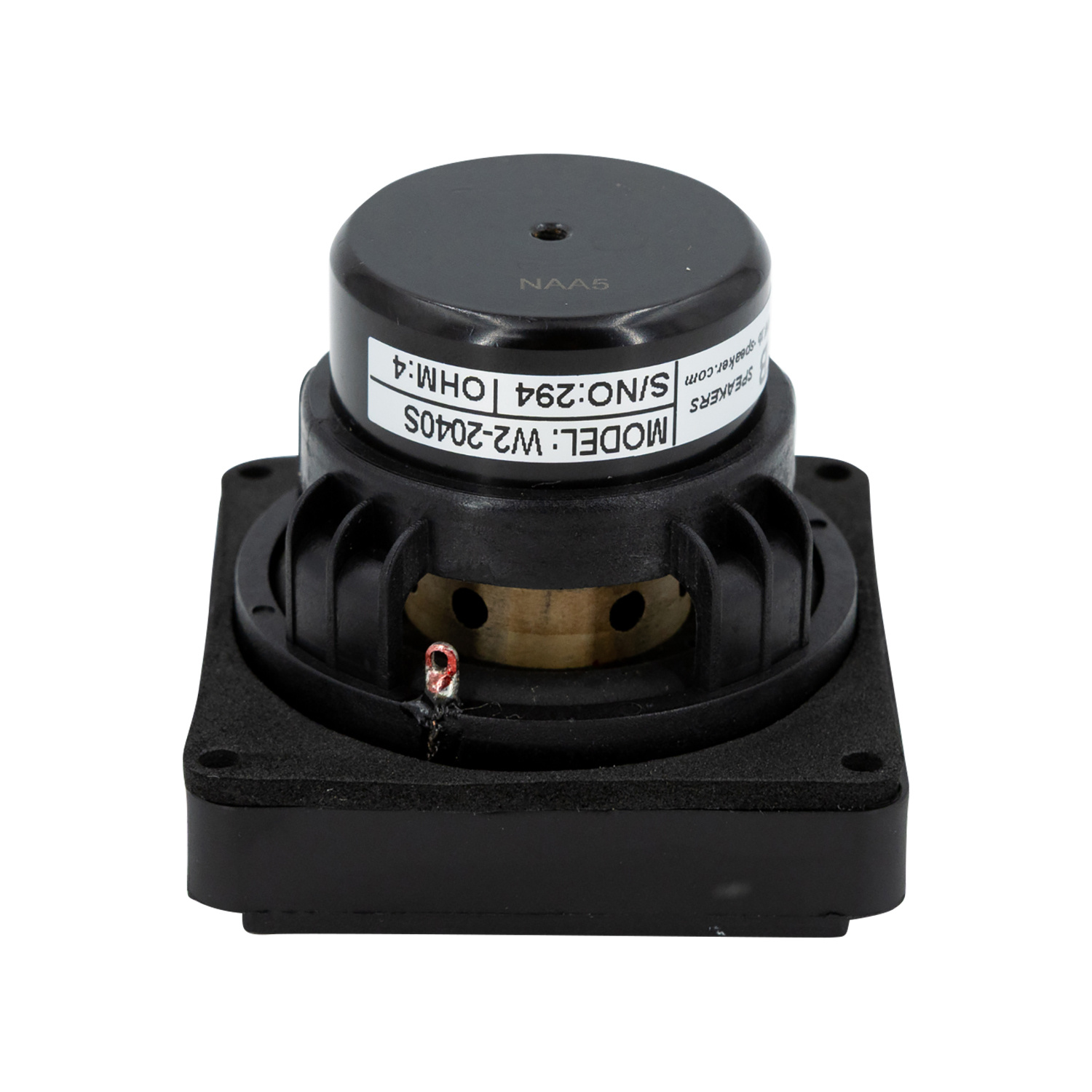

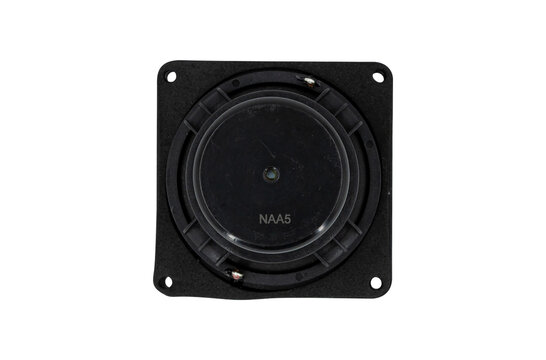

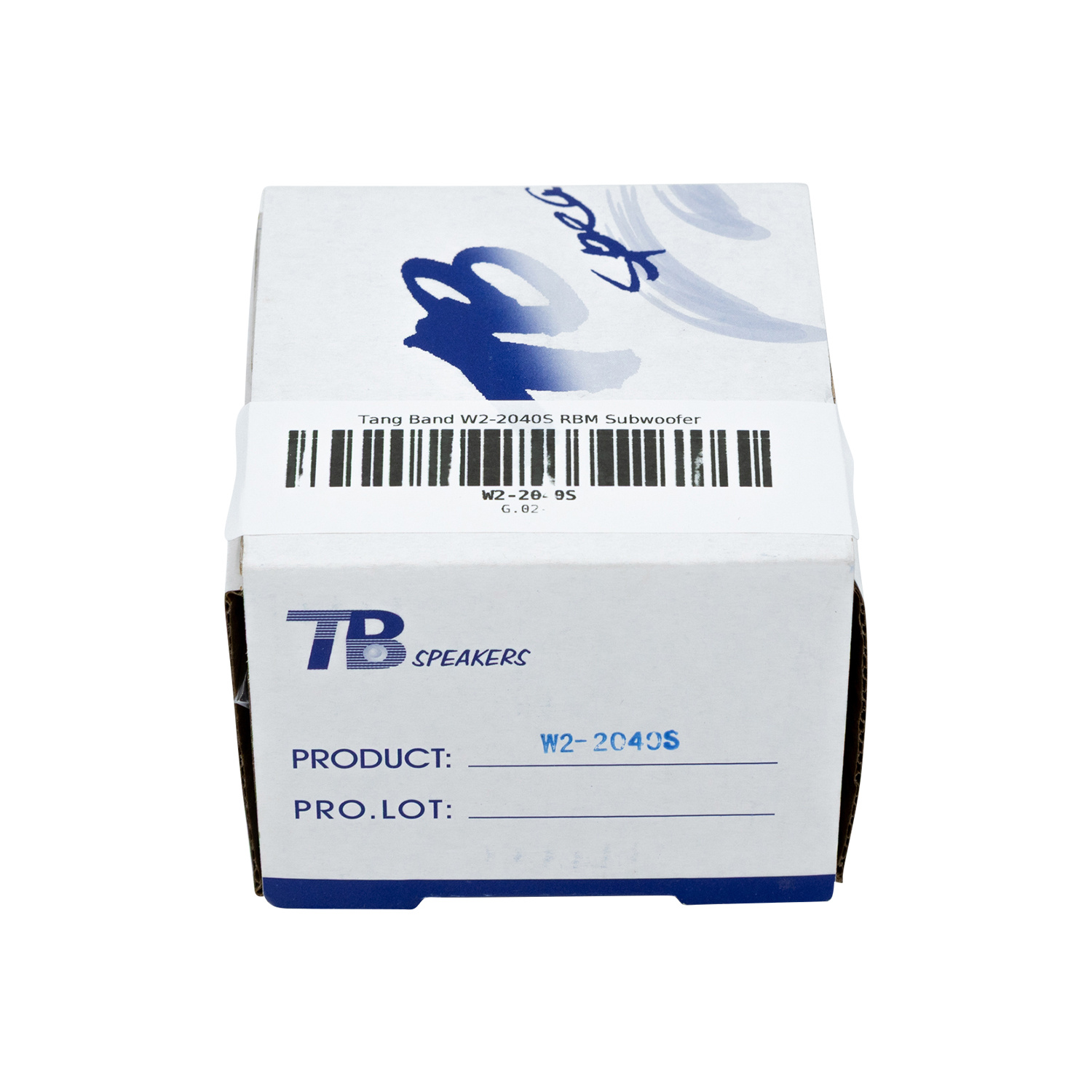

    Tang Band W2-2040S 2" Poly Cone RBM Micro Subwoofer

    € 49,95 Niet op voorraad: binnen 1 week leverbaar
    Tang Band's 2" W2-2040 RBM micro subwoofer is designed with two cones and two surrounds to offer high fidelity low frequency reproduction to almost any application.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €47,45 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Tang Band's 2" W2-2040 RBM micro subwoofer is designed with two cones and two surrounds to offer high fidelity low frequency reproduction to almost any application.



    Highlights

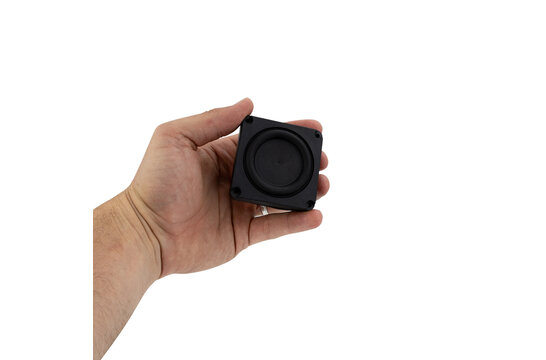

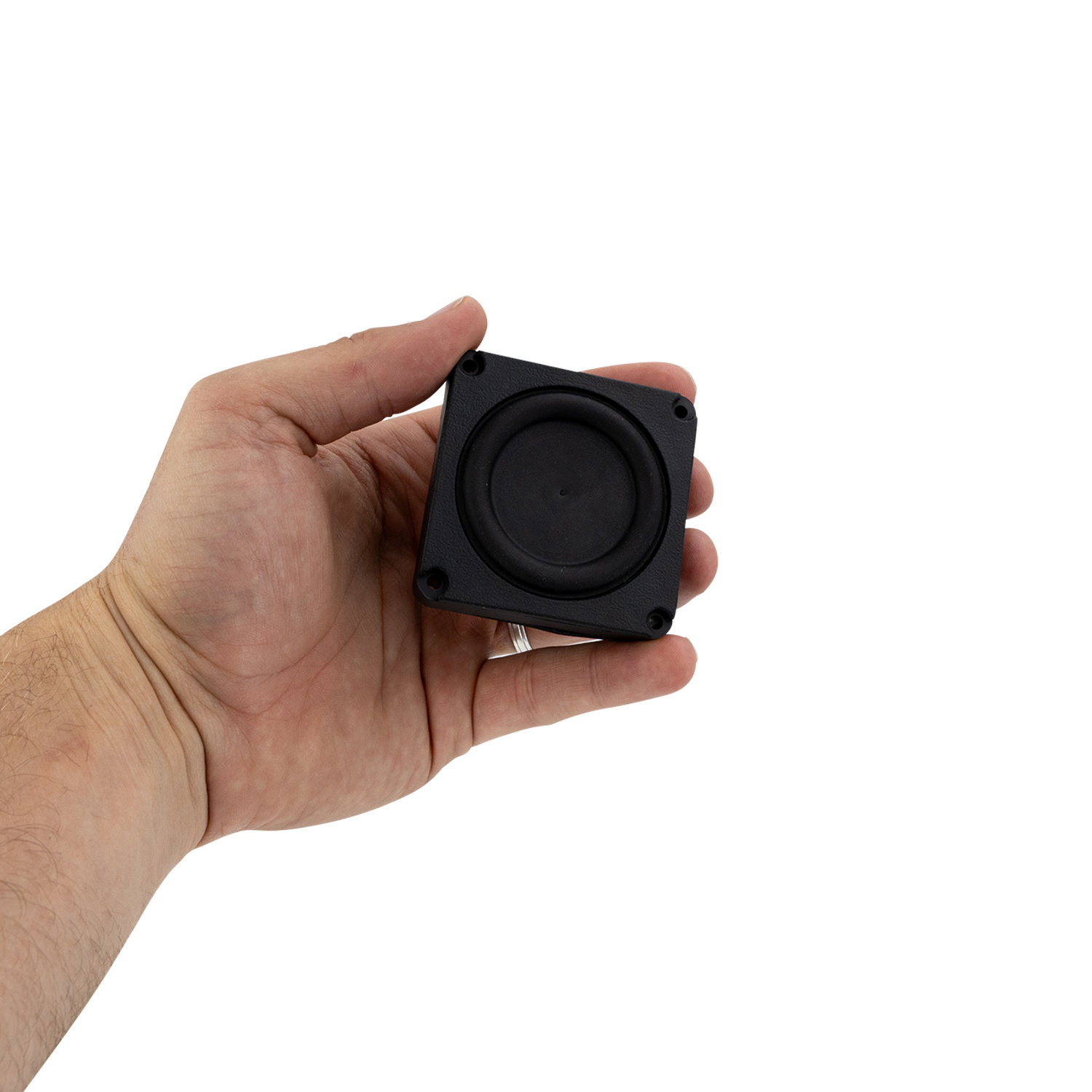

    • Super-small design for unique applications
    • Patented dual cone, dual surround subwoofer
    • Ultra-linear operation for low non-linear distortion
    • Huge 1" voice coil with 5.3 mm of Xmax and extensive cooling
    • High 267 EBP for horn-loading



    Product Details

    W2-2040S 2" Poly Cone RBM Micro Subwoofer 4 Ohm



    Tang Band designed their revolutionary RBM (Real Balanced Mode) flat subwoofers for ultra-linear operation, while remaining as thin as possible. The secret to their low distortion performance is in the patented symmetrical suspension system.



    While most subwoofers rely upon a spider/surround combination to keep the cone travel linear, Tang Band has developed a new injection molding process that incorporates front and rear cones, as well as dual opposed surrounds.



    Similar to an isobaric subwoofer alignment, the two cones work together to modulate a single column of air, reducing non-linear harmonic distortion. The added mass of the rear cone/surround assembly also reduces free air resonance.

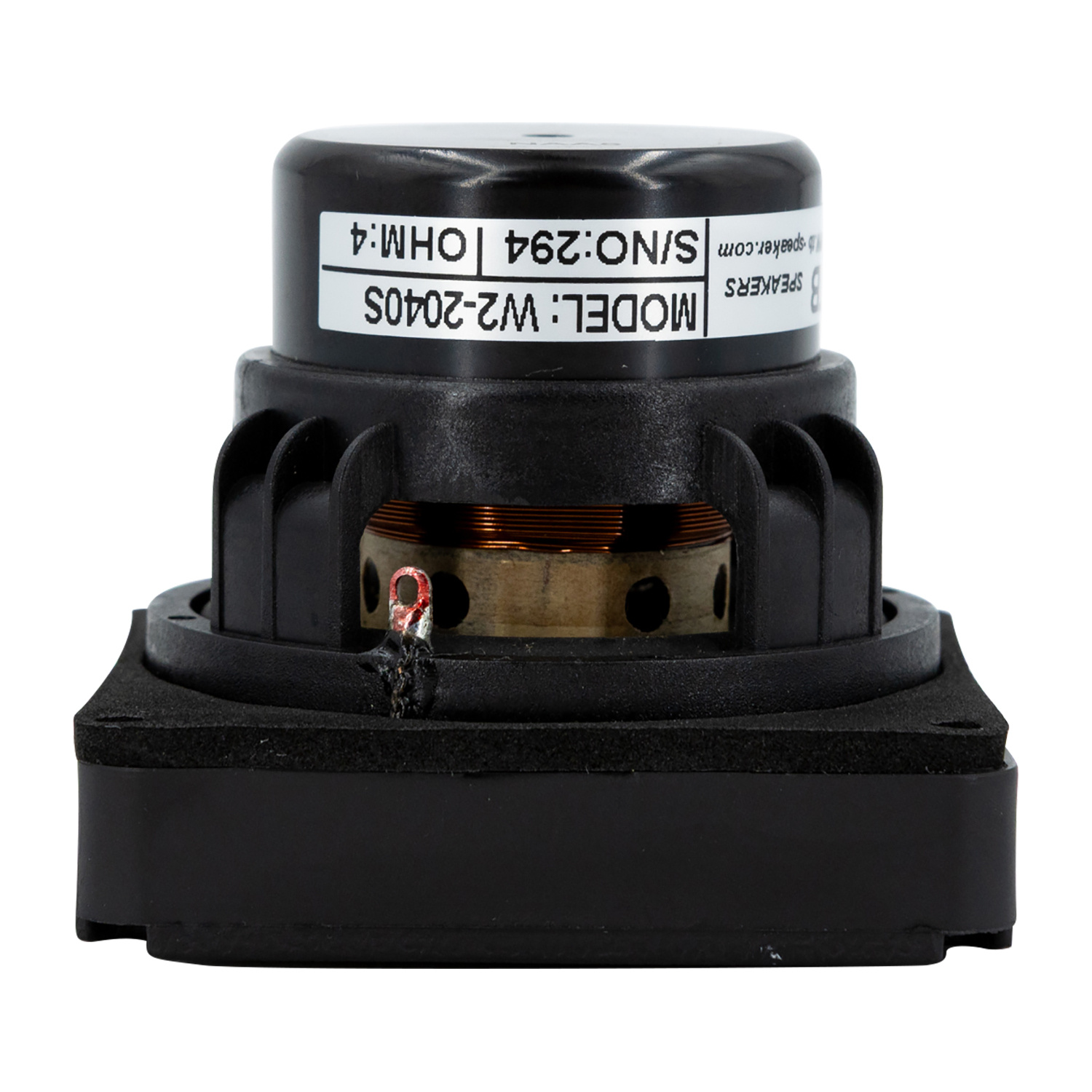

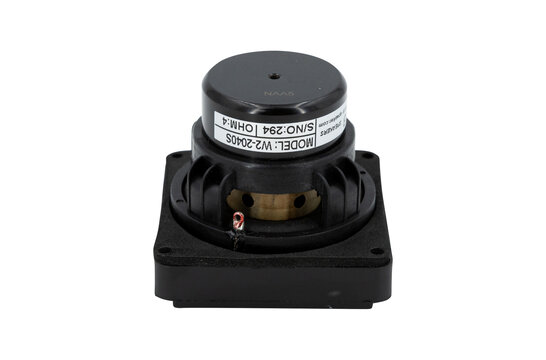

    Tang Band's W2-2040 2" RBM micro subwoofer features extensive venting on the rear cone and voice coil former to keep the large, overhung, neodymium-powered voice coil cool. Additionally, it offers low distortion frequency response that reaches down to 75 Hz.

    Specificaties

    Artikelnummer
    W2-2040S
    Woofer Type
    RBM Subwoofer
    Nominal Diameter
    2"
    Power Handling (RMS)
    10 Watts
    Power Handling (max)
    20 Watts
    Impedance
    4 ohms
    Sensitivity
    76 dB 1W/1m
    Frequency Response
    75 to 2,000 Hz
    Voice Coil Diameter
    1"
    DC Resistance (Re)
    3.5 ohms
    Voice Coil Inductance (Le)
    0.25 mH
    Resonant Frequency (Fs)
    75Hz
    Mechanical Q (Qms)
    5.21
    Electromagnetic Q (Qes)
    0.28
    Total Q (Qts)
    0.26
    Diaphragm Mass Inc. Airload (Mms)
    6.99g
    Surface Area of Cone (Sd)
    14 cm²
    Compliance Equivalent Volume (Vas)
    0.006 ft.³
    Maximum Linear Excursion (Xmax)
    5.3 mm
    Cone / Diaphragm Material
    Poly Composite
    Surround Material
    Rubber
    Voice Coil Wire Material
    Copper
    Basket / Frame Material
    Polymer
    Magnet Material
    Neodymium
    Overall Outside Diameter
    2.43 across the flats, 3.44"
    Overall Depth
    2.15"
    Baffle Cutout Diameter
    2.20"
    Bolt Circle Diameter
    3.00"
    # Mounting Holes
    4
    Sealed Volume
    0.01 ft.³
    Vented Volume
    0.01 ft.³
    Vented F3
    75 Hz
