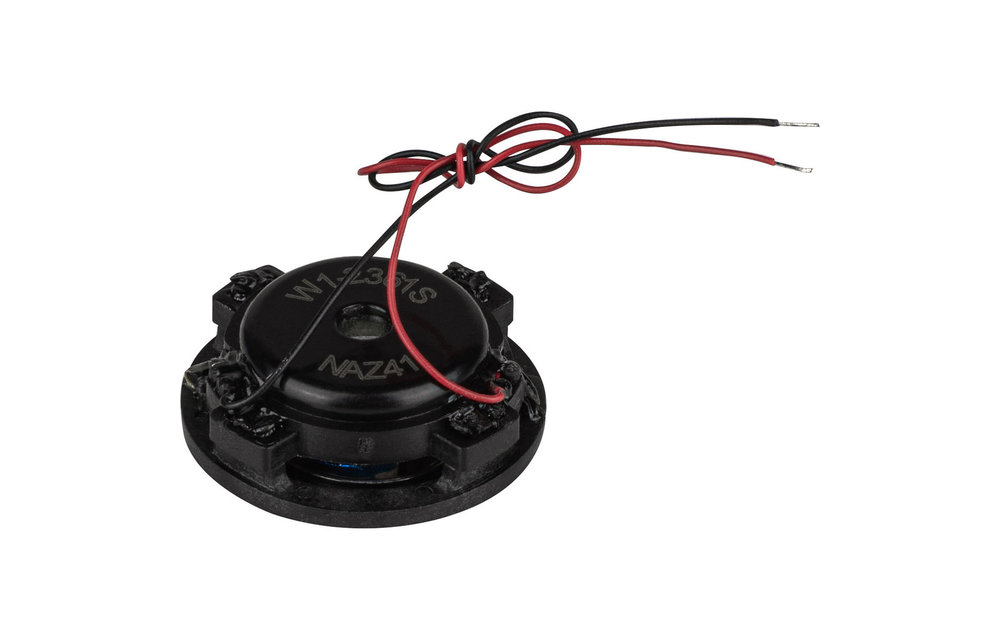

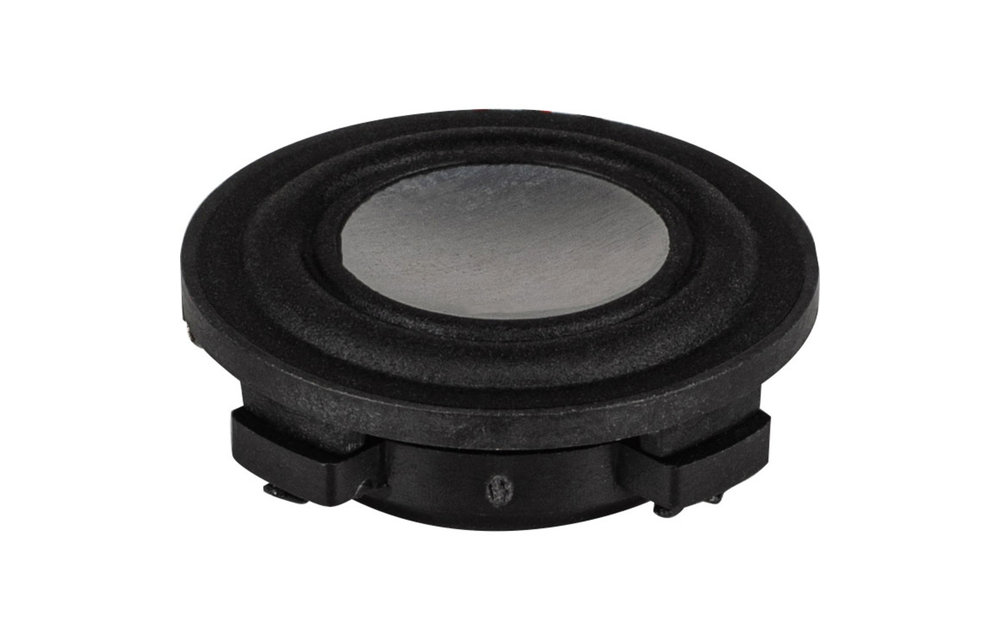

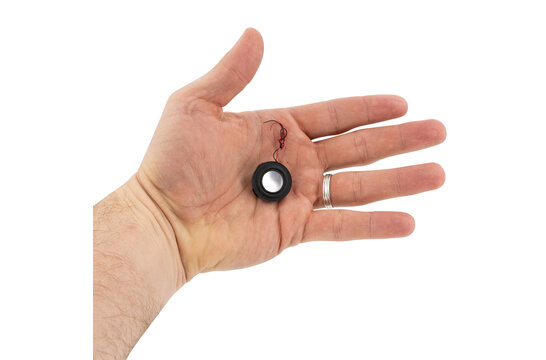

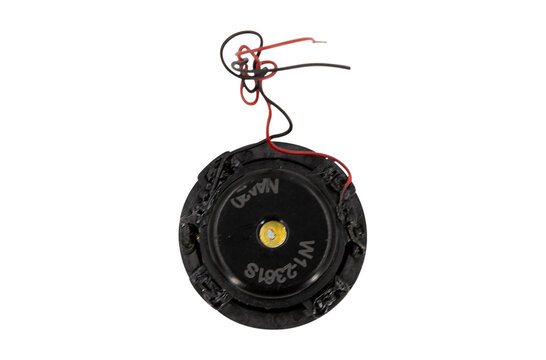

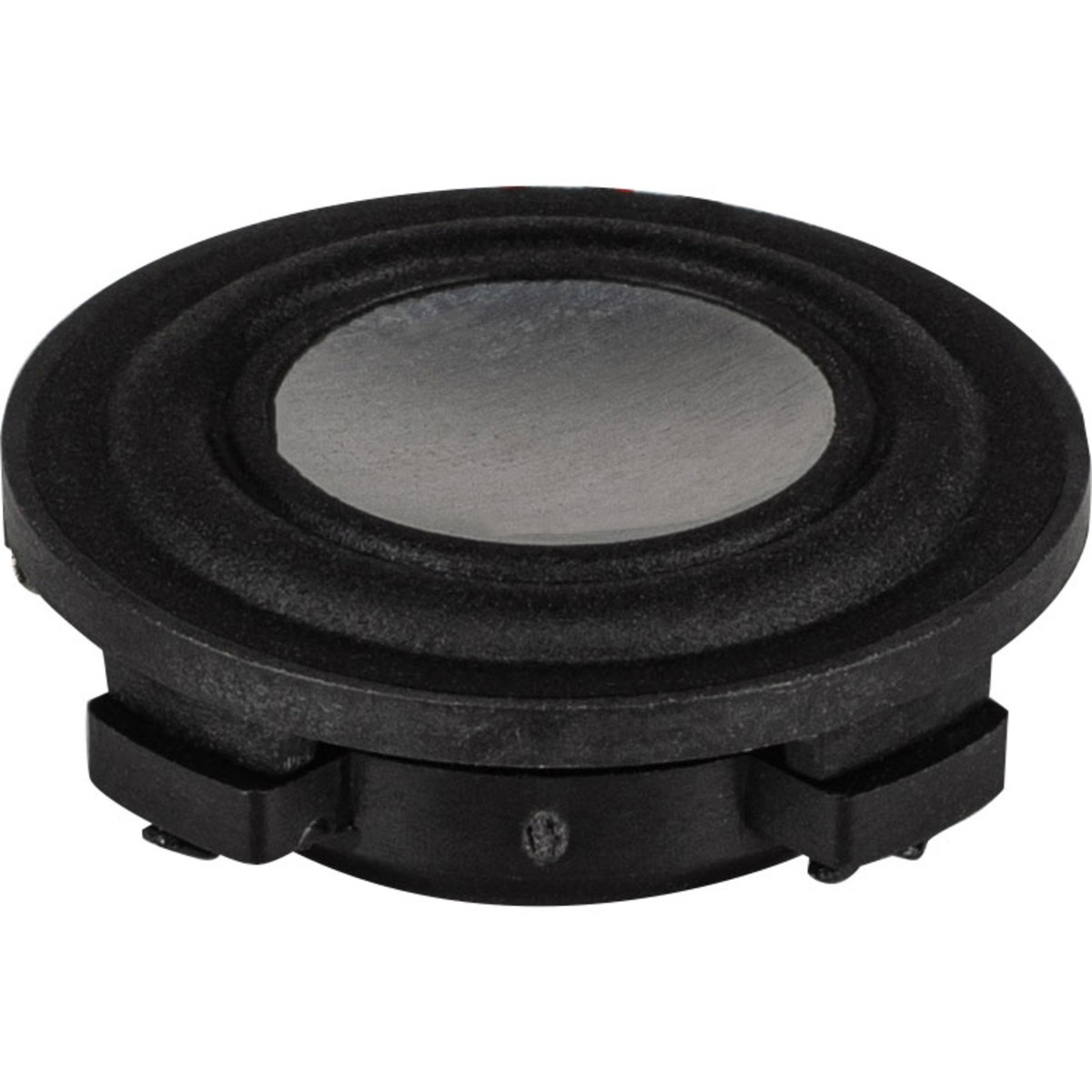

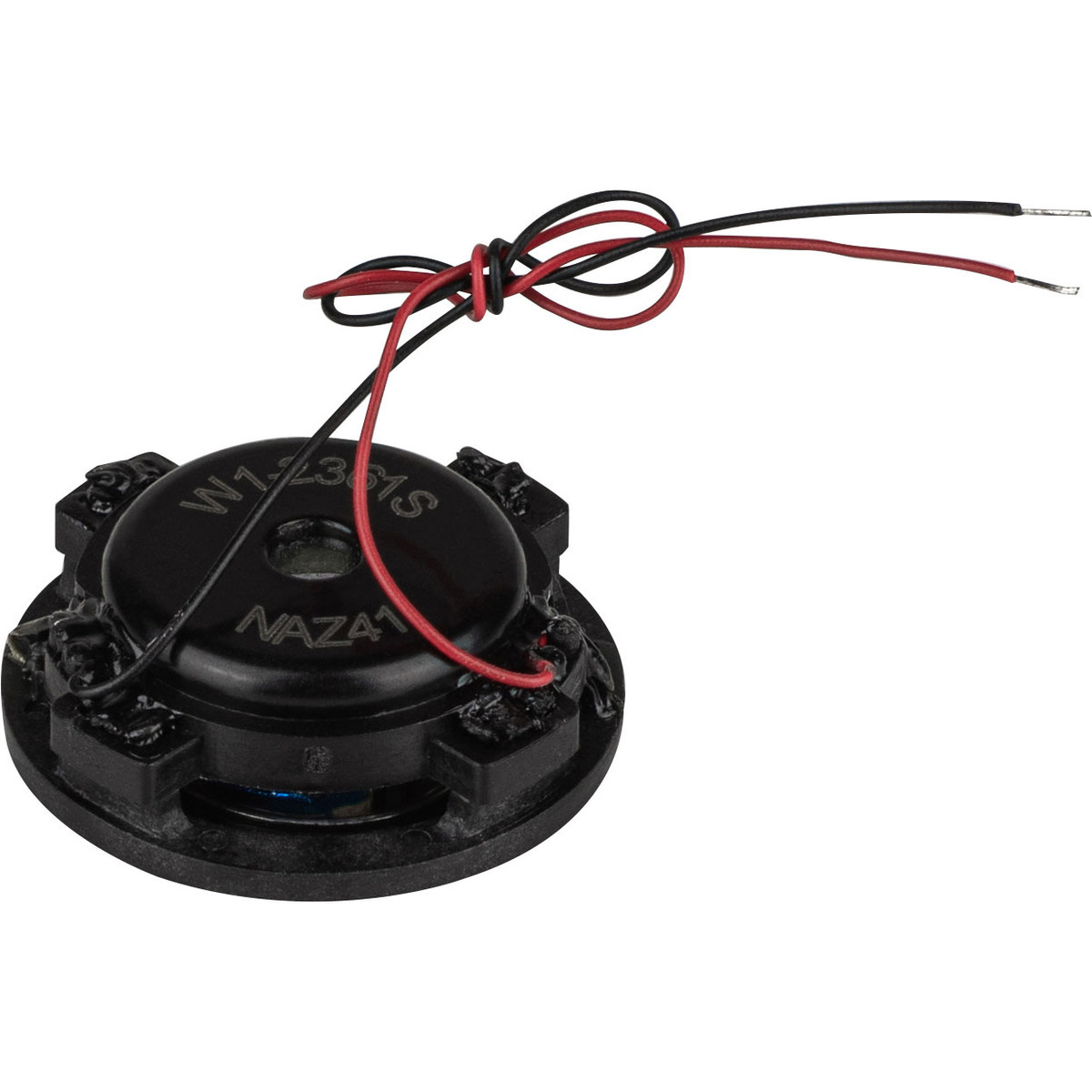

    Tang Band W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm

    € 24,75€ 29,95 2 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €28,45 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    With an extremely low-profile design, Tang Band's W1-2361S 1" aluminum cone full-range driver makes it possible to add the high-quality audio capability to almost anything. With a compact but powerful neodymium motor and innovative frame and suspension design, this driver requires less than 3/8" of mounting depth allowing it to fit into almost anything. The wide bandwidth capability and low distortion ensure high fidelity audio output.



    Highlights

    • Less than 3/8" mounting depth makes it easy to add high fidelity audio to almost anything
    • The smooth and natural response from 220 to 20,000 Hz for true full-range response
    • High energy neodymium magnet and the innovative suspension keeps size as small as possible
    • 82 dB sensitivity for surprising output capability from a driver this small
    • Rigid and lightweight aluminum cone delivers detailed and accurate high frequency



    Product Details

    Tang Band W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm



    The ultra-slim W1-2361S 1" aluminum cone full-range driver from Tang Band is the perfect solution for adding audio to the smallest projects and designs. Capable 220 to 20,000 Hz frequency response, this driver will produce excellent sound quality with incredible detail. The high-energy neodymium motor keeps the size as small as possible without sacrificing efficiency or output capability. An innovative suspension and frame design keep mounting depth less than 3/8" for use in locations where other drivers just won't fit. Finally, the lightweight aluminum diaphragm delivers accurate sound quality with low distortion, while controlling resonances to eliminate hash peaks. The W1-2361S makes it possible to add the high-fidelity audio capability to almost anything.

    Specificaties

    Artikelnummer
    W1-2361S
    Woofer type
    Full Range Woofer
    Nominale diameter
    1"
    Belastbaarheid (RMS)
    1 Watts
    Belastbaarheid (max)
    2 Watts
    Impedantie (Z)
    4 Ohms
    Gevoeligheid
    81dB (2.83V/1m)
    Frequentierespons
    220 to 20,000Hz
    Spreekspoeldiameter
    13.28"
    Gelijkstroomweerstand (Re)
    3.6Ω
    Spreekspoelinductie (Le)
    0.0036mH
    Resonantiefrequentie (Fs)
    220Hz
    Mechanische Q (Qms)
    0.35
    Elektrische Q (Qes)
    0.38
    Totale Q (Qts)
    0.18
    Bewegende massa (Mms)
    0.13g
    Moving Mass Of Diaphragm (Mmd)
    0.13
    Compliantie van de ophanging (Cms)
    3.75mm/N
    Effectief oppervlak (Sd)
    3.6cm²
    Krachtsfactor (BL)
    1.33T·m
    Equivalentvolume (Vas)
    0.0116ft³
    Maximale excursie (Xmax)
    0.25mm
    Cone / Diaphragm Material
    Aluminium
    Surroundmateriaal
    Santoprene
    Mand- /framemateriaal
    Polymer
    Magneetmateriaal
    Neodymium
    Totale buitendiameter
    0.984"
    Totale diepte
    0.361"
    Montagegatdiameter
    .875"
