    Tang Band T2-2181SA 2" Subwoofer Module | 175 x 70 mm

    € 36,45 >10 Op voorraad: levertijd 1 werkdag
    Quite possibly the smallest self-contained subwoofer system, Tang Band's T2-2181SA pairs a long throw 2" driver with a high excursion passive radiator in an ultra-compact enclosure allowing you to add substantial low end capabilities to almost any project... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €34,63 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Quite possibly the smallest self-contained subwoofer system, Tang Band's T2-2181SA pairs a long throw 2" driver with a high excursion passive radiator in an ultra-compact enclosure allowing you to add substantial low end capabilities to almost any project.



    Highlights

    • High excursion 2" driver with powerful neodymium motor
    • Ideal for pairing with any of Tang Band's full range speaker modules
    • Fully self-contained design makes installation easy
    • Great for portable speakers and other compact speaker designs
    • Low profile passive radiator keeps enclosure as small as possible



    Product details

    Tang Band T2-2181SA 2" Subwoofer Module | 175 x 70 mm



    Tang Band's T2-2181SA subwoofer module features a passive radiator-assisted 2" high excursion driver that can deliver powerful response down to 58 Hz in a compact 6.9" x 2.8" x 1.6" package. The Tang Band subwoofer and full range modules are the easiest way to design small speakers that provide big sound.



    Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel TV speakers, and portable audio systems. Do not let this diminutive subwoofer module fool you; with decent efficiency and power handling this module can provide powerful low end to almost any project. Perfect for use in conjunction with Tang Band's full-range speaker modules for a true full-range system that delivers hi-fidelity sound while consuming very little space.

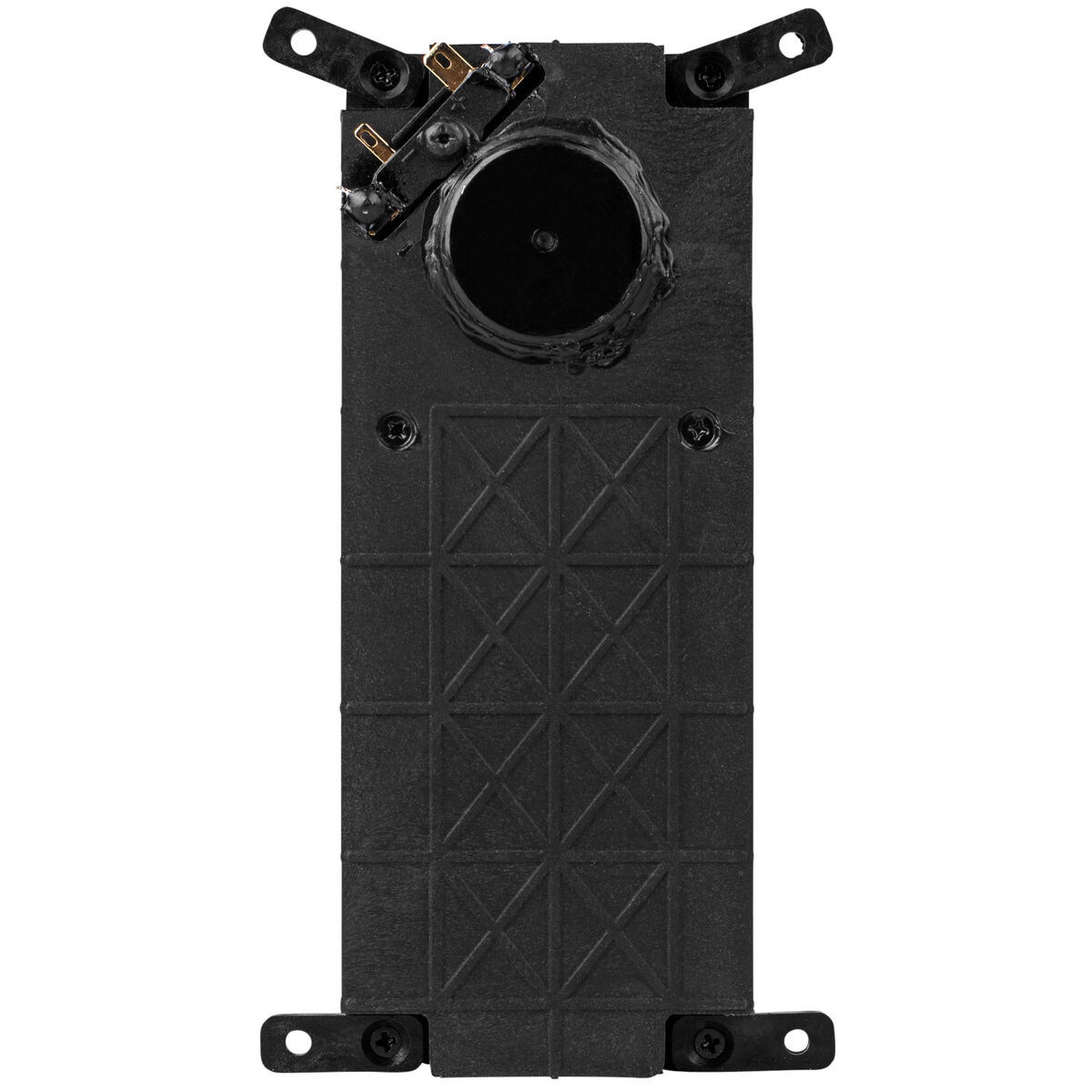

    Tang Band incorporated mounting tabs and a two-pin wiring harness jack into the T1-1931S to facilitate mounting and amplifier connection to the optional KIT-0041 speaker module mounting kit with amplifier. For custom applications, two polarity-indicated solder points are built onto the driver PCB.



    Note: Tang Band recommends the use of a 2nd order (-12 dB/octave) 100 Hz high pass filter for the best possible sound. Higher power handling and output is possible through the use of multiple modules.

    Specificaties

    Artikelnummer
    T2-2181SA
    Woofer Type
    Passive Radiator
    Nominal Diameter
    2 "
    Power Handling (RMS)
    10 Watts
    Power Handling (max)
    20 Watts
    Impedance
    4 Ohms
    Sensitivity
    79dB 2.83V/1m
    Frequency Response
    58 to 3,000Hz
    Voice Coil Diameter
    1"
    Resonant Frequency (Fs)
    58Hz
    Cone / Diaphragm Material
    Poly Composite
    Surround Material
    Rubber
    Basket / Frame Material
    Rubber
    Magnet Material
    Neodymium
    Overall Outside Diameter
    6.9" x 2.8" x 1.6"
    Overall Depth
    1.3"
    # Mounting Holes
    4
