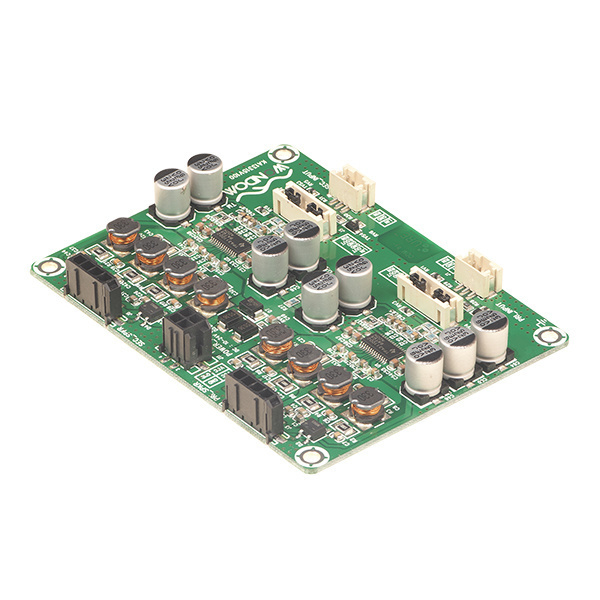

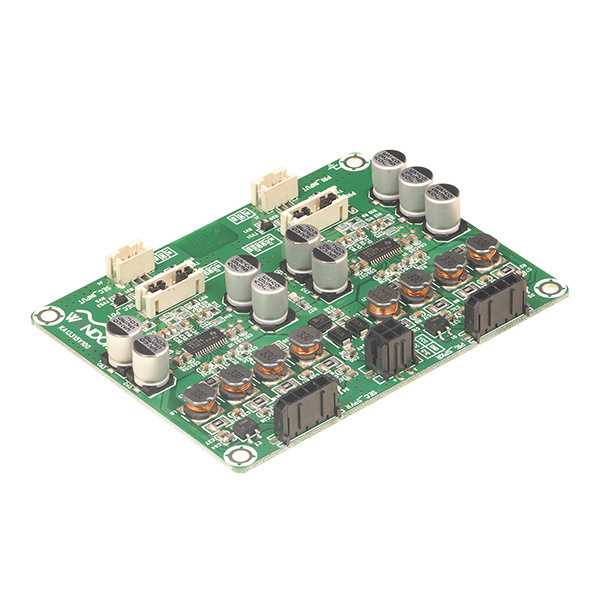

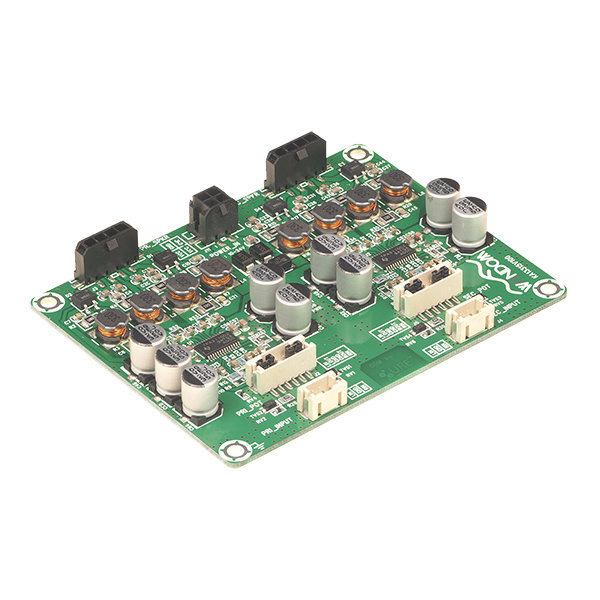

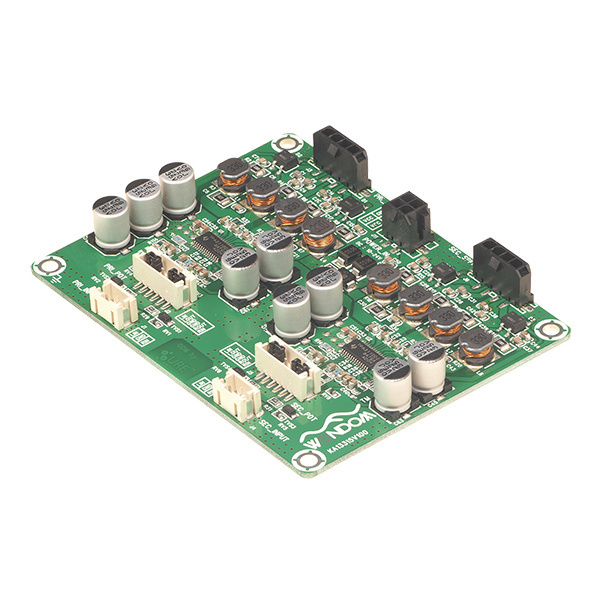

This audio amplifier board is a 4CH audio amplifier board specially designed for game machine applications, delivering 15W output power per channel. It features compact size, full protection and high reliability, applying to an audio 4.0 system. Industrial pluggable terminal blocks make it easy to be integrated into systems.

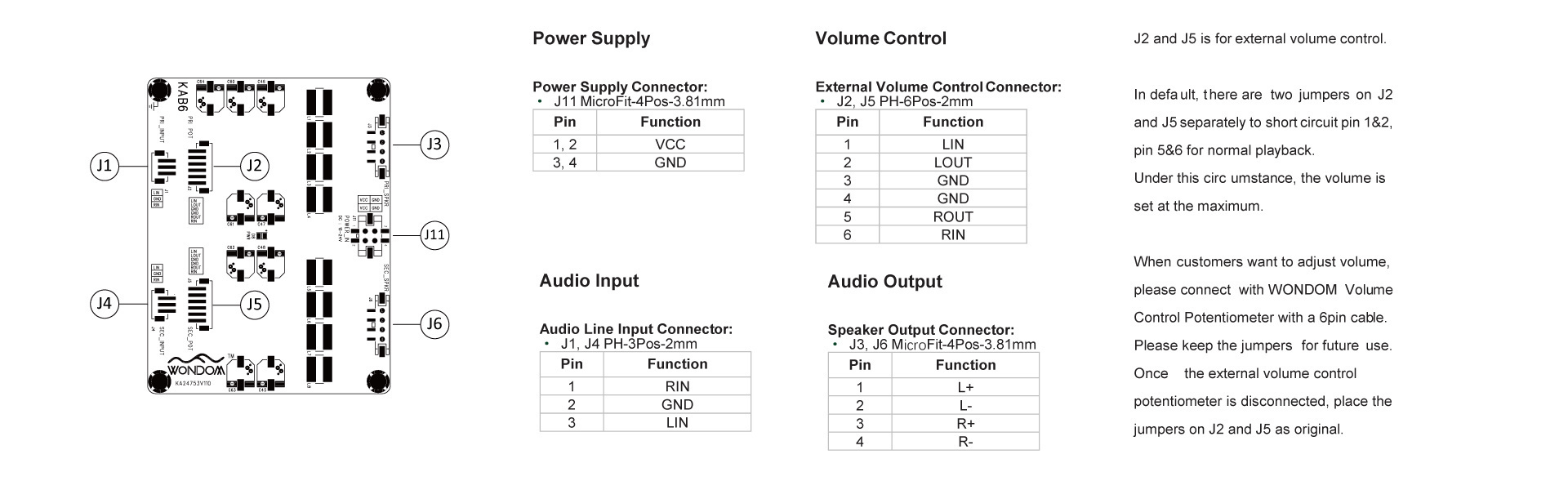

The volume is set at the maximum as default. An external volume control potentiometer is also available for customers to achieve volume adjustment. High Reliability and Stability Verified by Strict Tests. Sure Electronics has carried out extremely strict tests for this board to ensure its reliability and stability. In addition to functional tests and performance tests, all boards go through HALT and HASS tests before storage. All the test data have been recorded to form a test report.
Package Includes: 1pc AA-KA32475, KAB6-415, 1pc power supply cable, 2pcs 3.5mm AUX IN cables, 2pcs speaker cables.
Specifications: Number Of Channel(s): 4 • Output Power: 15W • Size: Others • Chipset: TPA31xx • Heat Dissipation: No Heat Sink & FAN • Supported Parallel Bridge Tied Load Mode: YES • input: Single-ended Line-in, • Power Voltage: 10V-24V.
