- 3.6 x 2.7 Inches PCB Size
- Integrated with Bluetooth 5.0
- Integrated with ADAU1701 DSP
- 4x30W / 2x30W+1x60W / 2 x 60W
- Suitable for Audio 4.0 / 2.1 / 2.0 / 0.2 System
- Bluetooth & Line Input Supported
- I2S Signal Output
- Bluetooth Pairing Cancellation
- Four External Potentiometers
- Supporting Programming & PC UI Control
- Signal Level Sensor System
- Power Management System

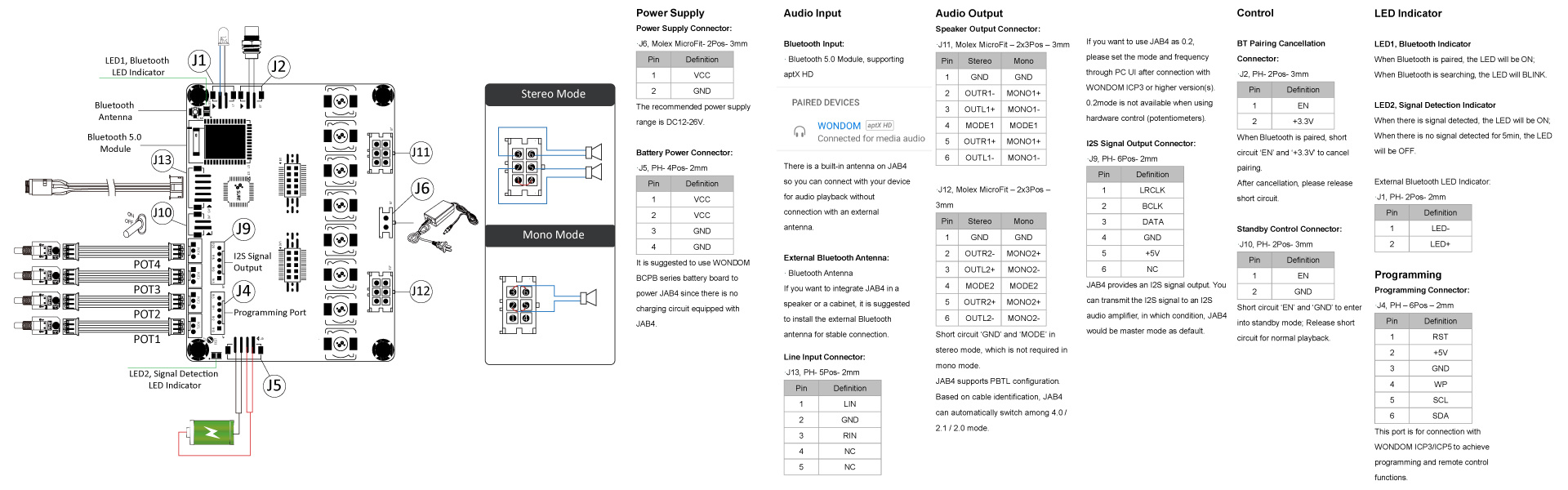

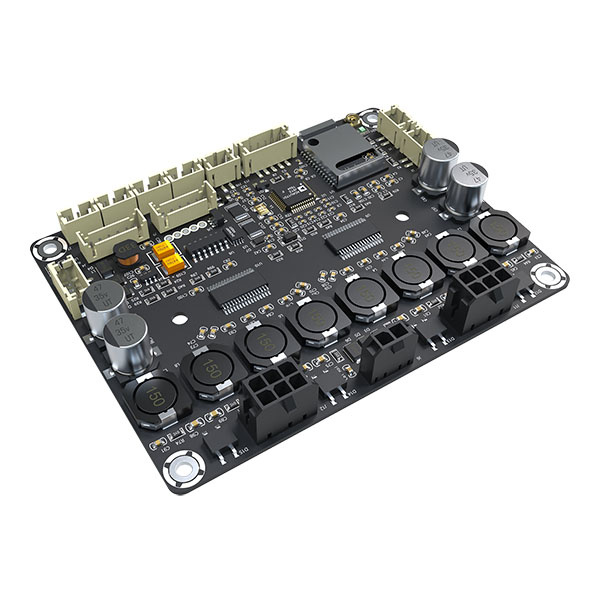

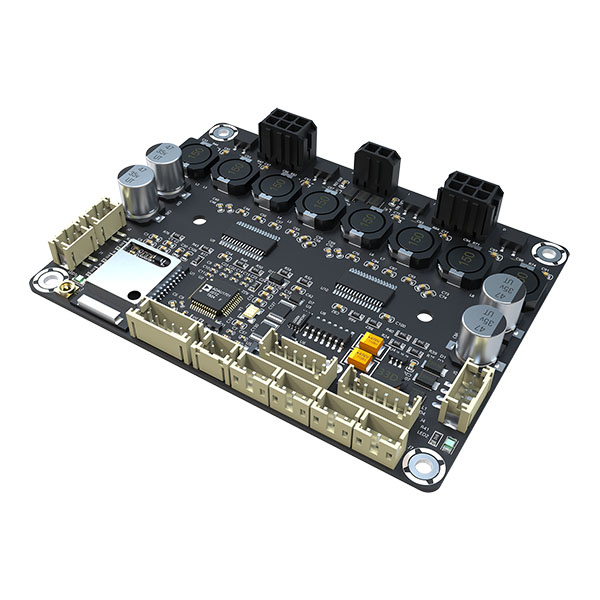

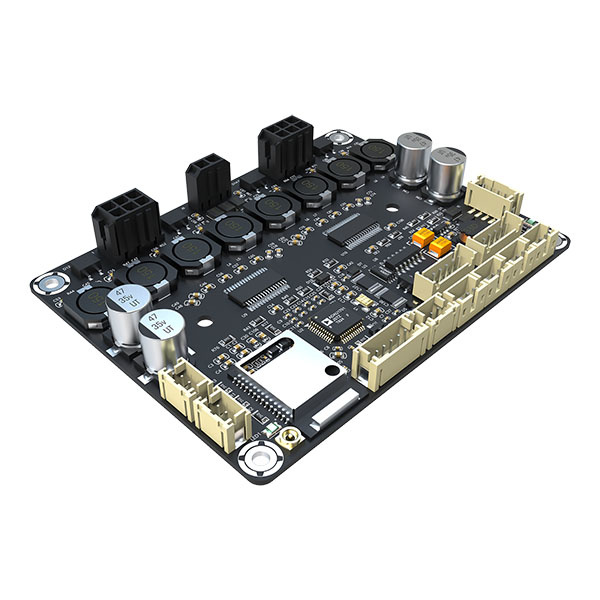

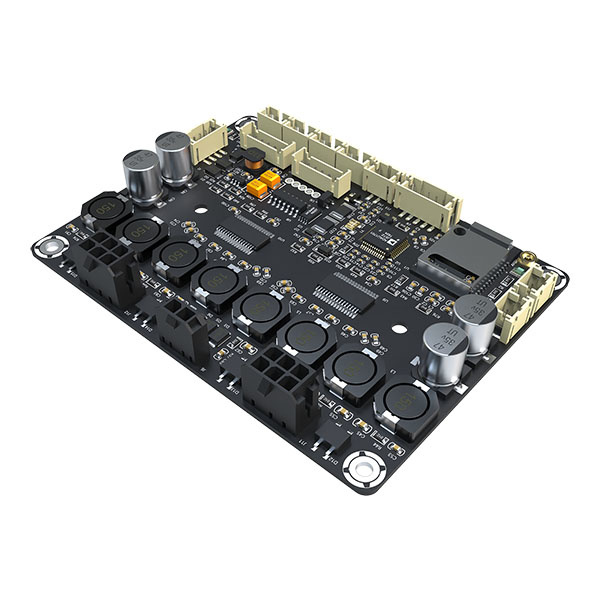

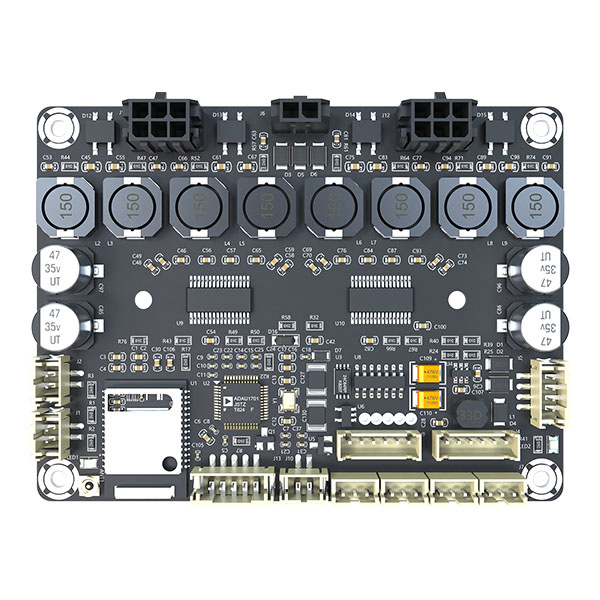

Sure Electronics AA-JA33285 4 x 30 Watt Watt Class D Audio Amplifier Board w ADAU1701 DSP & Bluetooth Ver5.0 for Audio 4.0/2.1/2.0 System - JAB4
The Wondom JAB3+ is an amplifier module capable of developing a power of 2x50W, supporting Bluetooth 5.0 (aptX HD) and integrating an ADAU1701 DSP for an all-in-one audio solution. Thanks to the latter, the JAB3+ can be programmed with SigmaStudio and AppControl via an intuitive graphical interface (requires the use of a Wondom ICP5 module, not supplied). In addition to its speaker output, the JAB3+ has an additional mixed audio output that can be used with another amplifier module to create a 2.1 or 4.0 system. The PC interface then allows the amplifier to be configured in mono or stereo mode. In addition, the JAB3+ can be battery-powered to create a portable, high-performance audio system. The JAB3+ uses a Bluetooth 5.0 module as input, supporting AAC, SBC, aptX, aptX LL and aptX HD codecs and enjoying a high reception sensitivity of up to 9dB and -90dBm. This makes it possible to pair the JAB3+ with an audio source. An external antenna port is also available in case the JAB3+ is installed in a box. The JAB3+ therefore embeds an ADAU1701 DSP chip for audio signal processing. Four ports allow to mount external potentiometers (sold separately). These will allow you to control volume, gain, bass and treble levels. When used with a Wondom ICP5 module (sold separately), you can adjust many audio parameters via the SigmaStudio software or a control application. In addition to the Bluetooth input, the JAB3+ offers a line input. The signal from both inputs can be mixed before being transmitted to the amplifier circuit.
Specifications: Style: Boards • Number Of Channel(s): 4 • Output Power: 30 • Size: 3.6 x 2.7 inches (91.44mm x 68.58mm) • Chipset: TPA31xx • Heat Dissipation: No Heat Sink & FAN • Supported Parallel Bridge Tied Load Mode: YES • input: Bluetooth, Single ended Line-in • Power Voltage: 10V-26V.
