    Sure Electronics AA-JA32171 2 x 50 Watt 4 Ohm Class D Audio Amplifier with Bluetooth 4.0 APT-X - JAB2-50

    € 45,41€ 54,95 4 Op voorraad: levertijd 1 werkdag
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €52,20 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

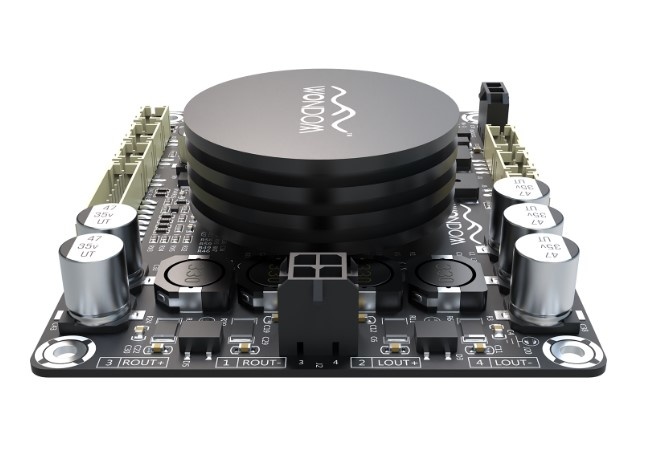

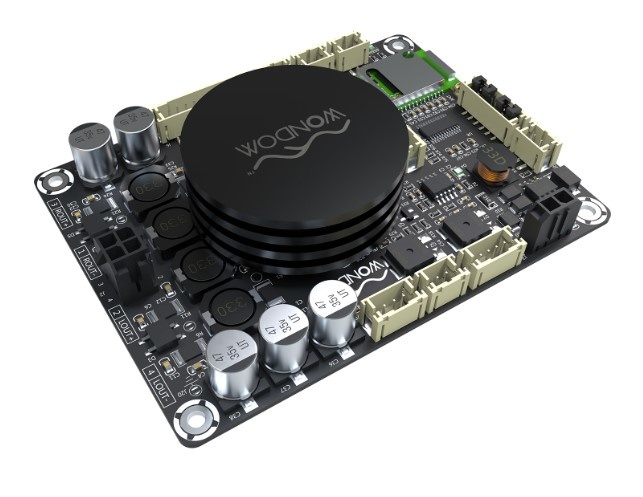

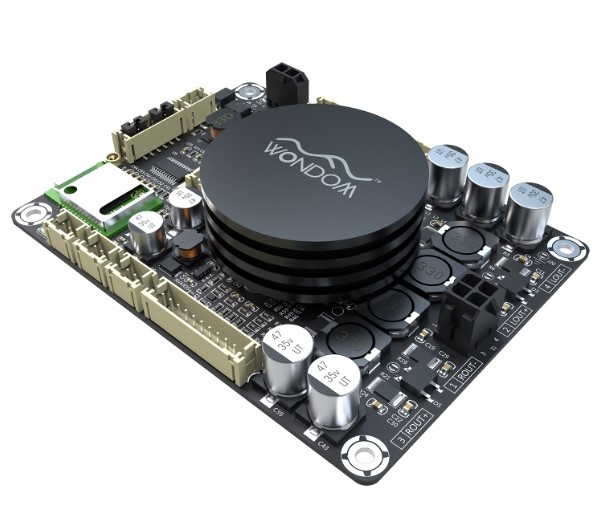

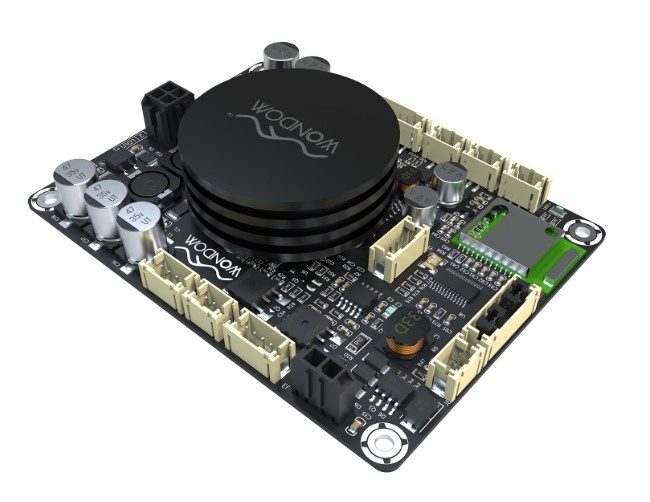

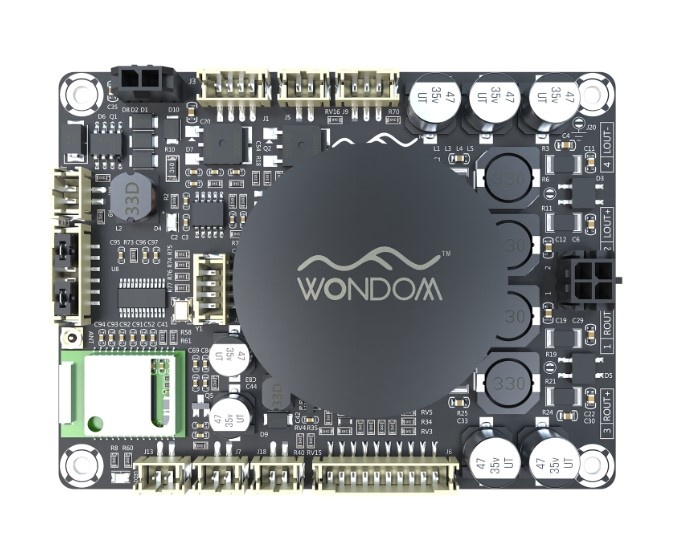

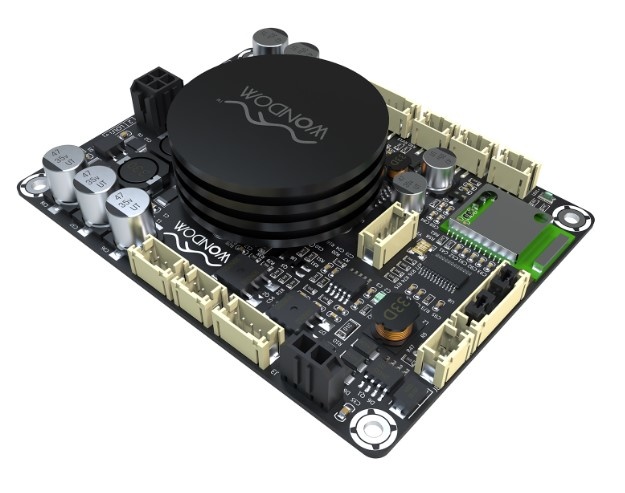

    The Sure Electronics AA-JA32171 2 x 50 Watt 4 Ohm Class D Audio Amplifier with Bluetooth 4.0 APT-X - JAB2-50 is an amplifier board easily built in to any project, speaker build or other DIY project in need of a small amplifier board with enough power to drive stereo speakers.



    Highlights

    • Bluetooth V4.0 APT-X +EDR, A2DP
    • LED Status Indicators
    • 6 x 2.7 Inches PCB Size
    • Power Management Circuit
    • Volume Control Port (Potentiometer)
    • U.FL IPX coaxial connector for internal or external Bluetooth antenna (internal antenna included) and a Bluetooth pairing reset switch



    Connections:



    High Quality Audio Performance

    The Sure Electronics AA-JA32171 2 x 50 Watt 4 Ohm Class D Audio Amplifier with Bluetooth 4.0 APT-X - JAB2-50 delivers high quality sound without drawing a lot power. This is due to the highly efficient Texas Instruments TPA3116 Class-D amplifier chip. The TI TPA3116 operates at 90% efficiency, which becomes a major advantage when powering from batteries as it prolongs the playtime of a single charge. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build.



    Extremely low standby power

    The Sure Electronics JAB2-50 will remain powered up to 7 days in standby mode even while Bluetooth is enabled. This standby time is approximately 4x longer than the competition due to the use of a high efficiency DC/DC converter which minimizes power consumption thanks to the employment of a micro controller as the PMU (Power Management Unit).



    Integrated Bluetooth

    The Sure Electronics JAB2-50 Amplifier Board offers a built-in Bluetooth 4.0 module with aptX which offers both high quality sound and low power consumption. It enables easy pairing with any mobile device or tablet for convenient access to audio. It is also CE and FCC ready for certification purposes.



    Multiple Power Paths

    The Sure Electronics JAB2-50 features numerous power options for creative, wireless sound projects. This flexibility eliminates limitations often caused by most other amp boards. Therefore, your design can be cord restricted or truly portable.



    Applications





    Package includes

    • 1 x Sure Electronics JAB2-50 2 x 50 Watt Class D Audio Amplifier with Bluetooth 4.0 APT-X
    • 1 x power cable
    • 1 x 4-conductor speaker cable

    Specificaties

    Artikelnummer
    AA-JA32171
    Nominaal vermogen
    2 x 50 watts at 8 ohms
    Minimale belasting
    4 ohms
    Efficiëntie
    90 %
    Signaal-ruisverhouding (SNR)
    92 dB
    Vervorming
    0.02 % THD at 1 kHz, 8 ohms, 10 watts
    Frequentierespons
    22 - 22,000 Hz
    Versterkingsfactor
    26 dB
    Ingangsgevoeligheid
    -
    Ingangsimpedantie
    -
    Amplifier Classification
    Class D
    Versterkertopologie
    Texas Instruments TPA3116
    Uitgangskanalen
    2
    Ingangsconnector

    4 pin PCB connector
    Bluetooth

    Uitgangsconnector
    4 pin PCB connector
    DSP-functionaliteit
    -
    Bluetooth
    check version 4.0
    EQ-correctie
    -
    Voedingsvereisten
    12 - 24 VDC
    Voedingsconnector
    2 pin PCB connector
    Stroomlimiet
    -
    Onder-/overspanningsbeveiliging
    -
    Afmetingen (L x B x H)
    91 x 69 x 23 mm
    Afstand tussen bevestigingsgaten
    84 x 61 mm
    Diameter bevestigingsgaten
    3.5 mm

    Reviews

    3 from 5Based on 1 reviews
    Schrijf een review
    3 van 5
    Easy to install. Sound is good! Bluetooth does not function properly. Sometimes it is hard to connect. I use a 19V, 4.7A adapter
    Door Jarno v. on 8 September 2018
