    Sure Electronics AA-JA31211 1 x 60 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-60

    € 39,26€ 47,50 5 Op voorraad: levertijd 1 werkdag
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

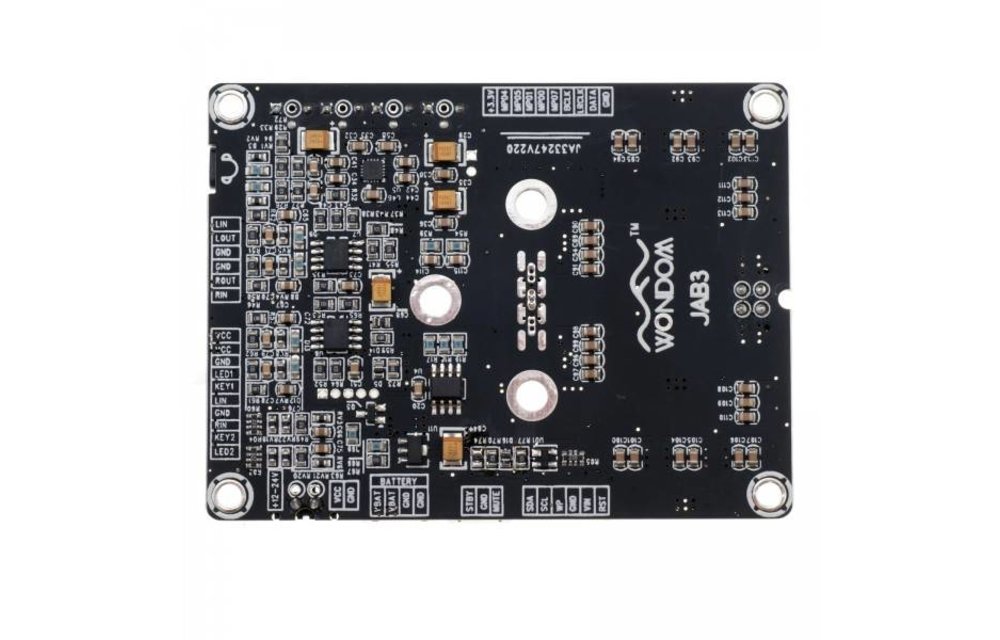

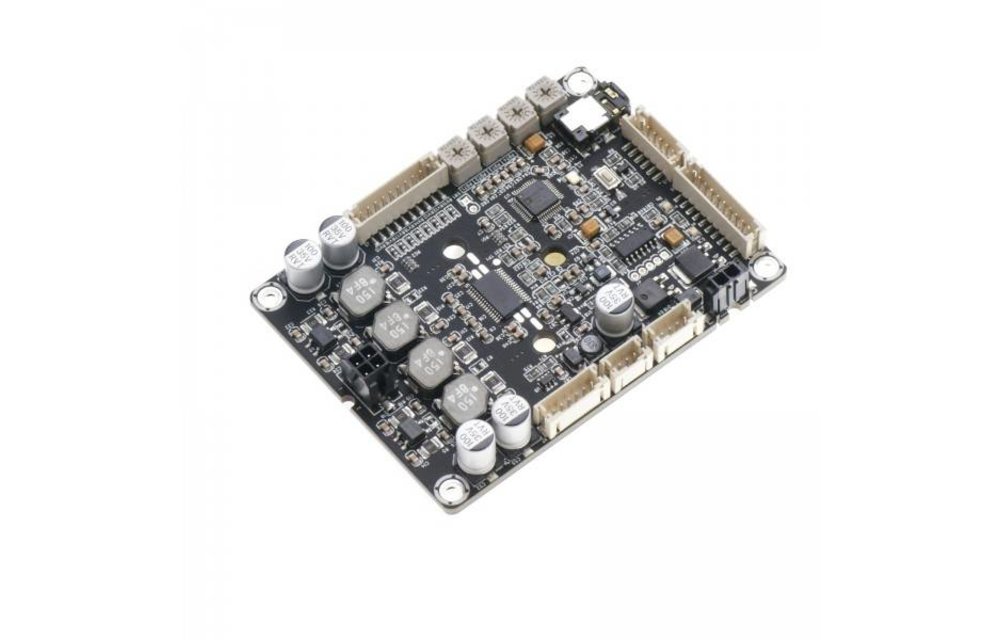

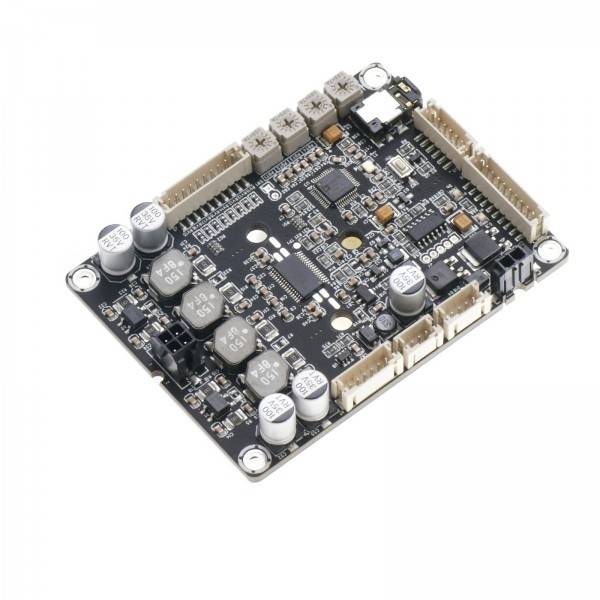

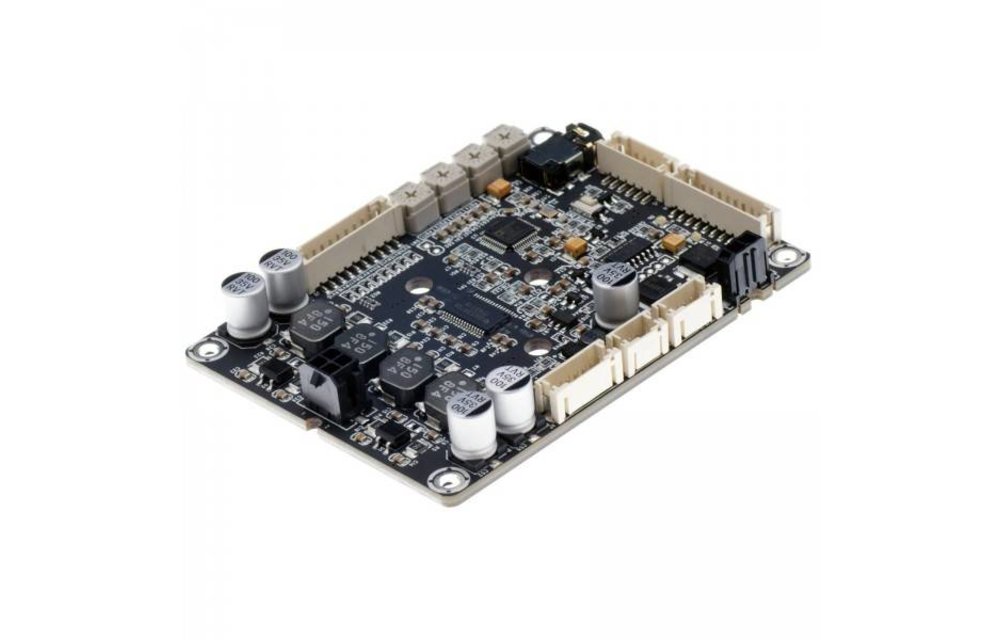

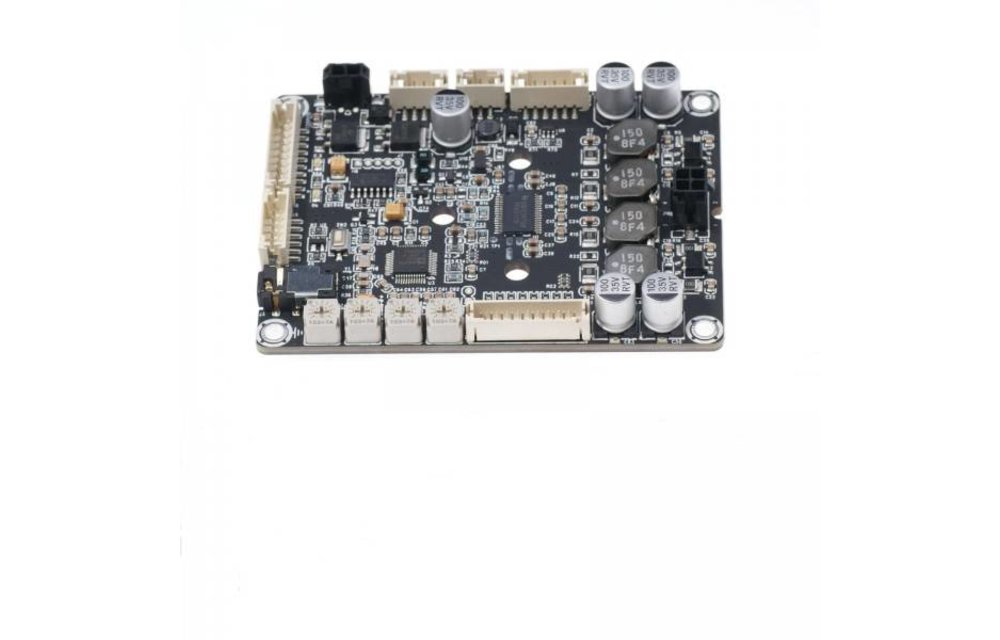

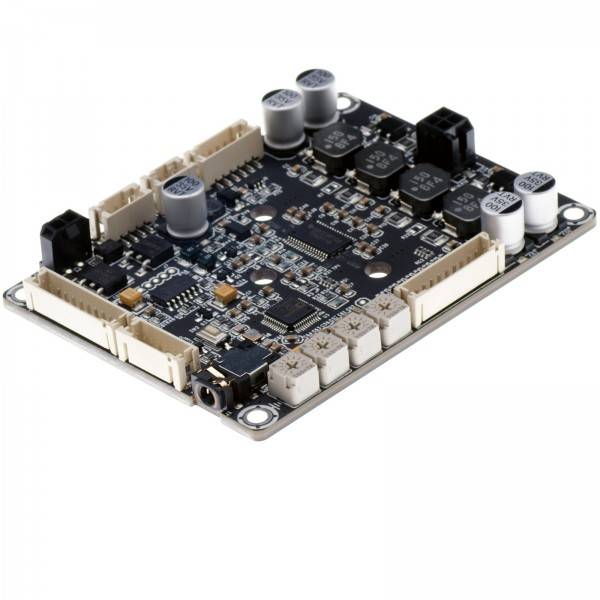

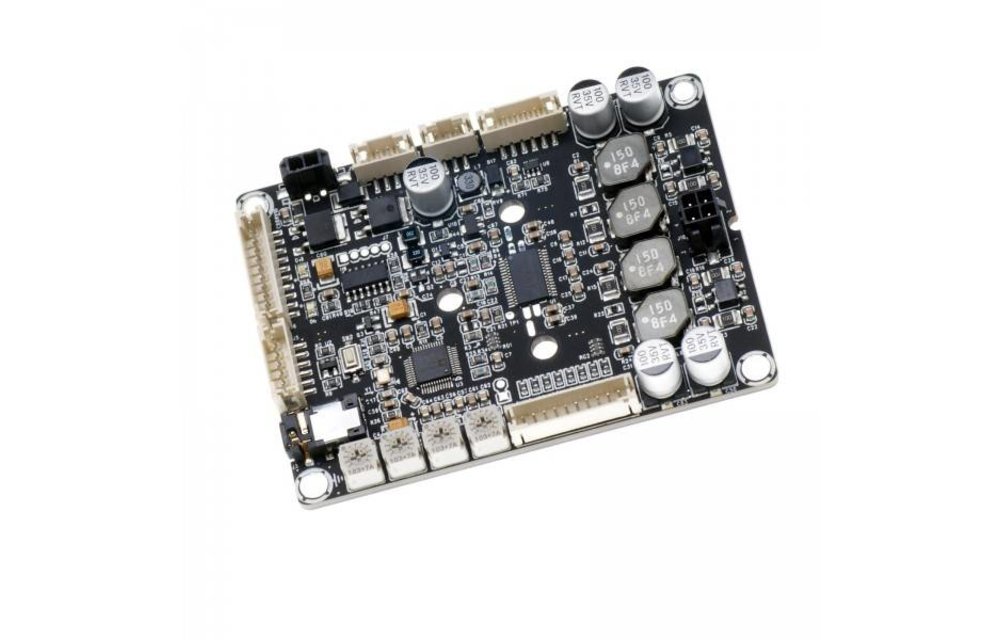

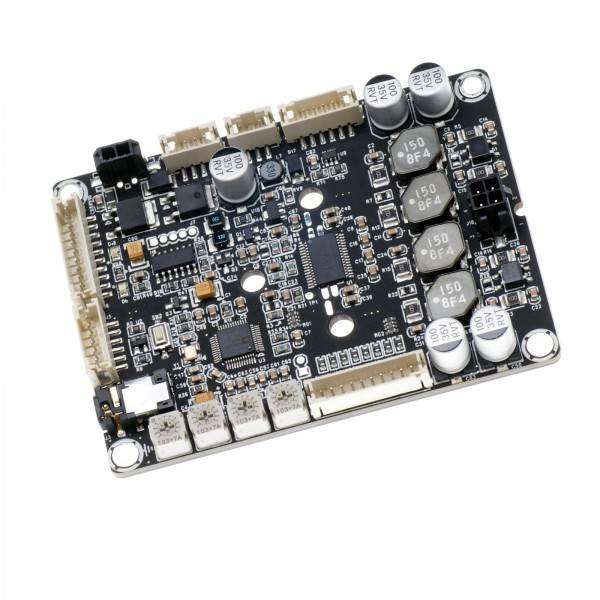

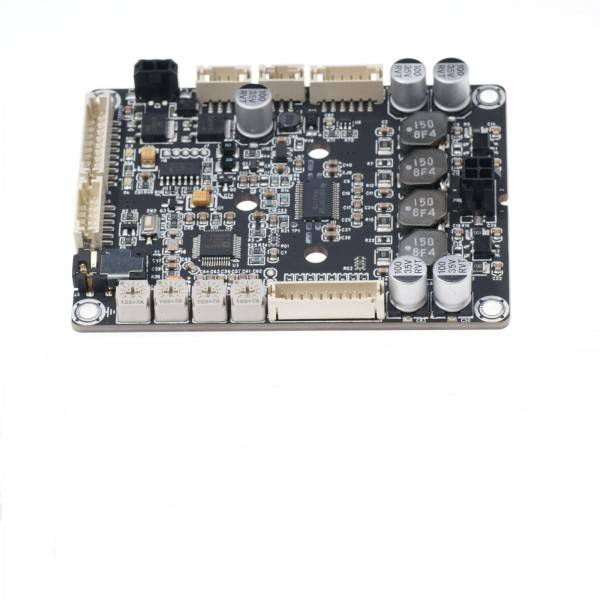

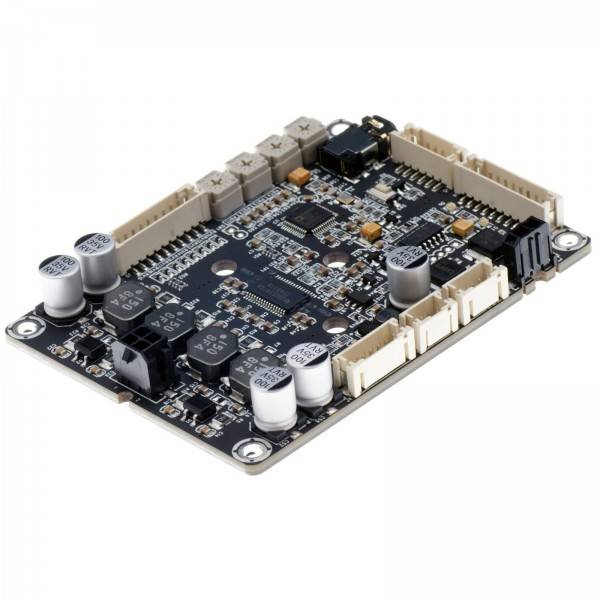

    The Sure Electronics AA-JA31211 1 x 60 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-60 an amplifier board easily built in to any project, speaker build or other DIY project in need of a small amplifier board.



    Highlights

    • ADAU1707 Audio DSP Integrated
    • PBTL Configurable
    • Fully Compatible with JAB1 and JAB2
    • USBi or WONDOM In-Circuit Programmer
    • Debug Port for Sigma Studio through original
    • 6 x 2.7 Inches PCB Size



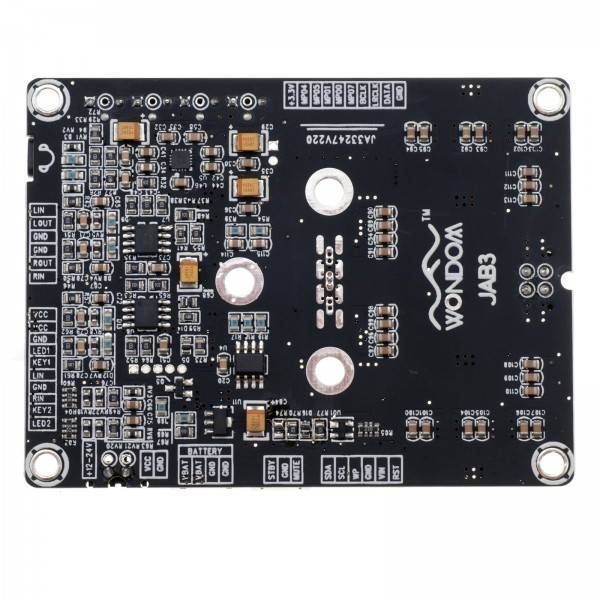

    Connections:





    High Quality Audio Performance

    The Sure Electronics AA-JA31211 1 x 60 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-60 delivers high quality sound without drawing a lot power. The JAB series amplifier boards support Parallel Bridge Tied Load mode, under which two outputs are connected together as one channel. Under PBTL (mono) mode, either of the two inputs can work as the input connector. If audio signal is transmitted to both of the two inputs, the outputs are mixed. Connect the positive and negative output together for best efficiency



    Compatible with JAB1/ 2

    JAB1 and JAB2 provide a stereo solution for portable Bluetooth speakers with MPPT battery charging. More than the headphone amplifier, JAB3 also provides a flexible DSP solution. This means, when working with JAB1/2 main boards, it is a complete 4.0 (BTL), 2.1 and 0.2 (PBTL) audio system with control interfaces and signal processing. The application ranges from active louderspeaker concepts (digital 3 way 3 unit, 2 way 2 unit crossover, bass enhancement, etc.) and realize the transformation from 2.0 to 2.1 (when used with JAB2). With four potentiometers, customers can get the default function and adjust the volume of audio input, gain, cut-off frequency of bass and treble.



    DSP Integration

    With integrated debug port for Sigima Studio, customers can pre-program with Sure Electronics ICP1, ICP2 or the original Analog USBi to get more functions which includes equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, etc. The on board fully programmable 28-/56-bit audio DSP ADAU1701 from Analog device is competent in various signal processing applications. This process can compensate for real-world limitations of speakers, amplifiers, and listening environments, providing dramatic improvements in perceived audio quality. Most process is done in full 56-bit, double precision mode, resulting in very good low level signal performance. Two Σ-Δ ADCs and four Σ-Δ DACs integrated in this DSP provide a 98.5 dB analog input to analog output dynamic. Each ADC has a THD + N of -83 dB, and each DAC has a THD + N of -90 dB. The popular applications are active louderspeaker, public address system and active subwoofer, including stereo high pass filter and mixed low pass filter, also named with powered speaker controller.



    Extremely low standby power

    The Sure Electronics JAB3-60 will remain powered up to 7 days in standby mode even while Bluetooth is enabled. This standby time is approximately 4x longer than the competition due to the use of a high efficiency DC/DC converter which minimizes power consumption thanks to the employment of a micro controller as the PMU (Power Management Unit).







    Applications





    Package includes

    • 1 x Sure Electronics JAB3-60 1 x 60 Watt Class D Audio Amplifier Board with Audio DSP
    • 1 x power cable
    • 1 x 4-conductor speaker cable
    • 1 x 5mm jack cable



    Specificaties

    Artikelnummer
    AA-JA31211
    Nominaal vermogen
    60 watts at 4 ohms
    Minimale belasting
    4 ohms
    Efficiëntie
    84 %
    Signaal-ruisverhouding (SNR)
    88 dB
    Vervorming

    0.03 % THD at 1 kHz, 4 ohms, 1 watt
    0.05 % THD at 1 kHz, 4 ohms, 10 watts

    Frequentierespons
    -
    Versterkingsfactor
    26 dB
    Ingangsgevoeligheid
    0.77 V
    Ingangsimpedantie
    10k ohms
    Amplifier Classification
    Class D
    Versterkertopologie
    Texas Instruments TPA3118
    Uitgangskanalen
    1
    Ingangsconnector
    4 pin PCB connector
    Uitgangsconnector
    4 pin PCB connector
    DSP-functionaliteit
    check
    Bluetooth
    -
    EQ-correctie
    check
    Voedingsvereisten
    12 - 26 VDC
    Voedingsconnector
    2 pin PCB connector
    Stroomlimiet
    -
    Onder-/overspanningsbeveiliging
    check
    Afmetingen (L x B x H)
    91 x 69 x 23 mm
    Afstand tussen bevestigingsgaten
    84 x 61 mm
    Diameter bevestigingsgaten
    3.5 mm

    Reviews

    4 from 5Based on 1 reviews
    Schrijf een review
    4 van 5
    Its a really nice little, programmable subwoofer-amp
    the only problem is the distortion at higher volume (more than 80%)
    I would recommend this amp for subwoofers between 15-35 Watts RMS @4ohm- to receive the whole potential
    Door Felix T. on 9 Mei 2020
