      Sure Electronics AA-AB32361 2 x 160Watt Class D Audio versterkermodule - TDA7498E

      € 40,45€ 48,95 6 Op voorraad: levertijd 1 werkdag
      Volume voordeel Geniet van deze geweldige kortingsdeals
      • -5% Bestel 4 voor slechts € 46,50 per stuk
      • Voor 16u besteld, vandaag verstuurd
      • Gratis verzending vanaf € 99 (NL & BE)
      • In-house technische support
      • 45 dagen zorgeloos retourneren
      Heeft u vragen over dit product?

      Heeft u vragen over dit product?

      Onze klantenservice helpt u graag verder!

      Productomschrijving

      Highlights

      • Style: Boards
      • Number Of Channel(s): 2
      • Output Power: 160
      • Size: 4.8 x 3.6 inches (121.92mm x 91.44mm)
      • Chipset: TDA749x
      • Heat Dissipation: Heat Sink & FAN
      • Supported Parallel Bridge Tied Load Mode: NO
      • input: Single ended Line-in,
      • Power Voltage: 15V-36V



      Product Details

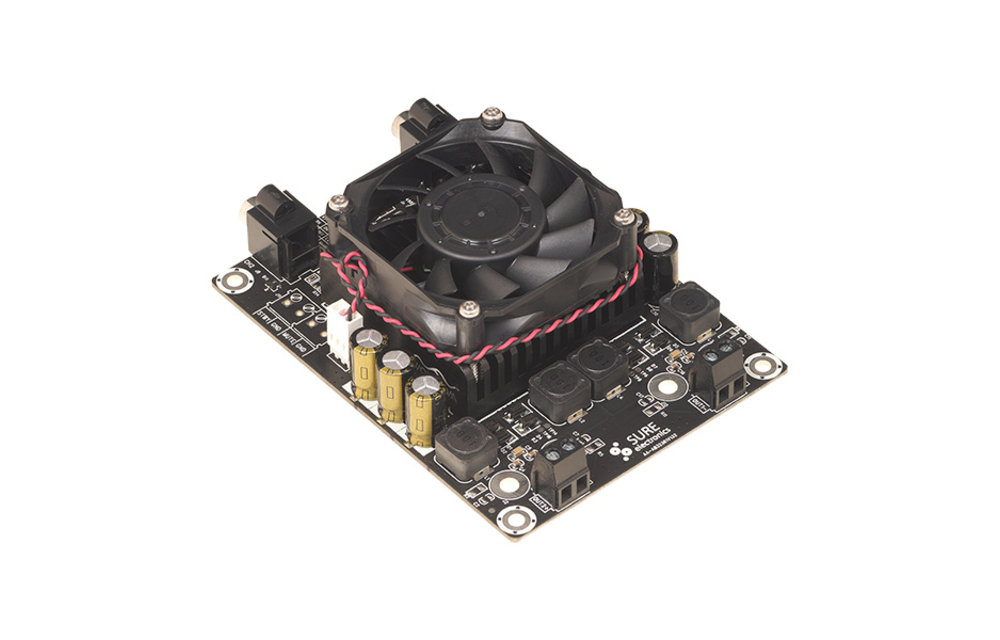

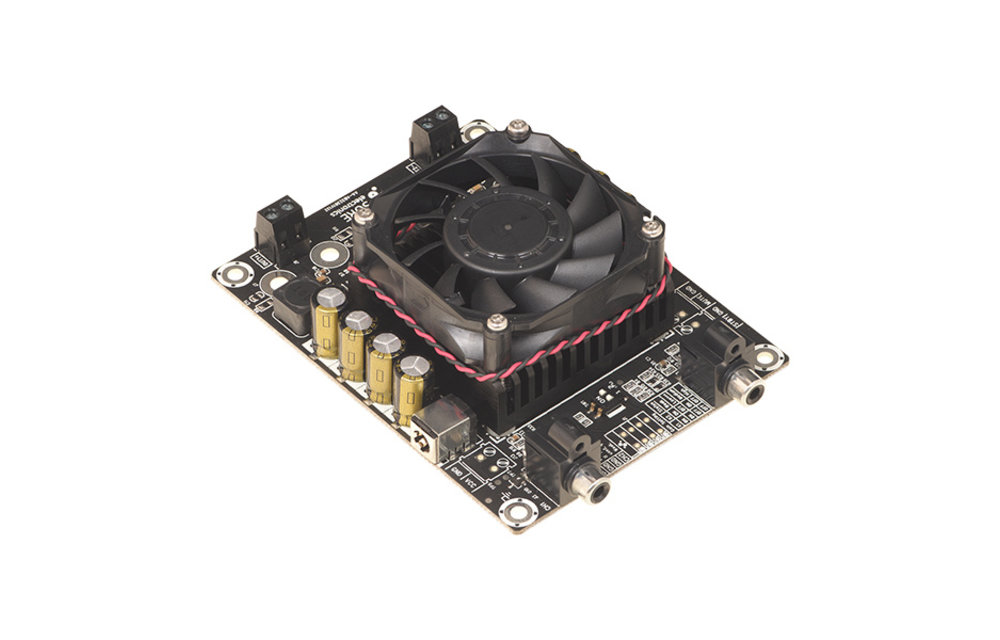

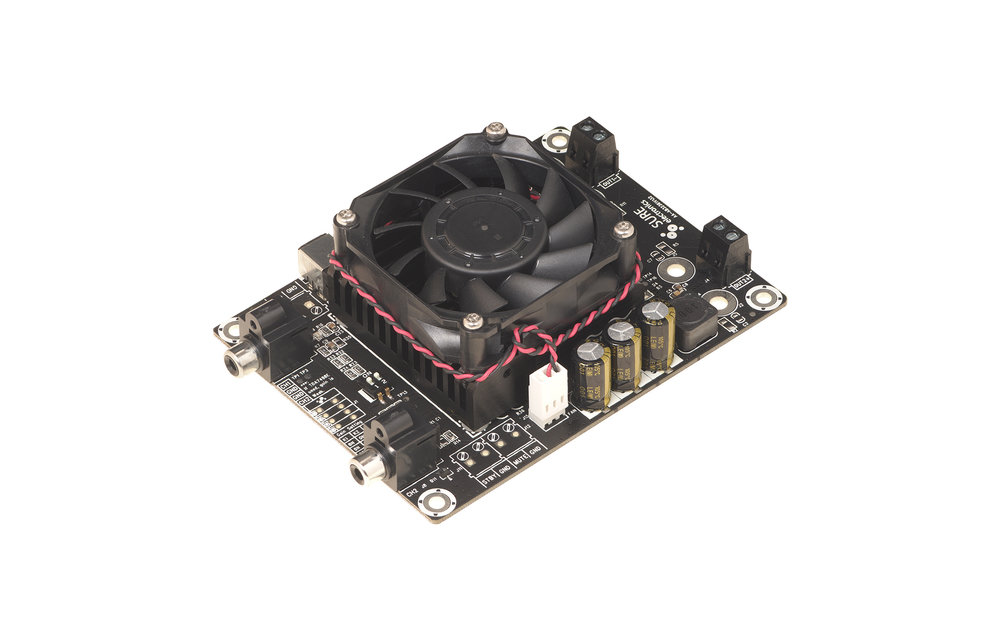

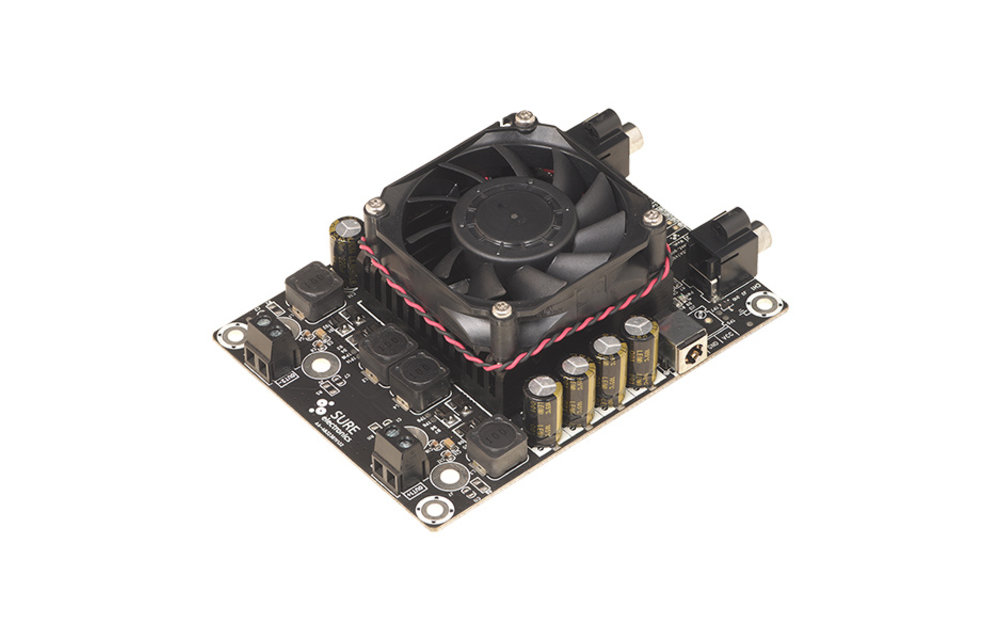

      Sure Electronics AA-AB32361 2 x 160Watt Class D Audio Amplifier Board - TDA7498E



      This Class D stereo mid-power audio amplifier board employs TDA7498E amplifier IC as the driver and delivers 160W output power per channel into a 4Ohm load. It features high efficiency up to 95% and high sound quality with low distortion and low noise level. Easy installation, high reliability and mid power output makes this audio amplifier board suitable for home audio, DIY audio, desktop amplifier, car audio, home theater and demanding industrial applications. A DC15-36V power supply is required.



      High Quality Audio Performance

      By means of the dedicated PCB layout design and engineers’ attentive debugging, this mid-power audio amplifier board features high audio performance, whose SNR reaches 87dB and THD+N performs well as 0.032% @ 4Ohm, 1W, 1kHz.



      High Reliability and Long Service Time

      An optimal heatsink along with a low noise cooling fan is mounted atop the amplifier board to maximum the heat dissipation, which improves its stability. Mute and Standby functions are offered with this amplifier module for easy control. Full protection circuit, like over temperature protection and overcurrent protection, is equipped on this board for high reliability and long service time.



      Easy for Installation

      Four screw holes provided make this amplifier board easy for installation and quick for integration in any cabinet. All the necessary terminals for power supply, audio input and audio output are pre-mounted on the board. Therefore, you only need to plug in the cables and enjoy music without any need of soldering.


      Four Stages Gain Adjustable

      This audio module provides four stages gain for customers’ choice as 23.6dB, 29.6dB, 33.1dB and 35.6dB. You can select the most suitable stage for your application. The switch among the four stages gain is achieved by the different combination of the two switches on the board, no need of complex operations.



      Package Includes:

      1pc AA-AB32361



      Specifications: Number Of Channel(s): 2 • Output Power • [email protected] 36V DC THD+N 10% • [email protected] 36V DC THD+N 1% • Power Indicator • Gain Adjustable • Low Noise Cooling Fan • Over current Protection • Over temperature Protection • Optimized Heatsink Design • Weight: 416g/ 0.92 lbs (±10%) • Size: 4.80 x 3.60 x 1.53 inches (121.92mm x 91.44mm x 38.82mm)

      Specificaties

      Artikelnummer
      AA-AB32361
      Nominaal vermogen
      2 x 160W @4Ohm
      Minimale belasting
      4 Ohms
      Efficiëntie
      90-95%
      Signaal-ruisverhouding (SNR)
      87 dB
      Vervorming
      0.032%
      Frequentierespons
      20 - 20.000 Hz
      Versterkingsfactor
      23.6 - 35.6 dB
      Ingangsgevoeligheid
      1.923 V RMS
      Ingangsimpedantie
      33K Ohm
      Amplifier Classification
      Class D
      Versterkertopologie
      TDA749x
      Uitgangskanalen
      2
      Ingangsconnector
      RCA
      Uitgangsconnector
      Phoenix connector
      Voedingsvereisten
      15V-36V
      Stroomlimiet
      9.6 A
      Afmetingen (L x B x H)
      4.80 x 3.60 x 1.53 inches
