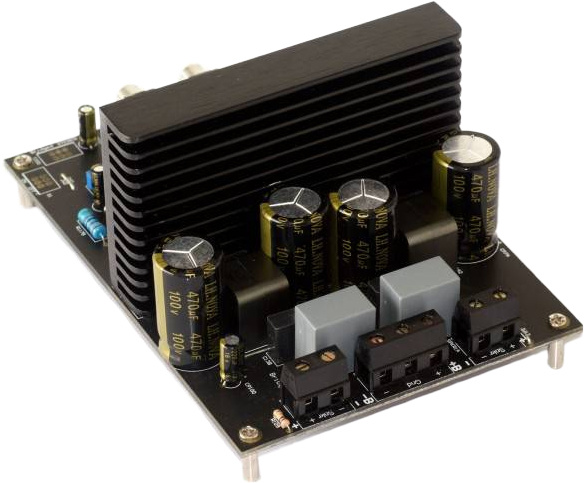

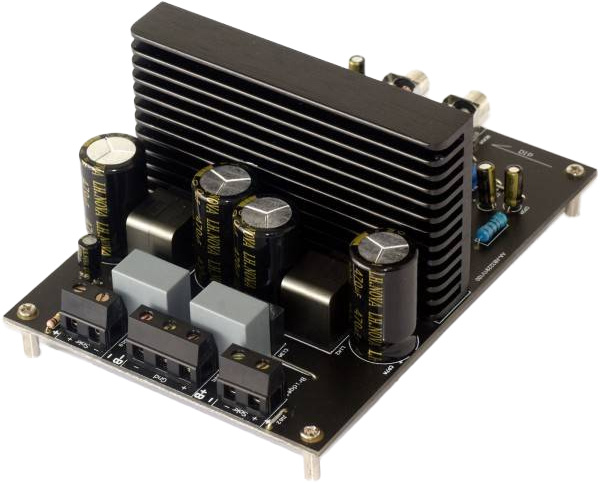

    Sure Electronics AA-AB32321 2x125W IRS2092 8 Ohm Class D Audio Amplifier Board

    € 43,51€ 52,65 7 Op voorraad: levertijd 1 werkdag
    This 2 x 125 Watt Class D Audio Amplifier Board - IRS2092 integrates high performance IRS2092 supporting dual channel audio amplification. Both of channels are capable of outputting nominal power simultaneously and continuously. It’s suitable for amplifie... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €50,02 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    This 2 x 125 Watt Class D Audio Amplifier Board - IRS2092 integrates high performance IRS2092 supporting dual channel audio amplification. Both of channels are capable of outputting nominal power simultaneously and continuously. It’s suitable for amplifier enthusiasts or hobbyists to finish a complete amplifier system.



    Highlights

    • Class-D IRS2092 amp IC
    • Over-engineered protection circuits
    • Requires 45 to 60 VDC power supply



    Product details

    Sure Electronics AA-AB32321 2x125W Class D Audio Amplifier Board – IRS2092



    This 2 x 125 Watt Class D Audio Amplifier Board - IRS2092 integrates high performance IRS2092 supporting dual channel audio amplification. Both of channels are capable of outputting nominal power simultaneously and continuously. It’s suitable for amplifier enthusiasts or hobbyists to finish a complete amplifier system.



    This amplifier board also includes a myriad of protection features: over current, over/under voltage, DC output, and temperature protection circuits are built-in. A rather small footprint lends itself for use in space limited applications. Dimensions: 6" X 4.5"

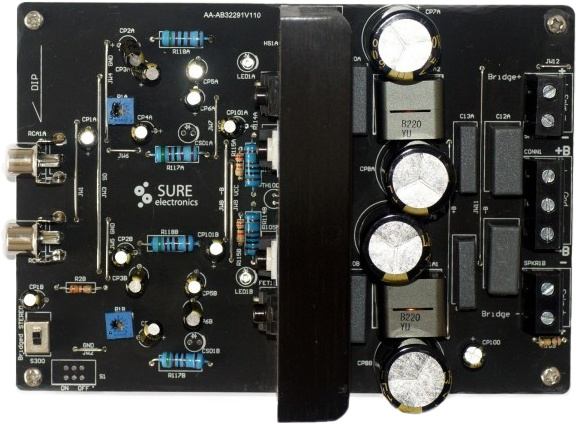

    Connections:



    Typical Performance Graphs:

    Frequency response:





    Noise Floor:



    THD+N VS Frequency:



    Thermal Image:



    All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.



    Specificaties

    Artikelnummer
    AA-AB32321
    Rated power output
    2 x 125 watts at 8 ohms
    Minimum load
    8 ohms
    Efficiency
    85-90 %
    Signal-to-noise ratio (SNR)
    96 dB
    Distortion

    0.023 % THD at 8 ohms, 1 watts, 1 kHz
    0.054 % THD at 8 ohms, 10 watts, 1 kHz

    Frequency response
    20 - 20,000 Hz
    Gain
    31 dB
    Input sensitivity
    839 mV for rated power output
    Input impedance
    100k ohms
    Amplifier Classification
    Class D
    Circuit Topology
    Infineon Technologies IRS2092
    Speaker output channels
    2
    Input connection type
    RCA
    Speaker output connection type
    Screw terminals
    DSP function
    -
    Bluetooth
    -
    EQ Adjustment
    -
    Power Requirements
    45 - 60 VDC
    Power inlet connector
    Screw terminals
    Current limit
    5.9 A
    Under/over voltage protection
    check
    Dimensions (L x W x H)
    152.4 x 114.3 mm
    Mounting hole spacing
    134.62 / 91.44 mm
    Mounting hole diameter
    3.6 mm

    Reviews

    5 from 5Based on 2 reviews
    Schrijf een review
    5 van 5
    Dit was mijn eerste bestelling bij SoundImports, zeker niet de laatste. Spullen supersnel in huis, grote plus voor mij is de klantenservice: ik had een probleempje gemeld per email. Zeer snel reactie ontvangen, er werd meegedacht, gewoon heel goed en professioneel. 5 sterren!

    De versterker module: niets op aan te merken. PCB ziet er netjes uit, geen vuiligheid oid. Plug & Play; + en - 45 tot 50 V aansluiten, bron en speakers en het speelt. Nog niet kritisch geluisterd, maar vind 'm verbazingwekkend goed (voor die prijs). Prijs/kwaliteit vind ik m 5 sterren zeker waard.
    Door Bart V. on 21 Januari 2021
    4 van 5
    This device works very well it can produce transient, details and grain I like from my diy dipole speaker. Comparing with tpa3116 solutions, there’s a better control of diaphragm motion.
    The major issue is related to the gain: too much gain can emphathize noise coming from the sources. I solved the issue by replacing the 3k input resistor with a 6k one, reducing the gain to 26dB: more than enough for my setup. I’m planning to replace or remove completely the input caps to reduce distortion.
    Door Francesco P. on 13 Maart 2019
