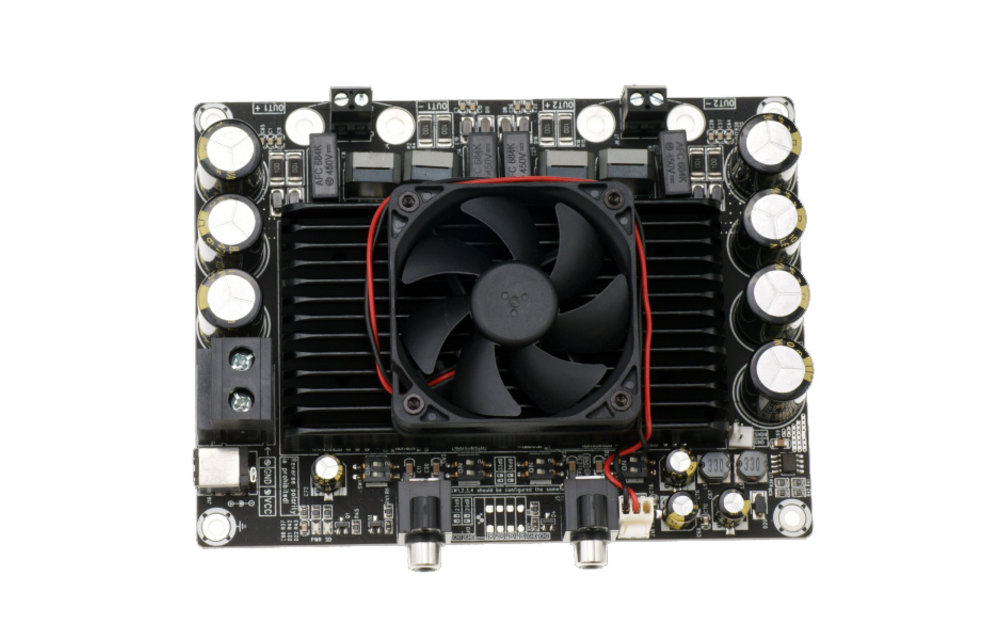

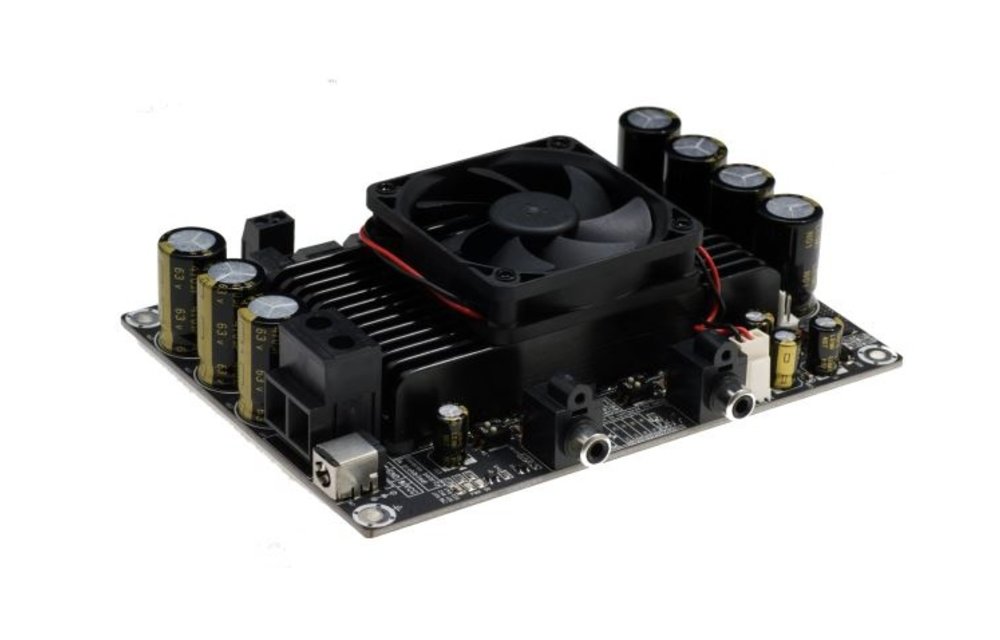

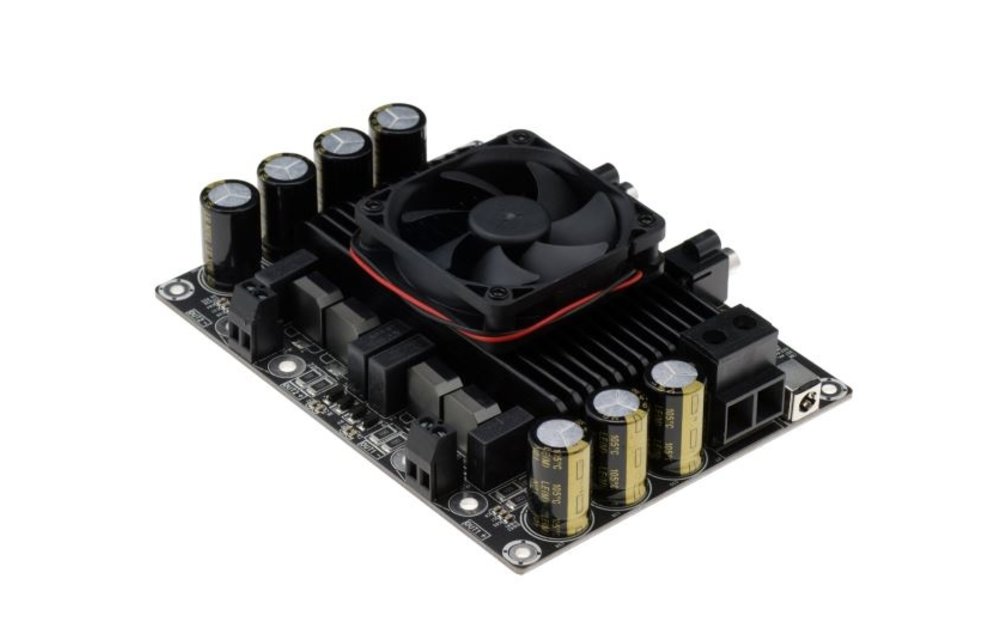

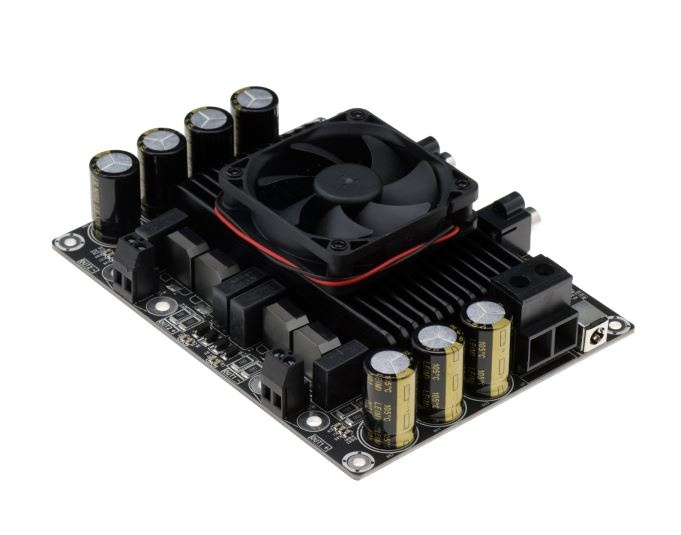

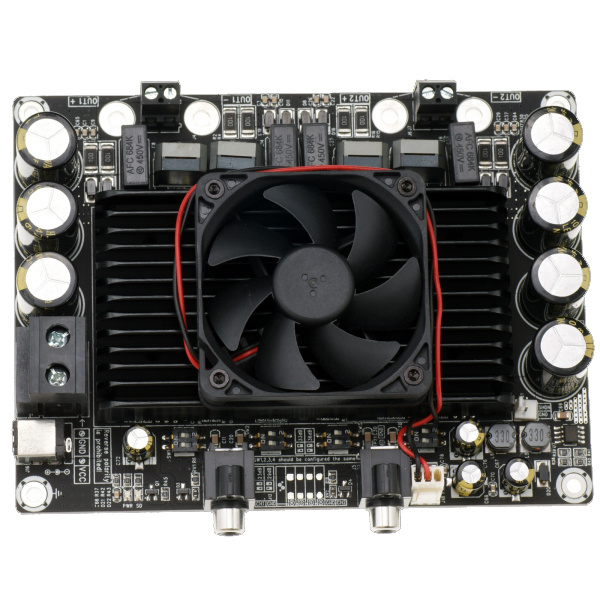

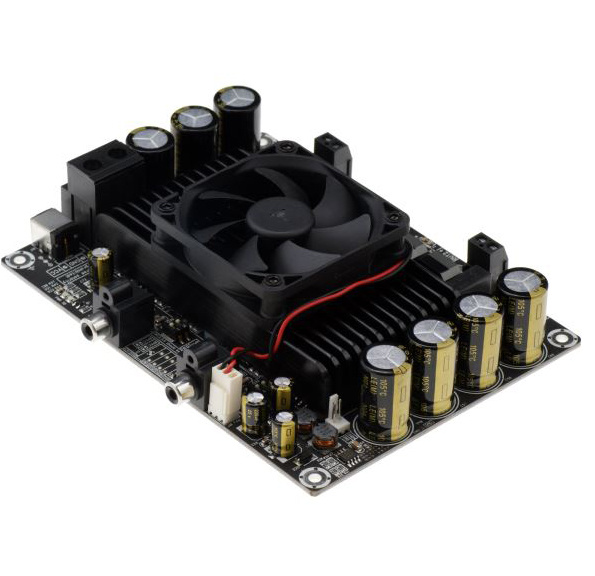

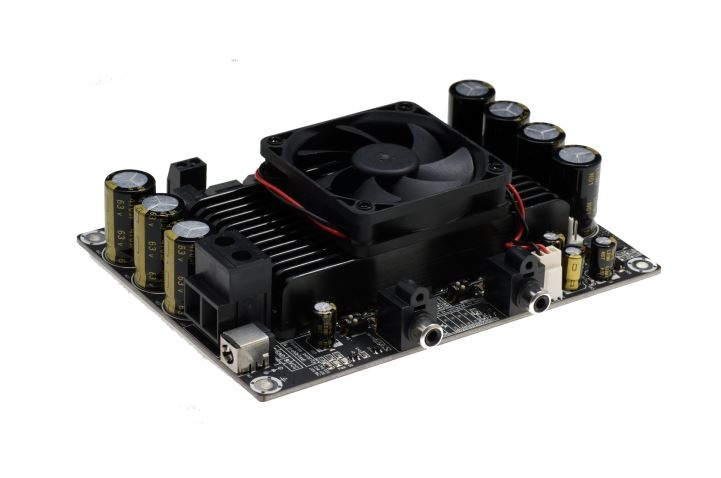

    Sure Electronics AA-AB32221 2x150W TAS5613 Class-D Amplifier Board

    € 52,45 Niet op voorraad: binnen 1 week leverbaar
    This 2 x 150W Class-D audio amplifier board integrates TI’s high performance TAS5613 supporting stereo channel audio amplification.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €49,83 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    This 2 x 150W Class-D audio amplifier board integrates TI’s high performance TAS5613 supporting stereo channel audio amplification.



    Highlights

    • Perfect for use as a subwoofer amplifier for home or vehicle
    • Up to 2 x 150W of Class-D clean power
    • Over-engineered protection circuits
    • Requires 18 to 38 VDC power supply
    • Temperature controlled cooling fan
    • Gain adjustable



    Product details

    Sure Electronics AA-AB32221 2x150W TAS5613 Class D Audio Amplifier Board



    This 2 x 150W Class-D audio amplifier board integrates TI’s high performance TAS5613 supporting stereo channel audio amplification. For do-it-yourselfers, looking for a background music system amp for your home or vehicle. Temperature controlled cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. Requires a DC power supply ranging from 18 to 38V.

    Specificaties

    Artikelnummer
    AA-AB32221
    Rated power output
    2 x 150 watt at 4 ohms
    Minimum load
    4 ohms
    Efficiency
    >91 %
    Signal-to-noise ratio (SNR)
    94 dB
    Distortion
    -
    Frequency response
    20 - 22,000 Hz
    Gain
    20, 26.8, 30.1 or 32.5 dB
    Input sensitivity
    2.4 V
    Input impedance
    10k ohms (minimum)
    Amplifier Classification
    Class D
    Circuit Topology
    Texas Instruments TAS5613
    Speaker output channels
    2
    Input connection type
    <p>Screw terminals<br />PCB solder connectors<p>
    Speaker output connection type
    <p>Screw terminals<br />PCB solder connectors<p>
    DSP function
    -
    Bluetooth
    -
    EQ Adjustment
    -
    Power Requirements
    18 - 38 VDC
    Power inlet connector
    <p>Screw terminals<br />DC jack<br />
    Current limit
    9 A
    Under/over voltage protection
    check
    Dimensions (L x W x H)
    152 x 114 x 39 mm
    Mounting hole spacing
    -
    Mounting hole diameter
    -

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Great product !!!
    Door Antoine F. on 19 December 2020
