    Sure Electronics AA-AB32155 2x15W 4 Ohm TA2024 Class-D Audio Amplifier Board

    € 29,95 8 Op voorraad: levertijd 1 werkdag
    This assembled and tested Class-T amplifier board features proprietary digital power processing technology, perfect for creating active speakers for home or multimedia applications.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €28,45 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    This assembled and tested Class-T amplifier board features proprietary digital power processing technology, perfect for creating active speakers for home or multimedia applications.



    Highlights

    • Tripath TA2024 Class-D/Class-T architecture
    • Proprietary digital power processing technology
    • Audiophile performance
    • Two channels, 4 or 8 ohm loads
    • No heat sink required
    • Up to 88% efficiency
    • Line level analog audio input



    Product details

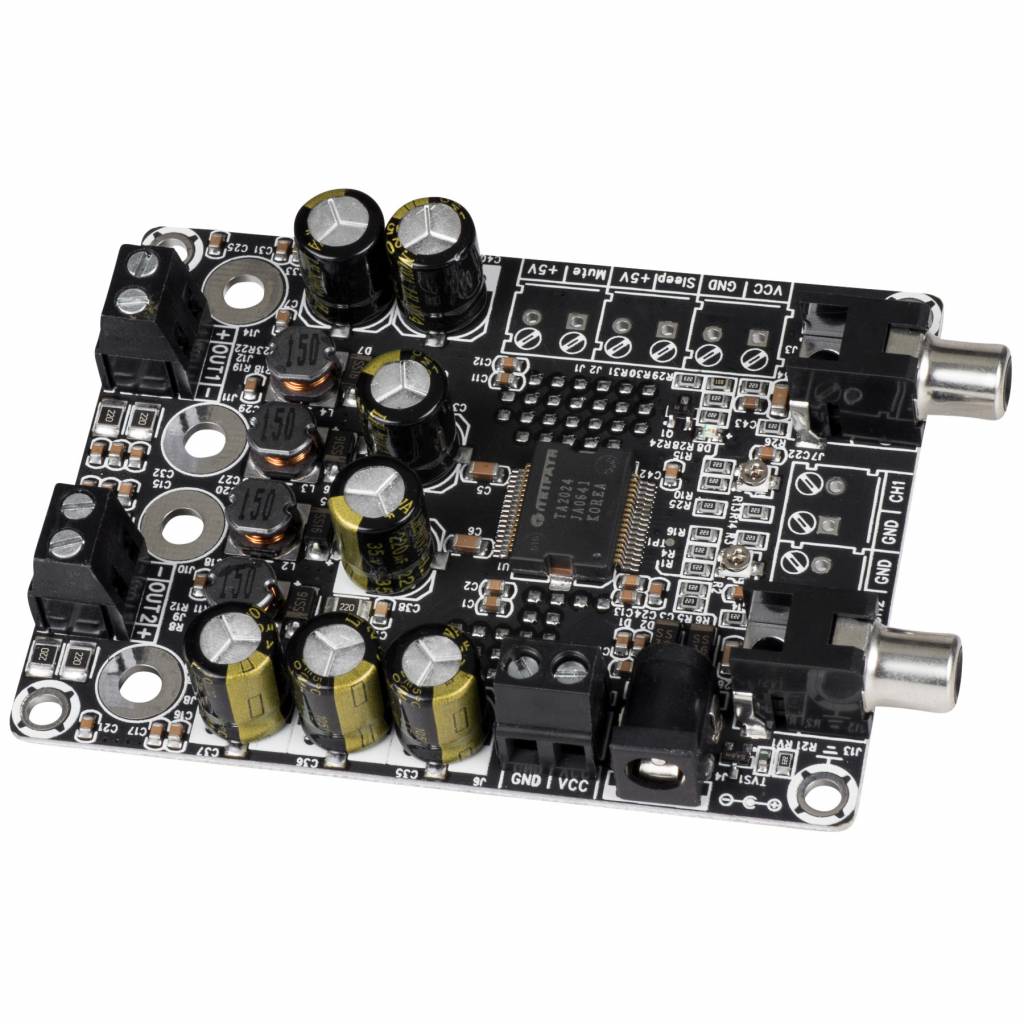

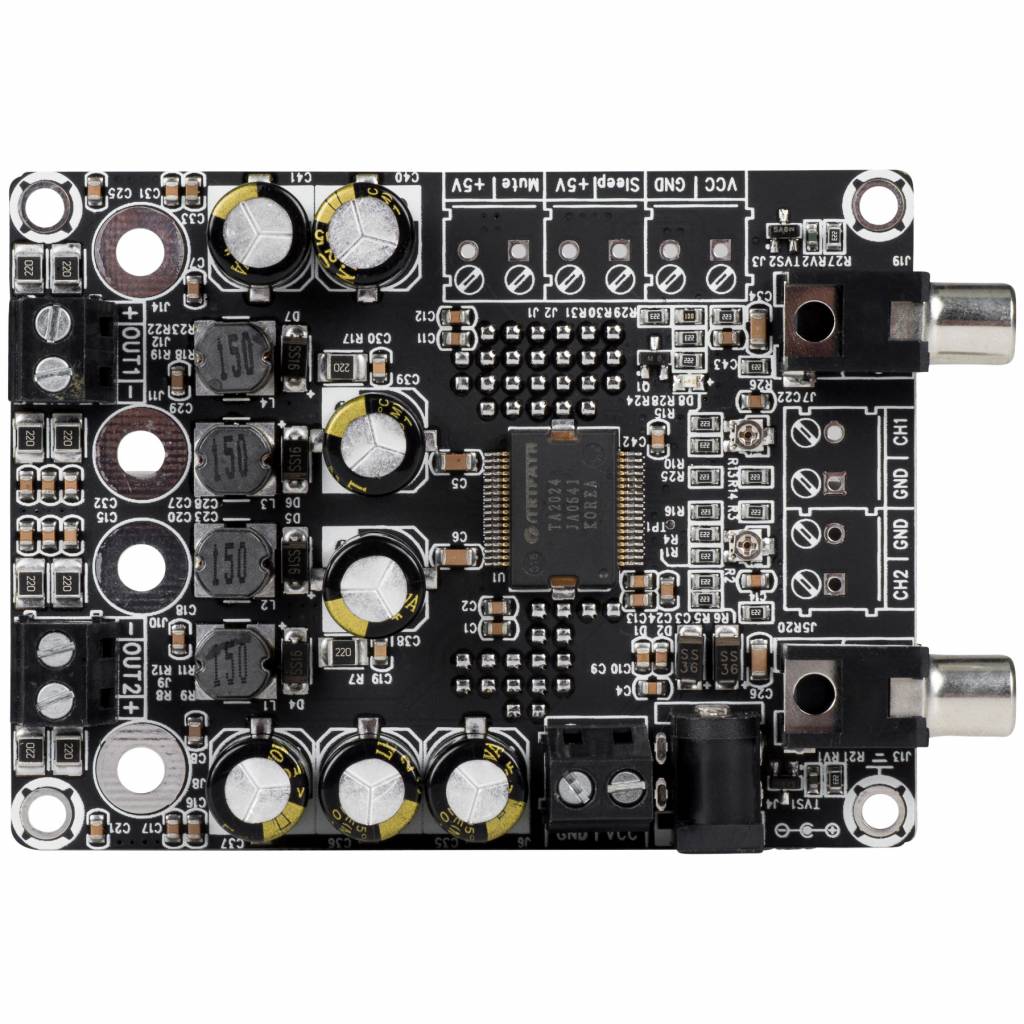

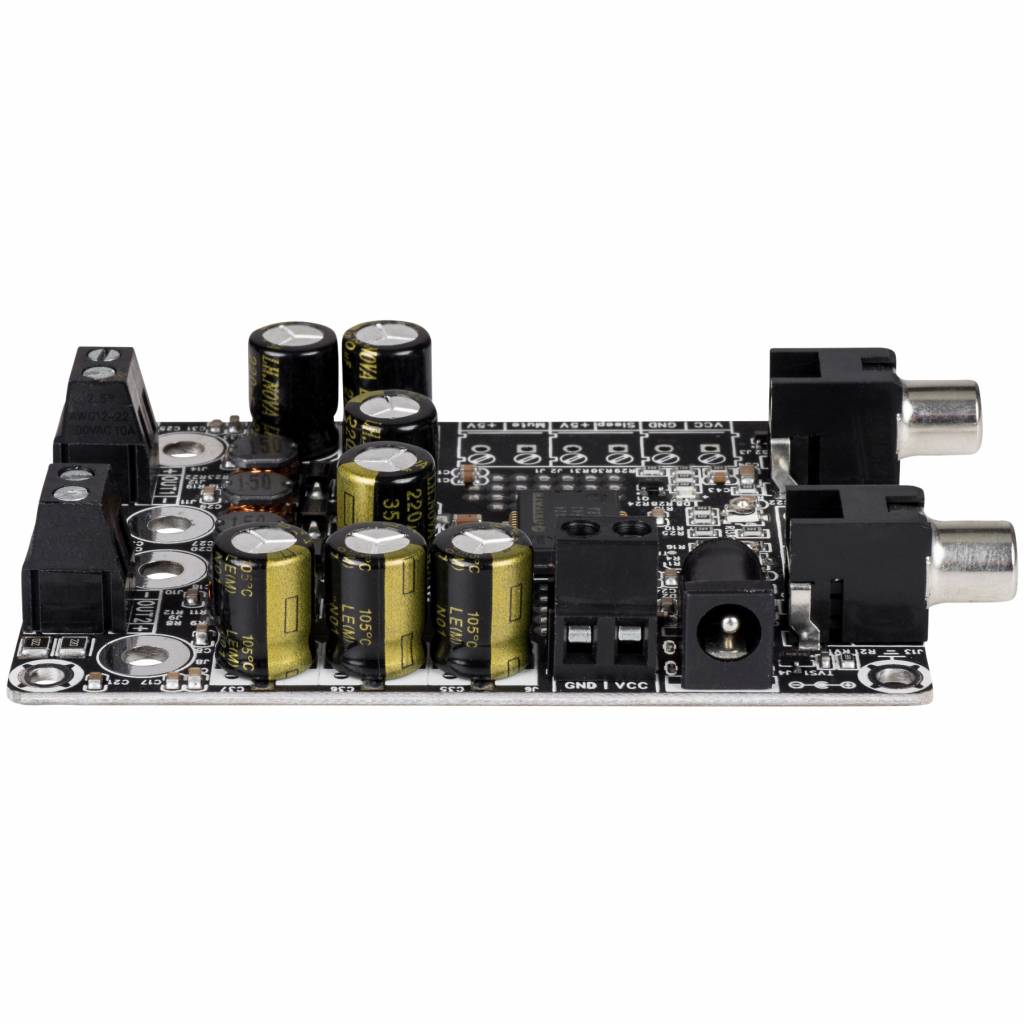

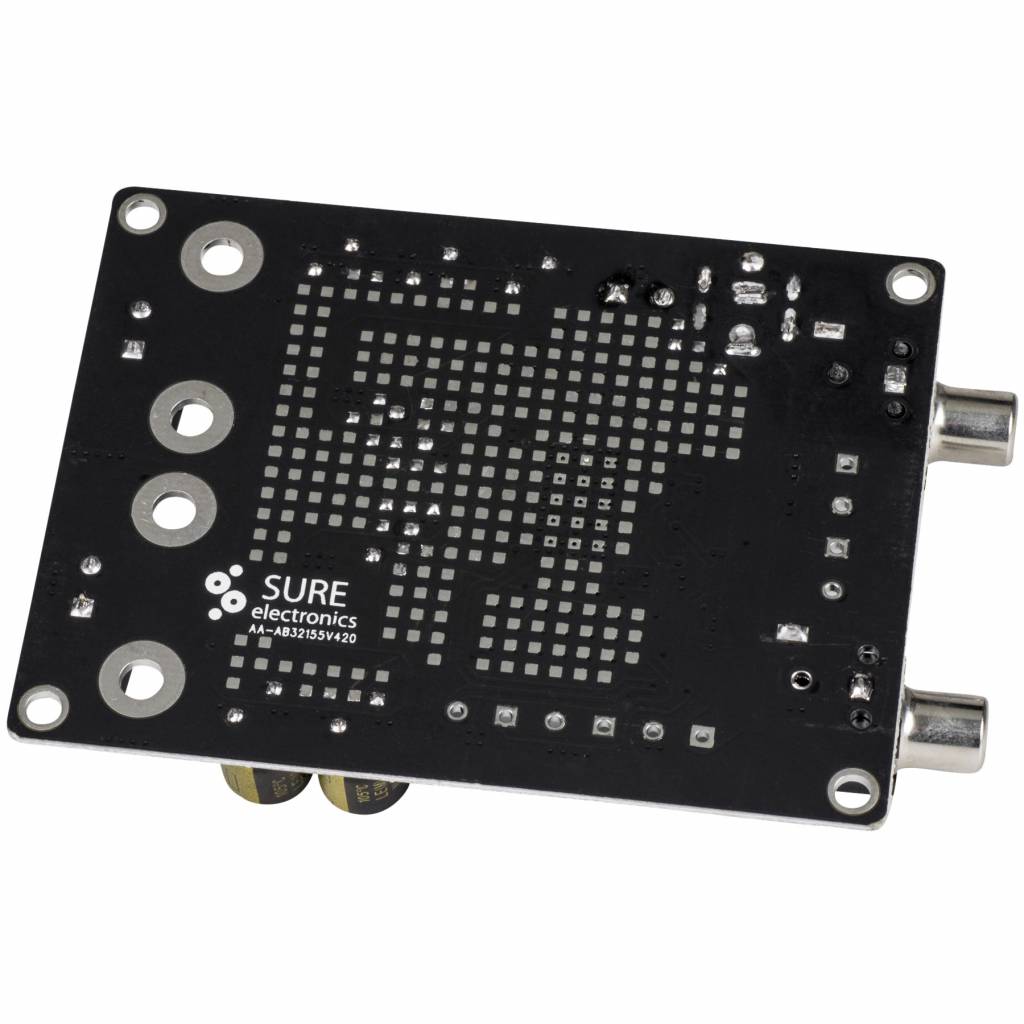

    Sure Electronics AA-AB32155 2x15W 4 Ohm TA2024 Class-D Audio Amplifier Board



    Assembled and tested, this Class-T amplifier is designed with proprietary digital power processing technology, perfect for creating active speakers for home or multimedia applications. Features include: mute and sleep inputs, turn-on/turn-off pop suppression, intelligent short-circuit protection, and over-temperature protection. Requires single 12 VDC power source. Recommended power supply: 12VDC, 2000 mA, regulated. Board only, mounting hardware not included.

    Specificaties

    Artikelnummer
    AA-AB32155
    Rated power output
    2 x 15 watts at 4 ohms
    Minimum load
    4 ohms
    Efficiency
    80 - 85 %
    Signal-to-noise ratio (SNR)
    84.4 dB
    Distortion
    <p>0.024 % THD at 1 kHz, 4 ohms, 1 watt</br>0.54 % THD at 1 kHz, 4 ohms, 10 watts</p>
    Frequency response
    20 - 20,000 Hz
    Gain
    21 dB
    Input sensitivity
    0.75 V
    Input impedance
    22k ohms
    Amplifier Classification
    Class D
    Circuit Topology
    Tripath TA2024
    Speaker output channels
    2
    Input connection type
    <p>RCA</br> PCB solder connection</p>
    Speaker output connection type
    <p>Screw terminal</br> PCB solder connection</p>
    DSP function
    -
    Bluetooth
    -
    Power Requirements
    10 - 14 VDC
    Power inlet connector
    <p>2.6 mm DC jack</br>Screw terminal</p>
    Current limit
    3 A
    Under/over voltage protection
    -
    Dimensions (L x W x H)
    91 x 69 x 17 mm
    Mounting hole spacing
    84 x 61 mm
    Mounting hole diameter
    3.5 mm

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Werkt perfect met weinig stroomverbruik.
    Door Jacques D. on 1 Oktober 2020
