If you absolutely have to have 500 clean watts of stereo power, look no further than this amplifier board. It integrates high performance class D audio amplifier driver IRS2092SPBF and 200V Single N-Channel HEXFET Power MOSFET IRFB4227 by using one channel half bridge topology.

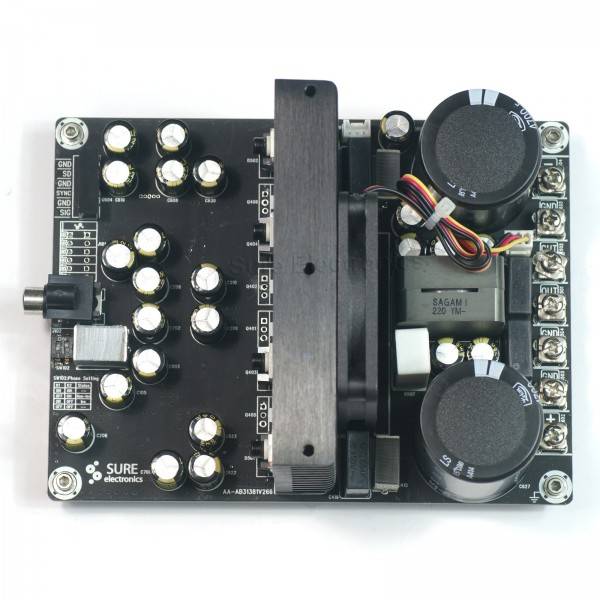

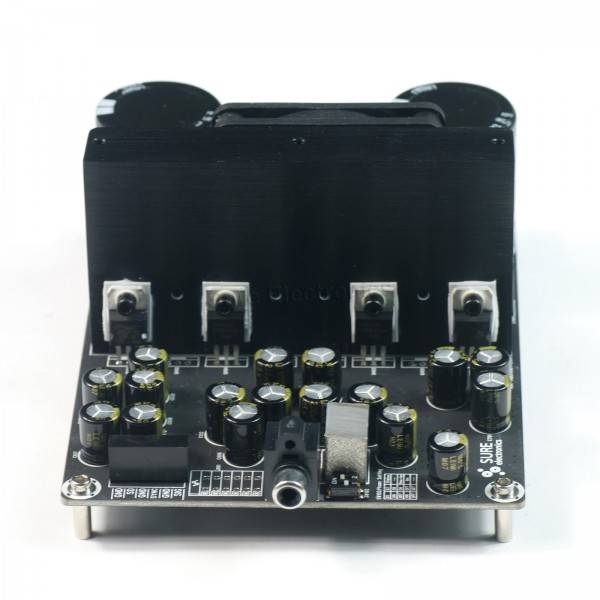

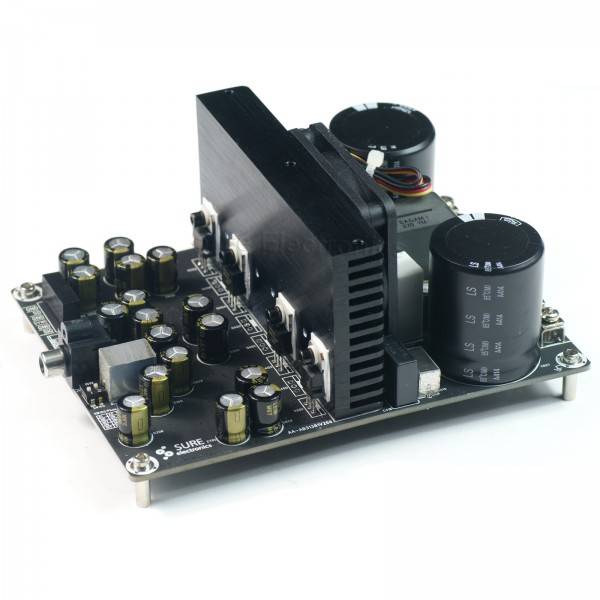

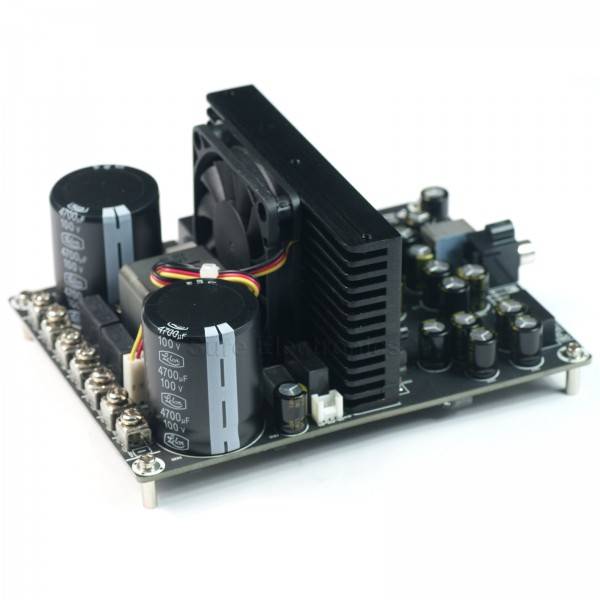

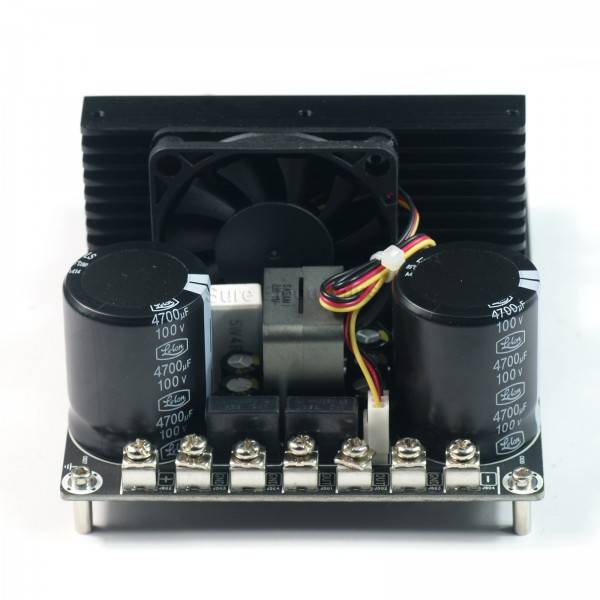

Sure Electronics AA-AB31512 1x500W IRS2092 4 Ohm Class D Audio Amplifier Board
If you absolutely have to have 500 clean watts of stereo power, look no further than this amplifier board. It integrates high performance class D audio amplifier driver IRS2092SPBF and 200V Single N-Channel HEXFET Power MOSFET IRFB4227 by using one channel half bridge topology.
Two 55 to 65 VDC high-voltage power supplies are required for operation; each power supply dedicates its full output potential to a single rail for maximum output. This results in increased high-fidelity output, high dynamic range, low distortion, and a wide 20 to 22,000 Hz frequency response.
Connection:
Typical Performance Graphs:
Frequency response:
Noise Floor:
THD+N VS Frequency:
Thermal Image:
All parameters were tested with Rohde & Schwarz UPV audio analyzer and AP AUX0025 filter with AES17 filter enabled.
0.03 % at 4 ohms, 1 watts, 1 kHz
0.04 % at 4 ohms, 10 watts, 1 kHz
