        Excel W22EX/001 - E0022 Bass-midwoofer

        Excel W22EX/001 - E0022 Bass-midwoofer

        €449,95

        SEAS Excel W22EX/001 - E0022 Bass-midwoofer

        1 reviews
        5 van 5
        1 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SEAS
        € 371,86€ 449,95 9 Op voorraad
        • -5% Bestel 4 voor slechts € 427,45 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Highlights

        • Long term power handling (RMS) is 120 Watts
        • Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances
        • Gold plated terminals mounted on a glass fiber reinforced plate reduce contact resistance and improve reliability



        Product details

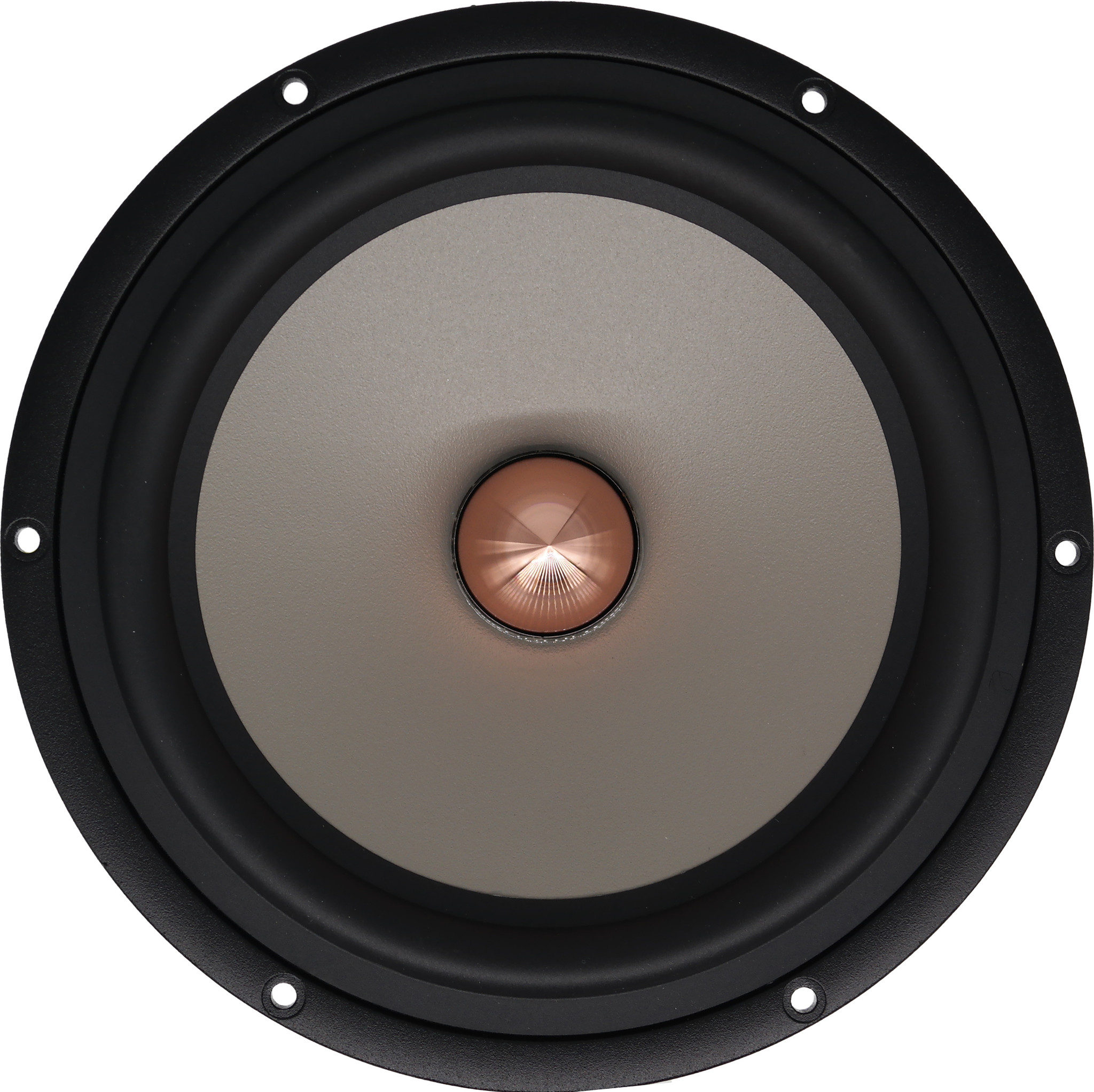

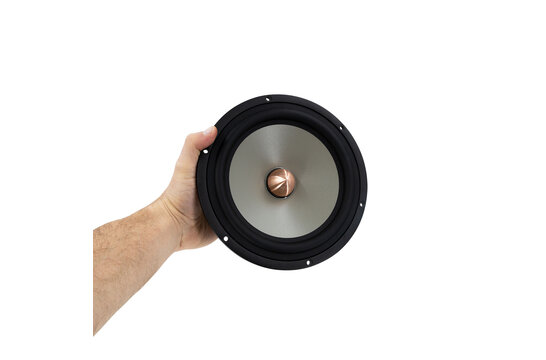

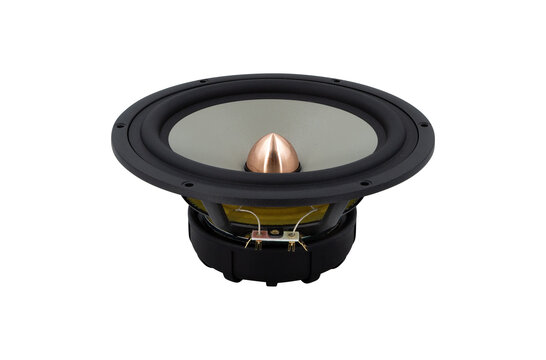

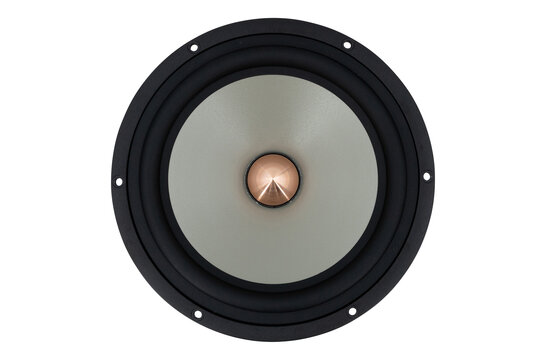

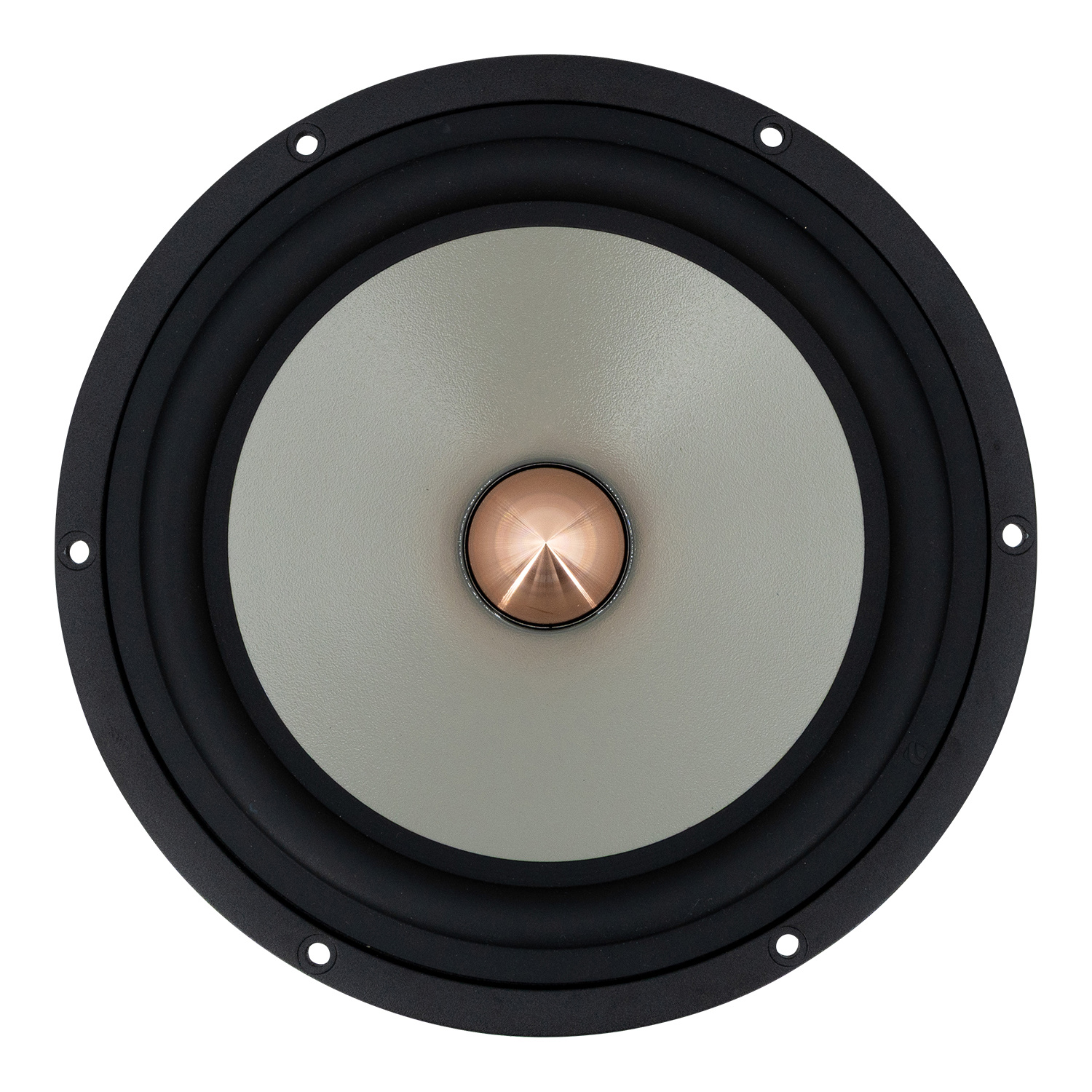

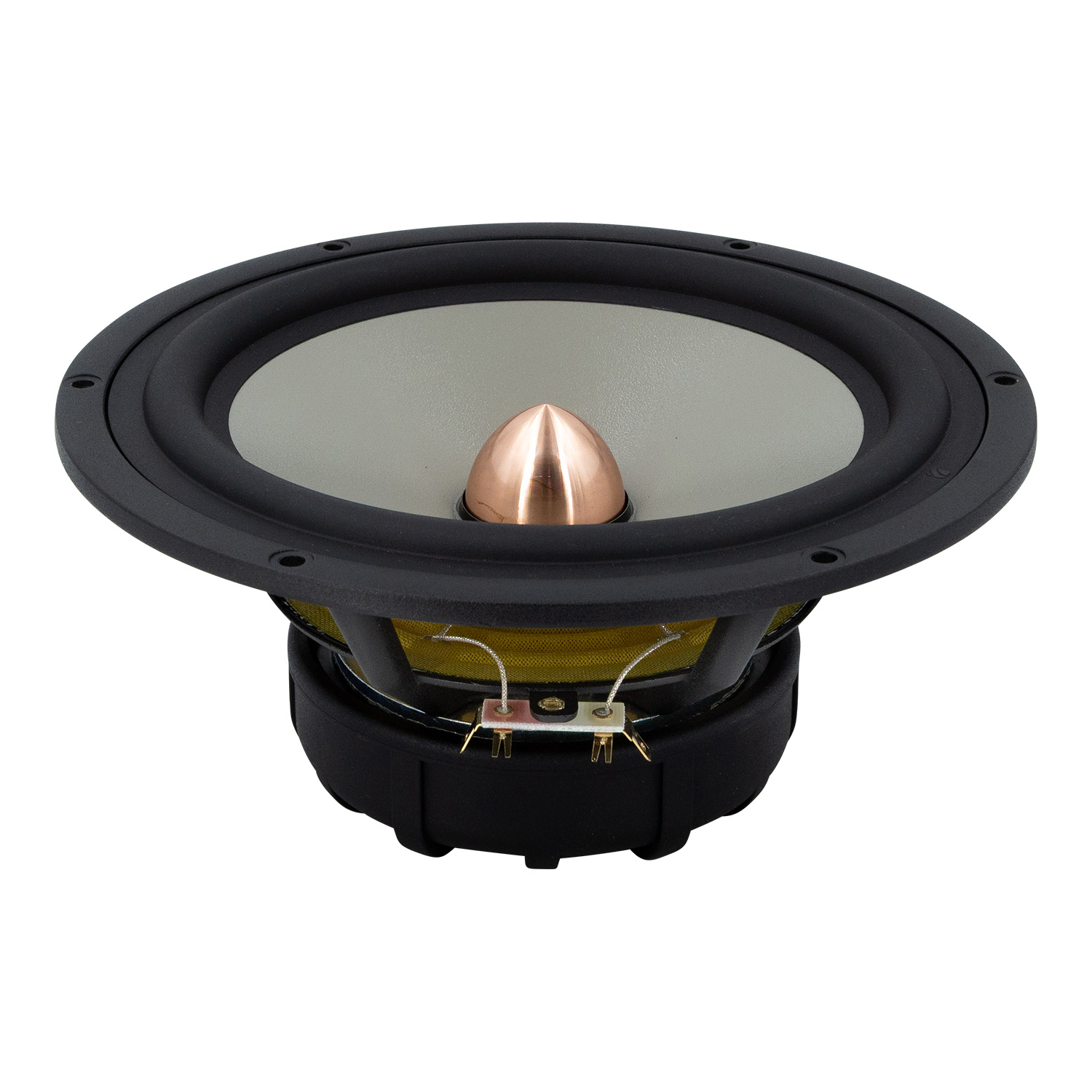

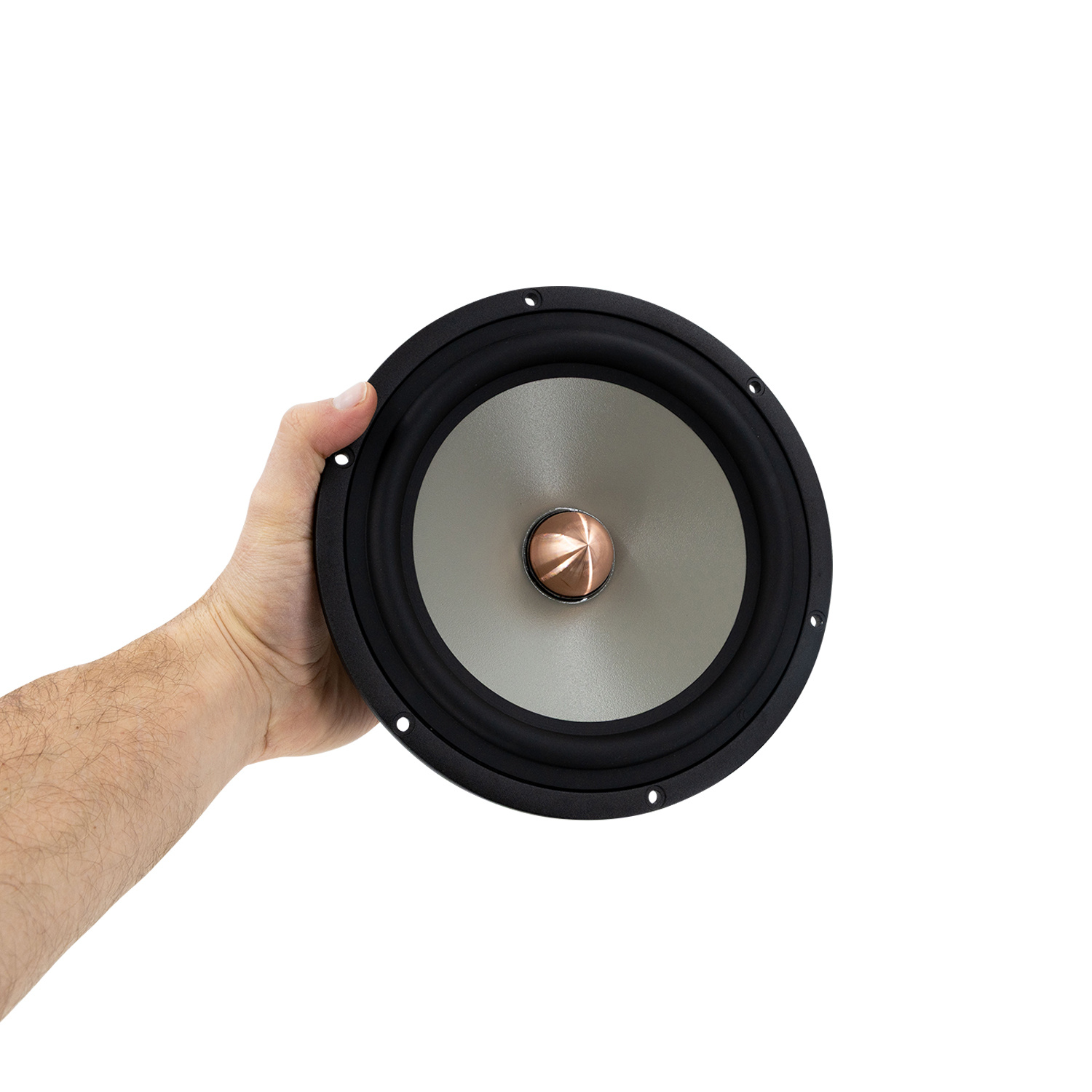

        Seas Excel W22EX/001 - E0022 8" Magnesium Cone Woofer



        Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.

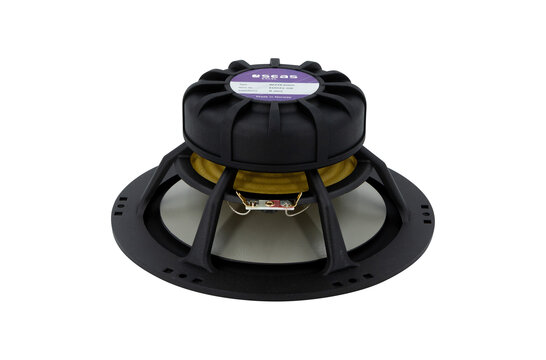

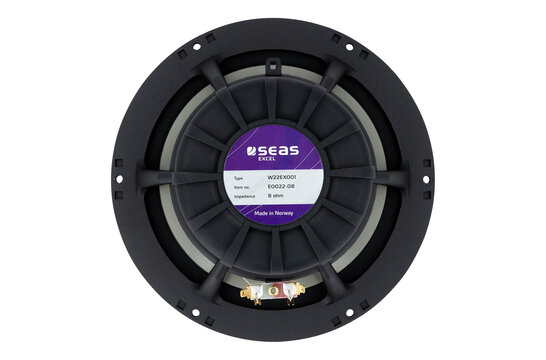

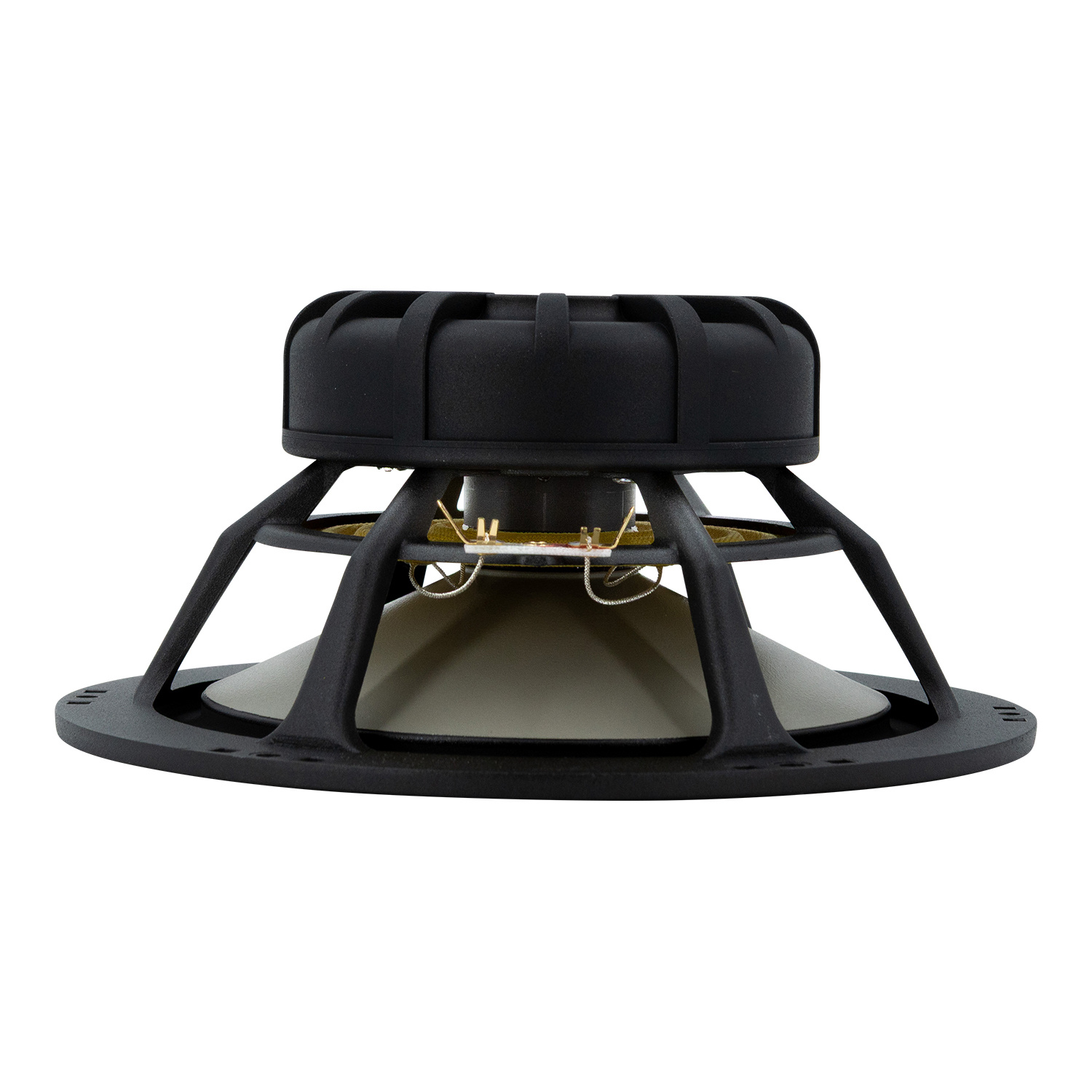

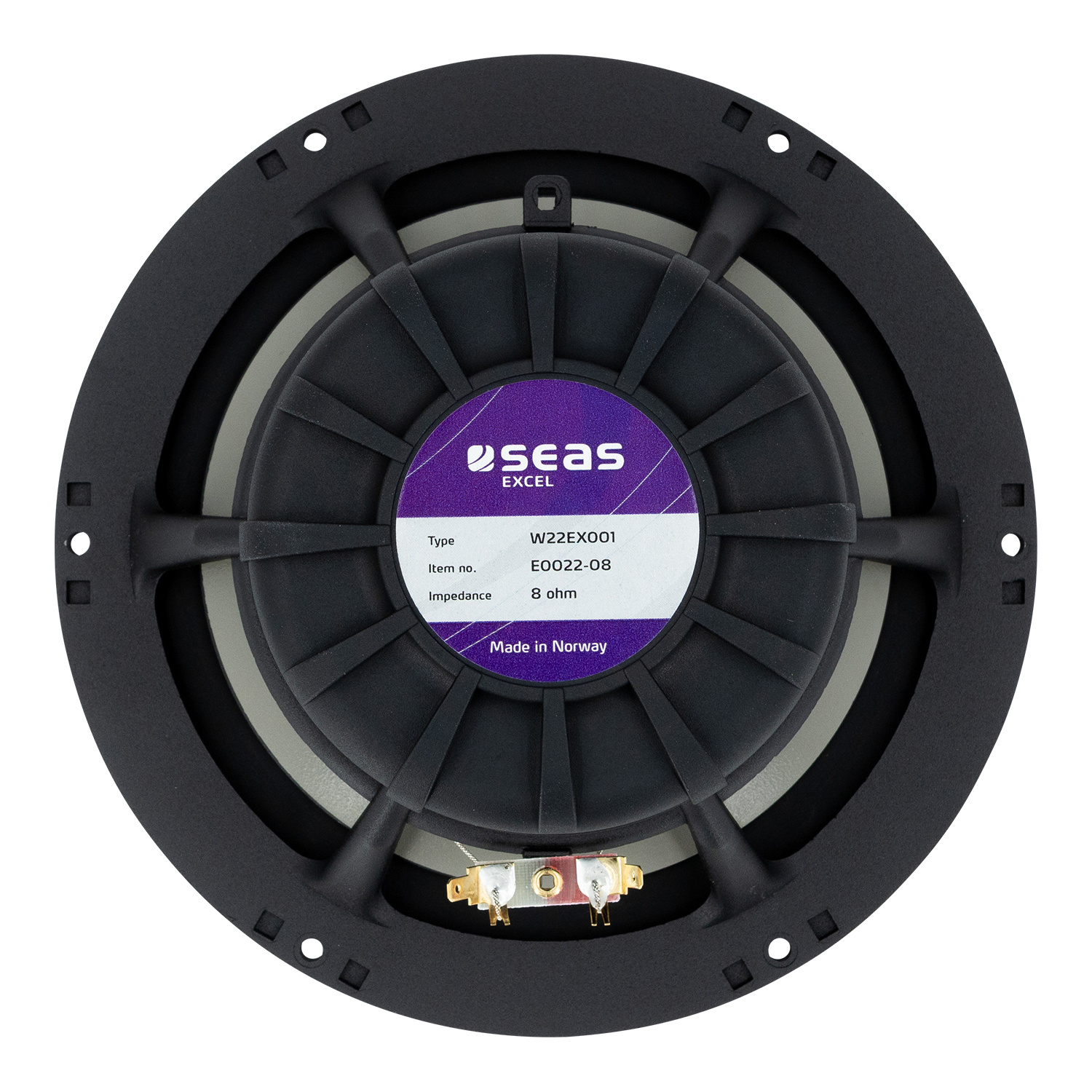

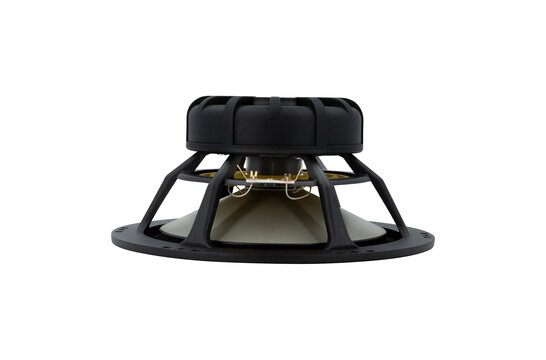

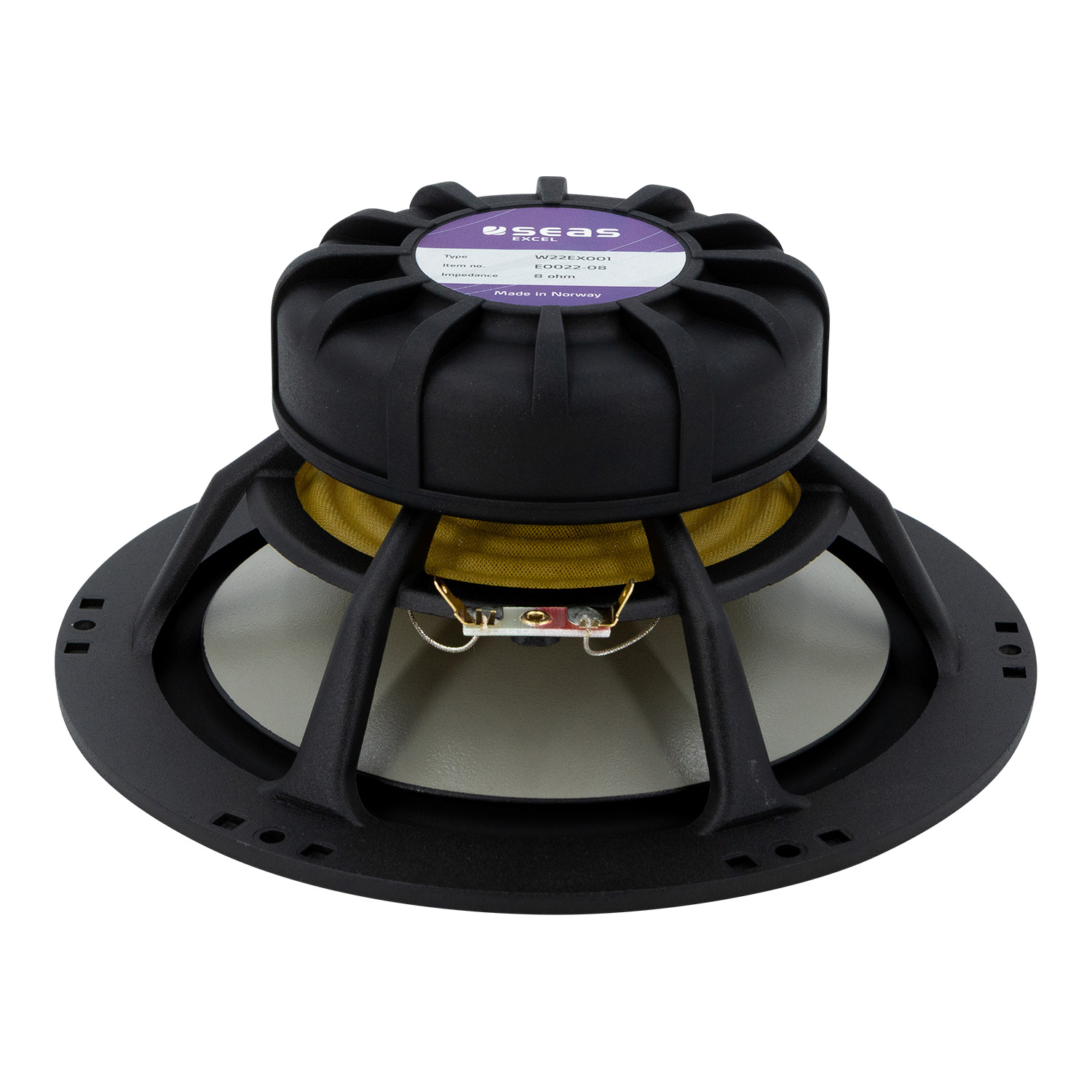

        Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum. A solid copper phase plug enhances the performance of the copper rings and improves heat conduction away from the pole piece. Gold plated terminals mounted on a glass fiber reinforced plate to reduce contact resistance and improve reliability.

        Toon meer

        Specificaties

        Artikelnummer
        W22EX001
        Nominale diameter
        8"
        Belastbaarheid (RMS)
        120 Watts
        Belastbaarheid (max)
        300 Watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        88 dB
        Frequentierespons
        30 to 2,000 Hz
        Spreekspoeldiameter
        1.53"
        Gewicht magneet
        22.5 oz.
        Gelijkstroomweerstand (Re)
        6.1 ohms
        Spreekspoelinductie (Le)
        0.61 mH
        Resonantiefrequentie (Fs)
        25 Hz
        Mechanische Q (Qms)
        2.14
        Elektrische Q (Qes)
        0.41
        Totale Q (Qts)
        0.34
        Bewegende massa (Mms)
        26.2g
        Compliantie van de ophanging (Cms)
        1.5 mm/N
        Equivalentvolume (Vas)
        3.46 ft.³
        Maximale excursie (Xmax)
        5 mm

        Toon meer

        5 van 5
        mooie drivers met een zeer goede laag mid /midden weergaven gebruik ze nu in een open baffle opstelling van 100 tot 1400 met active correctie
        Door arjan m. on 2 Oktober 2018
