        Productomschrijving SEAS TPCD W19NX004 - E0117-08 Bass-midwoofer

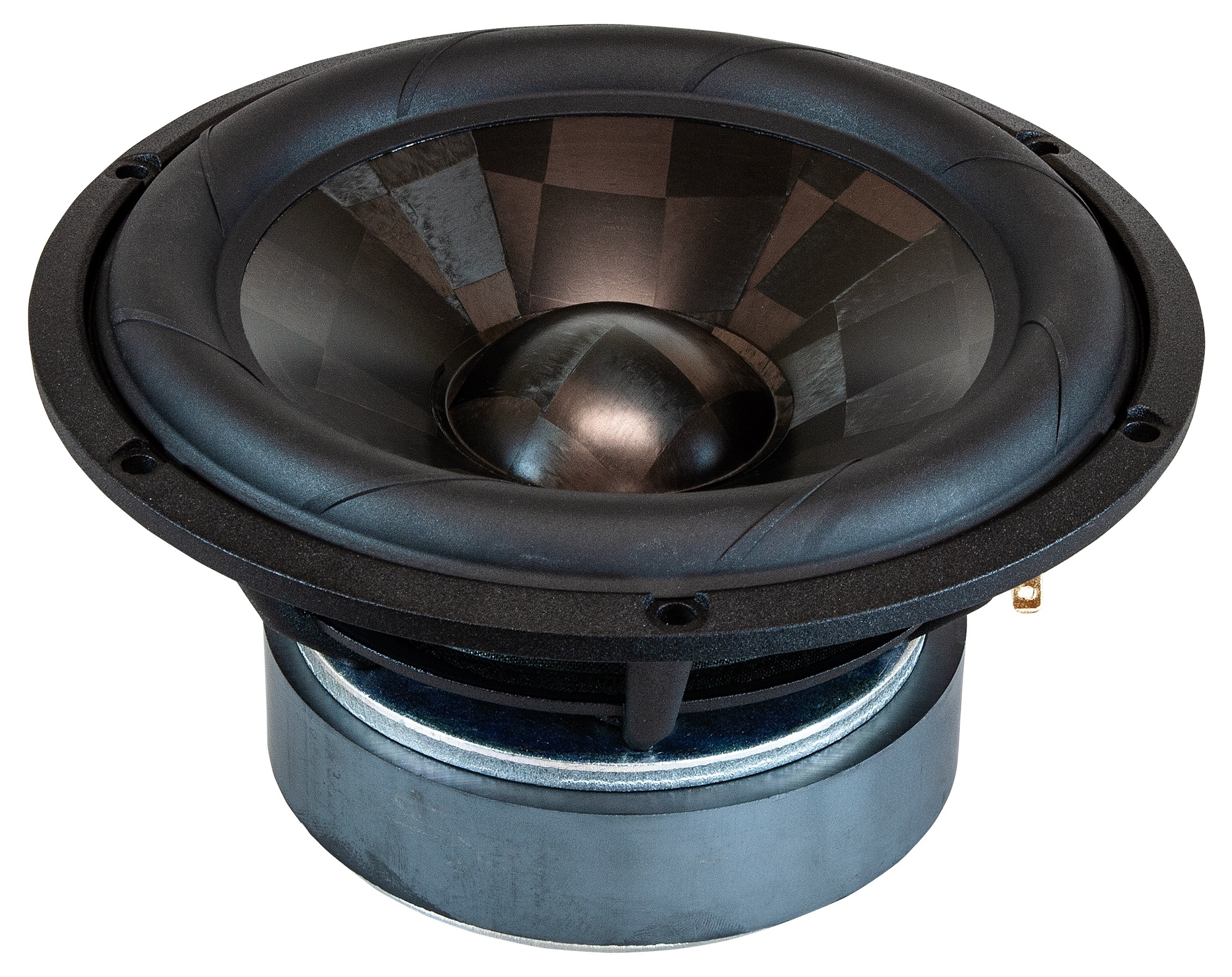

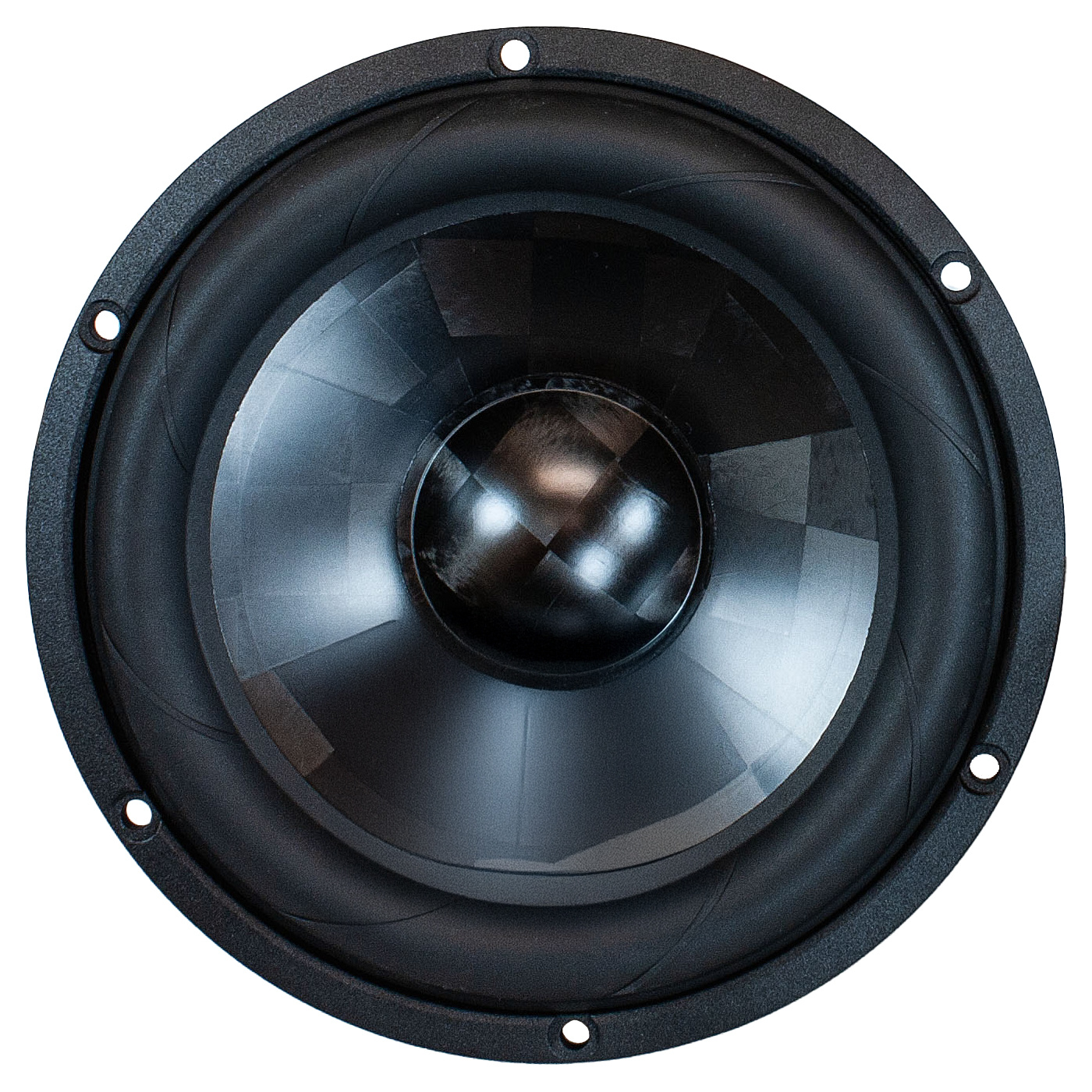

        Ultra-high-performance bass-mid woofer from SEAS, the E0117-08 W19NX004 features a cutting-edge Composite Sound Metamodal™ TPCD diaphragm for exceptional sound clarity, transient accuracy, and micro-detail retrieval.



        Highlights of the SEAS E0117-08 W19NX004

        • Custom Composite Sound Metamodal™ TPCD diaphragm for optimal stiffness, low weight, and controlled damping
        • FEA-optimized magnet system with copper parts for low distortion and high linearity
        • Titanium voice coil former ensures precise force transfer and reduced mechanical damping
        • Rigid injection-moulded metal basket minimizes air noise, cavity resonance, and reflection



        Product details SEAS E0117-08 W19NX004

        SEAS E0117-08 W19NX004 Bass-mid woofer



        The SEAS E0117-08 W19NX004 is a state-of-the-art bass-midrange woofer built for audiophiles and high-end loudspeaker applications. At its core is a proprietary Composite Sound Metamodal™ TPCD diaphragm, engineered to strike a perfect balance of low mass, high stiffness, and internal damping. This enables ultra-low distortion and detailed, lifelike sound reproduction.

        Its FEA-optimized magnet system integrates precision copper components to enhance linearity, reduce distortion, and support high power handling. The titanium voice coil former offers improved force transmission and reduces mechanical damping, resulting in rapid, clean transients that accurately render even the most delicate micro-details in audio content.

        The driver is housed in an extremely rigid injection-moulded metal basket, which holds all internal components in stable alignment. Carefully designed venting above and below the spider helps minimize unwanted acoustic artifacts such as reflections, turbulence, and resonance, further improving clarity and realism. The SEAS E0117-08 W19NX004 is the ideal choice for discerning DIY speaker builders and manufacturers aiming for uncompromised audio performance.

        Toon meer

        Specificaties

        Artikelnummer
        W19NX004
        EAN
        9502589747174
        Woofer series
        Excel
        Woofer type
        Bass-midwoofer
        Nominale diameter
        7 " | 176 mm
        Belastbaarheid (RMS)
        200 W
        Belastbaarheid (max)
        340 W
        Impedantie (Z)
        8 Ω
        Gevoeligheid (SPL bij 1m / 2.83V)
        86 dB
        Frequentierespons
        20 - 6000 Hz
        Spreekspoeldiameter
        39 mm
        Gelijkstroomweerstand (Re)
        6.0 Ω
        Spreekspoelinductie (Le)
        0.38 mH
        Resonantiefrequentie (Fs)
        33 Hz
        Mechanische Q (Qms)
        4.81
        Elektrische Q (Qes)
        0.42
        Totale Q (Qts)
        0.39
        Bewegende massa (Mms)
        21.1 g
        Compliantie van de ophanging (Cms)
        1.06 mm/N
        Effectief oppervlak (Sd)
        146 cm²
        Krachtsfactor (BL)
        7.9 N/A
        Equivalentvolume (Vas)
        33 L
        Maximale excursie (Xmax)
        7 mm
        Driver's Mechanical Losses (Rms)
        0.91 Ns/m
        Cone / Diaphragm Material
        TPCD
        Spreekspoel vormermateriaal
        Titanium
        Mand- /framemateriaal
        Injection moulded metal
        Totale buitendiameter
        176.0 mm
        Totale diepte
        80.7 mm
        Montagegatdiameter
        153.2 mm
        Bolt Circle Diameter
        166 mm
        # Bevestigingsgaten
        6
        Diameter bevestigingsgaten
        5.0 mm
