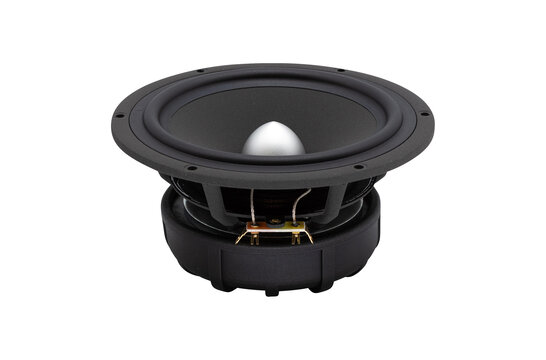

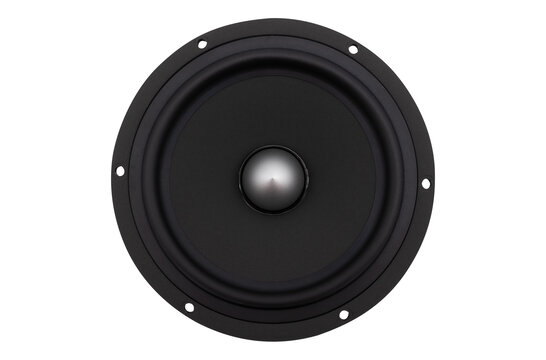

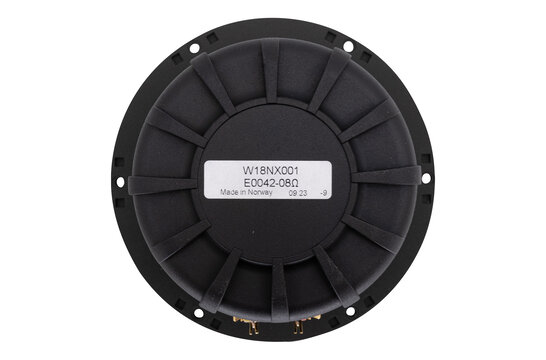

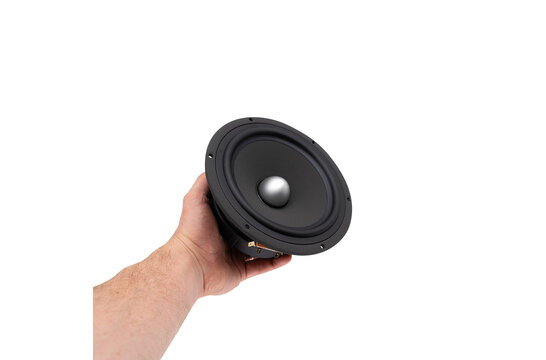

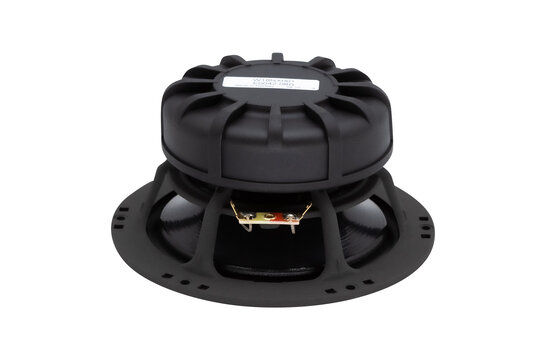

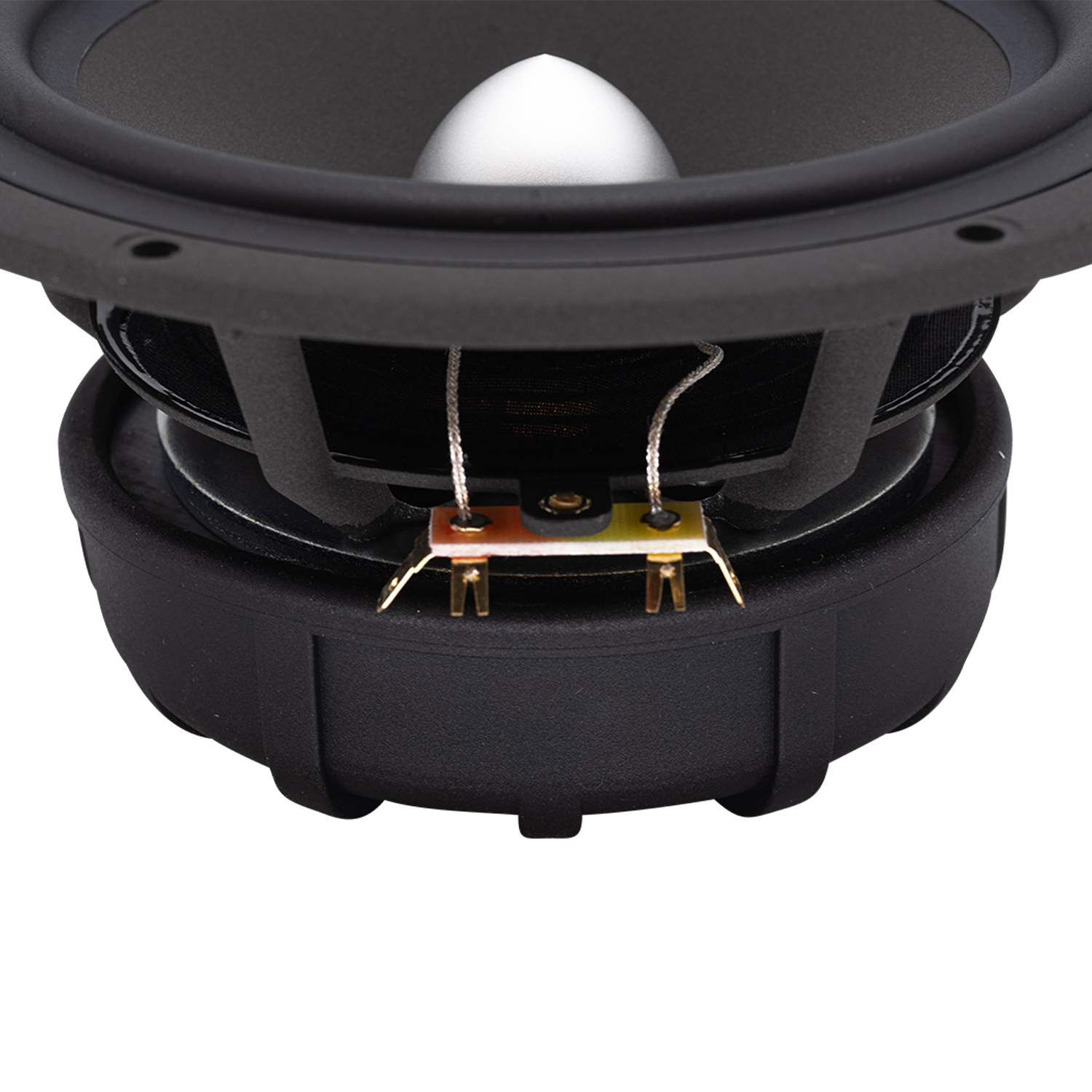

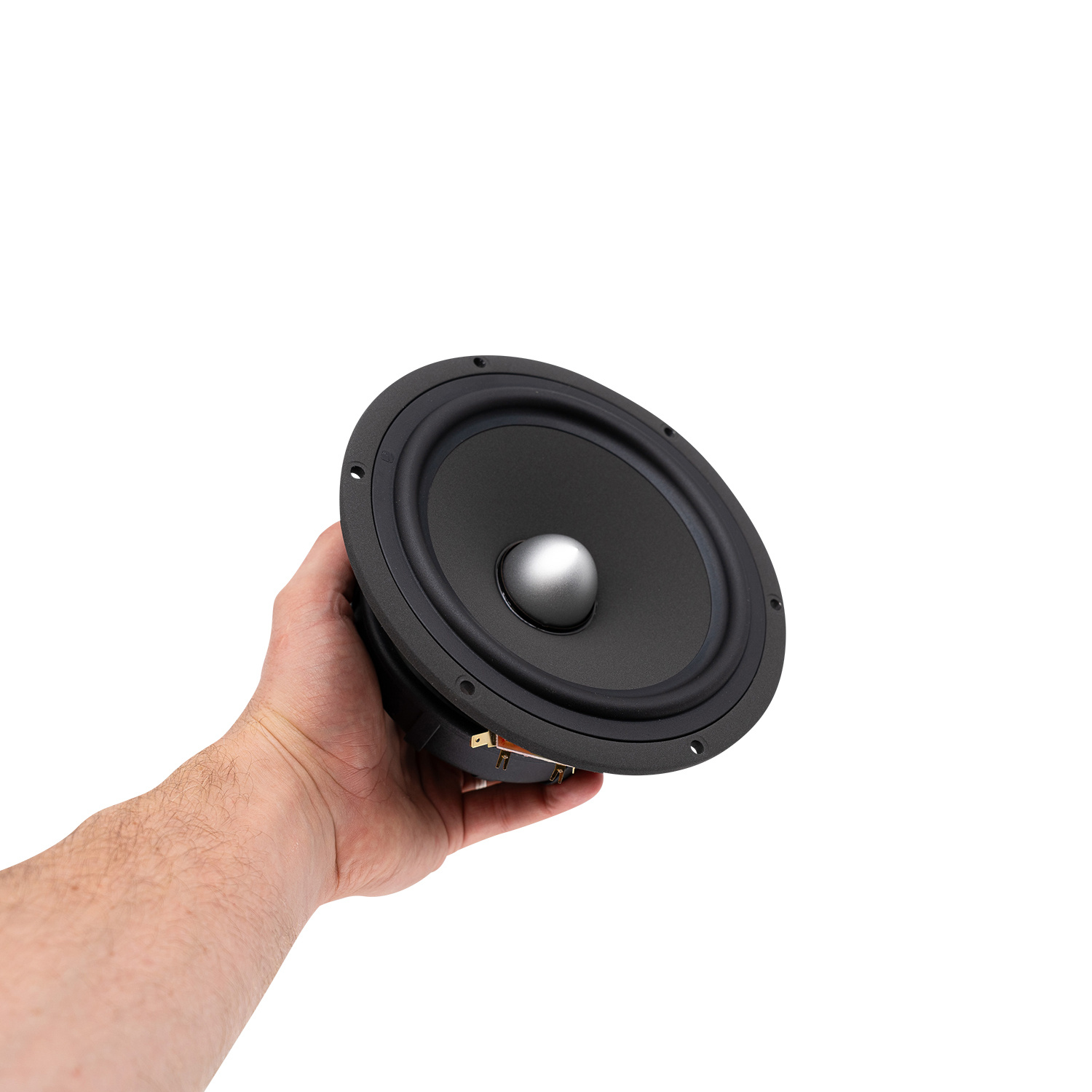

Excel W18NX001 - E0042-08S Bass-midwoofer

€289,95

Toevoegen aan winkelwagen

SEAS Excel W18NX001 - E0042-08S Bass-midwoofer

Name: SEAS Excel W18NX001 - E0042-08S Bass-midwoofer
Brand: SEAS
SKU: W18NX001
Price: 289.95 EUR
Availability: InStock
Rating: 5 (1 reviews)

1 reviews

Merk: SEAS

Toon alle Bass-mid woofer

7" | 8 Ω

Excel W18NX001 - E0042-08S Bass-midwoofer

€ 239,63€ 289,95 6 Op voorraad

Gratis verzonden (NL & BE)
Nu besteld, morgen bezorgd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Productomschrijving

Highlights

Long term power handling (RMS) is 80 Watts
The adaptive rubber surround provides an ideal match to the cone over the total frequency range

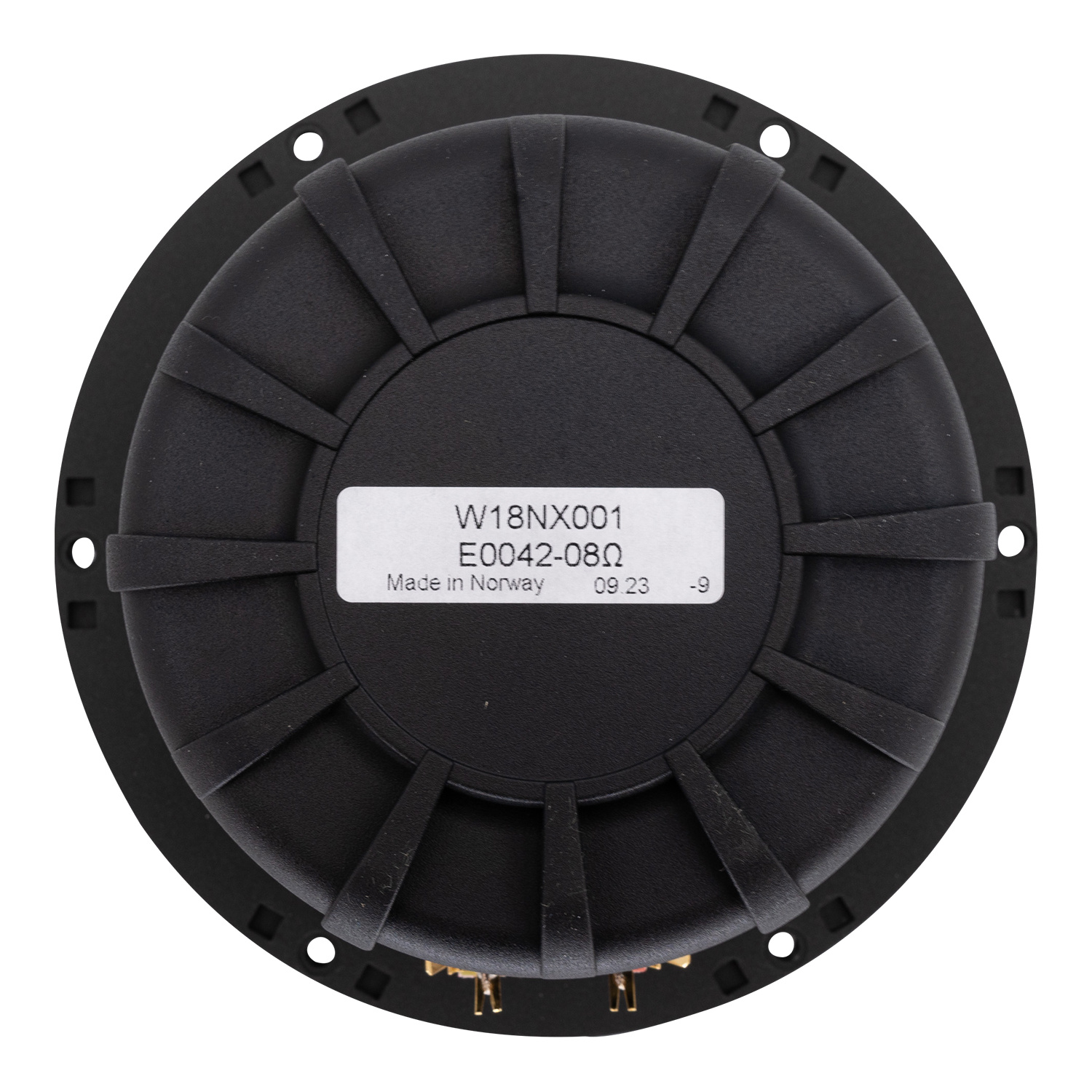

Large magnet system with bumped back plate and very long and light weight CCAW voice coil

Product details

Seas Excel W18NX001 - E0042-08S 7" Nextel Cone Woofer

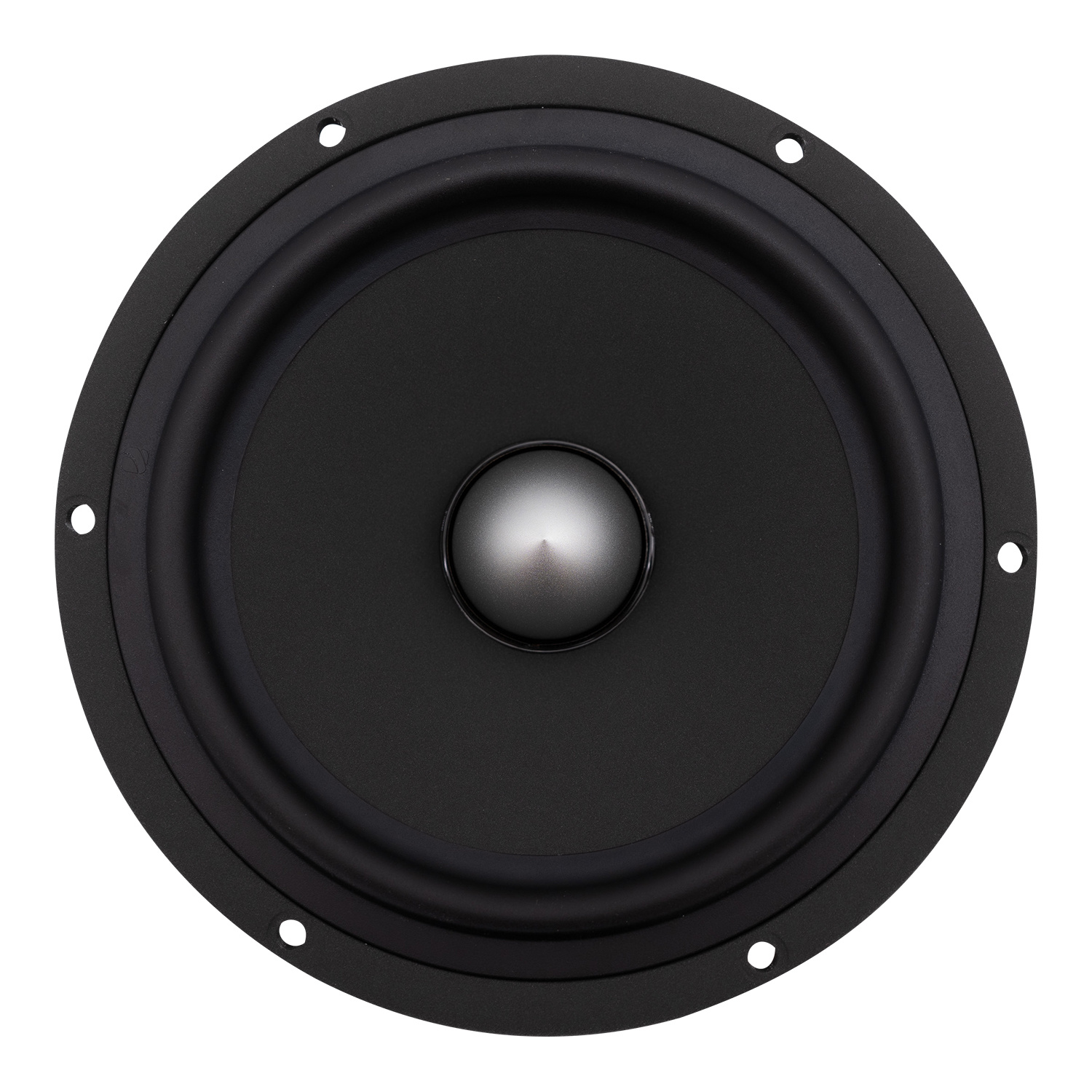

An adaptive rubber surround provides an ideal match to the cone over the total frequency range. A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. A large magnet system with bumped back plate, together with a very long and light weight CCAW voice coil allow extreme coil excursion with low distortion and excellent transient response.

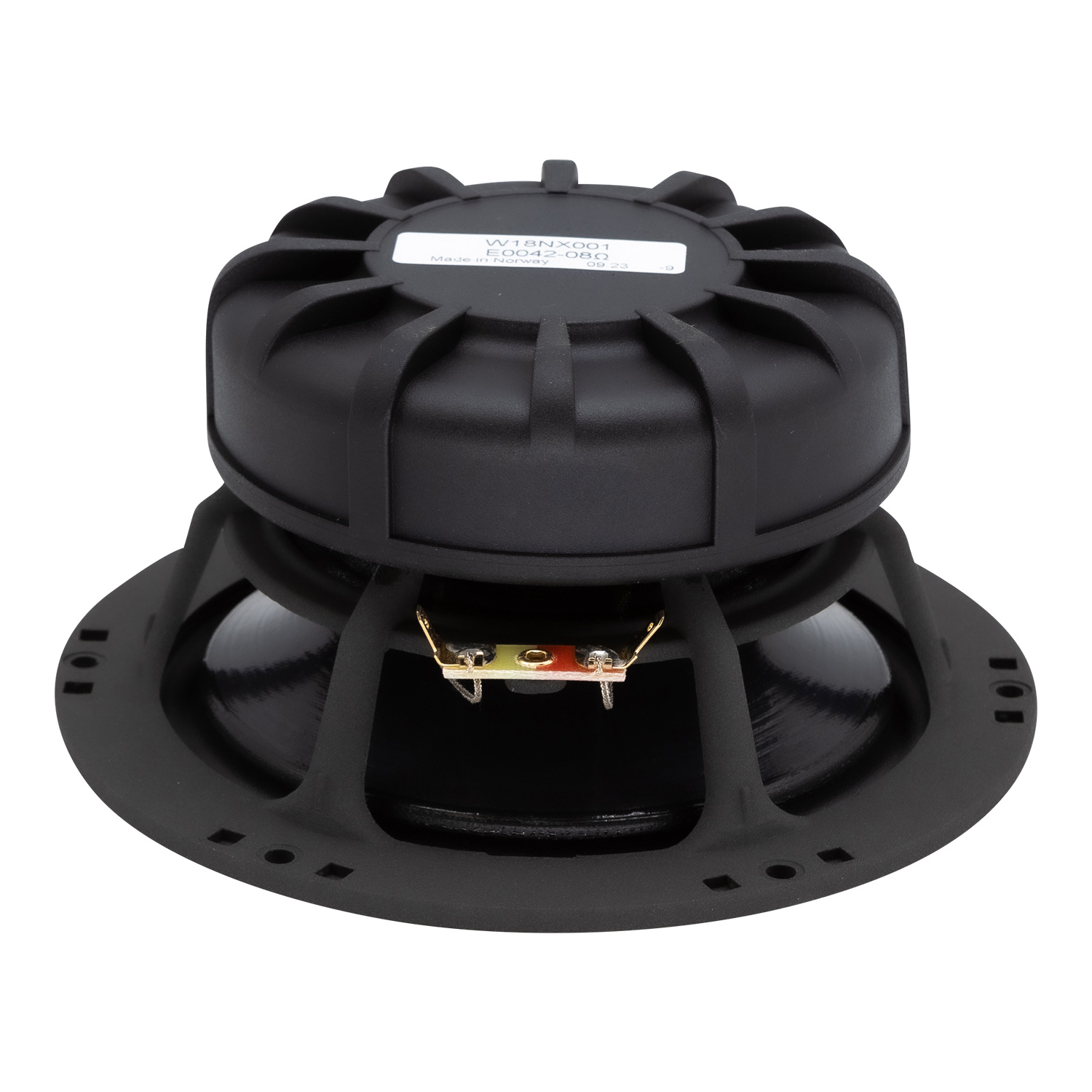

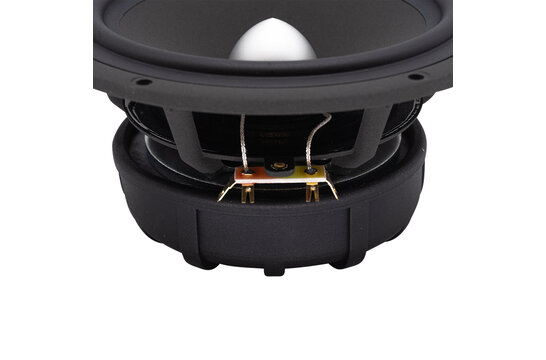

Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

Toon meer

Specificaties

Artikelnummer: W18NX001
Woofer series: Excel Series
Woofer type: Midwoofer
Nominale diameter: 7"
Belastbaarheid (RMS): 80 Watts
Belastbaarheid (max): 250 Watts
Impedantie (Z): 8 ohms
Gevoeligheid (SPL bij 1m / 2.83V): 87.5 dB
Frequentierespons: 30 to 3,000 Hz
Spreekspoeldiameter: 1.53"
Gewicht magneet: 22.5 oz.
Gelijkstroomweerstand (Re): 6.3 ohms
Spreekspoelinductie (Le): 0.43 mH
Resonantiefrequentie (Fs): 40 Hz
Mechanische Q (Qms): 2.08
Elektrische Q (Qes): 0.41
Totale Q (Qts): 0.34
Bewegende massa (Mms): 13.7g
Compliantie van de ophanging (Cms): 1.2 mm/N
Equivalentvolume (Vas): 0.84 ft.³
Maximale excursie (Xmax): 7 mm

Reviews

1 reviews

Schrijf een review

5 van 5

Just bought those really good "excel" speakers and couldn't be happier with the improvement in comparison to previously used "prestige" speakers. Above that, I am highly satisfied with the customer service provided by soundimports. Thank you very much!

Door A.T. on 16 April 2022
