    SEAS Excel W18E/001 - E0018-08S 7" Magnesium Cone Woofer

    € 249,95 2 Op voorraad: levertijd 1 werkdag

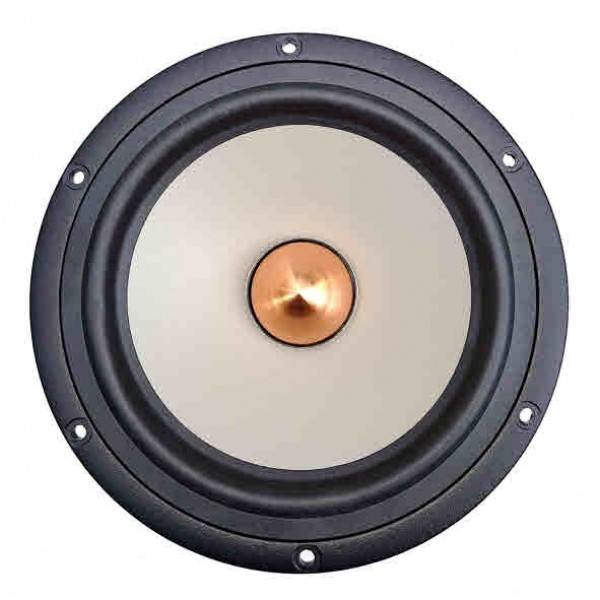

    Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances. Magnet system with bumped back plate makes room for extreme coil excursions.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €237,45 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • Long term power handling (RMS) is 100 Watts
    • Magnet system with bumped back plate makes room for extreme coil excursions
    • Gold plated terminals mounted on a glass fiber reinforced plate to reduce contact resistance and improve reliability



    Product details

    Seas Excel W18E/001 - E0018-08S 7" Magnesium Cone Woofer



    Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances. Magnet system with bumped back plate makes room for extreme coil excursions.

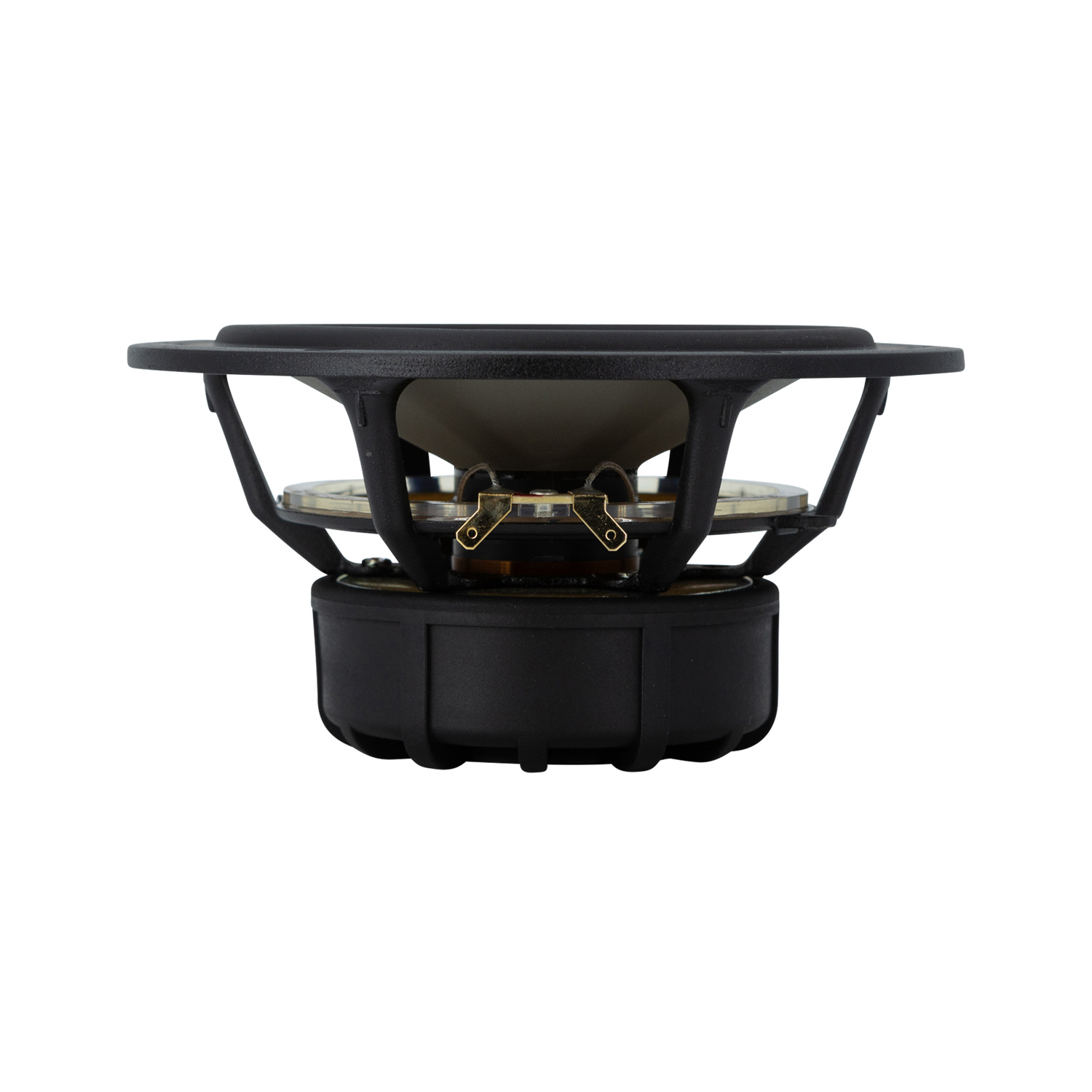

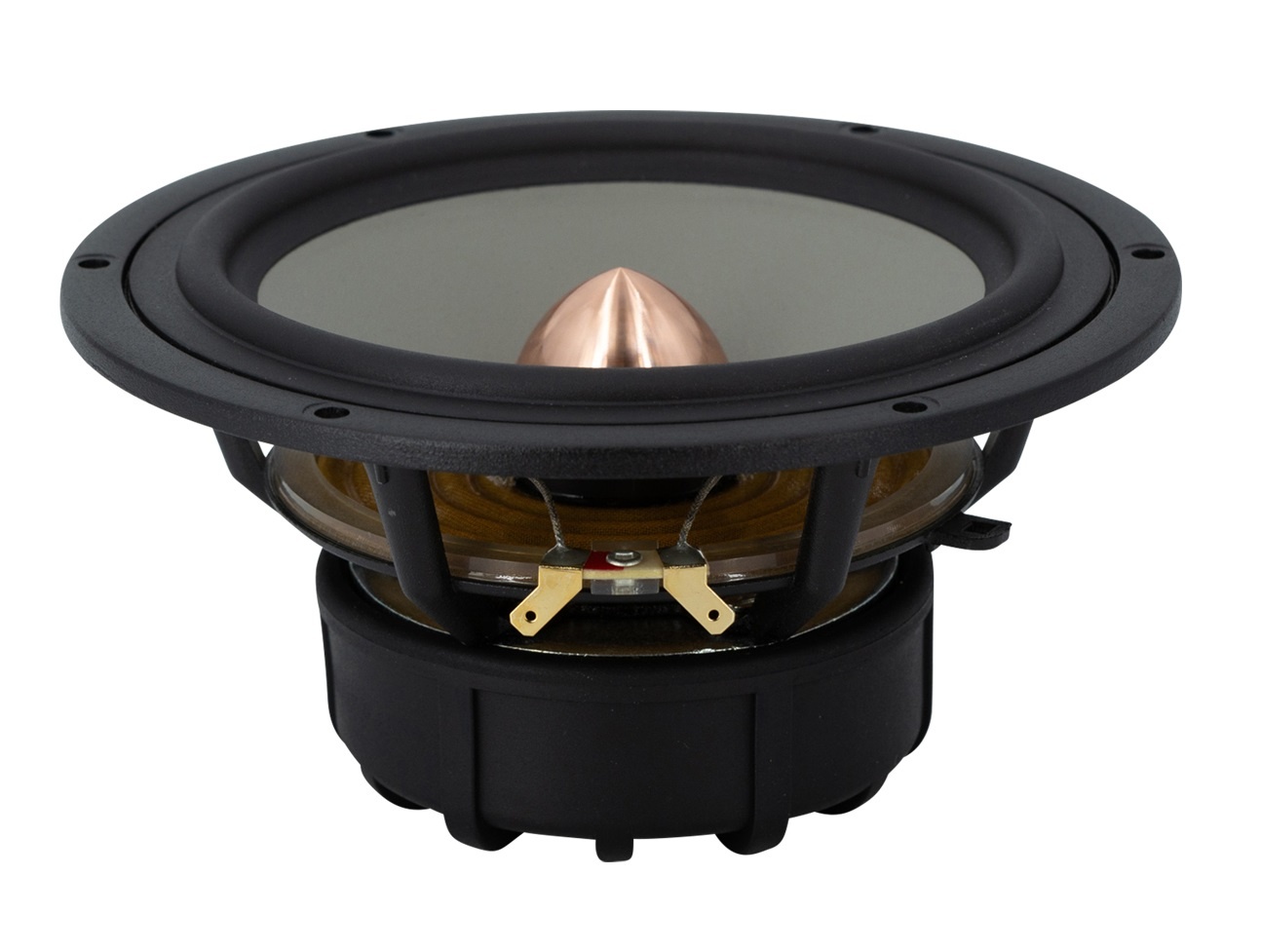

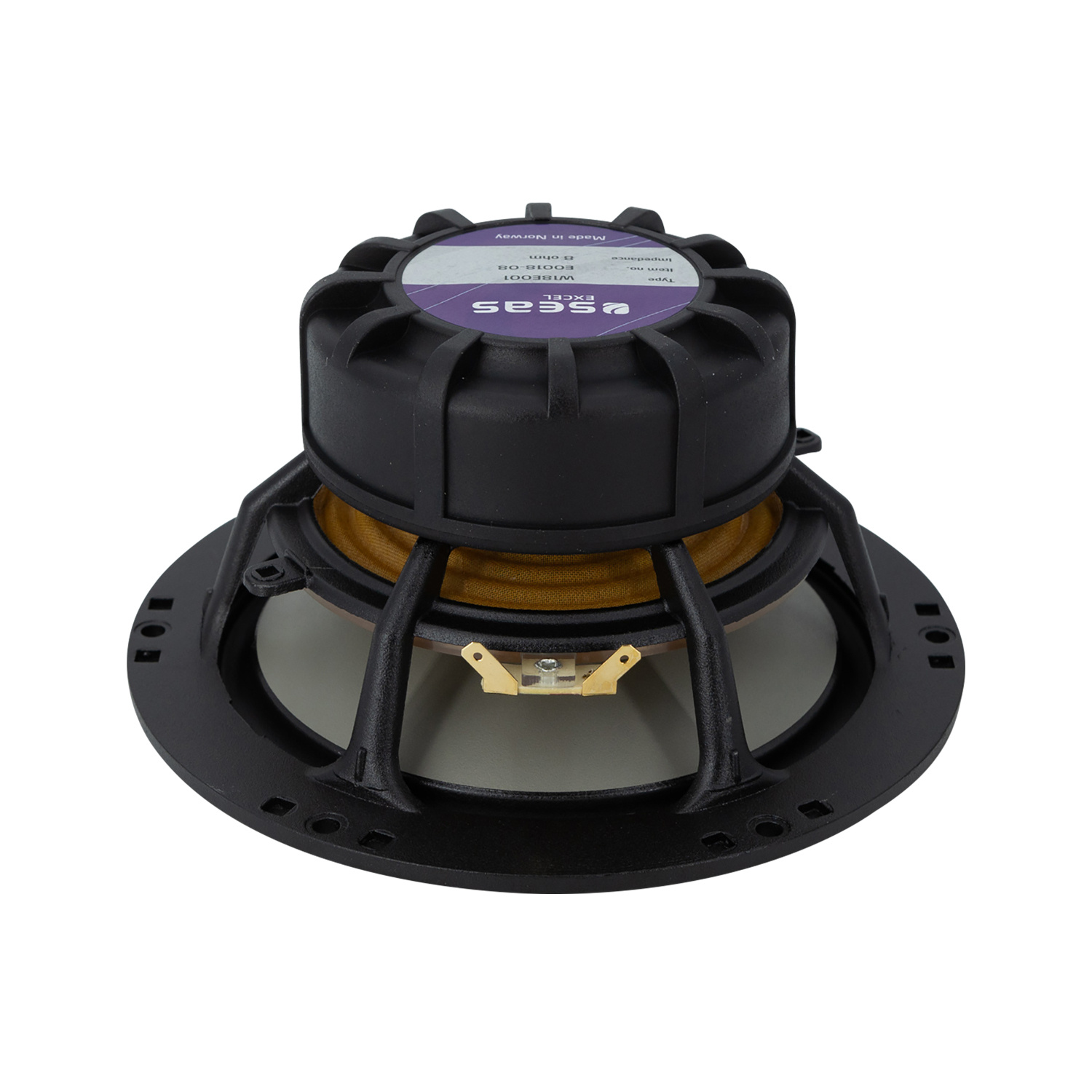

    Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment.



    Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum. Gold plated terminals mounted on a glass fiber reinforced plate to reduce contact resistance and improve reliability.

    Specificaties

    Artikelnummer
    W18E/001
    Woofer Series
    Excel Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    7"
    Power Handling (RMS)
    100 Watts
    Power Handling (max)
    250 Watts
    Impedance
    8 ohms
    Sensitivity
    86 dB 2.83V/1m
    Frequency Response
    40 to 2,500 Hz
    Voice Coil Diameter
    1.53"
    Magnet Weight
    14.8 oz.
    DC Resistance (Re)
    6.1 ohms
    Voice Coil Inductance (Le)
    0.65 mH
    Resonant Frequency (Fs)
    34 Hz
    Mechanical Q (Qms)
    2.91
    Electromagnetic Q (Qes)
    0.49
    Total Q (Qts)
    0.42
    Diaphragm Mass Inc. Airload (Mms)
    15.5g
    Mechanical Compliance of Suspension (Cms)
    1.4 mm/N
    Compliance Equivalent Volume (Vas)
    1.05 ft.³
    Maximum Linear Excursion (Xmax)
    5 mm
