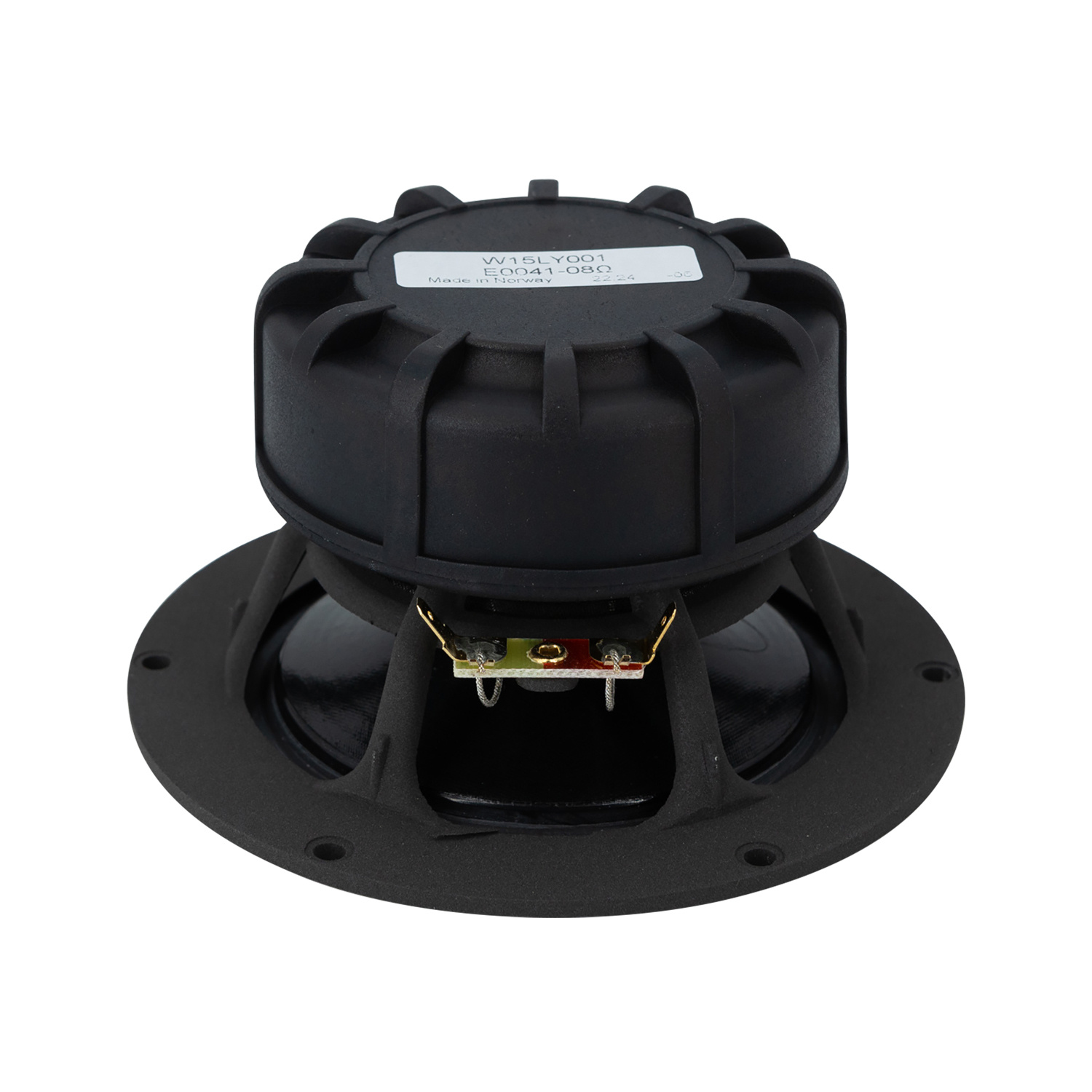

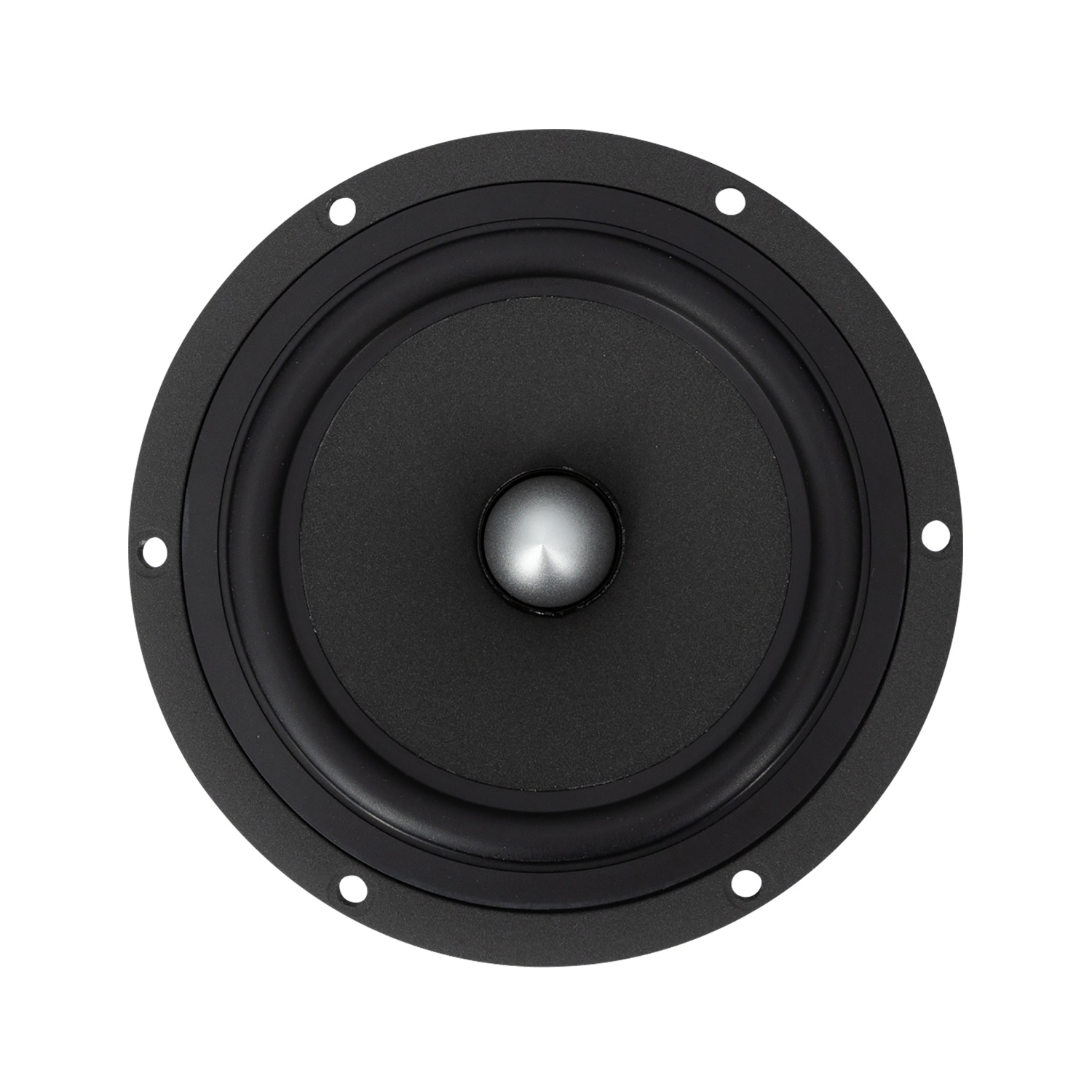

        Excel W15LY001 - E0041-08S Bass-midwoofer

        Excel W15LY001 - E0041-08S Bass-midwoofer

        €229,95

        SEAS Excel W15LY001 - E0041-08S Bass-midwoofer

        1 reviews
        5 van 5
        1 reviews
        5 sterren
        100%
        4 sterren
        0%
        3 sterren
        0%
        2 sterren
        0%
        1 ster
        0%
        Bekijk alle reviews
        Merk: SEAS
        € 190,04€ 229,95 3 Op voorraad6 verwacht op 24-05-2024
        • -5% Bestel 4 voor slechts € 218,45 per stuk

        Buy now, pay later

        • Gratis verzonden (NL & BE)
        • Voor 16u besteld, vandaag verstuurd
        • Ten minste twee jaar garantie
        • 45 dagen bedenktijd voor retourneren
        • Klantbeoordeling:
        Zakelijke offerteaanvraag
        Heeft u vragen over dit product?

        Heeft u vragen over dit product?

        Onze klantenservice helpt u graag verder!

        Productomschrijving

        Highlights

        • Long term power handling (RMS) is 60 Watts
        • Paper cone with a unique Nextel coating ensures smooth frequency response and low distortion
        • Large magnet system with a very long and light weight CCAW voice coil allow good coil excursion with low distortion and excellent transient response



        Product details

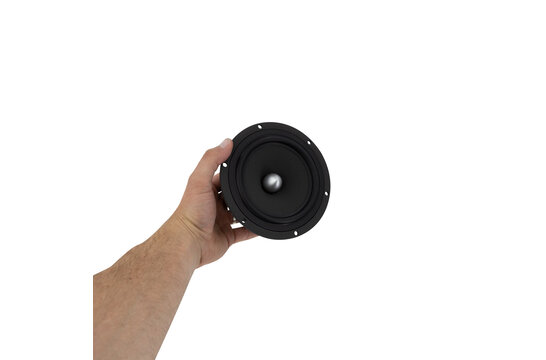

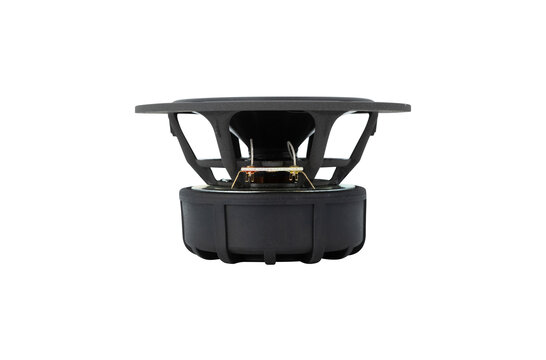

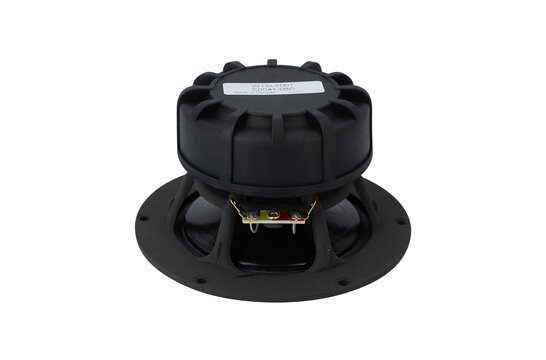

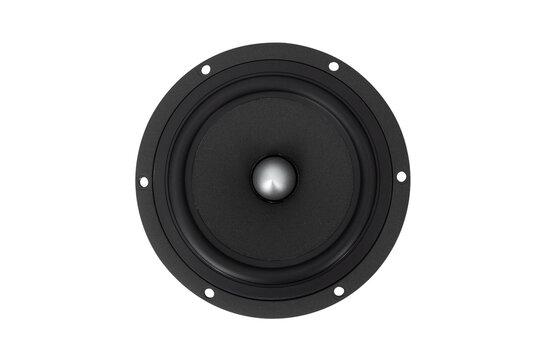

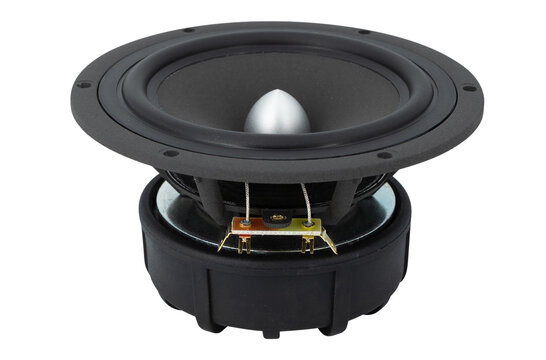

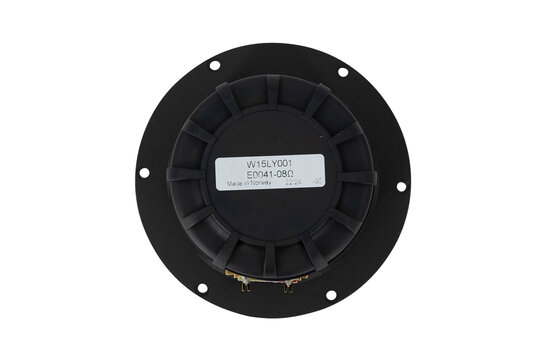

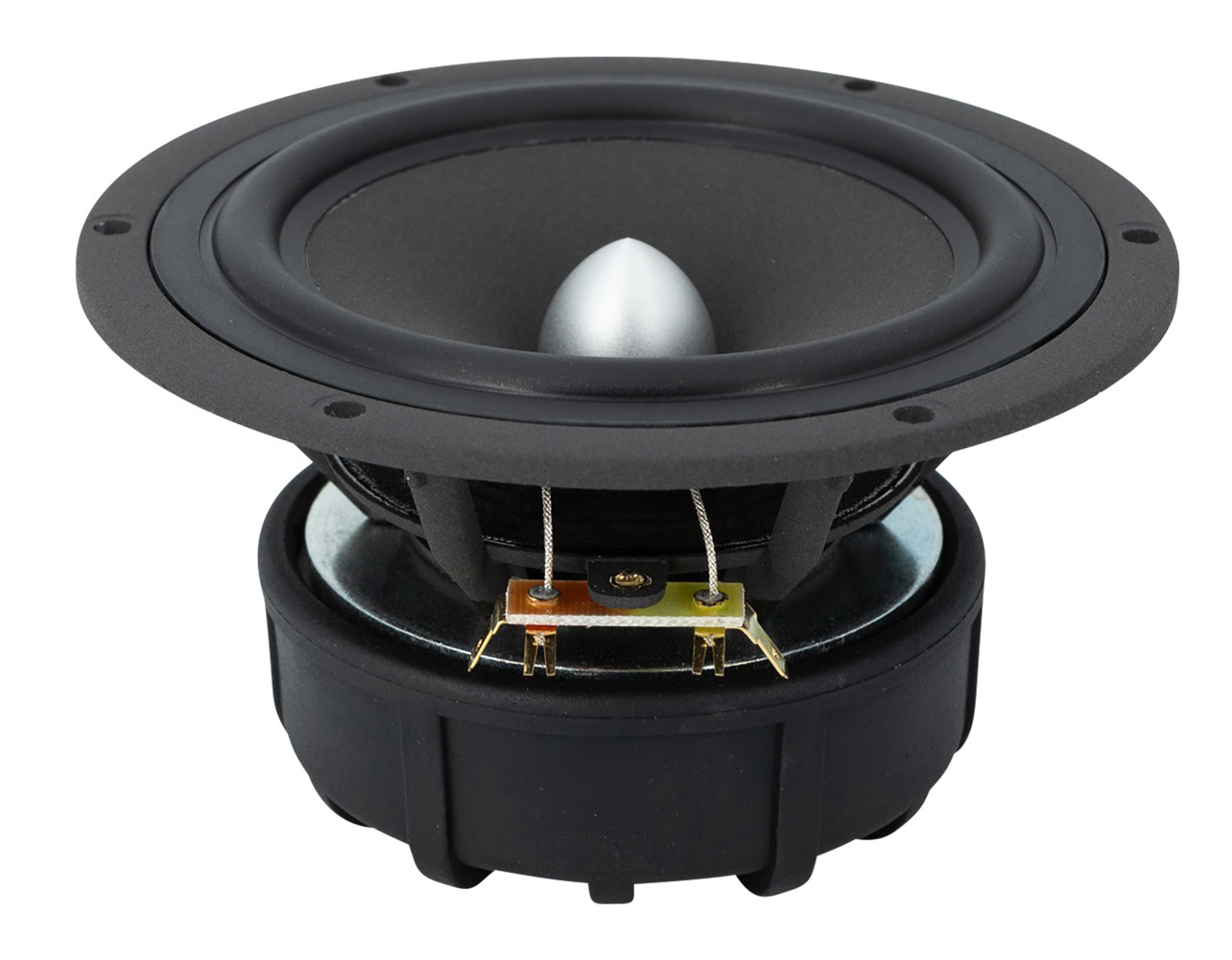

        Seas Excel W15LY001 - E0041-08S 5.5" Paper Cone Woofer



        An adaptive rubber surround provides an ideal match to the cone over the total frequency range. A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion.



        A large magnet system, together with a very long and light weight CCAW voice coil allow good coil excursion with low distortion and excellent transient response. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.



        Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

        Toon meer

        Specificaties

        Artikelnummer
        W15LY001
        Woofer series
        Excel Series
        Woofer type
        Midwoofer
        Nominale diameter
        5.5"
        Belastbaarheid (RMS)
        60 Watts
        Belastbaarheid (max)
        250 Watts
        Impedantie (Z)
        8 ohms
        Gevoeligheid (SPL bij 1m / 2.83V)
        86.5 dB
        Frequentierespons
        50 to 4,000 Hz
        Spreekspoeldiameter
        1.02"
        Gewicht magneet
        14.8 oz.
        Spreekspoelinductie (Le)
        0.3 mH
        Resonantiefrequentie (Fs)
        49 Hz
        Mechanische Q (Qms)
        2.21
        Elektrische Q (Qes)
        0.56
        Totale Q (Qts)
        0.45
        Bewegende massa (Mms)
        6.28g
        Compliantie van de ophanging (Cms)
        1.7 mm/N
        Equivalentvolume (Vas)
        0.42 ft.³
        Maximale excursie (Xmax)
        5 mm

        Toon meer

        5 van 5
        SEAS Speakers are a quality guarantee. The performance is very acceptable.
