    SEAS Excel W12CY003 - E0044 4.5" Nextel Cone Woofer

    € 159,95 >10 Op voorraad: levertijd 1 werkdag
    A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €151,95 per stuk
    • Verzending altijd verzekerd en met track & trace
    • Voor 16u besteld, vandaag verstuurd*
    • Gratis verzending vanaf €99
    • In-house technische support

    Productomschrijving

    Highlights

    • Long term power handling (RMS) is 70 Watts
    • Unique Nextel coating ensures smooth frequency response and low distortion
    • Increased long term power handling capacity and eliminated resonances in the cavity inside the voice coil former



    Product details

    Seas Excel W12CY003 - E0044 4.5" Nextel Cone Woofer

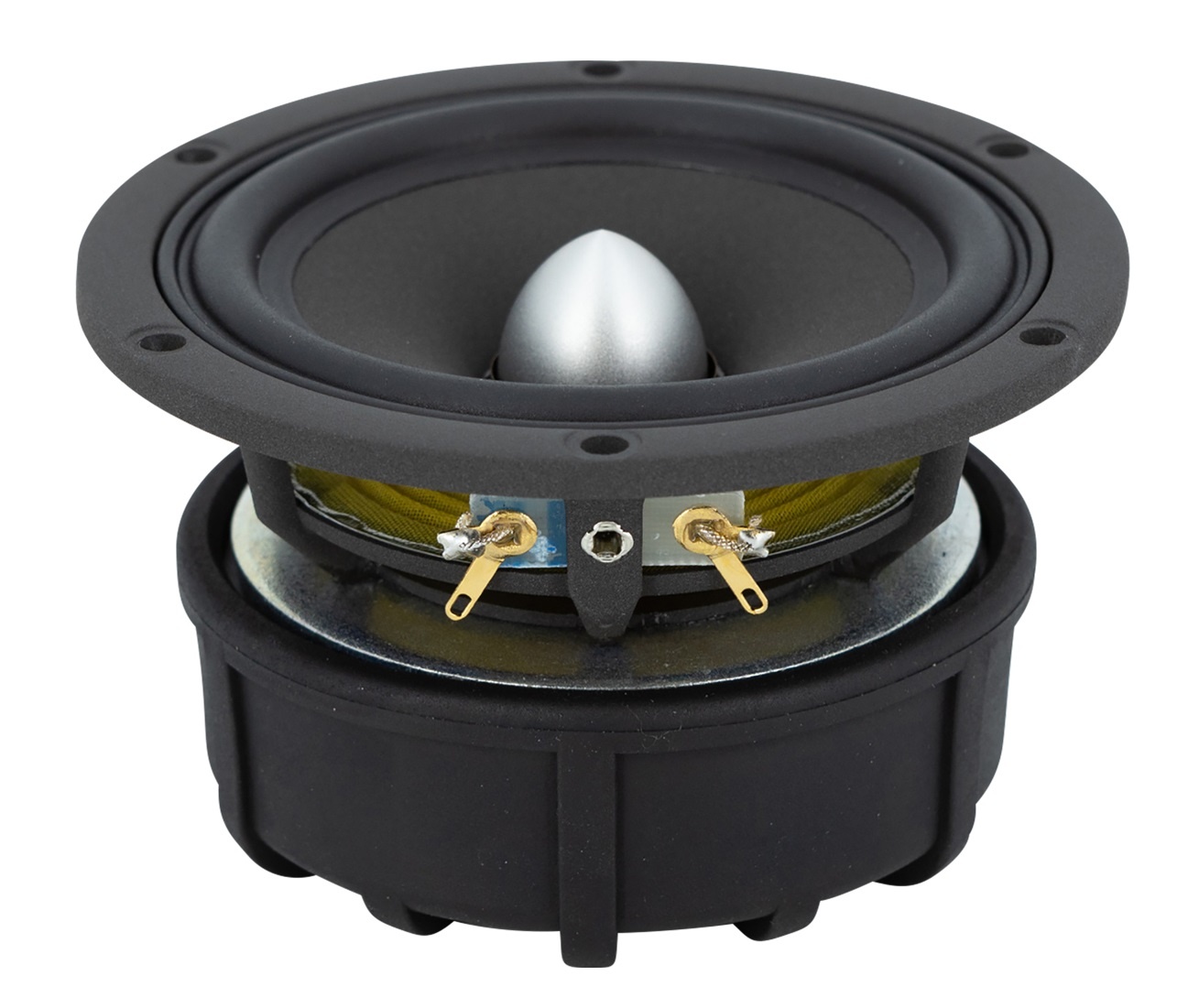

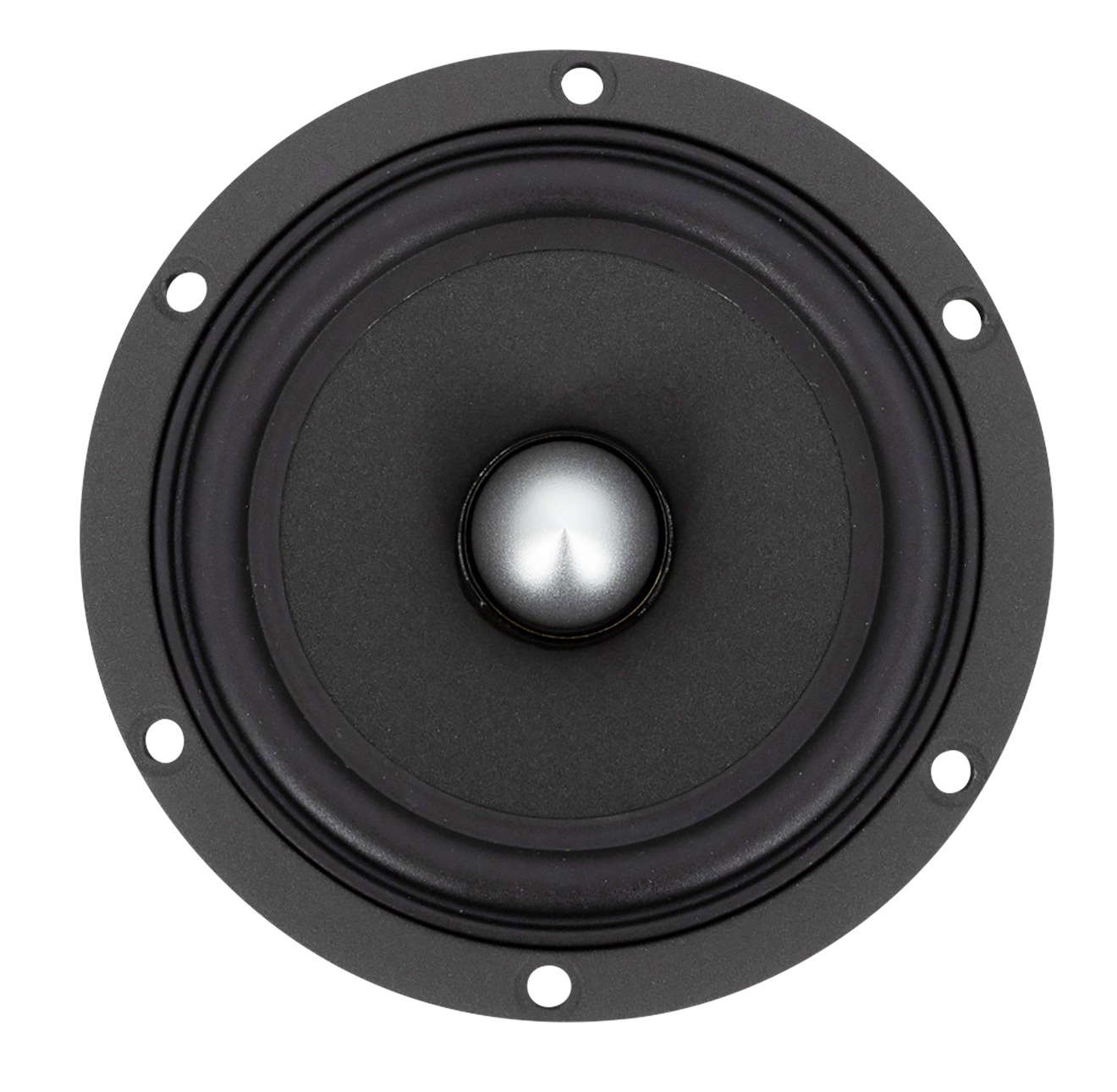

    A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.



    A large magnet system provides good sensitivity and transient response. A chrome plated brass phase plug reduces compression due to temperature variations in the voice coil, increases long term power handling capacity and eliminates resonances in the cavity inside the voice coil former.

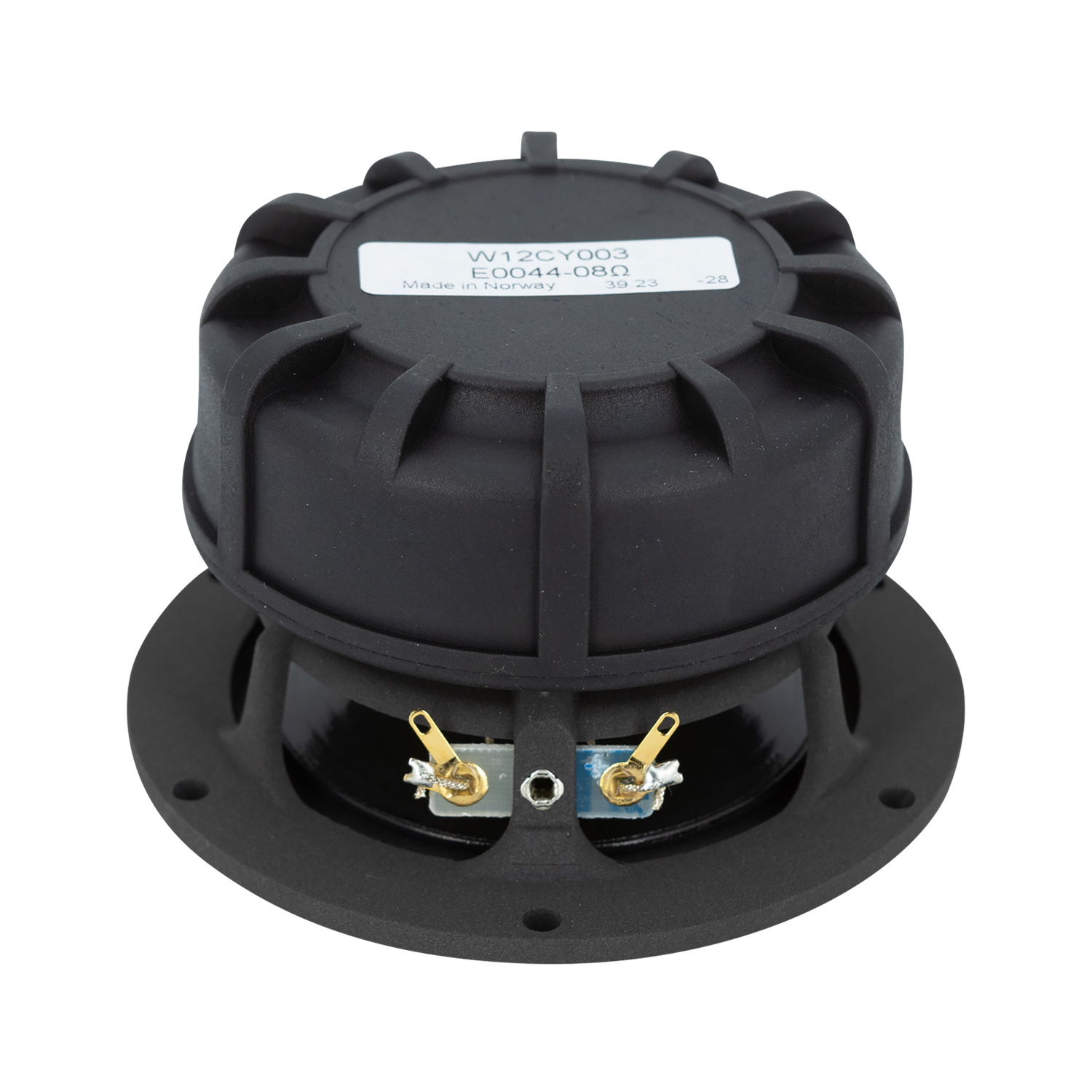

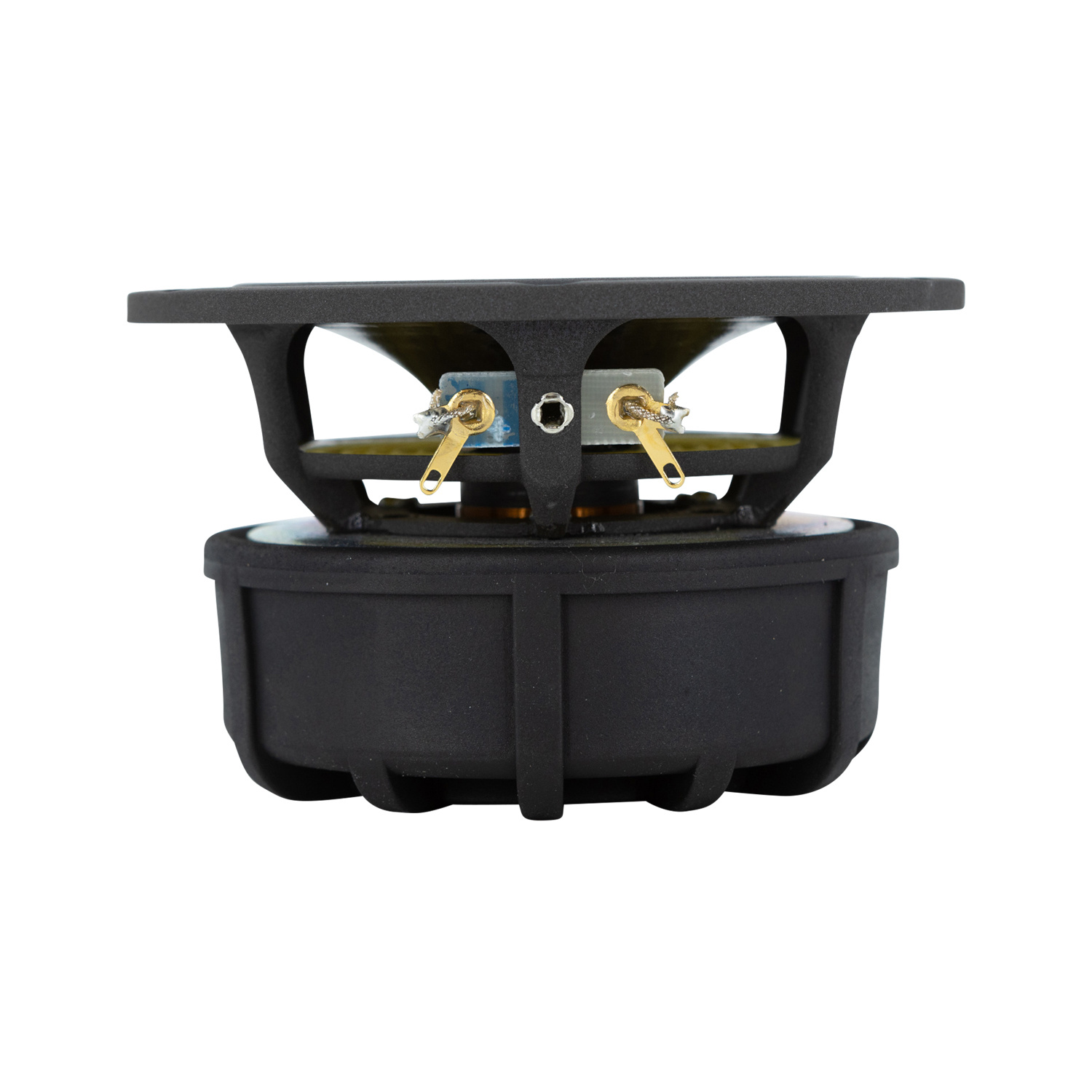

    An extremely stiff and stable injection molded Nextel coated metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

    Specificaties

    Artikelnummer
    W12CY003
    Woofer Series
    Excel Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    4,5"
    Power Handling (RMS)
    70 Watts
    Power Handling (max)
    200 Watts
    Impedance
    8 ohms
    Sensitivity
    85.5 dB 2.83V/1m
    Frequency Response
    60 to 3,500 Hz
    Voice Coil Diameter
    1.02"
    Magnet Weight
    14.8 oz.
    DC Resistance (Re)
    5.5 ohms
    Voice Coil Inductance (Le)
    0.41 mH
    Resonant Frequency (Fs)
    60 Hz
    Mechanical Q (Qms)
    2.30
    Electromagnetic Q (Qes)
    0.44
    Total Q (Qts)
    0.36
    Diaphragm Mass Inc. Airload (Mms)
    6.1g
    Mechanical Compliance of Suspension (Cms)
    1.2 mm/N
    Compliance Equivalent Volume (Vas)
    0.14 ft.³
    Maximum Linear Excursion (Xmax)
    3 mm
    Overall Outside Diameter
    4.74"
    Overall Depth
    2.81"
    Baffle Cutout Diameter
    3.9"
    Bolt Circle Diameter
    4.36"
    # Mounting Holes
    6

    Reviews

    5 from 5Based on 1 reviews
    Schrijf een review
    5 van 5
    Koper heeft geen omschrijving achtergelaten.
    Door Bram B. on 11 Februari 2021
