    SEAS Excel W12CY/001 - E0021-08S 4.5" Magnesium Cone Woofer

    € 199,95 1 Op voorraad: levertijd 1 werkdag
    The W12CY001 is a 12cm (4,5’’) cone driver developed for use as a high fidelity woofer/midrange unit. The extremely stiff, yet light cone gives tremendous bass precision and midrange detail. Precision cast and surface treated magnesium cone coupled to a n... Toon meer
    Volume voordeel Geniet van deze geweldige kortingsdeals
    • -5% Bestel 4 voor slechts €189,95 per stuk
    • Gratis verzending vanaf €99,
    • Voor 16u besteld, vandaag verstuurd*
    • Betaal met IDEAL, PayPal en meer
    • In-house technische support

    Productomschrijving

    Highlights

    • Long term power handling (RMS) is 70 Watts
    • Reduced non linear and modulation distortion
    • Extra large magnet system for good sensitivity and transient response



    Product details

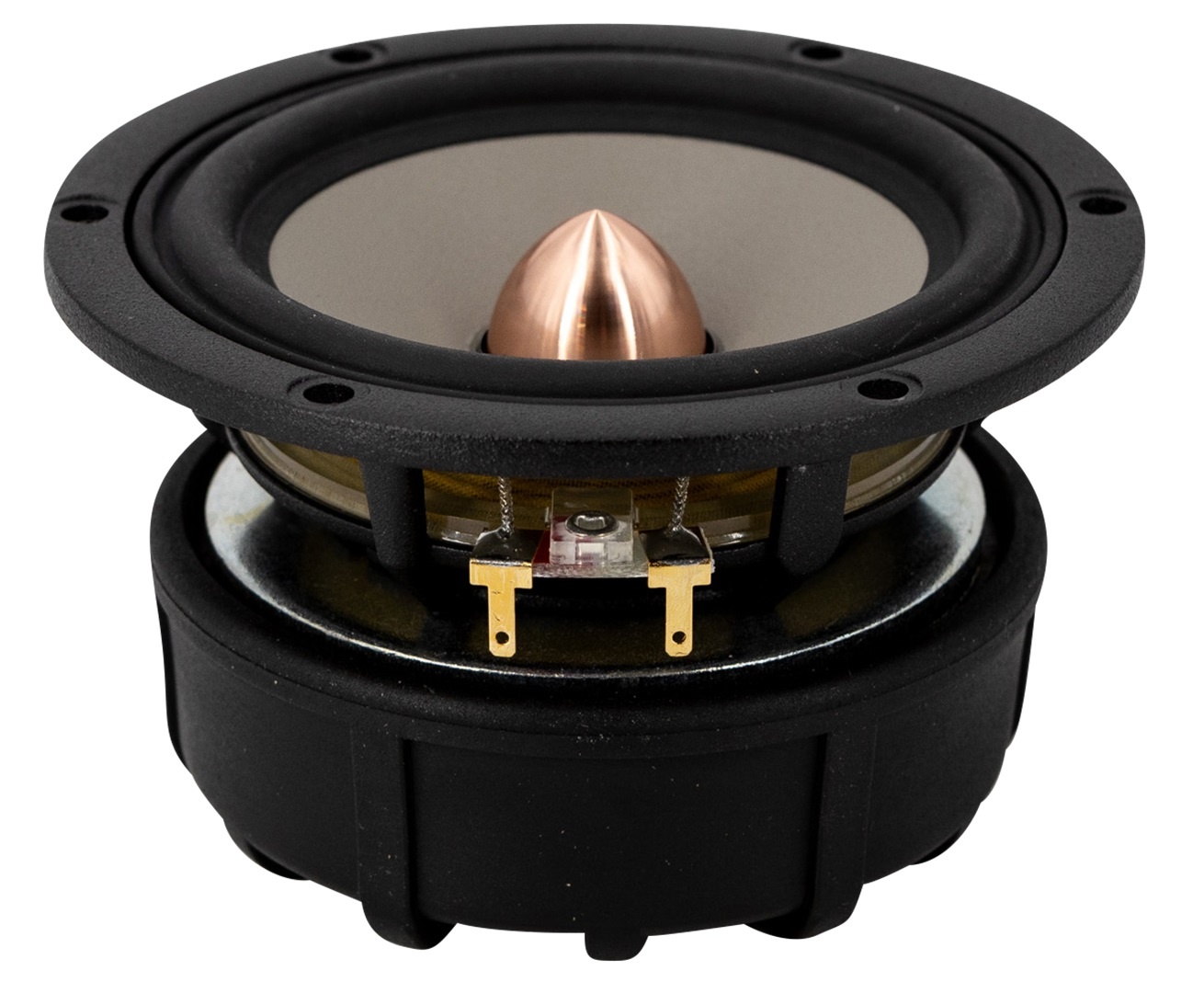

    Seas Excel W12CY/001 - E0021-08S 4.5" Magnesium Cone Woofer



    The W12CY001 is a 12cm (4,5’’) cone driver developed for use as a high fidelity woofer/midrange unit. The extremely stiff, yet light cone gives tremendous bass precision and midrange detail. Precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of midrange (edge) resonances.



    Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. An extra large magnet system for good sensitivity and transient response. Copper plating of the top and bottom plates and a solid copper phase plug, which enhance the performance of the copper rings and improve heat conduction away from the pole piece.



    Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

    Specificaties

    Artikelnummer
    W12CY/001
    Woofer Series
    Excel Series
    Woofer Type
    Midwoofer
    Nominal Diameter
    4,5"
    Power Handling (RMS)
    70 Watts
    Power Handling (max)
    200 Watts
    Impedance
    8 ohms
    Sensitivity
    84 dB 2.83V/1m
    Frequency Response
    60 to 3,500 Hz
    Voice Coil Diameter
    1.02"
    Magnet Weight
    14.8 oz.
    DC Resistance (Re)
    5.6 ohms
    Voice Coil Inductance (Le)
    0.43 mH
    Resonant Frequency (Fs)
    45 Hz
    Mechanical Q (Qms)
    2.50
    Electromagnetic Q (Qes)
    0.42
    Total Q (Qts)
    0.36
    Moving Mass Of Diaphragm (Mmd)
    7.5g
    Mechanical Compliance of Suspension (Cms)
    1.7 mm/N
    Compliance Equivalent Volume (Vas)
    0.21 ft.³
    Maximum Linear Excursion (Xmax)
    3 mm
    Overall Outside Diameter
    4.74"
    Overall Depth
    2.81"
    Baffle Cutout Diameter
    3.9"
    Bolt Circle Diameter
    4.36"
    # Mounting Holes
    6
